Scaled Graph Bounding Techniques for Reset Systems

Maurice Heemels; Sebastiaan van den Eijnden; Timo de Groot; Tom Oomen

arxiv: 2605.21119 · v1 · pith:RECXRQJ5new · submitted 2026-05-20 · 🧮 math.OC · cs.SY· eess.SY

Scaled Graph Bounding Techniques for Reset Systems

Timo de Groot , Maurice Heemels , Tom Oomen , Sebastiaan van den Eijnden This is my paper

Pith reviewed 2026-05-21 03:33 UTC · model grok-4.3

classification 🧮 math.OC cs.SYeess.SY

keywords reset systemsscaled graphsquadratic dissipativitypiecewise quadratic storage functionsover-boundinghybrid systemsgraphical analysisapproximation methods

0 comments

The pith

Scaled graph over-bounding for reset systems reduces exactly to searching for piecewise quadratic storage functions, yet sampling exposes a basic limitation in all quadratic dissipativity approximations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops over-bounding methods for the scaled graphs of reset systems so that graphical analysis and design tools can be built for them, much like loopshaping for linear systems. It uses the link between quadratic dissipativity and scaled graphs to turn the bounding task into the problem of finding suitable piecewise quadratic storage functions. Specific sampling procedures then demonstrate that any approximation relying on general quadratic dissipativity must have an inherent shortfall in accuracy. A reader cares because reset systems can beat the performance limits of ordinary linear controllers, and reliable graphical tools would make their design far more practical.

Core claim

We exploit connections between quadratic dissipativity and scaled graphs to recast the over-bounding problem as the search for piecewise quadratic storage functions. Using specific sampling techniques, we reveal a fundamental limitation of general scaled graph approximation methods that are based on quadratic dissipativity.

What carries the argument

The equivalence between quadratic dissipativity and scaled-graph over-bounding, which converts the bounding task into an optimization over piecewise quadratic storage functions.

If this is right

Over-bounding can be performed by solving existing optimization problems for piecewise quadratic functions.
The accuracy of the resulting bounds can be quantified directly from the sampling procedure.
Graphical loopshaping-style design becomes feasible for reset systems once the bounds are available.
No general quadratic-dissipativity method can avoid the identified limitation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same sampling approach could be used to test other dissipativity-based bounds in hybrid systems.
Control engineers working on mechanical or electronic reset systems might obtain practical performance guarantees from these over-bounds.
Extensions to higher-order or non-quadratic storage functions could remove the revealed limitation.

Load-bearing premise

The established connections between quadratic dissipativity and scaled graphs are tight enough to convert the over-bounding task exactly into a search for piecewise quadratic storage functions.

What would settle it

Take a simple reset system, compute its exact scaled graph over a grid of frequencies, and compare it to the tightest bound obtainable from any quadratic-dissipativity storage function; any persistent gap that sampling cannot close would disprove the claimed limitation or the exactness of the recasting.

Figures

Figures reproduced from arXiv: 2605.21119 by Maurice Heemels, Sebastiaan van den Eijnden, Timo de Groot, Tom Oomen.

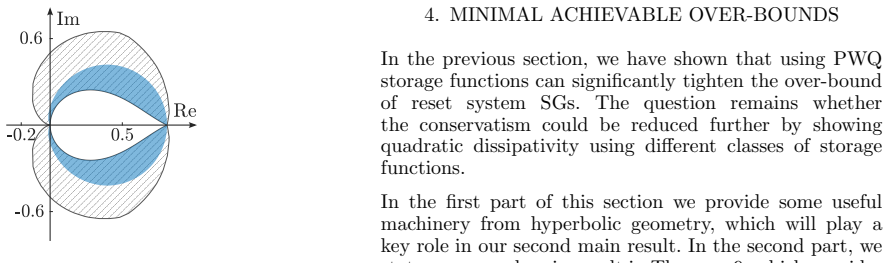

**Figure 1.** Figure 1: Over-bound of SG(R1) using PWQ storage functions (blue), and using common quadratic storage functions (hatched). The over-bound using PWQ storage functions is significantly smaller and thus less conservative, compared to the bound obtained using common quadratic storage functions. Having constructed the cell bounding matrices and the continuity matrices, we solve the optimization problem Prob with N = 40… view at source ↗

**Figure 2.** Figure 2: shows that the over approximation based on a PWQ storage function is smaller than the respective over-bound based on a common quadratic storage function [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: Examples of h-hulls of C = {z1, z2, z3} ⊂ C+ (blue) and C = {z1, z¯1, z2, z¯2, z3, z¯3} ∈ CS (hatched). definition of Z(R, U) we get Z(R, U) ⊂ SG(R), and from Lemma 2 we get SG(R) ⊂ SSG. Therefore, Z(R, U) ⊂ SSG. Taking the hyperbolic convex-hull on both sides gives h-hull(Z(R, U)) ⊂ h-hull(SSG) = SSG. (25) This concludes the proof. □ Note that in general h-hull(Z(R, U)) ⊈ SG(R). Theorem 9 shows that h-hul… view at source ↗

**Figure 4.** Figure 4: Over-bound SSG,1 of SG(R1) (blue region), Zms (black points), and h-hull(Zms) (black hatched region). Zms and h-hull(Zms) partially cover SSG,1 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

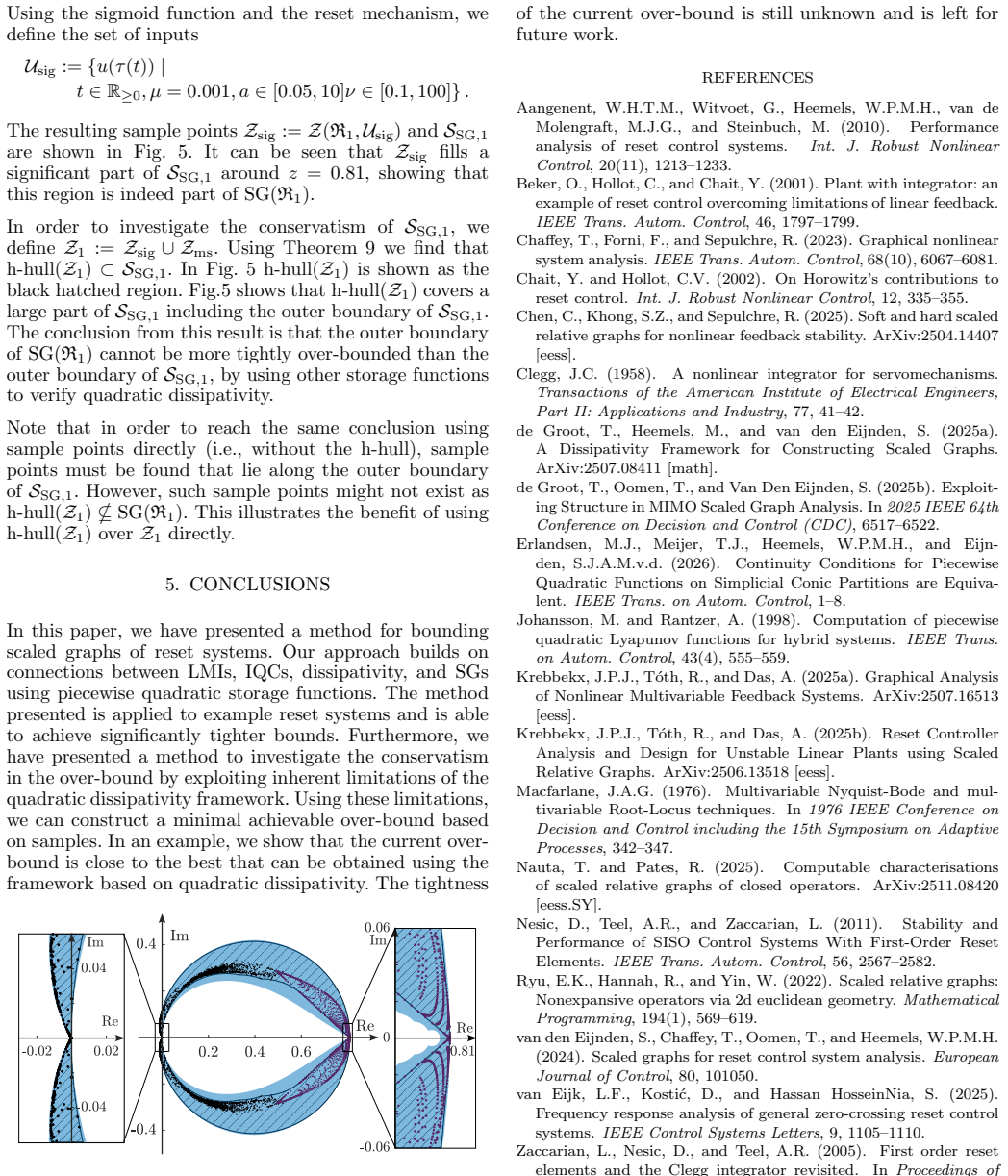

**Figure 5.** Figure 5: Over approximation SSG,1 of SG(R1) (blue region), Zms (black points), Zsig (purple points) and h-hull(Z1) (black hatched region). It can be seen that h-hull(Z1) and SSG,1 significantly overlap and that the outer boundary of h-hull(Z1) is close to the outer boundary of SSG,1. Therefore, the outer boundary of SG(R1) cannot be more tightly bounded by considering other classes of storage functions. of the cu… view at source ↗

read the original abstract

Reset systems can overcome fundamental limitations of linear time-invariant control. The recently introduced notion of scaled (relative) graphs provides a promising framework for developing graphical analysis and design tools for reset systems, in line with widely adopted loopshaping methods for linear systems. The aim of this paper is to derive techniques for over-bounding the scaled graph of reset systems, and obtain insights in their accuracy. We exploit connections between quadratic dissipativity and scaled graphs to recast the over-bounding problem as the search for piecewise quadratic storage functions. Using specific sampling techniques, we reveal a fundamental limitation of general scaled graph approximation methods that are based on quadratic dissipativity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper supplies concrete over-bounding methods for scaled graphs of reset systems by recasting the task as a piecewise quadratic storage function search, plus sampling observations on quadratic dissipativity limits.

read the letter

The key takeaway is that this work develops practical techniques for over-bounding the scaled graphs of reset systems and uses sampling to highlight a limitation in methods based on quadratic dissipativity. The authors do a solid job extending the recent scaled graph framework. By exploiting the link between quadratic dissipativity and scaled graphs, they turn the over-bounding task into finding piecewise quadratic storage functions. This seems like a useful way to get concrete bounds and could support graphical analysis and design for reset systems, much like loopshaping for linear systems. The sampling-based insights into accuracy are also a plus, giving some idea of how well these approximations work in practice. Where it is softer is the claim that sampling reveals a fundamental limitation of general scaled graph approximation methods. Sampling can demonstrate gaps for the chosen cases, but to establish that no quadratic storage function can close the gap in general, some analytical backing would help. The concern about whether the samples are representative enough is fair, and if the paper doesn't address that directly, the limitation might be more observed than proven. That said, the rest of the approach looks reasonable and not circular. This kind of work is aimed at control engineers and theorists dealing with reset systems and performance limits of linear control. Readers looking for new tools in hybrid system analysis or graphical methods would get something out of it. The paper engages honestly with prior results on scaled graphs without obvious self-fitting issues. I would recommend sending it for peer review to check the derivations, the sampling details, and any numerical validation.

Referee Report

1 major / 2 minor

Summary. The manuscript claims to derive over-bounding techniques for the scaled graphs of reset systems by exploiting connections between quadratic dissipativity and scaled graphs, thereby recasting the over-bounding problem exactly as a search for piecewise quadratic storage functions. It then applies specific sampling techniques to demonstrate a fundamental limitation of general scaled-graph approximation methods that rely on quadratic dissipativity.

Significance. If the limitation holds beyond the sampled instances, the work would usefully constrain expectations for quadratic-dissipativity-based graphical tools for reset systems and could inform the search for tighter, non-quadratic alternatives. The explicit recasting of the bounding task as a piecewise-quadratic storage-function problem is a constructive contribution that aligns with existing dissipativity theory.

major comments (1)

[Section describing the sampling techniques and numerical results] The central claim that specific sampling techniques reveal a 'fundamental limitation' of all quadratic-dissipativity-based scaled-graph approximations is load-bearing yet rests on finite samples. The abstract states that the over-bounding problem is recast as the search for piecewise quadratic storage functions; however, without an accompanying argument that no quadratic storage function outside the sampled set can close the observed gap, the limitation remains potentially sample-dependent rather than inherent to the entire class.

minor comments (2)

Clarify the precise sampling distribution and the stopping criterion used to declare that a gap cannot be closed; this would help readers assess whether the reported limitation is exhaustive within the quadratic class.
Add a short remark on how the piecewise-quadratic formulation relates to existing sum-of-squares or LMI relaxations for reset systems, to situate the contribution within the broader literature.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of the manuscript and the constructive comments. We address the major comment below.

read point-by-point responses

Referee: [Section describing the sampling techniques and numerical results] The central claim that specific sampling techniques reveal a 'fundamental limitation' of all quadratic-dissipativity-based scaled-graph approximations is load-bearing yet rests on finite samples. The abstract states that the over-bounding problem is recast as the search for piecewise quadratic storage functions; however, without an accompanying argument that no quadratic storage function outside the sampled set can close the observed gap, the limitation remains potentially sample-dependent rather than inherent to the entire class.

Authors: The sampling techniques are constructed to provide a dense covering of the relevant state, input, and reset-event domains for the systems under study, with the explicit goal of testing whether any quadratic storage function (equivalently, any quadratic dissipativity certificate) can close the gap. Because the over-bounding task is exactly equivalent to the existence of a piecewise-quadratic storage function satisfying the associated LMIs, the consistent positive gap observed across this dense sample set supplies numerical evidence that the limitation is structural rather than an artifact of sparse sampling. We acknowledge, however, that a general proof ruling out every possible quadratic storage function (sampled or unsampled) is not supplied. We will therefore revise the manuscript to (i) describe the sampling density and its relation to the dissipativity LMIs in greater detail and (ii) qualify the claim as “strong numerical evidence of a fundamental limitation” while retaining the original abstract wording that the limitation is revealed by the sampling procedure. revision: partial

Circularity Check

0 steps flagged

No significant circularity; sampling-based limitation claim is independent of fitted inputs or self-referential definitions

full rationale

The paper exploits connections between quadratic dissipativity and scaled graphs to recast over-bounding as a piecewise quadratic storage function search, then applies specific sampling techniques to identify a limitation of quadratic dissipativity-based approximations. This does not reduce any prediction or central result to a quantity defined by parameters fitted within the paper, nor does it invoke self-citations as load-bearing uniqueness theorems. The derivation chain remains self-contained, with the limitation claim arising from external sampling evidence rather than by construction from the inputs or prior self-referential steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that quadratic dissipativity connects directly to scaled graphs in a way that permits exact recasting as a piecewise-quadratic storage-function search; no free parameters or invented entities are visible from the abstract.

axioms (1)

domain assumption Quadratic dissipativity connects to scaled graphs such that over-bounding reduces to searching for piecewise quadratic storage functions
Invoked to recast the over-bounding problem (abstract).

pith-pipeline@v0.9.0 · 5641 in / 1213 out tokens · 37967 ms · 2026-05-21T03:33:11.044077+00:00 · methodology

discussion (0)
