TRCGL-Net: A Long-Tailed Multi-Label Chest X-Ray Classification Framework with Generative Data Augmentation and Label Co-Occurrence Modeling

Tong Shao , Hongshun Ling , Li Zhang , Jinjing Wu , Junke Wang , Yuan Gao , Fang Wang This is my paper

Pith reviewed 2026-07-02 13:39 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords long-tailed distributionmulti-label classificationchest X-raydiffusion modelgraph convolution networkdata augmentationmedical imaging
0
0 comments X

The pith

TRCGL-Net uses a text-guided diffusion model to generate rare-disease chest X-ray images and a label co-occurrence graph to improve tail-class detection in long-tailed multi-label settings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that long-tailed distributions in chest X-ray data degrade rare-disease performance because tail lesions are attenuated by background anatomy and head classes dominate co-occurrence patterns. It counters this by generating additional tail-class samples with a learnable text-guided conditional diffusion model that respects disease semantics, then applies channel reweighting and class-aware attention to sharpen relevant features, and finally propagates information across categories with a label-co-occurrence graph convolution network. A sympathetic reader would care because clinical datasets are almost always imbalanced and better recognition of infrequent pathologies can directly affect diagnostic accuracy. The reported gains on PadChest are presented as evidence that these components together close the gap between head and tail classes.

Core claim

TRCGL-Net addresses long-tailed multi-label chest X-ray classification by generating high-quality tail-class samples via a learnable text-guided conditional diffusion model under disease semantic constraints, recalibrating features with channel reweighting and class-aware attention, and modeling label dependencies with a graph convolution network based on co-occurrence statistics, resulting in a tail-class mAP of 0.4904, overall mAP of 0.4408, and mAUC of 0.8989 on the PadChest dataset while outperforming prior methods.

What carries the argument

Learnable text-guided conditional diffusion model that generates tail-class chest X-ray images under explicit disease semantic constraints, paired with a label-co-occurrence graph convolution network for cross-category information propagation.

If this is right

  • Tail-class mAP reaches 0.4904 and overall mAP reaches 0.4408 on PadChest.
  • The framework reduces the performance penalty caused by extreme class imbalance.
  • Class-specific attention maps localize fine-grained lesion regions more effectively.
  • Label co-occurrence modeling allows information from head classes to support tail classes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same generative-plus-graph approach could transfer to other long-tailed medical imaging tasks such as CT or MRI classification.
  • The diffusion model’s semantic constraints might be relaxed or tightened to study the trade-off between sample diversity and label fidelity.
  • Replacing the graph convolution with a learned attention graph could test whether explicit co-occurrence statistics are necessary.

Load-bearing premise

The synthetic tail-class images preserve pathology-consistent semantics and do not introduce artifacts that degrade the downstream classifier.

What would settle it

An experiment in which adding the generated images produces no gain or a loss in tail-class mAP on a held-out set of real images, or in which radiologists flag semantic inconsistencies between the synthetic samples and real pathology.

Figures

Figures reproduced from arXiv: 2607.00975 by Fang Wang, Hongshun Ling, Jinjing Wu, Junke Wang, Li Zhang, Tong Shao, Yuan Gao.

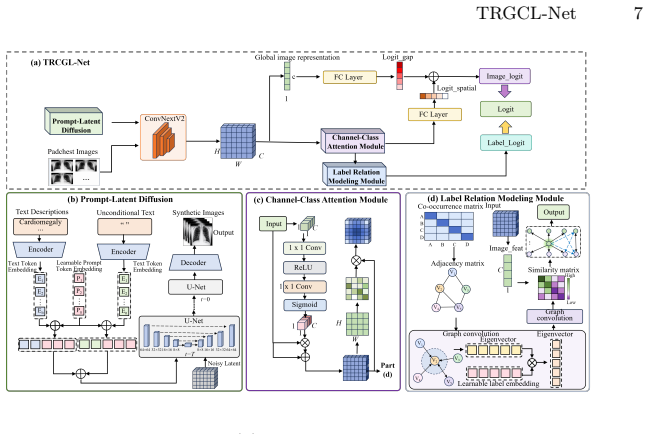

Figure 1
Figure 1. Figure 1: Overview of TRCGL-Net. (b) Learnable text-guided prompt-latent diffusion with CLIP-based semantic conditioning and trainable context tokens for disease-guided tail-class synthesis under severe class imbalance. (c) ConvNeXtV2-based channel-class attention for enhancing tail-class discriminative features via channel reweighting and lesion-aware spatial . (d) GCN-based label co-occurrence modeling for inter-c… view at source ↗

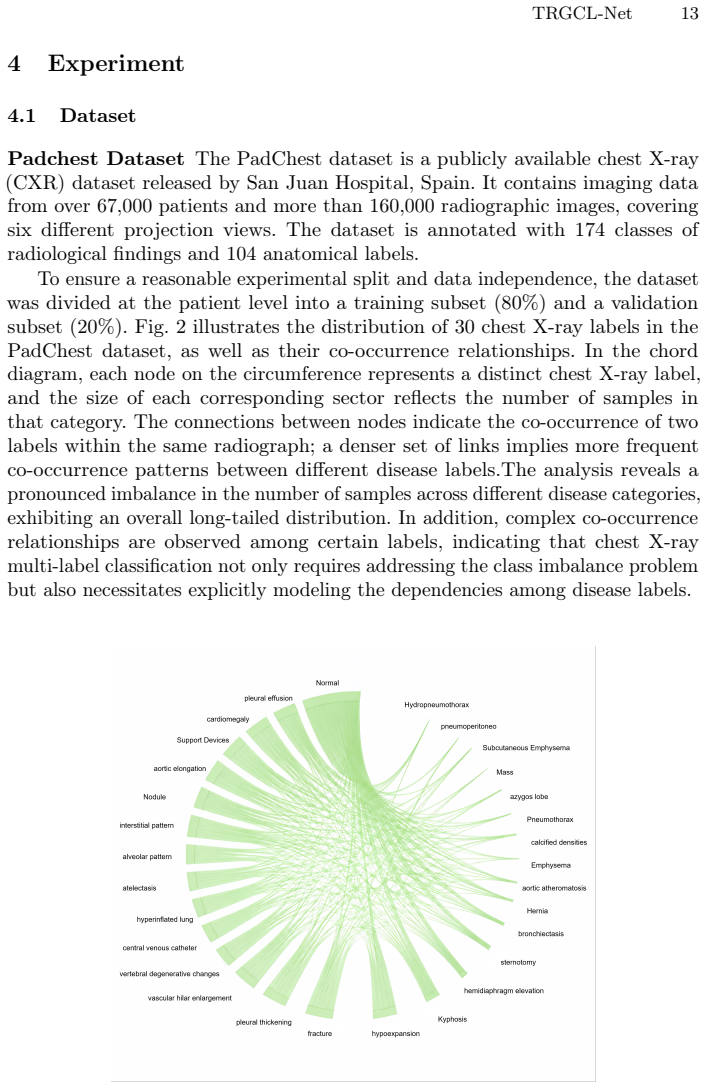

Figure 2
Figure 2. Figure 2: Label Distribution and Co-occurrence Analysis of 30 Classes in the PadChest Dataset [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗

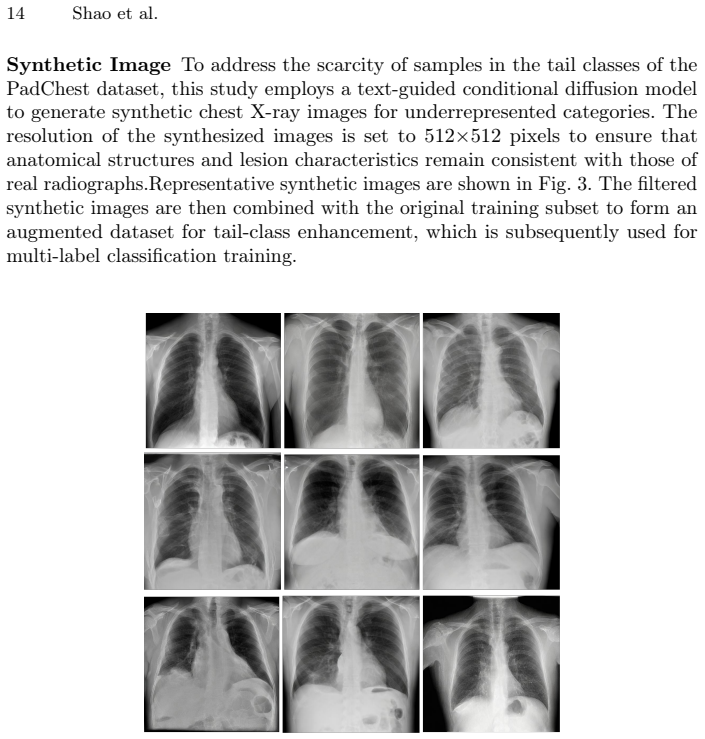

Figure 3
Figure 3. Figure 3: Synthetic chest X-ray images generated by a learnable text-guided diffusion model 4.2 Experimental setup All experiments were conducted on a computing platform equipped with an NVIDIA GeForce RTX 4090 GPU, and both model training and inference were implemented using the PyTorch framework. All input images were uniformly resized to 224 × 224 pixels and normalized to ensure training stability and reproducibi… view at source ↗

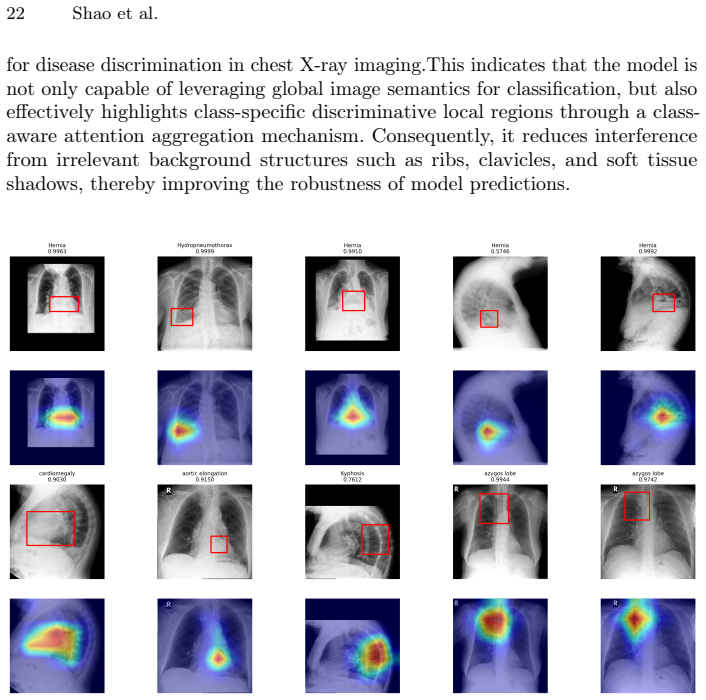

Figure 4
Figure 4. Figure 4: Visualization of Class Decision Regions in TRCGL-Net Multi-label prediction results and corresponding confidence scores for different test samples [PITH_FULL_IMAGE:figures/full_fig_p022_4.png] view at source ↗

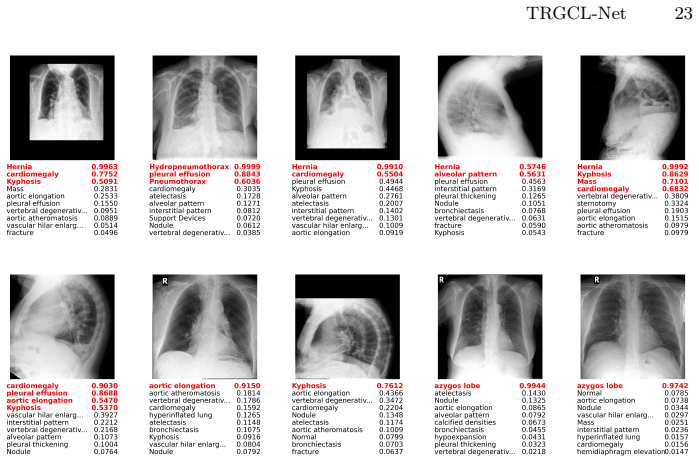

Figure 5
Figure 5. Figure 5: Visualization of Multi-Label Prediction Confidence in TRCGL-Net 5 Conclusion To address the challenges of long-tailed multi-label chest X-ray classification, including severe sample imbalance in tail classes, subtle lesion characteristics, and insufficient exploitation of label co-occurrence information, this study proposes the TRCGL-Net framework. The proposed method integrates a learnable text￾guided con… view at source ↗
read the original abstract

Chest X-ray multi-label classification is a core task in intelligent medical imaging diagnosis. However, real clinical data often exhibit extreme long-tailed distributions, leading to degraded performance on rare diseases in tail classes. This issue is not only driven by data scarcity but also by two intrinsic factors:1) attenuation of tail-class lesion representations under complex anatomical backgrounds, and 2) dominance of head classes in modeling label co-occurrence relationships. To address these challenges, we propose TRCGL-Net. First, a learnable text-guided conditional diffusion model is employed to generate high-quality tail-class chest X-ray image samples under disease semantic constraints, improving data diversity and realism of rare disease patterns while alleviating class imbalance and preserving pathology-consistent semantics.Second, a channel reweighting mechanism is introduced to perform feature recalibration by emphasizing disease-relevant feature channels, thereby improving feature discriminability under long-tailed distributions.A class-aware attention mechanism is further applied to generate class-specific attention maps, enabling the model to localize disease-relevant regions and focus on fine-grained lesion areas.Finally, a graph convolution network based on label co occurrence is introduced to establish an information propagation mechanism among categories. Experiments on the PadChest dataset show that the proposed method achieves a tail-class mAP of 0.4904, an overall mAP of 0.4408, and an mAUC of 0.8989, outperforming state-of-the-art methods. TRCGL-Net effectively improves recognition performance for rare diseases under long-tailed distributions and mitigates the impact of extreme class imbalance in chest X-ray multi-label classification.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript proposes TRCGL-Net for long-tailed multi-label chest X-ray classification. It uses a learnable text-guided conditional diffusion model to generate tail-class samples under disease semantic constraints, a channel reweighting mechanism for feature recalibration, a class-aware attention mechanism for localizing lesion areas, and a graph convolution network based on label co-occurrence for information propagation. On the PadChest dataset, it reports tail-class mAP of 0.4904, overall mAP of 0.4408, and mAUC of 0.8989, outperforming state-of-the-art methods.

Significance. If the generative augmentation produces pathology-consistent samples that demonstrably improve tail-class performance without introducing artifacts, and if the other modules contribute independently, the work could meaningfully advance handling of extreme class imbalance in medical multi-label tasks. The combination of conditional diffusion with attention and GCN-based co-occurrence modeling targets two stated intrinsic factors (representation attenuation and head-class dominance) in a coherent way.

major comments (2)
  1. [Abstract] Abstract: The headline performance numbers (tail mAP 0.4904, overall mAP 0.4408, mAUC 0.8989) are stated without any experimental protocol, baseline details, statistical tests, ablation results, or dataset split information, so it is impossible to attribute gains to the diffusion model versus the channel reweighting, class-aware attention, or GCN modules.
  2. [Abstract] Abstract: The central claim that the text-guided diffusion model 'preserves pathology-consistent semantics' while alleviating imbalance lacks any supporting quantitative evidence (e.g., pathology-specific distribution metrics, radiologist ratings of generated vs. real images, or an ablation isolating the generative component), leaving open the possibility that reported gains arise from non-generative modules or from artifacts on this particular PadChest split.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment below and will revise the abstract accordingly to improve clarity and context while preserving its conciseness.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline performance numbers (tail mAP 0.4904, overall mAP 0.4408, mAUC 0.8989) are stated without any experimental protocol, baseline details, statistical tests, ablation results, or dataset split information, so it is impossible to attribute gains to the diffusion model versus the channel reweighting, class-aware attention, or GCN modules.

    Authors: We agree that the abstract would benefit from additional context on the experimental setup. The full manuscript details the PadChest dataset, the train/validation/test splits, comparison against multiple state-of-the-art baselines, ablation studies isolating each component (including the diffusion model), and evaluation metrics in Sections 4 and 5. In the revised version we will expand the abstract with a brief clause such as 'evaluated on PadChest with ablations demonstrating module contributions' to help readers attribute gains without exceeding typical abstract length limits. revision: yes

  2. Referee: [Abstract] Abstract: The central claim that the text-guided diffusion model 'preserves pathology-consistent semantics' while alleviating imbalance lacks any supporting quantitative evidence (e.g., pathology-specific distribution metrics, radiologist ratings of generated vs. real images, or an ablation isolating the generative component), leaving open the possibility that reported gains arise from non-generative modules or from artifacts on this particular PadChest split.

    Authors: The manuscript supports the claim through ablation experiments that isolate the generative augmentation's contribution to tail-class mAP gains, along with qualitative examples of generated images. We will revise the abstract to reference these ablations explicitly. The current study does not include radiologist ratings or pathology-specific distribution metrics such as FID per disease; these would require additional expert evaluation and are noted as potential future work rather than part of the present evidence. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical framework with independent components

full rationale

The paper presents TRCGL-Net as a composite architecture (text-guided diffusion for tail-class augmentation, channel reweighting, class-aware attention, and GCN on label co-occurrence) whose performance is measured empirically on PadChest. No equations, fitted parameters renamed as predictions, or self-citation chains are described that would reduce any claimed result to its inputs by construction. The abstract and skeptic summary supply no load-bearing derivation that collapses; results are reported as experimental outcomes (tail mAP 0.4904 etc.) rather than algebraic identities.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review prevents exhaustive enumeration; the central claim rests on the unverified premise that synthetic images generated by the diffusion model are distributionally faithful to real tail-class pathology.

axioms (1)
  • domain assumption A learnable text-guided conditional diffusion model can generate high-quality, pathology-consistent tail-class chest X-ray samples under disease semantic constraints.
    Invoked in the first paragraph of the abstract as the solution to data scarcity.

pith-pipeline@v0.9.1-grok · 5845 in / 1222 out tokens · 21075 ms · 2026-07-02T13:39:15.274172+00:00 · methodology
