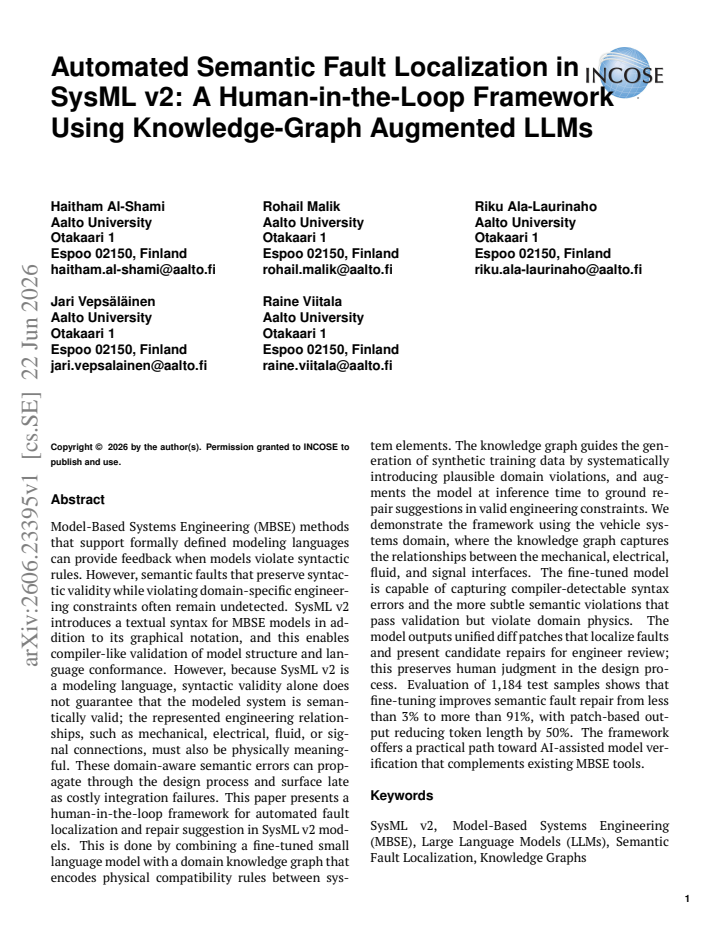

Automated Semantic Fault Localization in SysML v2: A Human-in-the-Loop Framework Using Knowledge-Graph Augmented LLMs

Haitham Al-Shami , Rohail Malik , Riku Ala-Laurinaho , Jari Veps\"al\"ainen , Raine Viitala This is my paper

Pith reviewed 2026-06-26 07:32 UTC · model grok-4.3

classification 💻 cs.SE cs.AI
keywords SysML v2semantic fault localizationknowledge graphsmall language modelsmodel-based systems engineeringhuman-in-the-loopunified diff patchesfine-tuning
0
0 comments X

The pith

A knowledge graph and fine-tuned small language model localize semantic faults in SysML v2 models and suggest repairs as unified diff patches at over 91 percent success.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a framework that pairs a domain knowledge graph of physical compatibility rules with fine-tuned small language models to detect and repair semantic errors in SysML v2 models. These errors pass syntactic checks yet violate engineering constraints such as interface compatibility in vehicle systems. The graph supplies synthetic training examples by inserting plausible violations and later constrains the model's repair suggestions at inference time. Two models are fine-tuned to emit unified diff patches that localize the fault and offer candidate fixes. On 1,184 test samples this raises successful repair from under 3 percent to over 91 percent while shrinking output token length by more than 60 percent.

Core claim

The framework combines a knowledge graph encoding physical compatibility rules with fine-tuned small language models to automatically localize semantic faults in SysML v2 models and suggest repairs as unified diff patches. The graph generates synthetic training data by introducing plausible violations and augments inference to ensure suggestions respect domain constraints. Evaluation shows fine-tuning boosts repair success from less than 3% to more than 91% on 1,184 samples in the vehicle systems domain.

What carries the argument

Knowledge-graph-augmented fine-tuned small language model that outputs unified diff patches for semantic fault localization and repair.

If this is right

  • Semantic violations that survive compiler checks can be caught and presented as candidate patches before they reach integration testing.
  • Patch-based output reduces the length of model suggestions by more than 60 percent compared with full rewritten models.
  • The human engineer retains final judgment because the system produces reviewable diffs rather than autonomous edits.
  • The same knowledge-graph approach can in principle be rebuilt for other SysML v2 domains once their interface rules are encoded.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the graph can be maintained as designs evolve, the method could serve as a continuously updated guardrail inside existing MBSE toolchains.
  • Early localization of interface mismatches might shorten the feedback loop between modeling and physical prototyping in complex systems.
  • The synthetic-data generation step could be reused to stress-test other verification tools that currently rely only on syntactic rules.

Load-bearing premise

The knowledge graph fully and accurately encodes the physical compatibility rules and the synthetic violations it generates match the semantic errors engineers actually make.

What would settle it

Apply the trained model to a collection of real SysML v2 vehicle models that contain documented semantic faults introduced by practicing engineers and measure whether repair success stays above 50 percent.

Figures

Figures reproduced from arXiv: 2606.23395 by Haitham Al-Shami, Jari Veps\"al\"ainen, Raine Viitala, Riku Ala-Laurinaho, Rohail Malik.

Figure 1

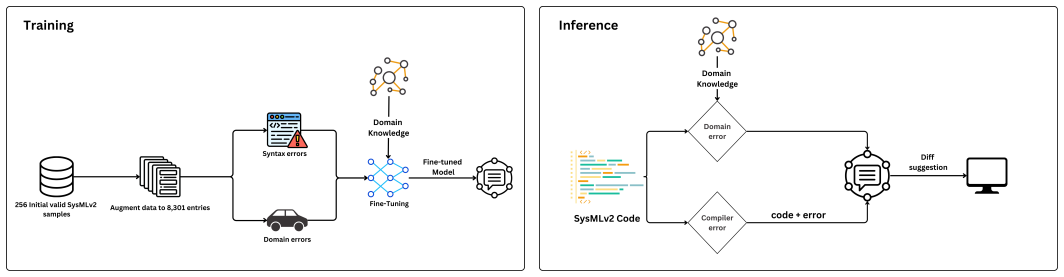

Figure 1. Figure 1: Overview of the proposed framework. A base corpus of 256 valid SysML v2 samples is augmented through heuristic [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

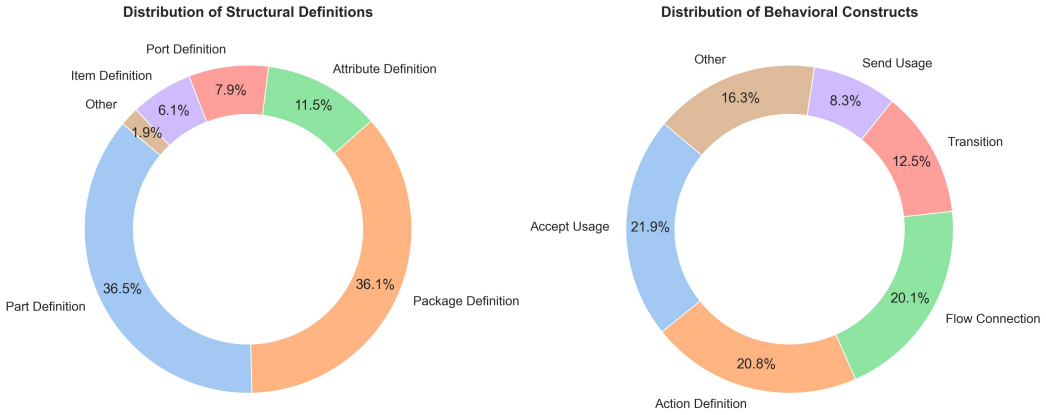

Figure 2. Figure 2: Breakdown of the structural and behavioral elements of the SysMLv2 code in the dataset [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

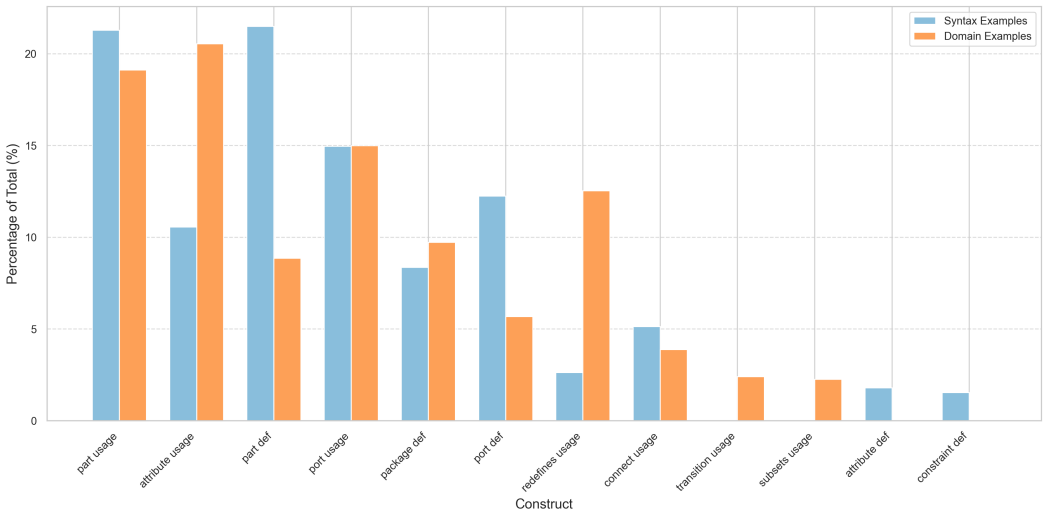

Figure 3. Figure 3: Representation of different constructs in syntax and domain/semantic error examples [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

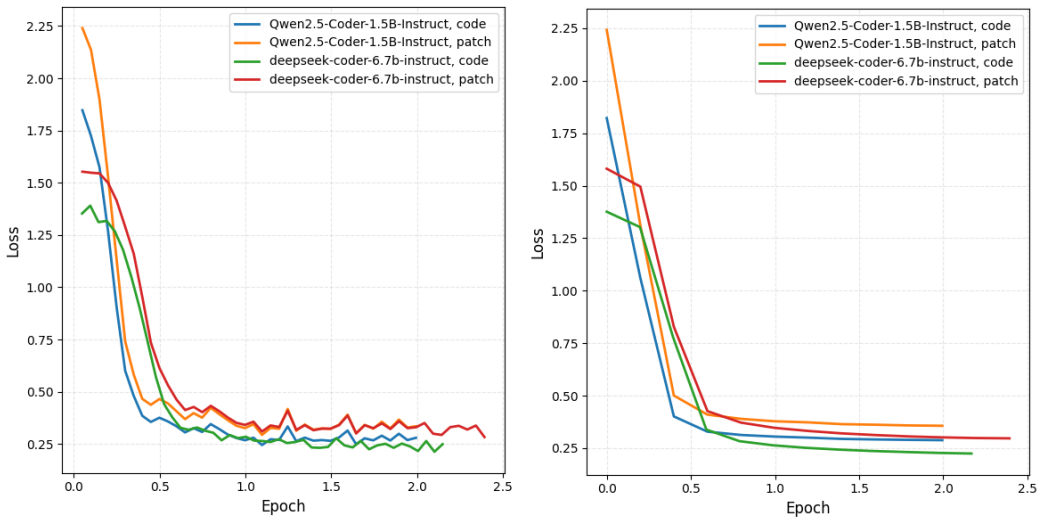

Figure 4. Figure 4: Losses over training (left) and evaluation (right) datasets during training. Training is set to last 3 epochs, but is early [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
