Logistic Gene Regulatory Networks: A Modelling Framework Beyond Hill Functions

Ismail Belgacem This is my paper

Pith reviewed 2026-06-27 11:19 UTC · model grok-4.3

classification 🧮 math.DS
keywords gene regulatory networksBoolean networkslogistic functionsdifferential equationsrecovery theoremsteady statesHill functionscell cycle model
0
0 comments X

The pith

A product-of-logistics translation turns Boolean gene rules into continuous models where every Boolean steady state becomes an exponentially stable equilibrium for steep enough responses.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a method to convert Boolean logic descriptions of gene regulation into systems of differential equations. It replaces Hill functions with a recursive combination of logistic activation and repression terms that always produces values between zero and one while keeping a positive basal production rate. The central theorem shows that this translation recovers all fixed points of the original Boolean network as stable equilibria of the continuous system once the logistic curves become sufficiently steep. The approach is applied to small motifs and an eleven-gene cell-cycle model, where it reproduces the expected limit cycle without introducing artificial zero-production states. Because the construction is purely structural, it works on any existing Boolean model.

Core claim

The central claim is a recovery theorem: every steady state of the Boolean network reappears, for sufficiently steep response, as an exponentially stable equilibrium of the continuous model, so the translation provably refines rather than distorts the Boolean analysis.

What carries the argument

The recursive De Morgan product of increasing and decreasing logistic functions that converts an arbitrary Boolean rule into a continuous regulatory function confined to the unit interval.

If this is right

  • The continuous models are globally well-posed and forward-invariant.
  • The negative-feedback two-gene oscillator is globally asymptotically stable.
  • The toggle switch admits an explicit closed-form bistability threshold expressed in positive concentrations.
  • Automatic translation of the eleven-gene Traynard network produces a sustained limit cycle that matches the Boolean cyclic attractor.
  • The translation supports exact feedback linearisation for control of the resulting ODE systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same structural translation could be applied to any Boolean model in the literature without rewriting the logical rules.
  • Because thresholds remain positive concentrations, parameter fitting to experimental data becomes more direct than in weighted-sum logistic models.
  • The recovery property suggests that Boolean attractors can serve as reliable initial guesses for numerical continuation in the continuous system.

Load-bearing premise

Regulatory functions are constructed via a recursive De Morgan product of logistic functions that confines every function to the unit interval while retaining a strictly positive basal rate.

What would settle it

Observe whether, as the steepness parameter of the logistic functions tends to infinity, every Boolean steady state fails to become an equilibrium or loses exponential stability in the resulting ODE system.

Figures

Figures reproduced from arXiv: 2606.11028 by Ismail Belgacem.

Figure 1
Figure 1. Figure 1: Architecture of a two-gene negative feedback loop. Gene A activates gene B (blue [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2

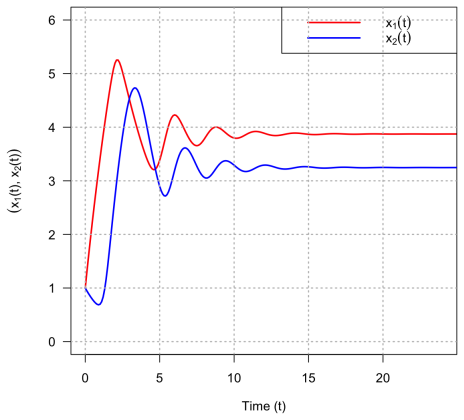

Figure 2. Figure 2: Temporal evolution of the two-gene oscillator system ( [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3

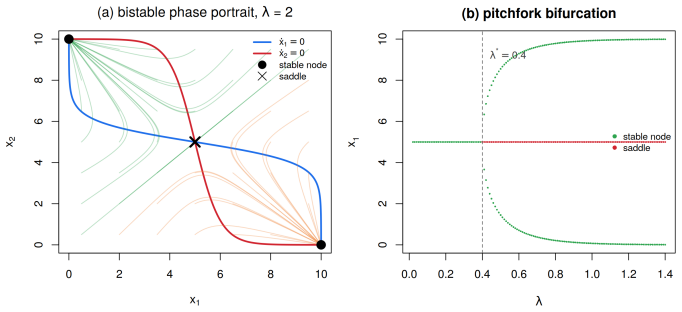

Figure 3. Figure 3: Logistic genetic toggle switch (5) integrated in R, with symmetric parameters κ = 10, γ = 1, θ = 5. (a) Bistable phase portrait at λ = 2: nullclines x˙ 1 = 0 (blue) and x˙ 2 = 0 (red), the two stable nodes (filled circles), the saddle (cross), and trajectories from a grid of initial conditions, coloured by the basin they reach. (b) Bifurcation diagram: the equilibrium coordinate x ∗ 1 against the steepness… view at source ↗
Figure 4

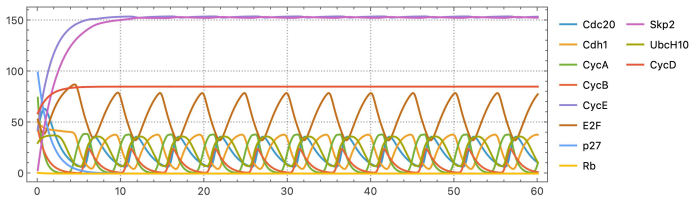

Figure 4. Figure 4: Temporal evolution of the 11-gene Traynard cell-cycle logistic ODE system over [PITH_FULL_IMAGE:figures/full_fig_p027_4.png] view at source ↗
Figure 5

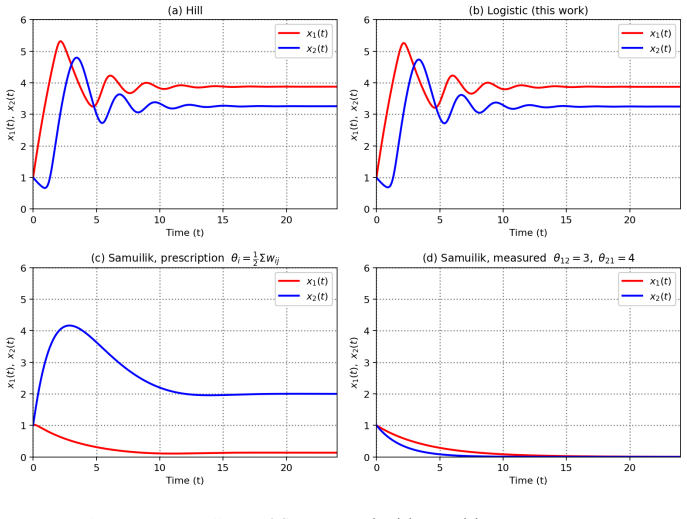

Figure 5. Figure 5: The two-gene oscillator of Section 3.1 (x1(0) = x2(0) = 1, integration as in Fig￾ure 2) under four formulations of the same circuit, all drawn on a common scale. (a) Hill functions (32), slope-matched via n = λθ (n1 = 12, n2 = 9). (b) Product-of-logistics (this work), equation (31), λ = 3. (c) Samuilik weighted sum (33) under the prescribed shared thresholds θi = 1 2 P j wij (i.e. θ12 = − 1 2 , θ21 = + 1 2… view at source ↗
Figure 6

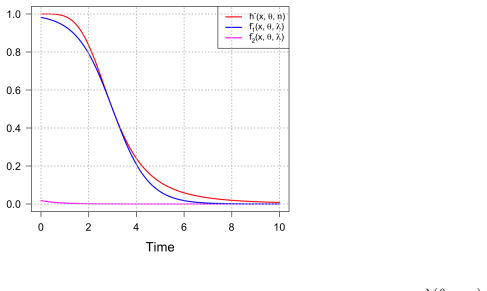

Figure 6. Figure 6: Comparison of the decreasing logistic functions [PITH_FULL_IMAGE:figures/full_fig_p034_6.png] view at source ↗
read the original abstract

Boolean networks model gene regulatory networks, but extracting quantitative dynamics requires translating their logical rules into differential equations, and the sigmoidal kernel chosen carries direct biological consequences. The near-universal choice, the Hill function, sets production to exactly zero when an activator is absent, creating a spurious absorbing off-state with no biological counterpart. We develop a product-of-logistics framework in which increasing logistic functions represent activation, decreasing logistic functions represent repression, and a recursive De Morgan product formula translates an arbitrary Boolean rule into a continuous regulatory function. The translation is automatic, confines every regulatory function to the unit interval, and retains a strictly positive basal rate. Our central result is a recovery theorem: every steady state of the Boolean network reappears, for sufficiently steep response, as an exponentially stable equilibrium of the continuous model, so the translation provably refines rather than distorts the Boolean analysis. We establish global well-posedness, forward invariance, and an explicit Lipschitz constant, and prove, for the two canonical two-gene motifs, global asymptotic stability of the negative-feedback oscillator and a closed-form bistability threshold for the toggle switch. Every threshold remains a positive, measurable concentration, unlike weighted-sum logistic formulations that place repressor thresholds at meaningless negative values. The eleven-gene Traynard mammalian cell-cycle network is translated automatically: in the proliferative regime its trajectories settle onto a sustained limit cycle reproducing the Boolean cyclic attractor. Because it is purely structural, the translation applies unchanged to existing Boolean models and supports exact feedback linearisation for control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript develops a product-of-logistics framework to translate arbitrary Boolean gene regulatory networks into continuous ODEs. Increasing and decreasing logistic functions are combined via a recursive De Morgan product to produce regulatory functions that map into (0,1] while retaining a strictly positive basal production rate. The central result is a recovery theorem asserting that every Boolean steady state reappears as an exponentially stable equilibrium of the continuous system for sufficiently large steepness. The authors prove global well-posedness, forward invariance of the unit hypercube, and an explicit Lipschitz constant; they derive closed-form results for the negative-feedback oscillator and toggle-switch motifs; and they show that the automatically translated Traynard 11-gene cell-cycle network produces a sustained limit cycle matching the Boolean cyclic attractor. The translation is purely structural and therefore applies directly to existing Boolean models.

Significance. If the recovery theorem and supporting global-existence results hold, the framework supplies a mathematically rigorous, biologically preferable alternative to Hill-function translations that avoids spurious zero-production states and negative thresholds. The explicit Lipschitz constant, closed-form motif analysis, and automatic applicability to existing Boolean models are concrete strengths that facilitate both analysis and control design. The 11-gene example demonstrates scalability. These features position the work as a useful bridge between discrete logical models and quantitative dynamical systems in systems biology.

minor comments (3)
  1. The abstract refers to the steepness parameter only descriptively ('sufficiently steep response'); the first appearance of its symbol and the precise statement of the recovery theorem should include an explicit lower bound or scaling relation so that readers can immediately locate the quantitative content of the main result.
  2. In the section presenting the 11-gene Traynard network, the statement that trajectories 'settle onto a sustained limit cycle' appears to rest on numerical integration; the integration scheme, step-size control, and tolerance used to confirm the periodic orbit should be stated explicitly for reproducibility.
  3. A short illustrative example (e.g., the Boolean rule for a single activator AND repressor) showing the recursive De Morgan construction step-by-step would clarify the automatic translation procedure before the general theorem is stated.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive and constructive review of our manuscript. The recommendation for minor revision is appreciated, and we note that no specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper defines a structural translation from Boolean rules to continuous regulatory functions via recursive De Morgan products of logistic functions, then states and proves a recovery theorem showing Boolean steady states reappear as exponentially stable equilibria for large steepness. This theorem, along with well-posedness, invariance, and explicit results for two-gene motifs, is presented as independently derived content rather than reducing by construction to the input Boolean network or to any fitted parameters. No self-citations, ansatzes smuggled via prior work, or renamings of known results appear as load-bearing steps in the described derivation chain.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The framework rests on the choice of logistic functions and the De Morgan product construction; no explicit free parameters or invented entities are named in the abstract.

free parameters (1)
  • steepness parameter
    The response steepness must be taken sufficiently large for the recovery theorem to apply, though no specific fitting procedure is described.
axioms (2)
  • domain assumption Logistic functions suitably model graded activation and repression while ensuring positive basal expression
    Invoked to replace Hill functions and guarantee strictly positive basal rate.
  • standard math Recursive application of De Morgan laws yields a valid continuous regulatory function for any Boolean rule
    Used to define the product formula that translates arbitrary Boolean rules.

pith-pipeline@v0.9.1-grok · 5795 in / 1479 out tokens · 34240 ms · 2026-06-27T11:19:31.708212+00:00 · methodology
