Cross-scale spatially-aware generative modeling of transcriptomic programs underlying neurodegenerative brain organization

Krishnakumar Vaithianathan (for the Alzheimer's Disease Neuroimaging Initiative) This is my paper

Pith reviewed 2026-06-27 22:59 UTC · model grok-4.3

classification 🧬 q-bio.NC cs.LGq-bio.QM
keywords neurodegenerationtranscriptomicsgenerative modelingAlzheimer's diseasecortical thinningvariational architecturespatial regularizationimaging transcriptomics
0
0 comments X

The pith

A variational generative model trained on regional gene expression predicts Alzheimer's cortical thinning with 0.86 explained variance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a cross-scale generative framework that learns latent transcriptomic programs from gene expression profiles across 68 cortical regions to model how molecular organization produces patterns of cortical degeneration. Regional transcriptomic data from the Allen Atlas using 910 landmark genes is combined with ADNI-derived maps of cortical thinning between controls and Alzheimer's subjects. A variational architecture with graph-based spatial smoothness regularization is trained to link these scales, achieving an explained variance of 0.8604 and spatial correlation r=0.9439. If correct, this shows that biologically constrained generative models can extract structured representations of disease susceptibility rather than relying on direct correlations between genes and imaging phenotypes.

Core claim

The central claim is that a spatially-aware variational generative model can learn latent biological programs from regional transcriptomic profiles that predict regional neurodegenerative vulnerability, demonstrated by strong prediction performance on ADNI cortical thinning data and structured latent representations tied to distributed disease susceptibility.

What carries the argument

Variational generative architecture with graph-based spatial smoothness regularization, trained on 68-region transcriptomic profiles to predict cortical degeneration maps.

If this is right

  • The learned latent representations identify structured transcriptomic organization linked to distributed disease susceptibility.
  • Biologically constrained generative modeling can bridge microscale molecular data with macroscale neurodegeneration patterns.
  • This approach supplies a foundation for spatially-aware generative neurobiology beyond correlation-based imaging-transcriptomic studies.
  • Regional vulnerability maps can be generated from transcriptomic input while preserving cortical spatial organization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same framework could be retrained on data from other neurodegenerative diseases to test whether similar latent programs emerge for different vulnerability patterns.
  • If the latent programs prove stable, they could be used to prioritize genes for functional validation in cellular models of neurodegeneration.
  • Extending the model to include longitudinal imaging might allow prediction of individual progression rates from baseline transcriptomic profiles.
  • The spatial regularization term could be adapted to incorporate white-matter connectivity to test whether network topology further improves predictions.

Load-bearing premise

The model extracts biologically meaningful latent programs that explain cortical thinning patterns rather than fitting noise or dataset-specific artifacts in the ADNI and Allen Atlas data.

What would settle it

Testing the trained model on an independent cohort with matched gene expression and cortical thickness data and finding substantially lower explained variance or spatial correlation than 0.86 and 0.94.

Figures

Figures reproduced from arXiv: 2606.05870 by Krishnakumar Vaithianathan (for the Alzheimer's Disease Neuroimaging Initiative).

Figure 1

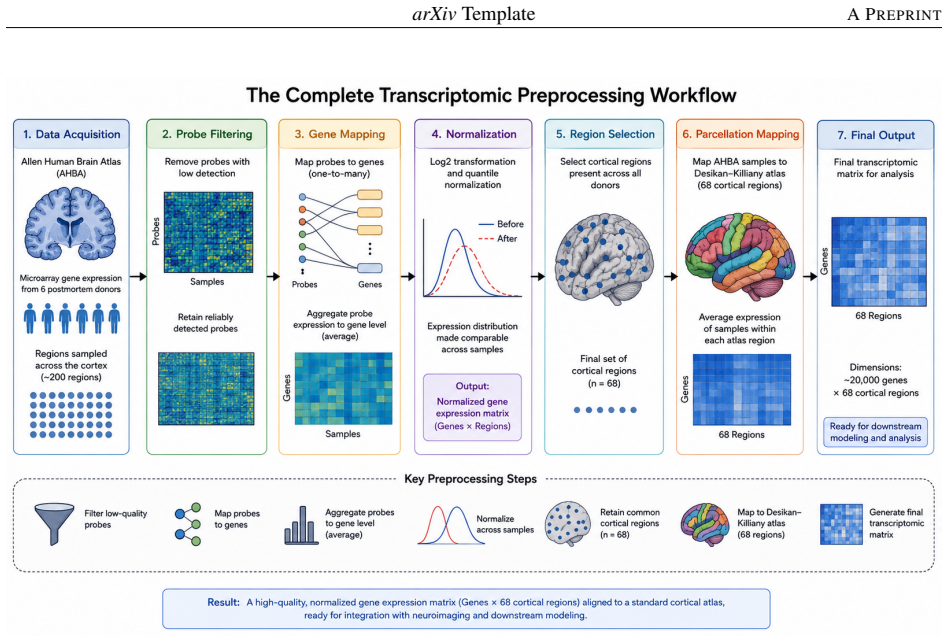

Figure 1. Figure 1: Overview of the transcriptomic preprocessing workflow used in the present study. Regional gene expression [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Spatial organization of Alzheimer’s disease-related cortical neurodegeneration vulnerability across 68 cortical [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3

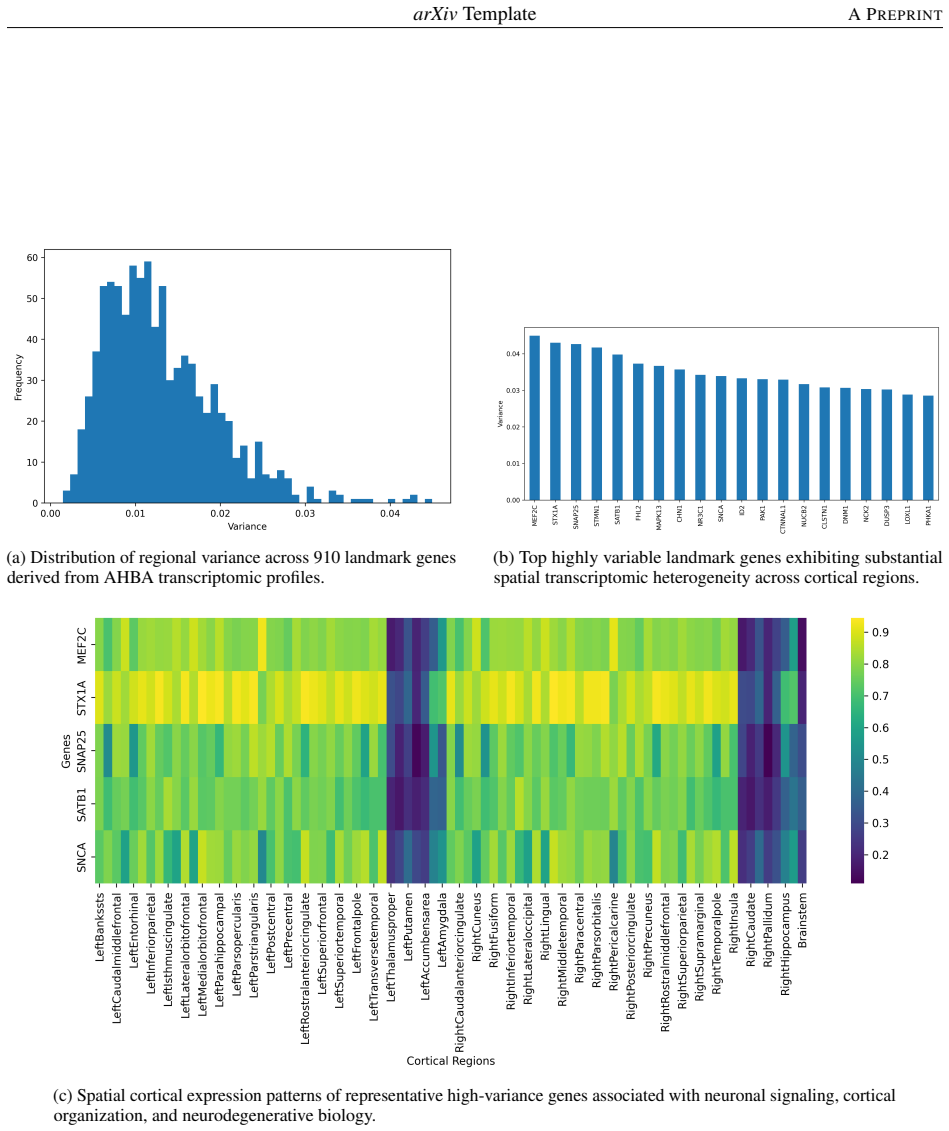

Figure 3. Figure 3: Transcriptomic organization of landmark genes across cortical regions. Variance analyses revealed substantial [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4

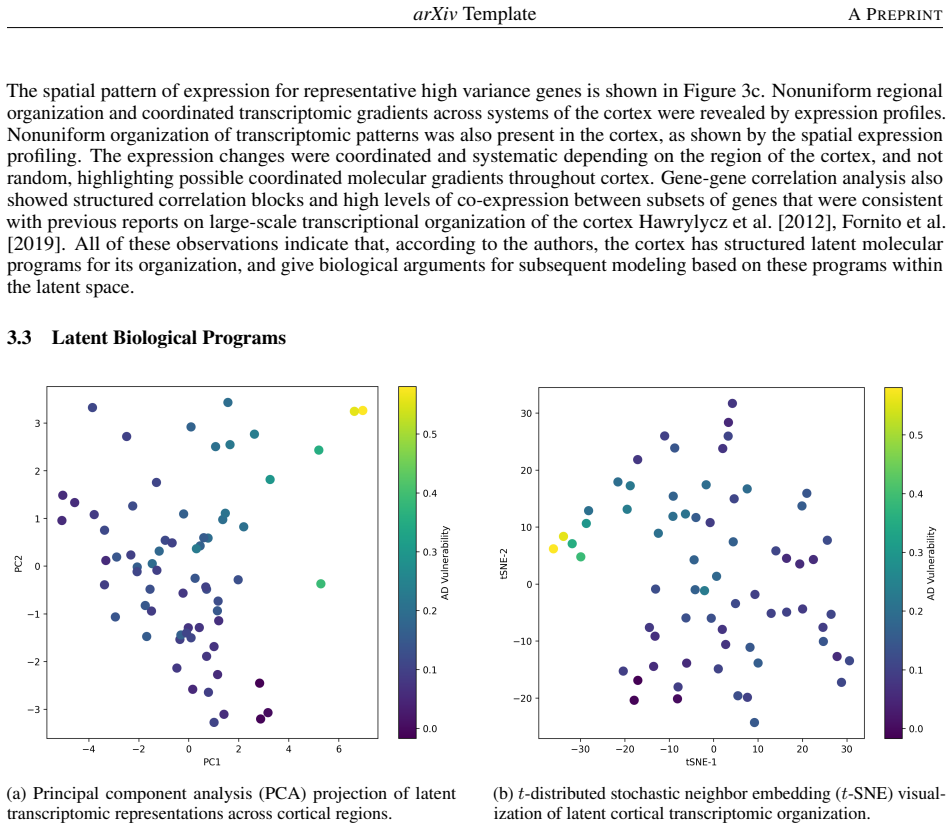

Figure 4. Figure 4: Low-dimensional visualization of latent gene program organization learned by the spatially-aware generative [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Prediction performance of the proposed cross-scale generative framework. The model demonstrated strong [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
read the original abstract

Neurodegenerative disorders such as Alzheimer's disease exhibit highly organized patterns of regional brain vulnerability, yet the biological mechanisms underlying this spatial selectivity remain incompletely understood. Existing imaging-transcriptomic studies have largely relied on correlation-based analyses between gene expression and neuroimaging phenotypes, limiting their ability to model how molecular organization gives rise to neurodegeneration. Here, we introduce a cross-scale spatially-aware generative framework for modeling transcriptomic programs underlying cortical neurodegeneration. Regional transcriptomic profiles were derived from the Allen Human Brain Atlas using 910 landmark genes across 68 cortical regions. Neurodegenerative vulnerability maps were constructed from ADNI FreeSurfer cortical thickness measurements by computing regional cortical thinning differences between cognitively normal controls (NC = 926) and Alzheimer's disease subjects (AD = 426). A variational generative architecture was used to learn latent biological programs linking regional gene-expression organization to cortical degeneration while incorporating graph-based spatial smoothness regularization to preserve cortical organization. The proposed framework achieved strong prediction of regional neurodegenerative vulnerability, yielding an explained variance of 0.8604 and a significant spatial correlation between predicted and observed cortical degeneration profiles (r = 0.9439, p < 0.001). The learned latent representations revealed structured transcriptomic organization associated with distributed disease susceptibility. These findings demonstrate that biologically constrained generative modeling can bridge microscale molecular organization with macroscale neurodegeneration, providing a foundation for spatially-aware generative neurobiology and computational neuroscience.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript introduces a cross-scale spatially-aware variational generative model that maps regional transcriptomic profiles (910 landmark genes across 68 cortical regions from the Allen Human Brain Atlas) to Alzheimer's disease-related cortical thinning vulnerability maps derived from ADNI FreeSurfer data (NC=926, AD=426). The model incorporates graph-based spatial smoothness regularization to learn latent biological programs, and reports strong predictive performance with explained variance of 0.8604 and spatial correlation r=0.9439 (p<0.001) between predicted and observed degeneration profiles, plus analysis of structured latent representations linked to disease susceptibility.

Significance. If the performance metrics reflect genuine out-of-sample predictive power rather than in-sample fitting, the framework would represent a meaningful advance over correlation-based imaging-transcriptomic analyses by using generative modeling to bridge microscale gene expression with macroscale neurodegeneration patterns while respecting cortical topology via spatial regularization.

major comments (1)
  1. [Abstract] Abstract: The reported explained variance (0.8604) and spatial correlation (r=0.9439) are presented as results of 'strong prediction' of regional neurodegenerative vulnerability, yet the abstract supplies no information on validation strategy (train/test split, k-fold cross-validation, permutation baseline, or external cohort). With only 68 regions as samples and a variational generative architecture, these metrics are load-bearing for the central claim but cannot be interpreted as evidence of generalizable prediction without such details.
minor comments (1)
  1. [Abstract] Abstract: The description of the generative architecture and graph regularization is high-level; a brief statement of the latent dimension or loss components would improve clarity for readers.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment on the abstract. We address the point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The reported explained variance (0.8604) and spatial correlation (r=0.9439) are presented as results of 'strong prediction' of regional neurodegenerative vulnerability, yet the abstract supplies no information on validation strategy (train/test split, k-fold cross-validation, permutation baseline, or external cohort). With only 68 regions as samples and a variational generative architecture, these metrics are load-bearing for the central claim but cannot be interpreted as evidence of generalizable prediction without such details.

    Authors: We agree that the abstract should briefly indicate the validation strategy to support interpretation of the performance metrics. The Methods section of the manuscript describes the evaluation procedure (including cross-validation and significance testing), but this information is not summarized in the abstract. We will revise the abstract to include a concise statement on the validation approach used. With respect to the sample size of 68 regions, this corresponds to the complete cortical parcellation; the graph-based spatial regularization is intended to improve robustness by incorporating topological constraints, though we acknowledge that external validation on independent cohorts would further strengthen generalizability claims. revision: yes

Circularity Check

1 steps flagged

In-sample fit on 68 regions presented as 'prediction' of vulnerability

specific steps
  1. fitted input called prediction [Abstract]
    "The proposed framework achieved strong prediction of regional neurodegenerative vulnerability, yielding an explained variance of 0.8604 and a significant spatial correlation between predicted and observed cortical degeneration profiles (r = 0.9439, p < 0.001)."

    Regional transcriptomic profiles from 68 cortical areas and the vulnerability maps derived from the same ADNI cohort are the sole inputs; the variational model is trained to link them, so the quoted 'prediction' metrics are the training-set reconstruction statistics rather than out-of-sample results.

full rationale

The paper's central performance claim rests on calling the output of a variational model trained to map 910-gene profiles from 68 regions onto the corresponding ADNI-derived thinning map a 'prediction' that yields R²=0.8604 and r=0.9439. Because the abstract and described data construction use exactly the same 68 regions for both the generative training and the reported metrics, with no indication of a held-out set, the numbers reduce to in-sample fit statistics by construction. This matches the fitted_input_called_prediction pattern; the remainder of the derivation (latent programs, graph regularization) does not alter that reduction for the headline metrics.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no equations, methods section, or implementation details, so free parameters, axioms, and invented entities cannot be enumerated; the model description implies standard variational assumptions and a domain assumption of spatial smoothness but supplies no explicit list or justification.
