arxiv: 2605.22323 · v1 · pith:WPWJD3TAnew · submitted 2026-05-21 · 🌌 astro-ph.HE · astro-ph.SR

Magnetar Fireballs and Short Bursts: Curved Spacetime Lensing, QED Effects, High-Energy Spectra and Polarization, and Energy-Time Impulse Responses

Zorawar Wadiasingh , Hoa Dinh Thi , Constantinos Kalapotharakos , Kun Hu , Matthew G. Baring , Alice K. Harding , George Younes , Sebastien Guillot
show 7 more authors
Andrea Sanna Michela Negro Jeremy D. Schnittman Oliver J. Roberts Eric Burns Chin-Ping Hu Ersin G\"o\u{g}\"u\c{s}
This is my paper

Pith reviewed 2026-05-22 04:14 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.SR
keywords magnetarsshort burstsfireballspolarizationvacuum birefringencephoton splittingneutron starsSGR 1935+2154
0
0 comments X

The pith

Magnetar short burst models that include spacetime curvature and quantum effects predict high linear polarization for most fireballs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds detailed models of the fireballs that produce short bursts from magnetars. These models fold in general relativistic light bending, polarized radiative transfer through the magnetized surface layers, magnetic photon splitting, and vacuum birefringence. They find that the resulting bursts should be strongly linearly polarized in most geometries, especially once birefringence becomes important. The same calculations reproduce the double-blackbody spectra that are routinely observed and show that the unusual radio-associated burst from SGR 1935+2154 in April 2020 is consistent with a crustal footpoint near the magnetic pole viewed nearly pole-on. The work therefore supplies concrete observables that future polarimeters and timing instruments can use to map burst locations and neutron-star structure.

Core claim

We present new advanced fireball models combining general relativistic light bending, polarized transport in magnetized photospheres, magnetic photon splitting attenuation, and magnetospheric vacuum birefringence. We predict that most fireballs are highly linearly polarized, especially when vacuum birefringence is important. The models can reproduce established double-blackbody short burst spectral phenomenology, and the April 2020 radio-associated short burst from SGR 1935+2154 is broadly consistent with a footpoint close to the magnetic pole and possibly near pole-on viewing geometry.

What carries the argument

Advanced fireball models that combine general relativistic light bending, polarized radiative transfer in magnetized photospheres, magnetic photon splitting, and vacuum birefringence to compute spectra, polarization, and energy-time Stokes impulse responses.

If this is right

  • Direct and gravitationally lensed delayed images of the same fireball can appear together in the light curve.
  • Occultation by the neutron-star surface and Shapiro plus Rømer delays create gaps and temporal caustics whose timing depends on spin phase.
  • Predicted high-energy cutoffs, spectral shapes, and polarization fractions vary strongly with viewing angle, fireball shape, and photon-splitting optical depth.
  • High-quality data sets could constrain crustal footpoint locations, overall source geometry, and possibly neutron-star mass and radius.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Polarization observations with upcoming X-ray polarimeters could directly test the relative importance of vacuum birefringence versus photon splitting.
  • Reverberation-mapping methods developed for active galactic nuclei could be adapted to short bursts once sufficient signal-to-noise timing data become available.
  • The same modeling framework is already noted to apply to trapped fireballs in the pulsating tails of magnetar giant flares.

Load-bearing premise

The calculations assume confined flux-tube geometries that remain consistent with adiabatic fireballs and adopt anisotropic polarized emergent intensities for all radiative-transfer steps.

What would settle it

A set of high-quality polarization measurements showing low linear polarization in short bursts where vacuum birefringence is theoretically dominant would falsify the high-polarization prediction; alternatively, spectral and timing data for the 2020 SGR 1935+2154 burst that require a footpoint far from the pole would falsify the reported consistency.

Figures

Figures reproduced from arXiv: 2605.22323 by Alice K. Harding, Andrea Sanna, Chin-Ping Hu, Constantinos Kalapotharakos, Eric Burns, Ersin G\"o\u{g}\"u\c{s}, George Younes, Hoa Dinh Thi, Jeremy D. Schnittman, Kun Hu, Matthew G. Baring, Michela Negro, Oliver J. Roberts, Sebastien Guillot, Zorawar Wadiasingh.

Figure 1
Figure 1. Figure 1: Geometric parameters describing the loci of field line footpoints that define the fireball. The ellipse is centered at magnetic-frame coordinates (θ0, ϕ0), has angular semiaxes (∆θ0, ∆ϕ0), and is rotated by η on the stellar surface. Field lines anchored on this contour define the fireball flux tube boundary discussed in §2.2. Symmetry about the magnetic equator is assumed, given the confined nature of fire… view at source ↗
Figure 2
Figure 2. Figure 2: Diverse mosaic of ray-traced flux tubes, illustrating how geometry controls local transfer quantities and observables. In each row (one fireball setup), the columns show normalized color maps of observed delay ∆tobs, surface normal zenith cosine kˆ · nˆS , photon magnetic cosine kˆ·Bˆ, photon magnetic azimuth angle cos ϕkB, accumulated polarization-averaged splitting optical depth log τave, gravitational r… view at source ↗

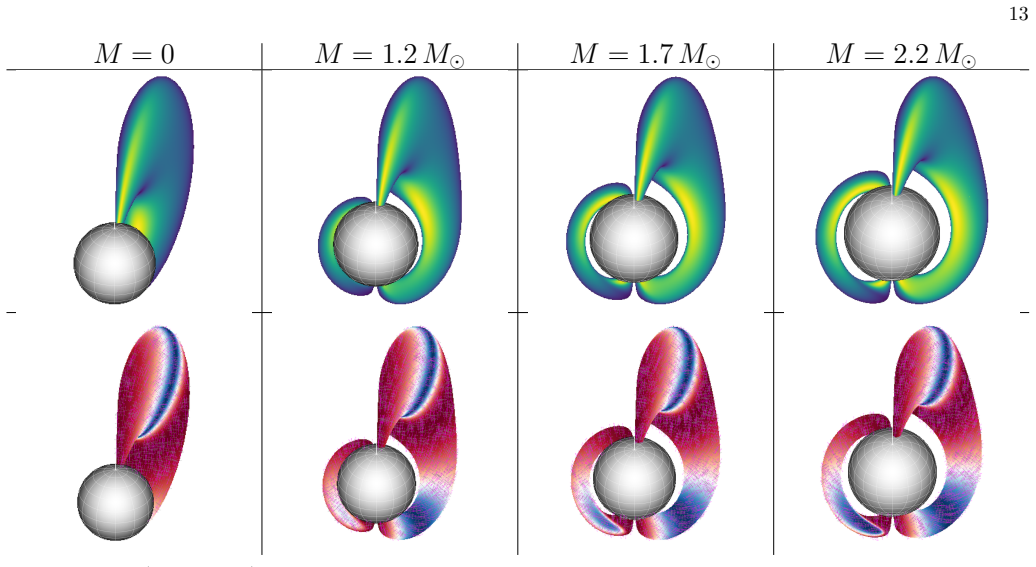

Figure 3
Figure 3. Figure 3: Mass (compactness) dependence of morphology and polarization angle structure for the same emitting geometry and viewing angle. Columns show M = 0, 1.2 M⊙, 1.7 M⊙, and 2.2 M⊙ for r⋆ = 12 km, surveying low to high compactness regimes. Top row: surface-normal projection maps kˆ · nˆS , depicting how lensing/visibility patterns change with stellar compactness. Bottom row: corresponding VB-off cos 2χ maps, show… view at source ↗

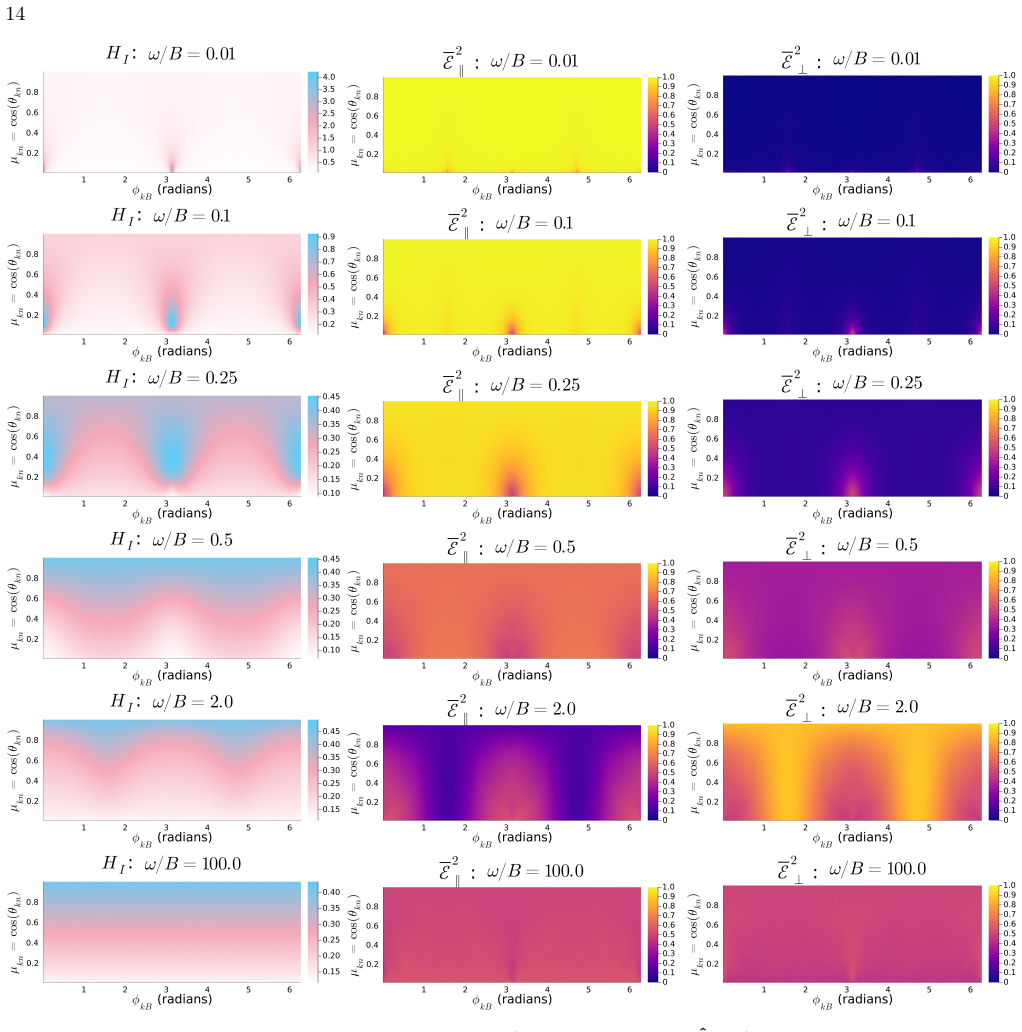

Figure 4
Figure 4. Figure 4: Two-dimensional anisotropy angular distributions (for a slab where nˆS · Bˆ = 0) as a function of the cosine of the zenith angle, µkn = cos θkn, and the azimuthal angle ϕkB, of the intensity (left column), E¯2 ∥ (middle column), and E¯2 ⊥ (right column), obtained in MAGTHOMSCATT. Rows correspond, from top to bottom, to ω/B = 0.01, 0.1, 0.25, 0.5, 2.0, and 100.0, spanning the strong-field to effectively non… view at source ↗
Figure 5
Figure 5. Figure 5: Energy-dependent polarization angle transport with and without VB for three near pole-on geometries (rows) for B = 10, M = 1.7 M⊙ and r⋆ = 12 km with viewing angles of θv = {5 ◦ , 15◦ , 30◦ } (top to bottom). In each row, the first column shows kˆ · nˆS and the second shows cos 2χ with VB disabled. The remaining columns show cos 2χ with VB enabled at 0.1, 1, 10, and 100 keV. Comparing columns within each r… view at source ↗
Figure 6
Figure 6. Figure 6: Top: Suite of panels at 12 keV varying θv ∈ {6 ◦ , ..., 90◦ } and ϕ0 ∈ {0 ◦ , ..., 180◦ } with θ0 = 18◦ , ∆θ0 = ∆ϕ0 = 2◦ , M = 2.0 M⊙, r⋆ = 12 km, B flat p = 10, α = 1/3, mec 2Θmax = 30 keV, η = 0, and splitting ⊥→∥∥ only. Bottom: Attendant time-integrated snapshot spectra for each case. This demonstrates that geometric changes can lead to strong spectral and apparent luminosity variations. There is strong… view at source ↗

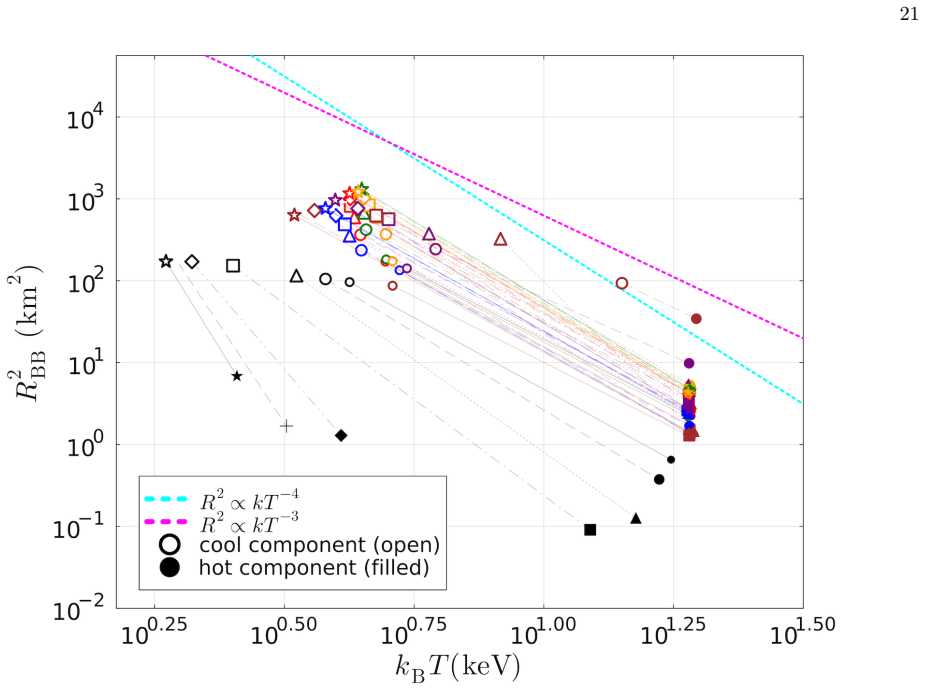

Figure 7
Figure 7. Figure 7: Two-BB phenomenological decomposition of the synthetic spectra presented in [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Top panels: Comparison between the simulated spectra and that of a SGR 1935+2154 burst observed simultaneously with NICER and Fermi GBM (G. Younes et al. 2021). Two viewing angles are considered: θv = 45◦ (top left panel) and θv = 10◦ (top right panel). Bottom panels: Q − U trajectories as a function of energy on a logarithmic scale, shown for VB off (filled circles) and VB on (filled stars), obtained usin… view at source ↗
Figure 9
Figure 9. Figure 9: Left panel: Comparison between the model spectra and the simulated NICER+Fermi-GBM data for the FRB-as￾sociated burst (G. Younes et al. 2021). Right panel: Q − U trajectories as a function of energy on a logarithmic scale, shown for VB off (filled circles) and VB on (filled stars), obtained using α = 0.21 and mec 2Θmax = 29 keV. The fixed parameters are ϕ0 = 10◦ , θv = 10◦ , θ0 = 5◦ , ∆θ0 = ∆ϕ0 = 0.1 ◦ , M… view at source ↗
Figure 10
Figure 10. Figure 10: A fiducial partial-arc fireball with parameters as indicated and ⊥-mode only splitting attenuation. This geometry highlights a rich time-energy structure possible in the IRs. Top row: IP intensity at 4, 12, 36, and 108 keV. Middle row: Stokes-I IR (left) and polarization maps Q/I and U/I with VB off (top-right pair) and on (bottom-right pair). Bottom row: Q–U trajectories and energy-dependent PD. This par… view at source ↗
Figure 11
Figure 11. Figure 11: Case of a cool fireball with smaller footpoint locus, similar to some bursts observed by NICER. Relative to [PITH_FULL_IMAGE:figures/full_fig_p032_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Case of an edge-on axisymmetric fireball. Edge-on viewing strengthens occultation gating, producing more strongly energy-stratified delayed branches [PITH_FULL_IMAGE:figures/full_fig_p034_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Fireball viewed nearly (θv = 0.1 ◦ ) along the magnetic axis. Relative to edge-on annulus case [PITH_FULL_IMAGE:figures/full_fig_p036_13.png] view at source ↗

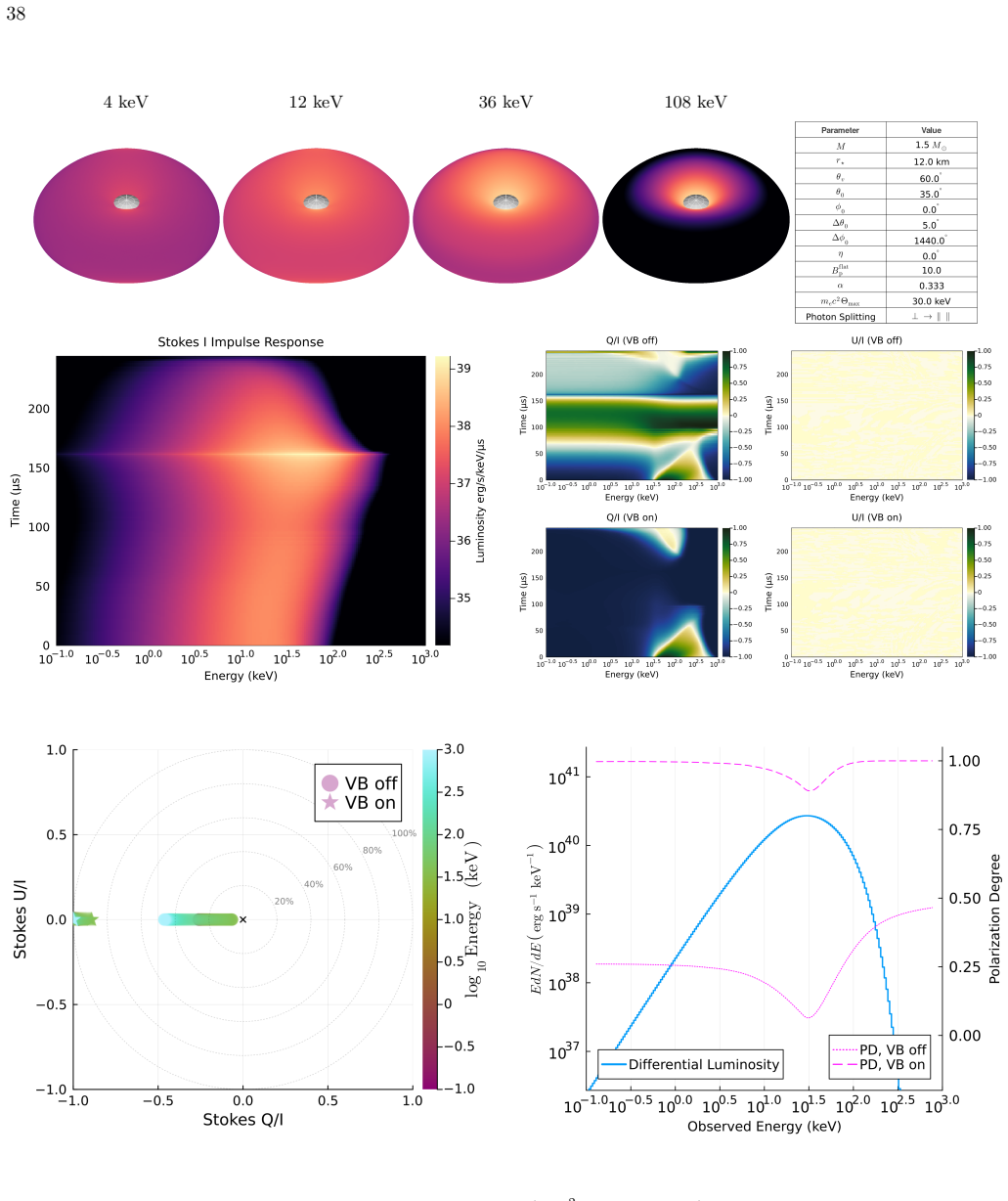

Figure 14
Figure 14. Figure 14: Inclined axisymmetric fireball at higher temperature (mec 2Θmax = 30 keV) with only one mode of splitting. The off-axis viewing angle significantly enhances observed net polarization, especially with VB on. Here the E 2 dN/dE approaches 1041 erg/s, similar to the pulsating tails of intermediate and giant flares [PITH_FULL_IMAGE:figures/full_fig_p038_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Identical to parameters of [PITH_FULL_IMAGE:figures/full_fig_p040_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: A quasi-polar fireball which attains higher altitudes. This viewing angle produces longer multi-branch IR and larger Q–U loops than the case in [PITH_FULL_IMAGE:figures/full_fig_p041_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: A pole-on view of flux tube at high compactness (M = 2.0 M⊙). The limited geometric extent of the flux tube results in a large net PD (in contrast to [PITH_FULL_IMAGE:figures/full_fig_p042_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Identical parameters to [PITH_FULL_IMAGE:figures/full_fig_p043_18.png] view at source ↗

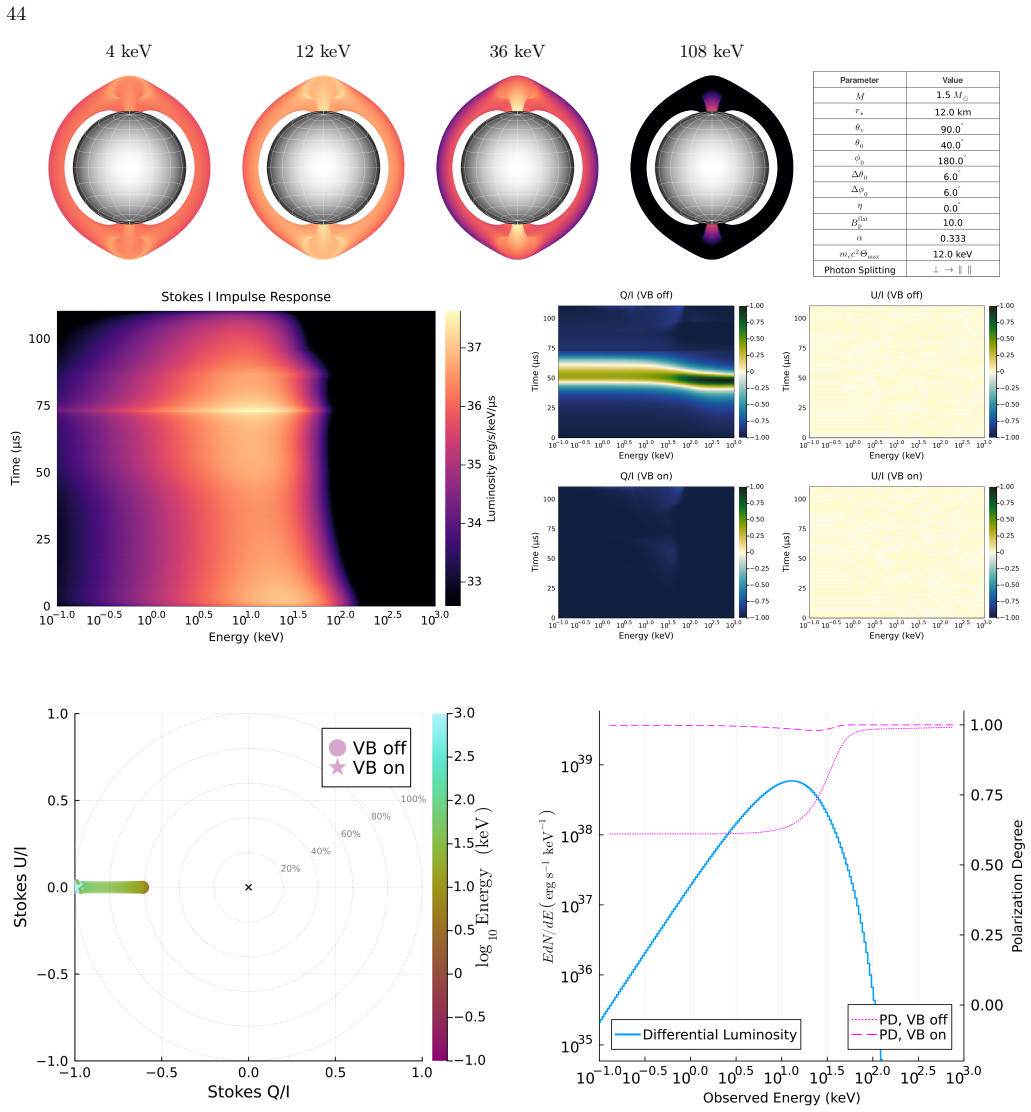

Figure 19
Figure 19. Figure 19: An edge-on flux tube exactly behind the star for the observer. There is little possibility to hide low energy portions of bursts due to enhanced visibility from lensing. In this case, the burst is also gravitationally focused with caustics in the IR at ≈ 75µs and 85µs from the inner and outer edges of the lensed flux tube [PITH_FULL_IMAGE:figures/full_fig_p044_19.png] view at source ↗

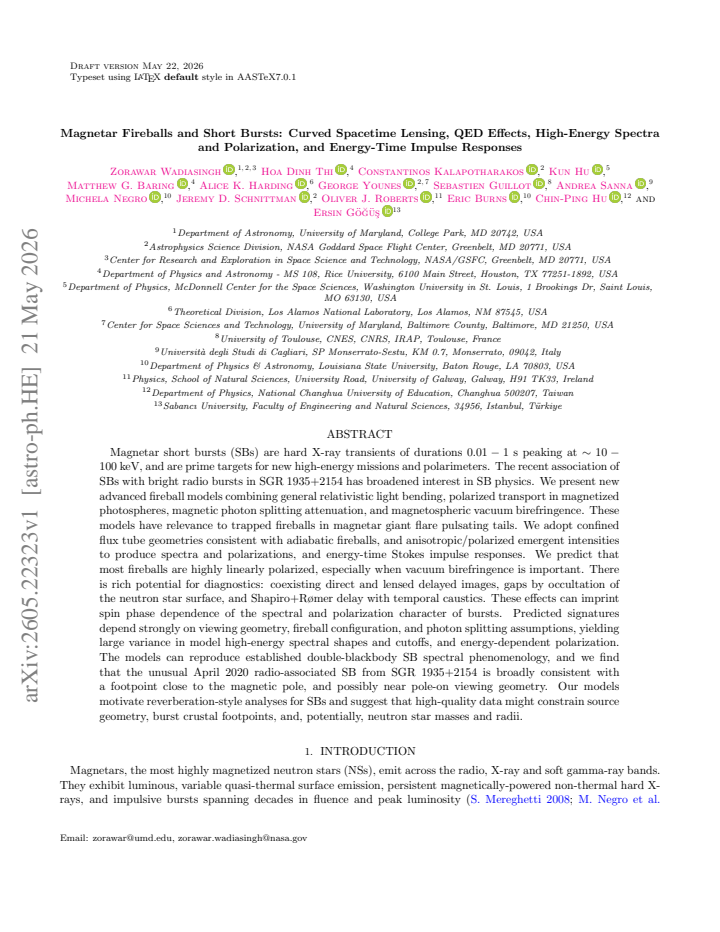

read the original abstract

Magnetar short bursts (SBs) are hard X-ray transients of durations $0.01-1$ s peaking at $\sim 10-100$ keV, and are prime targets for new high-energy missions and polarimeters. The recent association of SBs with bright radio bursts in SGR 1935+2154 has broadened interest in SB physics. We present new advanced fireball models combining general relativistic light bending, polarized transport in magnetized photospheres, magnetic photon splitting attenuation, and magnetospheric vacuum birefringence. These models also have relevance to trapped fireballs in magnetar giant flare pulsating tails. We adopt confined flux tube geometries consistent with adiabatic fireballs, and anisotropic/polarized emergent intensities to produce spectra and polarizations, and energy-time Stokes impulse responses. We predict that most fireballs are highly linearly polarized, especially when vacuum birefringence is important. There is rich potential for diagnostics: coexisting direct and lensed delayed images, gaps by occultation of the neutron star surface, and Shapiro+R{\o}mer delay with temporal caustics. These effects can imprint spin phase dependence of the spectral and polarization character of bursts. Predicted signatures depend strongly on viewing geometry, fireball configuration, and photon splitting assumptions, yielding large variance in model high-energy spectral shapes and cutoffs, and energy-dependent polarization. The models can reproduce established double-blackbody SB spectral phenomenology, and we find that the unusual April 2020 radio-associated SB from SGR 1935+2154 is broadly consistent with a footpoint close to the magnetic pole, and possibly near pole-on viewing geometry. Our models motivate reverberation-style analyses for SBs and suggest that high-quality data might constrain source geometry, burst crustal footpoints, and, potentially, neutron star masses and radii.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript develops advanced fireball models for magnetar short bursts (SBs) that combine general relativistic light bending, polarized radiative transport in magnetized photospheres, magnetic photon splitting attenuation, and magnetospheric vacuum birefringence. Adopting confined flux-tube geometries consistent with adiabatic fireballs and anisotropic/polarized emergent intensities, the models compute spectra, linear polarization fractions, and energy-time Stokes impulse responses. Central claims are that most fireballs are highly linearly polarized (especially with vacuum birefringence), that the models reproduce established double-blackbody SB spectral shapes, and that the April 2020 radio-associated SB from SGR 1935+2154 is broadly consistent with a magnetic footpoint near the pole and near pole-on viewing geometry. The work also discusses potential diagnostics including lensed delayed images, occultation gaps, Shapiro+Rømer delays with temporal caustics, and spin-phase dependence.

Significance. If the modeling framework holds, the results are significant for providing testable predictions of polarization and spectral signatures that can be confronted with data from upcoming high-energy polarimeters and missions. The explicit inclusion of GR lensing, QED effects, and viewing-geometry dependence offers a pathway to constrain burst footpoints, magnetospheric structure, and potentially neutron-star mass-radius relations via reverberation-style analyses. The acknowledgment of large variance with geometry and photon-splitting assumptions strengthens the falsifiability of the predictions.

major comments (1)
  1. [Results and discussion of the April 2020 event] The abstract and results sections state that the models 'reproduce established double-blackbody SB spectral phenomenology' and are 'broadly consistent' with the April 2020 SGR 1935+2154 event, yet no quantitative goodness-of-fit metrics (e.g., reduced χ², parameter uncertainties, or direct comparison to alternative models) are reported. This makes it difficult to evaluate whether the agreement is a genuine prediction or arises from post-hoc adjustment of the free parameters (fireball configuration and viewing geometry).
minor comments (2)
  1. [Methods] Notation for the Stokes parameters and the definition of the impulse-response functions should be introduced with explicit equations in the methods section to aid reproducibility.
  2. [Figures] Figure captions for the polarization and spectral plots should explicitly state the assumed magnetic colatitude, observer inclination, and photon-splitting optical depth for each curve.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We have considered the comment in detail and provide a point-by-point response below, along with plans for revision.

read point-by-point responses

  1. Referee: [Results and discussion of the April 2020 event] The abstract and results sections state that the models 'reproduce established double-blackbody SB spectral phenomenology' and are 'broadly consistent' with the April 2020 SGR 1935+2154 event, yet no quantitative goodness-of-fit metrics (e.g., reduced χ², parameter uncertainties, or direct comparison to alternative models) are reported. This makes it difficult to evaluate whether the agreement is a genuine prediction or arises from post-hoc adjustment of the free parameters (fireball configuration and viewing geometry).

    Authors: We thank the referee for this observation. The manuscript is primarily a theoretical exploration of a new modeling framework that incorporates GR lensing, polarized radiative transfer, photon splitting, and vacuum birefringence. The statement that the models 'reproduce established double-blackbody SB spectral phenomenology' refers to the ability of the computed spectra to exhibit the characteristic two-component shape seen in many SBs when integrated over the appropriate energy bands and viewing angles, as shown in our figures. For the April 2020 event, we selected a near-polar footpoint and near pole-on geometry because these are physically motivated by the expected locations of crustal fractures in magnetars and by the radio association implying a compact emitting region; the resulting impulse response and spectrum are then shown to be broadly consistent with the reported timing and spectral properties. We did not perform a formal statistical fit or report reduced χ² values because the model contains several geometric and physical parameters whose primary constraints come from adiabatic fireball theory and magnetospheric structure rather than from optimizing to a single dataset. We agree, however, that this leaves open the question of whether the agreement is robust or tuned. In the revised manuscript we will (i) explicitly label the comparison as qualitative/illustrative, (ii) add a paragraph detailing the physical priors used to choose the displayed configuration and the range of outcomes obtained when those priors are varied, and (iii) include a brief discussion of how future high-quality spectra could be used for quantitative fitting. These changes will clarify the evidential status of the 2020-event comparison without changing the core physical results. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained

full rationale

The paper constructs spectra, polarization, and impulse responses from explicit physical ingredients (GR light bending, polarized radiative transfer in magnetized photospheres, photon splitting, vacuum birefringence) applied to confined flux-tube adiabatic geometries. The high-linear-polarization prediction and double-blackbody reproduction are direct outputs of these transport calculations rather than re-statements of fitted inputs. The April 2020 SGR 1935+2154 consistency is presented as a post-hoc geometric match, not a parameter adjustment that forces the result. No self-definitional equations, load-bearing self-citations, or ansatz smuggling appear in the derivation chain; the model retains independent content relative to its stated assumptions.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard general relativity and QED in strong magnetic fields plus several modeling choices whose independent justification is not visible from the abstract.

free parameters (1)
  • fireball configuration and viewing geometry
    Parameters describing flux-tube shape, location relative to magnetic pole, and observer angle are chosen to match observed spectra and the 2020 event.
axioms (2)
  • domain assumption Confined flux tube geometries are consistent with adiabatic fireballs
    Stated directly in the abstract as the adopted geometry.
  • standard math Standard GR light bending and vacuum birefringence apply in the magnetosphere
    Invoked without derivation as background physics.

pith-pipeline@v0.9.0 · 5957 in / 1464 out tokens · 68046 ms · 2026-05-22T04:14:39.736191+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

2 extracted references · 2 canonical work pages · 1 internal anchor

  1. [1]

    G., et al

    Abarr, Q., Awaki, H., Baring, M. G., et al. 2021, Astroparticle Physics, 126, 102529, doi: 10.1016/j.astropartphys.2020.102529 5.3 Adler, S. L. 1971, Annals of Physics, 67, 599, doi: 10.1016/0003-4916(71)90154-0 2.4, 2.6 30 4 keV 12 keV 36 keV 108 keV Figure 10.A fiducial partial-arc fireball with parameters as indicated and⊥-mode only splitting attenuati...

    work page doi:10.1016/j.astropartphys.2020.102529 2021

  2. [2]

    Nonlinear electrodynamics in magnetars: systematic effects on radius constraints and timing analysis

    37 Palmer, D. M., Barthelmy, S., Gehrels, N., et al. 2005, Nature, 434, 1107, doi: 10.1038/nature03525 1 Pan, X., Jiang, W., Yue, C., et al. 2024, Nuclear Science and Techniques, 35, 149, doi: 10.1007/s41365-024-01499-x 5.3 Paul, B. 2022, in 44th COSPAR Scientific Assembly. Held 16-24 July, Vol. 44, 1853 5.3 P´ etri, J. 2013, MNRAS, 433, 986, doi: 10.1093...

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1038/nature03525 2005
