A unified deeplearning framework for contrast-phase-specific virtual monochromatic imaging

Antony Jerald; Avinash Gopal; Bipul Das; Brian Nett; Hemant K Aggarwal; Phaneendra K Yalavarthy; Rajesh Langoju

arxiv: 2605.29753 · v1 · pith:WSIRJM7P · submitted 2026-05-28 · eess.IV · cs.AI

A unified deeplearning framework for contrast-phase-specific virtual monochromatic imaging

Antony Jerald , Hemant K Aggarwal , Brian Nett , Avinash Gopal , Phaneendra K Yalavarthy , Bipul Das , Rajesh Langoju This is my paper

Reviewed by Pith T0 review T1 audit T2 compute T3 formal T4 kernel 2026-06-29 00:44 UTCgrok-4.3pith:WSIRJM7P record.json open to challenge →

classification eess.IV cs.AI

keywords virtual monochromatic imagingsingle-energy CTdual-energy CTcontrast phase conditioningdeep learningimage synthesismedical imaging50 keV

0 comments

The pith

A single deep learning model generates contrast-phase-specific 50 keV images from single-energy CT scans by using phase information as a prior.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper trains one neural network on pairs of 70 keV and 50 keV images derived from dual-energy CT across four contrast phases to learn how to produce 50 keV virtual monochromatic images directly from ordinary single-energy CT inputs. Conditioning the network on the specific contrast phase allows it to preserve the distinct contrast dynamics of each phase while performing the energy transformation. The resulting unified model is shown to deliver contrast enhancement and to generalize across the phases without requiring separate models for each one. A sympathetic reader would care because this removes the hardware barrier of dual-energy CT systems while retaining the diagnostic benefit of low-keV imaging on widely available single-energy scanners.

Core claim

The central claim is that a unified deep learning framework with a novel prior conditioning architecture, trained on DECT-derived 70 keV and 50 keV image pairs for Angio, Arterial, Portal, and Delayed phases, synthesizes accurate 50 keV-like images from single-energy CT inputs while achieving contrast enhancement and preserving contrast phase-specific dynamics.

What carries the argument

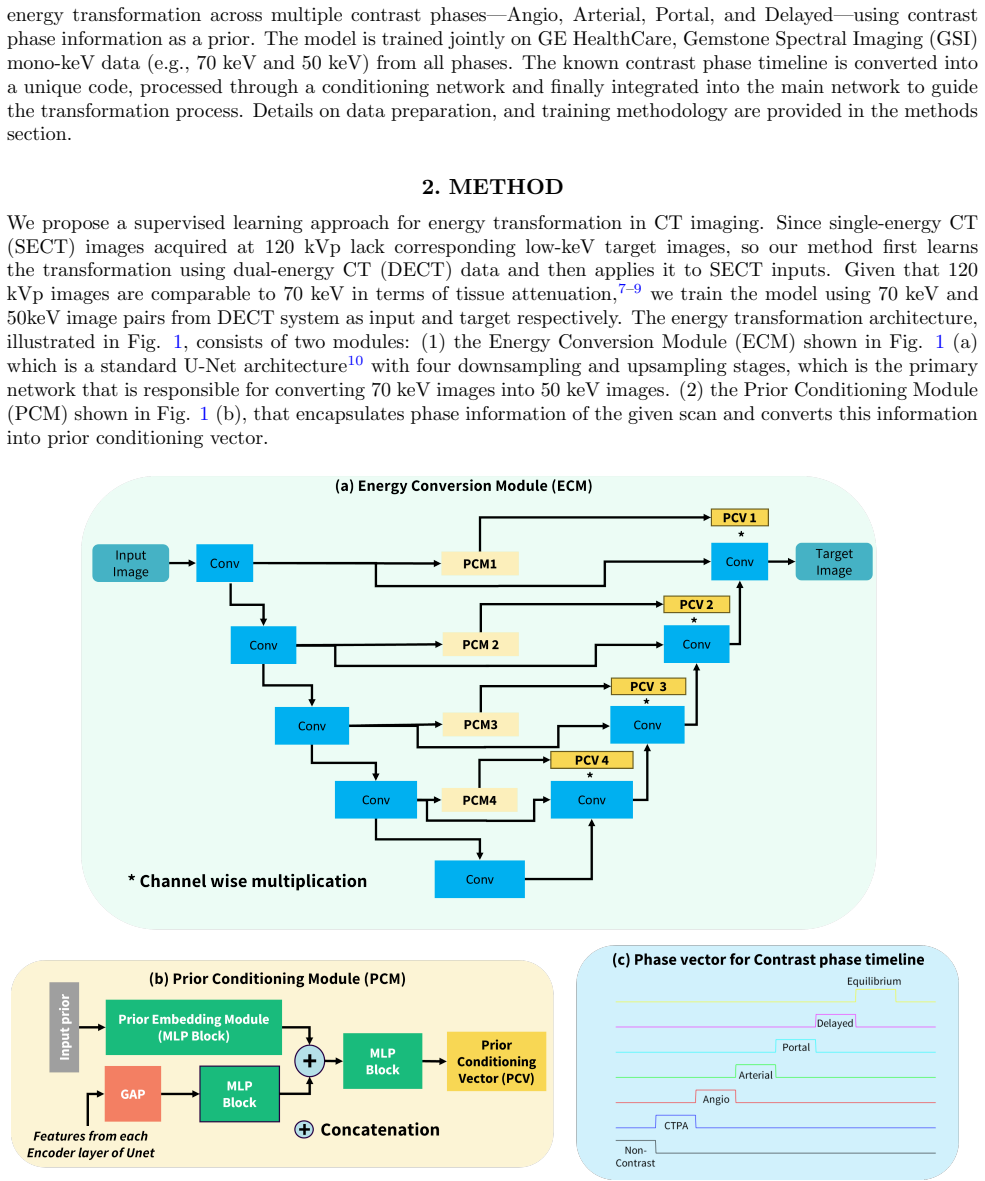

The prior conditioning architecture that integrates contrast phase priors into the energy transformation process to produce phase-specific virtual monochromatic images.

If this is right

The unified model generalizes across all four tested contrast phases without requiring phase-specific retraining.
Contrast enhancement is achieved relative to the input single-energy CT images.
Phase-specific contrast dynamics from the original DECT data are retained in the synthesized outputs.
The approach enables 50 keV virtual monochromatic imaging on standard single-energy CT scanners.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Hospitals could deploy the model on existing single-energy scanners to approximate dual-energy contrast benefits without new hardware purchases.
The conditioning mechanism might allow extension to additional energy levels or other contrast agents if similar paired training data become available.
Routine clinical use would still require separate validation that the generated images support the same diagnostic decisions as true dual-energy acquisitions.

Load-bearing premise

DECT-derived 70 keV and 50 keV image pairs serve as reliable ground truth for training a model that accurately produces 50 keV images from single-energy CT inputs when conditioned on contrast phase.

What would settle it

Quantitative comparison of the synthesized 50 keV images against actual DECT-acquired 50 keV images on an independent test set of patients from the same four contrast phases, measuring both contrast-to-noise ratio and fidelity to phase-specific enhancement patterns.

Figures

Figures reproduced from arXiv: 2605.29753 by Antony Jerald, Avinash Gopal, Bipul Das, Brian Nett, Hemant K Aggarwal, Phaneendra K Yalavarthy, Rajesh Langoju.

**Figure 2.** Figure 2: Illustration of contrast enhancement on DECT data (across columns) for Input 70keV, target 50keV, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

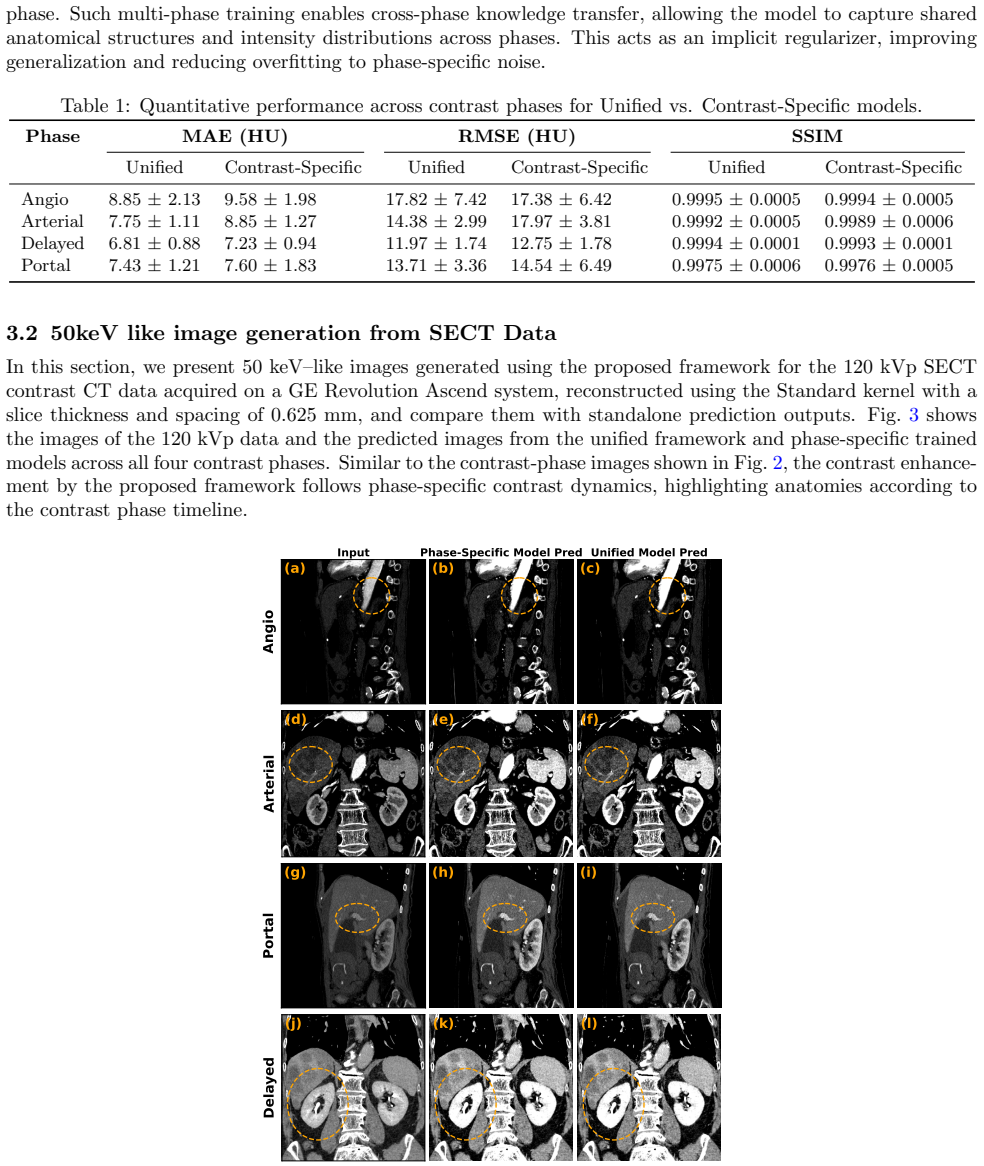

**Figure 3.** Figure 3: Illustration of contrast enhancement on SECT data (across columns) for Input 120kVp SECT, predicted [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

**Figure 4.** Figure 4: t-SNE visualization of phase conditioning vectors. Distinct clusters correspond to CTA, Arterial, Portal, and Delayed phases. 3.4 Computation comparison of Standalone and proposed framework [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

read the original abstract

Dual-energy CT (DECT) enables virtual monochromatic imaging (VMI) and improved contrast resolution, but its clinical adoption is limited by hardware complexity and cost. In this work, we propose a unified deep learning framework that synthesizes contrast-phase-specific virtual monochromatic 50 keV images from single-energy CT (SECT) data by leveraging contrast phase information as a prior. The model is trained using DECT-derived 70 keV and 50 keV image pairs across four contrast phases -- Angio, Arterial, Portal, and Delayed -- using a novel prior conditioning architecture that integrates contrast phase priors into the energy transformation process. We demonstrate that the proposed unified model achieves contrast enhancement and generalizes well across contrast phases. Additionally, we show that the model can generate 50 keV-like images from SECT inputs, preserving contrast phase-specific dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The abstract sketches a phase-conditioned network to turn SECT into 50 keV images but trains on DECT 70 keV proxies and shows zero metrics, so the domain-gap concern stands and the claims cannot be evaluated.

read the letter

The paper's central move is a single network that takes an SECT image plus one of four contrast-phase labels and outputs a 50 keV-like image. It trains on paired DECT 70 keV and 50 keV reconstructions across Angio, Arterial, Portal, and Delayed phases. That explicit conditioning in one model is the concrete extension beyond separate per-phase networks.

The setup is clearly motivated by the cost of DECT hardware. The architecture description sounds workable on paper.

The problems are straightforward. The abstract states that the model "achieves contrast enhancement and generalizes well" yet contains no numbers, no baselines, no validation details, and no statistical tests. Without those, the demonstration claim is empty. More importantly, the training inputs are DECT-derived 70 keV images, which carry their own beam-hardening corrections and noise profile. Real SECT scans at 120 kVp do not match that distribution. The stress-test note is correct on this point: the abstract mentions no domain-adaptation losses, no unpaired SECT fine-tuning, and no side-by-side test of model outputs on actual SECT versus DECT-70 inputs. The assumption that phase conditioning alone closes the gap is untested.

The work is aimed at groups already doing supervised synthesis on DECT pairs. A reader could borrow the conditioning trick, but the lack of any reported performance makes it hard to judge whether the approach is worth implementing.

I would not send this to peer review in its current form. It needs at minimum quantitative results on real SECT data and an explicit check on the domain shift before a referee could assess whether the central claim holds.

Referee Report

2 major / 1 minor

Summary. The paper proposes a unified deep learning framework to synthesize contrast-phase-specific virtual monochromatic 50 keV images from single-energy CT (SECT) inputs. It trains an energy-mapping network on paired DECT-derived 70 keV (input) and 50 keV (target) images across four contrast phases (Angio, Arterial, Portal, Delayed), using a novel prior conditioning architecture that integrates contrast phase information. The central claims are that the model achieves contrast enhancement, generalizes well across phases, and can generate 50 keV-like images from arbitrary SECT inputs while preserving phase-specific dynamics.

Significance. If the claims hold after proper validation, the approach could enable virtual monochromatic imaging benefits without requiring dual-energy CT hardware, addressing a practical barrier to clinical adoption. No machine-checked proofs, reproducible code, or parameter-free derivations are present; the work relies on standard supervised training.

major comments (2)

[Abstract] Abstract: the claims that the model 'achieves contrast enhancement and generalizes well across contrast phases' and 'can generate 50 keV-like images from SECT inputs' are unsupported by any quantitative metrics, error bars, baseline comparisons, validation splits, or statistical tests, so the data cannot be assessed as supporting the claims.
[Framework description] Framework description (training on DECT pairs): the central claim of synthesizing from SECT inputs rests on the unverified assumption that DECT 70 keV images serve as a reliable proxy for real SECT acquisitions; DECT 70 keV images incorporate dual-tube beam-hardening corrections and noise statistics distinct from conventional 120 kVp SECT, yet no domain-adaptation losses, unpaired SECT fine-tuning, or quantitative comparison of outputs on matched SECT versus DECT-70 inputs is described.

minor comments (1)

[Title] Title contains the compound word 'deeplearning' without space; standard spelling is 'deep learning'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight important areas for strengthening the manuscript. We address each major comment below and commit to revisions that improve clarity, support for claims, and discussion of assumptions without overstating current results.

read point-by-point responses

Referee: [Abstract] Abstract: the claims that the model 'achieves contrast enhancement and generalizes well across contrast phases' and 'can generate 50 keV-like images from SECT inputs' are unsupported by any quantitative metrics, error bars, baseline comparisons, validation splits, or statistical tests, so the data cannot be assessed as supporting the claims.

Authors: We agree the abstract presents these claims without accompanying quantitative details. The body of the manuscript contains supporting visual results and some quantitative evaluations (e.g., contrast-to-noise ratios across phases), but these are not summarized with metrics, error bars, or statistical tests in the abstract. In the revised version we will update the abstract to reference key quantitative findings from the results section, including performance metrics on held-out validation data and phase-specific comparisons, while ensuring the claims are appropriately qualified. revision: yes
Referee: [Framework description] Framework description (training on DECT pairs): the central claim of synthesizing from SECT inputs rests on the unverified assumption that DECT 70 keV images serve as a reliable proxy for real SECT acquisitions; DECT 70 keV images incorporate dual-tube beam-hardening corrections and noise statistics distinct from conventional 120 kVp SECT, yet no domain-adaptation losses, unpaired SECT fine-tuning, or quantitative comparison of outputs on matched SECT versus DECT-70 inputs is described.

Authors: This is a valid methodological concern. The training relies on paired DECT-derived 70 keV images as input proxies without explicit domain-adaptation mechanisms or direct SECT comparisons. We will revise the framework description and discussion sections to explicitly state this assumption, quantify the expected differences in noise and beam-hardening where possible, and add a limitations paragraph acknowledging the lack of unpaired SECT fine-tuning or matched-pair validation. If additional matched data can be obtained, we will include a small-scale comparison; otherwise the limitation will be clearly noted. revision: partial

Circularity Check

0 steps flagged

No circularity; standard supervised training on external DECT pairs

full rationale

The manuscript presents a deep-learning model trained via supervised learning on paired DECT 70 keV / 50 keV images with phase labels as conditioning. No equations, ansatzes, fitted parameters renamed as predictions, or self-citation chains appear in the provided text. The central claim rests on empirical generalization from DECT-derived pairs to SECT inputs rather than any definitional reduction of outputs to inputs. This is the normal non-circular case for a supervised imaging paper.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on supervised learning from DECT pairs as ground truth and the effectiveness of phase conditioning; no free parameters beyond standard network weights are named, and no new physical entities are introduced.

free parameters (1)

neural network parameters
Weights optimized during training on DECT image pairs to perform the SECT-to-50 keV mapping.

axioms (2)

domain assumption DECT-derived 50 keV and 70 keV images constitute accurate ground truth for virtual monochromatic imaging at those energies
Used as training targets across the four contrast phases
domain assumption Contrast phase label provides sufficient prior information to condition accurate energy transformation from SECT inputs
Integrated via the novel prior conditioning architecture

pith-pipeline@v0.9.1-grok · 5698 in / 1366 out tokens · 45140 ms · 2026-06-29T00:44:21.146004+00:00 · methodology
