Sampling Beats Gradients for Smooth Robot Hand Control

2026-07-09 09:07 UTC pith:ZBHADDBX

load-bearing objection Sampling-based retargeting for dexterous hands: real-time, low-jitter, but the central comparison is missing a key control condition. the 3 major comments →

arxiv 2607.07491 v1 pith:ZBHADDBX submitted 2026-07-08 cs.RO

Smooth Operator: A Real-Time Sampling-Based Algorithm for Kinematic Hand Retargeting

Robert Jomar Malate , Erik Bauer , Norica Bacuieti , Stefanos Charalambous , Elvis Nava , Robert K. Katzschmann , Benedek Forrai This is my paper
classification cs.RO
keywords retargetingsampling-based controldexterous manipulationteleoperationcross-entropy methodgradient-free optimizationhand retargetingrobot learning
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the Sampling-Based Retargeter (SBR), a gradient-free method for mapping human hand motions to robotic hands in real time. Gradient-based retargeters suffer from jitter because they jump between local minima in the loss landscape, producing high-frequency command spikes that degrade teleoperation and data quality. SBR sidesteps this by sampling thousands of candidate joint configurations, selecting the best through a cost-weighted softmax, and probabilistically bounding trajectory variance. This makes the optimizer itself act as a low-pass filter, yielding smooth motion without post-hoc filtering. An 18-participant user study on three dexterous manipulation tasks shows SBR achieves the highest task success rate (54.1%) and the lowest cognitive workload (NASA-TLX 36.4/100) compared to three gradient-based baselines. The paper also contributes a rigorous benchmarking methodology using Balanced Latin Squares, mixed-effects models, and a static-fixture mount to isolate hand retargeting from arm movement.

Core claim

The central mechanism is that sampling-based optimization, by averaging over elite candidates rather than committing to a single gradient step, inherently bounds trajectory variance and acts as a kinematic low-pass filter. A Hessian eigen-direction analysis confirms that gradient methods jitter primarily in the flat (low-eigenvalue) directions of the loss landscape where many valid solutions exist, while sampling-based methods navigate these flat regions smoothly. This smoothness translates directly into measurable real-world gains: higher task success, lower operator cognitive load, and an order-of-magnitude reduction in jitter flatness compared to baselines.

What carries the argument

SBR uses Model Predictive Optimized Path Integral (MPOPI) framework with Improved Cross-Entropy Method (iCEM) as the adaptive importance sampling method. Each timestep: sample N=8192 candidate joint configurations from a Gaussian, evaluate a DexPilot-derived cost function (keyvector matching + pose regularization + velocity regularization), select M=128 elite samples, compute cost-weighted softmax weights, update the distribution mean and covariance, repeat for L=20 update cycles, clip to joint limits, output the mean as the control command. Implemented in JAX with MJX forward kinematics for GPU-parallelized real-time performance at 3.664 ms latency.

Load-bearing premise

The paper attributes SBR's smoothness to its sampling-based optimization paradigm, but the ablation shows that adding a velocity regularization term to gradient methods reduces jitter by 7.18x, bringing them to comparable smoothness levels. This raises the question of whether SBR's smoothness comes primarily from the sampling approach or from the velocity regularization term in its cost function, and the two contributions are not fully disentangled in the experiments.

What would settle it

Run SBR with the velocity regularization term removed from its cost function. If the sampling-based approach alone produces low jitter comparable to the full SBR, the paradigm is validated. If jitter increases to gradient-baseline levels, the velocity regularization term is the primary driver of smoothness rather than the sampling paradigm.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Smoother retargeting directly improves the quality of teleoperation data used to train learning-based manipulation policies (VLAs, VAMs), potentially raising the ceiling on what those policies can learn.
  • The benchmarking methodology (Balanced Latin Squares + mixed-effects models + static-fixture isolation + no pre-trial practice) sets a new standard for evaluating retargeting algorithms, addressing confounds that prior work left uncontrolled.
  • The Hessian eigen-direction analysis provides a theoretical lens for understanding when sampling-based optimization will outperform gradient methods: specifically in loss landscapes with large flat regions where gradients are noisy or uninformative.
  • The velocity regularization ablation reveals a fundamental tension in gradient-based retargeting: adding temporal smoothness penalties reduces jitter but increases tracking loss, whereas sampling-based methods achieve low jitter natively without this trade-off.
  • The sim-to-real correlation analysis shows that cosine similarity and flatness metrics partially predict real-world performance, but workspace utilization correlates inversely with success, suggesting some standard simulation metrics may be misleading.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The fact that adding velocity regularization to gradient methods reduces jitter by 7.18x suggests that SBR's smoothness advantage may stem partly from its explicit temporal regularization term rather than purely from the sampling paradigm. A cleaner ablation would use SBR's optimizer on the DexPilot loss without any velocity term to isolate the sampling contribution from the regularization contrib
  • The completion time penalty for SBR (29.7s vs 23.3s for DexPilot) on complex rotation tasks suggests the sampling approach may sacrifice responsiveness for smoothness. This trade-off could matter for tasks requiring rapid repositioning rather than fine contact-rich manipulation.
  • If the sampling-based low-pass filtering effect generalizes beyond hand retargeting to other high-dimensional, non-convex control problems with flat loss regions (e.g., whole-body manipulation, bimanual coordination), this paradigm could replace gradient solvers in a broader class of real-time robotics applications.
  • The 30Hz control rate and 3.664ms latency suggest the method is already near the boundary of what is needed for responsive teleoperation; pushing to higher-dimensional hands or bimanual setups may require further compute scaling or algorithmic improvements to maintain real-time performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 8 minor

Summary. This paper introduces the Sampling-Based Retargeter (SBR), a gradient-free retargeting method for real-time dexterous hand teleoperation based on MPOPI/iCEM sampling-based control. SBR is evaluated in simulation against three gradient-based baselines (DexPilot, GeoRT, Hybrid) and in an 18-participant real-world user study across three manipulation tasks, using a Balanced Latin Square design with mixed-effects models. The authors report that SBR achieves the highest overall success rate (54.1%) and lowest NASA-TLX workload (36.4), attributing these gains to reduced jitter from the sampling-based optimization paradigm. An ablation study (Section E) compares gradient vs. sampling optimization and analyzes the effect of velocity regularization.

Significance. The paper makes a solid contribution to the retargeting literature. The application of sampling-based control to real-time hand retargeting is novel, and the user study methodology (Balanced Latin Squares, mixed-effects models, static-fixture isolation, no per-operator tuning) is notably more rigorous than much prior work in this area. The FK library benchmarking (Fig. 7) and the compute-performance ablation (Fig. 8) are useful practical contributions. The Hessian eigen-direction analysis (Fig. 15) provides a mechanistic explanation for why sampling-based methods reduce jitter in flat loss regions. The sim-to-real correlation analysis (Section F) is a valuable community resource. The open-source release of code and assets is a strength.

major comments (3)
  1. Section 5, Eq. (1) and Table 2: SBR's cost function includes a velocity regularization term (λ_vel ||q_R - q_R,prev||², w_v=0.1), while the gradient-based baselines in the user study use the DexPilot loss (Eq. 4) which contains no such term. The ablation in Section E (Fig. 16) directly demonstrates that adding velocity regularization to gradient methods reduces jitter by 7.18x, achieving jitter comparable to sampling-based methods. This creates a confound in the user study: the real-world advantages attributed to the sampling paradigm (54.1% success, 36.4 NASA-TLX) may partly or largely stem from the velocity regularization term that SBR includes and the baselines lack. The most informative control condition — a gradient baseline equipped with velocity regularization — is absent from the 18-participant study. The paper argues that velocity regularization on gradient methods incurs a +0.0
  2. Section 5, Fig. 5a: The claim that SBR achieves the highest overall success rate is statistically supported only against DexPilot (p_Dunnett=0.038) and GeoRT (p_Dunnett<0.001), but not against Hybrid (52.1% vs. 54.1%, p_Dunnett=0.331). Similarly, the Discussion (Section 6) acknowledges SBR vs. Hybrid shows no significant per-task success differences. The abstract and conclusion frame SBR as achieving 'the highest overall task success rate,' which, while technically true, overstates the differentiation from Hybrid. The claims should be scoped to reflect that SBR significantly outperforms DexPilot and GeoRT but is statistically indistinguishable from Hybrid on success rate, with the primary differentiator being workload (p_Dunnett=0.010) and qualitative smoothness reports.
  3. Section E, Fig. 14: The ablation reports a 36.4% jitter reduction from sampling alone (without velocity regularization) compared to gradient baselines, using N=32768 samples and 500 frames (~5 seconds) of data. This is the strongest evidence for the sampling paradigm's independent contribution to jitter reduction. However, the analysis is limited to 5 seconds of motion data, and it is unclear whether this short segment is representative of the full range of hand motions encountered in the user study. The paper should clarify how this 500-frame segment was selected and whether the result generalizes across diverse grasp types and finger-gaiting motions.
minor comments (8)
  1. Table 1: SBR has the lowest Workspace Utilization (21.0%) among all methods, and the correlation analysis (Fig. 17) shows an unexpected inverse relationship between workspace utilization and real-world success (r=-0.30). The paper briefly attributes this to the GeoRT-SBR anomaly but does not discuss whether SBR's low workspace coverage is a practical limitation for tasks requiring large hand excursions.
  2. Section 5, Fig. 5b: SBR's completion time is significantly higher than DexPilot (29.7s vs. 23.3s, p_Dunnett=0.013) and Hybrid (29.7s vs. 21.6s). The paper attributes this to Task B (61.9s vs. 39.1s for DexPilot). This trade-off between success and speed should be discussed more prominently in the conclusion, as it may affect practical data collection throughput.
  3. Section 5: The varying sample sizes across tasks (Task A: N=12, B: N=8, C: N=6) reduce statistical power for per-task comparisons. While acknowledged in Section 7, the per-task p-values in Fig. 5a (e.g., Task C with N=6) should be interpreted with caution. Consider adding a power analysis or explicit note on minimum detectable effect size for the smallest task.
  4. Eq. (1) uses λ_k, λ_reg, λ_vel as weight symbols, while Table 2 uses w_set1, w_set2, w_default, γ, and w_v. The mapping between these two notations is not explicitly stated and would benefit from a clarification table or cross-reference.
  5. Section 3, Algorithm 1, line 9: The softmax temperature parameter is denoted λ, which conflicts with the λ_k, λ_reg, λ_vel weight symbols in Eq. (1). Consider using a distinct symbol (e.g., τ) for the temperature parameter.
  6. Section B, Eq. (2): The model includes a trial sequence index β̃t_ijk to control for learning effects, but the paper does not report the estimated coefficient β̃ or its significance in the main results. This would strengthen the claim that learning effects are properly controlled for.
  7. Fig. 6: The NASA-TLX radar plots are small and difficult to read for individual subscales. Consider enlarging or tabulating the subscale scores.
  8. Section 5: Three of the 18 participants are paper authors. While disclosed, the paper should report whether results change when excluding author participants, given the relatively small sample size.

Simulated Author's Rebuttal

3 responses · 2 unresolved

We thank the referee for a careful and constructive review. The referee correctly identifies that our velocity regularization term creates a potential confound in the user study, that our success-rate claims against Hybrid are overstated, and that our ablation data is limited to a short motion segment. We address each point below and commit to revisions.

read point-by-point responses

  1. Referee: Section 5, Eq. (1) and Table 2: SBR's cost function includes a velocity regularization term (λ_vel ||q_R - q_R,prev||², w_v=0.1), while the gradient-based baselines in the user study use the DexPilot loss (Eq. 4) which contains no such term. The ablation in Section E (Fig. 16) directly demonstrates that adding velocity regularization to gradient methods reduces jitter by 7.18x, achieving jitter comparable to sampling-based methods. This creates a confound in the user study: the real-world advantages attributed to the sampling paradigm (54.1% success, 36.4 NASA-TLX) may partly or largely stem from the velocity regularization term that SBR includes and the baselines lack. The most informative control condition — a gradient baseline equipped with velocity regularization — is absent from the 18-participant study.

    Authors: The referee is correct that the velocity regularization term creates a confound in the user study, and we acknowledge this as a genuine limitation of the current experimental design. We will revise the paper to explicitly state this confound in both the Discussion and Limitations sections. However, we believe the sampling paradigm still contributes independently for three reasons: (1) The ablation in Fig. 14 shows a 36.4% jitter reduction from sampling alone (without velocity regularization) compared to gradient baselines, isolating the sampling paradigm's independent contribution. (2) Fig. 16 shows that adding velocity regularization to gradient methods reduces jitter by 7.18x but increases mean tracking loss by 0.0232 on average — meaning gradient methods with velocity regularization achieve comparable jitter but at the cost of degraded tracking accuracy, whereas SBR achieves low jitter natively without this accuracy penalty. (3) The Hessian eigen-direction analysis (Fig. 15) provides a mechanistic explanation: gradient methods jump erratically in flat loss regions, while sampling-based methods inherently act as a low-pass filter in these regions. That said, we agree the ideal control condition — a gradient baseline with velocity regularization in the user study — is absent, and we cannot fully rule out that part of SBR's real-world advantage stems from the regularization term. We will add a discussion of this confound and scope our causal claims accordingly. We are unable to run the additional 18-participant user study condition within the revision timeline, but we will explicitly frame this as future work. revision: partial

  2. Referee: Section 5, Fig. 5a: The claim that SBR achieves the highest overall success rate is statistically supported only against DexPilot (p_Dunnett=0.038) and GeoRT (p_Dunnett<0.001), but not against Hybrid (52.1% vs. 54.1%, p_Dunnett=0.331). Similarly, the Discussion (Section 6) acknowledges SBR vs. Hybrid shows no significant per-task success differences. The abstract and conclusion frame SBR as achieving 'the highest overall task success rate,' which, while technically true, overstates the differentiation from Hybrid. The claims should be scoped to reflect that SBR significantly outperforms DexPilot and GeoRT but is statistically indistinguishable from Hybrid on success rate, with the primary differentiator being workload (p_Dunnett=0.010) and qualitative smoothness reports.

    Authors: The referee is correct. SBR's success rate (54.1%) is statistically indistinguishable from Hybrid (52.1%, p_Dunnett=0.331), and our framing in the abstract and conclusion overstates the differentiation. We will revise the abstract, conclusion, and Section 5 to scope the claim precisely: SBR significantly outperforms DexPilot and GeoRT on success rate, but is statistically indistinguishable from Hybrid on this metric. The primary differentiator from Hybrid is the NASA-TLX workload (p_Dunnett=0.010) and qualitative smoothness reports, which we will foreground. We will retain the factual statement that SBR achieves the numerically highest success rate but will no longer frame this as a decisive advantage over Hybrid. revision: yes

  3. Referee: Section E, Fig. 14: The ablation reports a 36.4% jitter reduction from sampling alone (without velocity regularization) compared to gradient baselines, using N=32768 samples and 500 frames (~5 seconds) of data. This is the strongest evidence for the sampling paradigm's independent contribution to jitter reduction. However, the analysis is limited to 5 seconds of motion data, and it is unclear whether this short segment is representative of the full range of hand motions encountered in the user study. The paper should clarify how this 500-frame segment was selected and whether the result generalizes across diverse grasp types and finger-gaiting motions.

    Authors: The referee raises a valid concern about the representativeness of the 500-frame segment. The segment was selected from prerecorded MANUS Metagloves Pro data and was chosen to include a mix of grasping and finger-gaiting motions, but we did not systematically verify its representativeness across the full range of motions in the user study. The 500-frame limitation was imposed by the computational cost of running parallel SLSQP optimization with N=32768 samples. We will add text to Section E clarifying how the segment was selected and acknowledging this limitation. We will also note that the Hessian eigen-direction analysis (Fig. 15) provides complementary theoretical evidence that is not tied to a specific motion segment, which partially addresses the generalizability concern. However, we cannot fully answer whether the 36.4% jitter reduction generalizes across all motion types without running the ablation on additional segments, which is computationally prohibitive at the current sample count. We will state this as a limitation and suggest it as a direction for future validation. revision: partial

standing simulated objections not resolved
  • The velocity regularization confound in the user study cannot be fully resolved without running an additional 18-participant study with a gradient+regularization baseline, which is infeasible within the revision timeline. We will acknowledge this as a limitation and scope our claims accordingly.
  • The 500-frame ablation segment's representativeness across all user-study motion types cannot be verified without additional computationally expensive runs. We will acknowledge this limitation explicitly.

Circularity Check

0 steps flagged

No significant circularity; the derivation chain is self-contained with external foundations. The velocity-regularization confound is a validity concern, not a circularity issue.

full rationale

The paper's derivation chain is straightforward and does not reduce to its inputs by construction. SBR's algorithm is built on externally cited frameworks (MPOPI [29], iCEM [30]) and a cost function that is explicitly a modified version of DexPilot's loss [9] with a standard temporal regularization term [12] — all external citations. The central claims (54.1% success rate, 36.4 NASA-TLX) are measured through an independent 18-participant user study with mixed-effects statistical modeling, not derived from fitted simulation parameters. The hyperparameter tuning (Fig. 8, Table 2) optimizes N and L to surpass DexPilot's tracking loss in simulation, but the real-world predictions (success, workload) are measured independently and are not algebraically forced by the fit. The ablation in Section E is actually a strength against circularity: it transparently shows that velocity regularization alone can give gradient methods comparable jitter to SBR (7.18x reduction), which undercuts rather than reinforces the paper's central claim — the opposite of circular reasoning. The skeptic's concern about the missing gradient+velocity-regularization control in the user study is a legitimate experimental confound (validity threat), but it is not circularity: the paper does not define its prediction in terms of its inputs, nor does it fit a parameter and then 'predict' the same fitted quantity. Minor self-citations exist ([4] mimic-one, [23] IROS paper by overlapping authors), but these provide the hardware platform and related-method context, not load-bearing uniqueness theorems or ansatz justifications for the central derivation. Score 1 reflects these minor non-load-bearing self-citations.

Axiom & Free-Parameter Ledger

13 free parameters · 6 axioms · 0 invented entities

The axiom ledger reveals 13 free parameters, most of which are loss function weights tuned for the specific robotic hand used. The core algorithmic parameters (N, M, L, sigma, lambda) were ablated (Figure 8), but the loss weights in Table 2 appear to be hand-tuned. No new entities are invented; the method combines existing frameworks (MPOPI, iCEM) in a novel application.

free parameters (13)
  • Number of samples (N) = 8192
    Tuned to balance accuracy and latency (Figure 8)
  • Elite samples (M) = 128
    Chosen for the softmax weighting in Algorithm 1
  • Update cycles (L) = 20
    Tuned to balance accuracy and latency (Figure 8)
  • Initial covariance (sigma) = 0.2
    Controls initial exploration range of the sampling distribution
  • Temperature (lambda) = 0.1
    Softmax temperature for elite sample weighting
  • Scale factor (beta) = 1.0
    Loss formulation parameter in Table 2
  • Primary vector weight (wset1) = 2.0
    Loss formulation parameter in Table 2
  • Secondary vector weight (wset2) = 0.0
    Loss formulation parameter in Table 2
  • Default vector weight (wdefault) = 1.0
    Loss formulation parameter in Table 2
  • Primary closing distance (eta1) = 0.001
    Loss formulation parameter in Table 2
  • Secondary separation distance (eta2) = 0.0
    Loss formulation parameter in Table 2
  • Joint centering weight (gamma) = 0.05
    Loss formulation parameter in Table 2
  • Velocity penalty weight (wv) = 0.1
    Controls temporal smoothness in the cost function (Eq. 1)
axioms (6)
  • standard math Model Predictive Optimized Path Integral (MPOPI) framework provides control stability for sampling-based optimization
    Invoked in Section 3 as the theoretical basis for SBR's control stability
  • domain assumption Improved Cross-Entropy Method (iCEM) is a valid Adaptive Importance Sampling method for this application
    Invoked in Section 3 as the AIS method for updating the control distribution
  • standard math Kabsch-Umeyama algorithm correctly aligns human and robot keypoints for retargeting
    Invoked in Figure 2 and Section 3 for initial keypoint alignment
  • domain assumption DexPilot's loss function is an appropriate base cost function for hand retargeting
    The cost function in Eq. (1) is a modified version of DexPilot's loss
  • domain assumption NASA-TLX is a valid measure of cognitive workload in teleoperation tasks
    Used in Section 5 to quantify cognitive burden across retargeters
  • domain assumption Mixed-effects models with random intercepts per operator adequately control for baseline dexterity differences
    Invoked in Section 5 and Appendix B for statistical analysis of within-subject design

pith-pipeline@v1.1.0-glm · 22072 in / 2511 out tokens · 361926 ms · 2026-07-09T09:07:46.389935+00:00 · methodology

0 comments
read the original abstract

Advances in learning-based robotic manipulation, such as Vision-Language-Action (VLA) models and Video Action Models (VAMs), heavily rely on high-quality teleoperation data. Their capabilities are strictly upper-bounded by the quality of the underlying human demonstrations. Current gradient-based retargeting algorithms often converge to different local minima, resulting in jitter that affects data quality and teleoperation experience. To address this, we introduce the Sampling-Based Retargeter (SBR), a novel gradient-free retargeting method drawn from the rich literature of sampling-based control and explicitly designed for low-jitter, real-time kinematic retargeting. We evaluate SBR both in simulation and through a rigorous real-world user study involving 18 participants performing 3 complex manipulation tasks. Compared to gradient-based baselines, SBR achieved the highest overall task success rate (54.1%) while significantly reducing operator cognitive fatigue, recording the lowest NASA-TLX workload score (36.4 out of 100). Ultimately, we establish SBR as a highly effective, intuitive retargeter for dexterous manipulation, providing the community with a rigorous benchmarking methodology to guide future retargeting research.

Figures

Figures reproduced from arXiv: 2607.07491 by Benedek Forrai, Elvis Nava, Erik Bauer, Norica Bacuieti, Robert Jomar Malate, Robert K. Katzschmann, Stefanos Charalambous.

Figure 1
Figure 1. Figure 1: Overview. Drawing from the rich traditions of sampling-based control in robotics, we in￾troduce a sampling-based retargeter for tracking human hand pose commands with dexterous robotic hands (a). We rigorously evaluate its performance against the state of the art along several metrics, both in a simulated environment (b) that allows quick iteration, and in a real-world user study in￾volving 18 participants… view at source ↗
Figure 2
Figure 2. Figure 2: System overview. After aligning human (p i H) and robot keypoints using the Kabsch￾Umeyama algorithm [26, 27, 28], SBR optimizes joint commands iteratively. Over L cycles, N candidates are sampled in each iteration, and M elite samples are weighted via a softmax function to update the control distribution (µ, Σ) subject to the cost function J (Eq. (1)). To overcome the limitations of gradient-based solvers… view at source ↗
Figure 3
Figure 3. Figure 3: Heuristic metrics for human-to-robot hand motion retargeting. Individual panels show geometric accuracy (3a), trajectory alignment (3b), smooth mapping (3c), and total workspace coverage optimization (3d). Figures 3b, 3c, and 3d are reformatted from [7]. 4 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Real world tasks. Highly dexterous tasks used in real world experiments to benchmark the tasks: Card Pickup (Task A, top), Vertical Cube Rotation (Task B, middle), and Screwdriver Pivot (Task C, bottom). Our study is comprised of a cohort of 18 participants (three of whom are paper authors). The cohort possesses varying levels of teleoperation experience, ranging from experts to a majority of complete novi… view at source ↗
Figure 5
Figure 5. Figure 5: Empirical evaluation of retargeter performance. (a) Compares the overall success rates across algorithms for Tasks A, B, and C. (b) Illustrates the variance and consistency in task completion times for successful trials. Mental Temporal Physical Performance Effort Frustration 20 40 60 80 NASA-TLX Workload Average: Task-A (N=12) Mental Temporal Physical Performance Effort Frustration 20 40 60 80 NASA-TLX Wo… view at source ↗
Figure 6
Figure 6. Figure 6: NASA TLX results for each task. Results from NASA-TLX survey from operators on the different retargeters for each task. A smaller area indicates that the retargeter had a reduced workload. 6 Discussion The real-world results strongly validate our core hypothesis: the improved smoothness of the sampling-based retargeter leads to competitive task success rates and reduced operator workload. State-of-the-art … view at source ↗
Figure 7
Figure 7. Figure 7: Performance comparison of Python forward kinematics (FK) libraries. We compared the performance of the following Python FK libraries: Pinocchio [36], PyTorch Kinematics [37], and JAX MJX [31, 38, 39]. Profiling execution times across different batch sizes. The superior parallel processing capabilities of JAX with MJX motivated its selection for our retargeter’s core computations. 12 [PITH_FULL_IMAGE:figur… view at source ↗
Figure 8
Figure 8. Figure 8: Compute-performance trade-offs in SBR. This ablation maps the mean tracking loss (weighted smooth-L1) across varying sample sizes N and update cycles L. The diagonal contour lines denote equivalent compute budgets (N × L). The green regions highlight hyperparameter configurations where SBR successfully surpasses the DexPilot reference loss (0.4414). Notably, the 160k operations contour reveals that a balan… view at source ↗
Figure 9
Figure 9. Figure 9: Balanced Latin Square matrix for counterbalancing sequence order. To mitigate learning and fatigue carryover effects, operators were assigned to one of four sequence groups (rows). Each group evaluated the four retargeting algorithms in a strict chronological order (columns). This mathematical structure ensures that every retargeter appears in every ordinal posi￾tion exactly once, and immediately follows e… view at source ↗
Figure 10
Figure 10. Figure 10: Overall operator task adaptation. Aggregating all tasks and operators to quantify learning effects. At the global level, operators generally become faster as the study progresses. At the local block level, significant learning effects emerge, highlighting that operators quickly adapt to the specifics of an individual retargeter over the course of a single block. D Operator Variance Analysis To mitigate po… view at source ↗
Figure 11
Figure 11. Figure 11: Operator variance in completion time across tasks. Distribution of execution times across the four evaluated retargeting algorithms for the three tasks. Data points represent individual successful trials, with internal horizontal lines denoting the median values. 17 [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Operator variance in cognitive workload across tasks. Total workload distributions derived via subjective NASA-TLX metrics across all tasks and retargeters. Despite the variance, we observe that SBR has the lowest median value (indicated by the solid black line) across the 3 different tasks, indicating that it has the lowest workload on the operator. DexPilot GeoRT Hybrid Sampling-Based 0% 20% 40% 60% 80%… view at source ↗
Figure 13
Figure 13. Figure 13: Operator success rate distributions across tasks. Violin plots illustrating the spread of individual operator success rates across the three distinct manipulation tasks. E Gradient vs. Sampling-Based Optimization Ablation To better understand more theoretically the difference in performance between gradient-based and sampling-based approaches, we perform this ablation study. To perform this analysis, we u… view at source ↗
Figure 14
Figure 14. Figure 14: Gradient versus sampling-based optimization comparison. Utilizing the DexPilot [9] loss function and swapping out the optimization methods, we compare the baseline tracking performance. To further help with the comparison, we perform batch optimization where we run the optimized inputs in parallel and apply a softmax to their outputs using N = 32768 samples, matching the sampling-based approach. RMSProp [… view at source ↗
Figure 15
Figure 15. Figure 15: Hessian eigen-direction decomposition and comparison. The eigen-modes of the Hessian enable us to better understand the true source of tracking jitter, given that jitter represents the second derivative with respect to position. For the stiffer eigenvectors (characterized by higher eigenvector and eigenvalue ranks), we observe that the mean per-frame jitter is very close across all methods. However, as we… view at source ↗

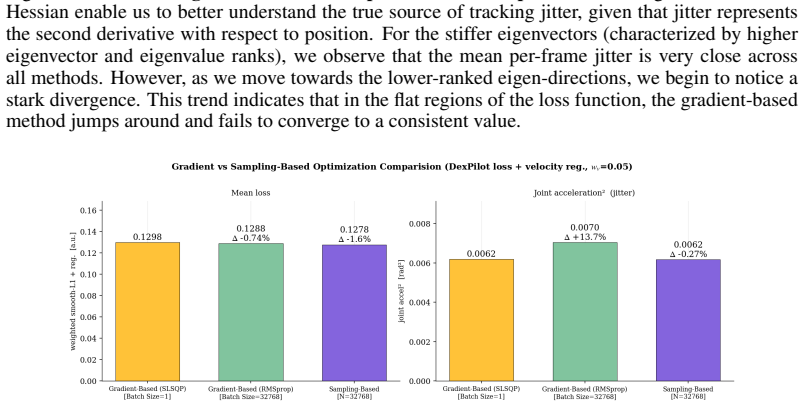

Figure 16
Figure 16. Figure 16: Gradient- versus sampling-based optimization comparison with a velocity regular￾ization term. Using the same core DexPilot loss function, we introduce an explicit velocity regular￾ization term with a weight of wv = 0.05. Although joint jittering is successfully reduced across the board by a factor of 7.18 times, the mean tracking loss increases by 0.0232 on average. Under this formulation, the gradient-ba… view at source ↗
Figure 17
Figure 17. Figure 17: Spearman rank correlation between simulation metrics and real-world perfor￾mance. Human-in-the-loop study results (N = 14 operators) comparing simulation metrics (rows) against real-world metrics (columns). In accordance with standard behavioral science frameworks [42], correlation magnitudes are interpreted relatively: r = ±0.1 denotes a small effect, r = ±0.3 a medium effect, and r = ±0.5 a large effect… view at source ↗
