Modeling and Chasing the Energy-Efficiency Sweet Spots in Modern GPUs

Ayesha Afzal , Markus Manfred Li , Michael Panzlaff This is my paper

Pith reviewed 2026-07-02 06:21 UTC · model grok-4.3

classification 💻 cs.DC
keywords GPU power modelingenergy efficiencyfrequency scalingpower cappingtransition frequencyHPC workloadsanalytical modelmolecular dynamics
0
0 comments X

The pith

An analytical model decomposes GPU power into linear and nonlinear components to identify workload-specific transition frequencies where energy efficiency degrades.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a simple analytical model that splits measured GPU power draw into a linear frequency-dependent part and a nonlinear part, then locates the transition frequency past which further increases in clock speed reduce overall energy efficiency. Tests on A40 through H200 GPUs with molecular-dynamics codes and a stress benchmark show the model reproduces observed power and energy-to-solution curves with low error. The same data indicate that lowering frequency is more effective at improving efficiency than imposing a power cap, especially when the workload stays well below the GPU's thermal design power. A reader cares because the model supplies concrete, architecture- and workload-dependent operating points rather than generic advice about running GPUs slower. The central result is that energy-efficient execution on modern GPUs is a configuration-dependent problem with identifiable regime boundaries that can be predicted from a handful of fitted parameters.

Core claim

GPU power can be expressed as the sum of a linear term and a nonlinear term; the point at which the nonlinear term begins to dominate defines a transition frequency beyond which energy-to-solution worsens. This transition frequency, together with baseline power and the strength of the nonlinear term, are the three dominant parameters that govern efficiency. The decomposition reproduces empirical measurements on A40, A100, H100 and H200 GPUs across GROMACS, AMBER and FIRESTARTER workloads with low residual error. Power capping proves less effective than frequency reduction for moving workloads into the efficient regime, particularly when they operate far from thermal design power.

What carries the argument

Analytical decomposition of GPU power into linear and nonlinear components that isolates a workload- and architecture-dependent transition frequency.

If this is right

  • Energy-to-solution curves exhibit distinct efficient and inefficient regimes whose boundary shifts with both workload and GPU generation.
  • Baseline power, the coefficient of the nonlinear term, and the transition frequency together determine the location of the energy-efficiency sweet spot.
  • Frequency reduction moves a workload into the efficient regime more reliably than power capping when the workload stays below thermal design power.
  • The fitted parameters supply explicit numerical guidance for choosing operating frequencies on the four tested GPU architectures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same decomposition could be applied to other accelerators whose power curves show similar nonlinear scaling.
  • Runtime systems could use online estimates of the transition frequency to adjust clocks dynamically without exhaustive search.
  • Hardware designers might target reductions in the nonlinear power term to enlarge the efficient operating window on future GPUs.
  • The model supplies a quantitative way to compare efficiency headroom across successive GPU generations under identical workloads.

Load-bearing premise

The nonlinear power-frequency behavior observed on the tested GPUs and workloads produces clear regime transitions that a simple linear-plus-nonlinear split can capture across systems.

What would settle it

Measure power and energy-to-solution on a previously untested GPU or workload, fit the same linear-plus-nonlinear model, and check whether the predicted transition frequency still aligns with the measured efficiency drop within the reported error bounds.

Figures

Figures reproduced from arXiv: 2607.00819 by Ayesha Afzal, Markus Manfred Li, Michael Panzlaff.

Figure 1
Figure 1. Figure 1: Performance–energy efficiency trade-off, illustrating iso-EDP contours and the Pareto frontier (lying between the red and grey points). The minimum-EDP (blue point) corresponds to the point of tangency between an iso-EDP contour and the Pareto frontier. limits are controlled using nvidia-smi –-power-limit, across the supported range while retaining default clock frequencies. In contrast to frequency scalin… view at source ↗
Figure 3
Figure 3. Figure 3: We model GPU power consumption using a piecewise function: [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 2

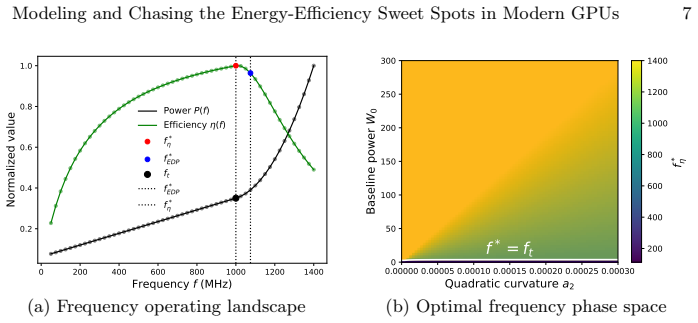

Figure 2. Figure 2: Piecewise GPU power–frequency model and energy-optimal regime structure. (a) Normalized power P(f) (black) and normalized energy efficiency η(f) (green) vs. frequency, showing optima (f ∗ η in red, f ∗ EDP in blue) and transition point ft in black. (b) Phase diagram of f ∗ η as a function of baseline power P0 and quadratic curvature a2. The color map shows numerically obtained efficiency-optimal frequency … view at source ↗

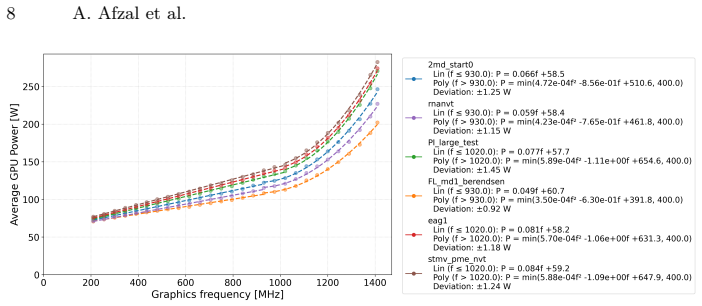

Figure 3
Figure 3. Figure 3: Piecewise power–frequency fitted model of five GROMACS GPU workloads on H100. Plots for the remaining workloads and GPUs are available at [Link] [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

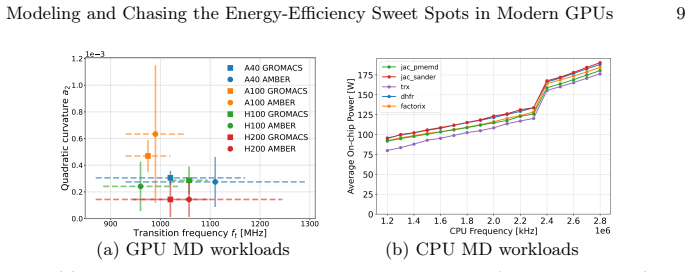

Figure 4. Figure 4: (a) Ranges of high-frequency GPU power curvature a2 (vertical dash lines) and transition frequency ft (horizontal dotted lines), with workload midpoints as markers (circle: AMBER, square: GROMACS) and colors indicating GPU models. (b) CPU power–frequency scaling on Intel Ice Lake for AMBER, mostly linear (a2 = 0). selected piecewise fit: RMSE = r SSElin + SSEquad N , (4) where N is the total number of samp… view at source ↗

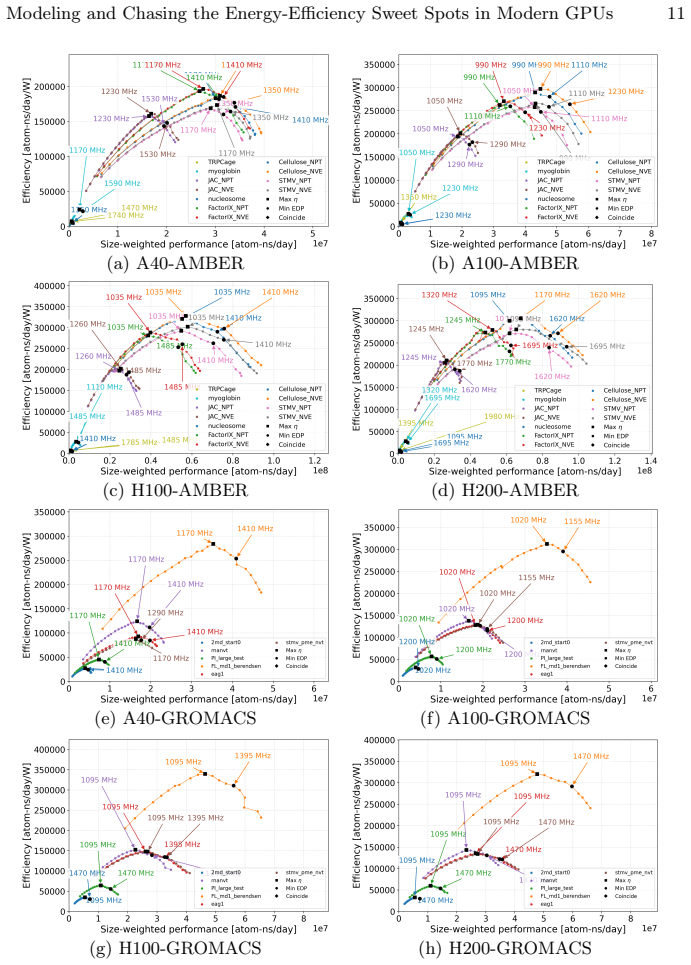

Figure 5
Figure 5. Figure 5: Performance–energy efficiency Pareto space under frequency scaling. The max￾imum energy efficiency (f ∗ η ) and minimum EDP (f ∗ EDP) frequencies are labeled. intensive cases like Cellulose or STMV. On modern GPUs (H100/H200), many workloads remain below the hardware power envelope even at default settings, including 5 of the 11 AMBER benchmarks [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

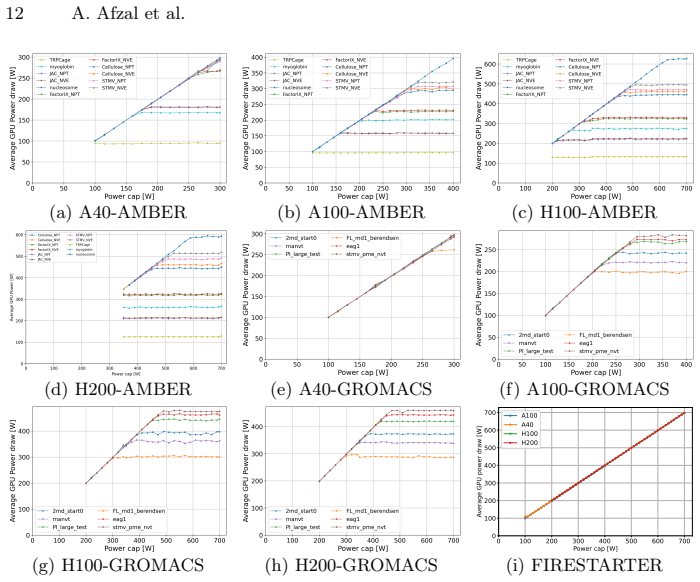

Figure 6. Figure 6: Impact of hardware power capping on average GPU power across architectures and workloads: (a)–(d) AMBER, (e)–(h) GROMACS, and (i) FIRESTARTER syn￾thetic stress-test baseline on A40, A100, H100, and H200 GPUs. workload-dependent. The range of optimization through power caps is much smaller than achievable via frequency tuning. This difference is more pronounced on newer architectures: on older A100 GPUs ( … view at source ↗
Figure 7

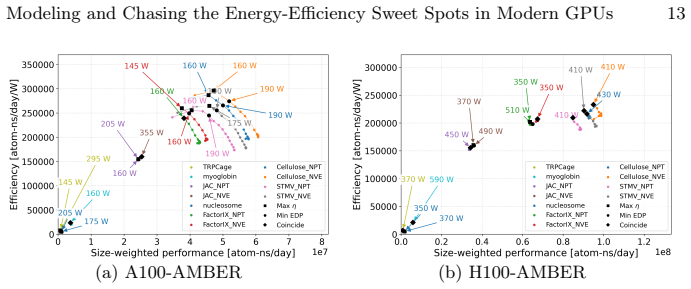

Figure 7. Figure 7: Performance–energy efficiency Pareto space under power-cap settings for AM￾BER benchmarks on A100 and H100. Benchmarks are ordered from small to larger size, and optimal power caps for maximum energy efficiency and minimum EDP are labeled. Plots for the remaining workloads and GPUs are available at [Link]. (a) Power-frequency (b) Frequency-efficiency (c) Powercap-efficiency [PITH_FULL_IMAGE:figures/full_f… view at source ↗
Figure 8

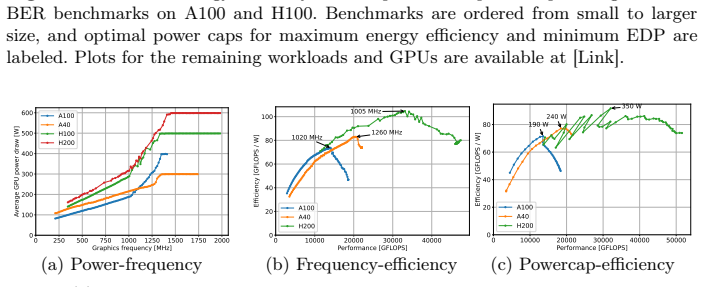

Figure 8. Figure 8: (a) Piecewise power–frequency behavior and energy efficiency versus perfor￾mance under (a) frequency scaling and (b) power capping for the FIRESTARTER GPU stress-test benchmark. FIRESTARTER, while having moderate effects on AMBER hot benchmarks and negligible impact on “cold” (MD) workloads [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9

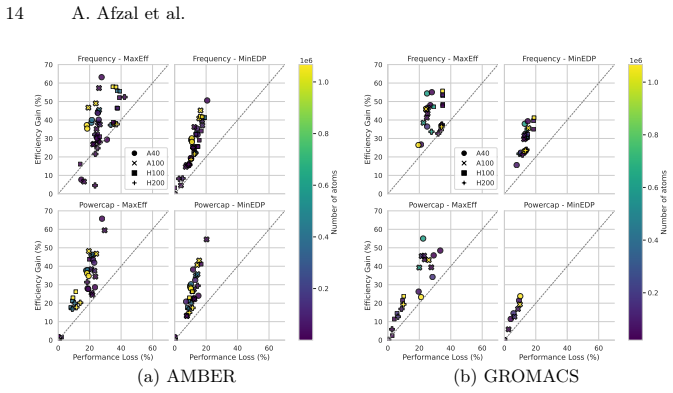

Figure 9. Figure 9: Efficiency–performance trade-off for frequency scaling and power-cap settings at maximum-efficiency (f ∗ η , W∗ η ) and minimum-EDP (f ∗ EDP, W∗ EDP) points. Each point shows efficiency gain (∆η) vs. performance change (∆P) relative to default. Markers denote GPU type; color encodes workload size from small (blue) to large (yellow). jectory. In contrast, power capping delivers smaller, more stable improvem… view at source ↗
read the original abstract

Energy consumption is a key limitation in high-performance computing on heterogeneous CPU-GPU systems. This work studies how hardware configuration affects energy-to-solution under realistic workloads. We study energy efficiency regimes using molecular dynamics benchmarks (GROMACS and AMBER) and a stress-test benchmark (FIRESTARTER) on systems with A40, A100, H100, and H200 GPUs and Intel Ice Lake CPU, varying frequency scaling and power cap. We show that energy-to-solution exhibits workload- and architecture-dependent transitions between efficient and inefficient regimes, driven by nonlinear GPU power-frequency scaling. We introduce an interpretable analytical model that decomposes GPU power into linear and nonlinear components, identifying a workload- and architecture-dependent transition frequency beyond which efficiency degrades. The model fits empirical data with low error and highlights the role of baseline power, nonlinear power behavior, and transition frequency as the dominant parameters governing energy efficiency. Power capping is generally less effective for efficiency tuning than frequency reduction, especially for workloads that operate far from thermal design power. Overall, energy-efficient HPC execution is a configuration-dependent problem with identifiable regime shifts, and we provide model-driven guidance for selecting operating points.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces an interpretable analytical model decomposing GPU power into linear and nonlinear components to identify workload- and architecture-dependent transition frequencies beyond which energy efficiency degrades. Experiments use GROMACS, AMBER, and FIRESTARTER benchmarks on A40/A100/H100/H200 GPUs with frequency scaling and power caps, claiming the model fits empirical data with low error and that frequency reduction outperforms power capping for efficiency tuning, with baseline power, nonlinear coefficients, and transition frequency as dominant parameters.

Significance. If the fitting procedure and regime identification are rigorously validated, the work offers practical, model-driven guidance for energy-efficient configuration of modern GPUs in HPC, addressing a timely concern. The multi-architecture empirical coverage is a clear strength, as is the emphasis on an interpretable decomposition rather than black-box fitting. The absence of derivation steps, error analysis, and independent validation in the current form limits immediate applicability and generalizability.

major comments (3)
  1. [§3] §3 (model definition): The linear-plus-nonlinear decomposition and transition frequency identification lack any derivation steps, justification for the functional form, or explicit equations showing how coefficients are obtained from data; this is load-bearing for the central claim that the model is interpretable and identifies dominant parameters.
  2. [§4] §4 (results): The claim of fitting empirical data with low error supplies no error metrics, error bars, data exclusion rules, or validation procedure (e.g., cross-validation or hold-out sets), making it impossible to assess whether the reported fit supports the regime-transition conclusions.
  3. [§4.2] §4.2 and §5: Transition frequency and nonlinear coefficients appear determined from the same empirical runs used to demonstrate the efficient/inefficient regimes, with no independent derivation, external benchmark, or sensitivity analysis to address potential circularity.
minor comments (2)
  1. [Figures 3-5] Figure captions and axis labels should explicitly state units and scaling for frequency and power measurements to improve reproducibility.
  2. [Introduction] The manuscript would benefit from citing additional recent GPU power modeling literature for context on the novelty of the linear/nonlinear split.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. The feedback identifies key areas where additional rigor in model derivation, quantitative validation, and addressing potential circularity will improve the manuscript. We respond to each major comment below and commit to revisions that strengthen the presentation without altering the core claims or experimental scope.

read point-by-point responses

  1. Referee: [§3] §3 (model definition): The linear-plus-nonlinear decomposition and transition frequency identification lack any derivation steps, justification for the functional form, or explicit equations showing how coefficients are obtained from data; this is load-bearing for the central claim that the model is interpretable and identifies dominant parameters.

    Authors: We acknowledge that the submitted manuscript presents the model form without explicit derivation steps or the fitting equations. The decomposition is motivated by the characteristic shape of measured GPU power-frequency curves (linear regime at moderate frequencies transitioning to superlinear due to voltage scaling), consistent with prior literature on GPU power modeling. In the revision we will add to §3: (i) a brief derivation showing how the transition frequency is obtained as the frequency at which the nonlinear term's contribution to total power exceeds a defined threshold, (ii) justification of the functional form by reference to established dynamic and static power components, and (iii) the explicit least-squares procedure used to obtain the baseline power, linear coefficient, and nonlinear coefficient from the measured data. revision: yes

  2. Referee: [§4] §4 (results): The claim of fitting empirical data with low error supplies no error metrics, error bars, data exclusion rules, or validation procedure (e.g., cross-validation or hold-out sets), making it impossible to assess whether the reported fit supports the regime-transition conclusions.

    Authors: The current text describes fit quality only qualitatively. We agree this is insufficient. The revised §4 will report quantitative metrics (RMSE and R² for each GPU–workload pair), include error bars derived from repeated measurements, document data exclusion rules (runs exhibiting thermal throttling or measurement variance above a threshold), and describe a hold-out validation procedure in which a subset of frequency points is withheld during fitting and then used to verify regime-transition predictions. revision: yes

  3. Referee: [§4.2] §4.2 and §5: Transition frequency and nonlinear coefficients appear determined from the same empirical runs used to demonstrate the efficient/inefficient regimes, with no independent derivation, external benchmark, or sensitivity analysis to address potential circularity.

    Authors: The transition frequency and coefficients are obtained by fitting the model to the power-frequency measurements from the same experimental campaign used to illustrate the efficiency regimes; this is an inherent aspect of an empirical modeling study. To address circularity concerns we will add, in the revision, a sensitivity analysis that perturbs the nonlinear coefficient within its observed range across architectures and shows the resulting variation in identified transition frequency and efficiency conclusions. We will also supply a physical interpretation of the transition frequency grounded in GPU voltage-frequency behavior that does not rely on the specific benchmark data. Independent external benchmarks are not present in the current dataset; the multi-architecture, multi-workload consistency serves as the primary robustness check. revision: partial

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper proposes an analytical decomposition of GPU power into linear and nonlinear components, fits the resulting model to empirical benchmark data on multiple GPU architectures, and reports low fitting error while highlighting fitted parameters such as transition frequency. This constitutes standard empirical modeling and validation rather than any derivation that reduces to its own inputs by construction. No equations, self-citations, uniqueness theorems, or renamings are present in the supplied text that would trigger the enumerated circularity patterns. The central claim remains self-contained against the external benchmark runs.

Axiom & Free-Parameter Ledger

3 free parameters · 1 axioms · 0 invented entities

The central claim rests on an analytical decomposition whose parameters (baseline power, nonlinear coefficients, transition frequency) are determined from the same benchmark runs; the abstract supplies no independent evidence or external validation for these parameters.

free parameters (3)
  • transition frequency
    Workload- and architecture-dependent threshold identified by the model beyond which efficiency degrades
  • baseline power
    Linear component in the GPU power decomposition highlighted as a dominant parameter
  • nonlinear power coefficients
    Parameters capturing the nonlinear part of power-frequency scaling
axioms (1)
  • domain assumption GPU power consumption can be usefully decomposed into a constant baseline plus a nonlinear frequency-dependent term
    This decomposition is the foundation of the interpretable analytical model
