Hybrid ResNet-1D-BiGRU with Multi-Head Attention for Cyberattack Detection in Industrial IoT Environments

Afrah Gueriani , Hamza Kheddar , Ahmed Cherif Mazari This is my paper

Pith reviewed 2026-05-10 18:33 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.CR
keywords intrusion detectionindustrial IoTcyberattack detectionResNet-1DBiGRUmulti-head attentionSMOTEdeep learning
0
0 comments X

The pith

A hybrid model stacking ResNet-1D, bidirectional GRU, and multi-head attention detects IIoT cyberattacks with 98.71 percent accuracy and 0.0001-second latency.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds an intrusion detector for industrial IoT networks by feeding time-series traffic into 1D residual blocks for local pattern extraction, then bidirectional GRU layers for forward and backward sequence context, and finally multi-head attention to emphasize the most relevant extracted features. Class imbalance in the EdgeHoTset training data is handled by generating synthetic minority-class samples with SMOTE before the combined network learns to label flows as benign or malicious. When evaluated on that dataset the model records 98.71 percent accuracy and 0.0001 seconds per instance inference time; the same architecture reaches 99.99 percent accuracy and zero false positives on the separate CICIoV2024 collection while still running at 0.00014 seconds per instance. These numbers exceed those reported for prior single-architecture or simpler hybrid baselines on the same data.

Core claim

The hybrid ResNet-1D-BiGRU with Multi-Head Attention model, after SMOTE balancing on EdgeHoTset, reaches 98.71 percent accuracy, 0.0417 percent loss, and 0.0001 sec/instance inference latency; the identical architecture tested on CICIoV2024 yields 99.99 percent accuracy, 0.0028 loss, zero false-positive rate, and 0.00014 sec/instance latency, surpassing all compared existing methods on both collections.

What carries the argument

The stacked hybrid network of 1D residual blocks for spatial feature extraction, bidirectional GRU layers for temporal sequence modeling in both directions, and multi-head attention for dynamic weighting of salient feature channels before final classification.

If this is right

  • Inference times below 0.0002 seconds per sample make continuous, on-device monitoring feasible inside resource-limited IIoT gateways without adding perceptible delay to control loops.
  • Zero false-positive rate on one benchmark implies the model can flag attacks while generating almost no spurious alerts that would burden human operators.
  • Consistent superiority over prior methods on two independent datasets indicates that the spatial-temporal-attention combination extracts more discriminative signatures than simpler convolutional, recurrent, or attention-only baselines.
  • SMOTE balancing during training enables the network to learn rare attack classes without requiring additional real-world attack traces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same layered architecture could be retrained on sensor-stream data from other domains such as power-grid anomaly detection or vehicle network security.
  • Performance on encrypted or zero-day traffic would need separate validation because the current benchmarks consist of labeled, unencrypted flows with known attack signatures.
  • Embedding the detector inside existing IIoT protocol stacks could allow smaller operators to add advanced threat monitoring without building large labeled datasets from scratch.

Load-bearing premise

The two chosen public datasets contain traffic patterns and attack distributions that match those of real deployed industrial IoT systems, and SMOTE-generated samples do not introduce artifacts that artificially inflate accuracy on the held-out test portions.

What would settle it

Applying the trained model to a fresh collection of live industrial IoT packet traces that contain attack variants absent from both EdgeHoTset and CICIoV2024 and measuring whether accuracy falls below 95 percent or false-positive rate rises above 2 percent.

Figures

Figures reproduced from arXiv: 2604.06481 by Afrah Gueriani, Ahmed Cherif Mazari, Hamza Kheddar.

Figure 1
Figure 1. Figure 1: The proposed framework architecture. comprising 1,176 features, the dataset was refined to 61 relevant features focusing on IoT devices. - CICIoV20242 : Introduced for intrusion detection in the context of the Internet of Vehicles (IoV). It contains five range of modern attack types in addition to normal traffic. The dataset was captured in a realistic testbed environment simulating in-vehicle and vehicula… view at source ↗
Figure 3

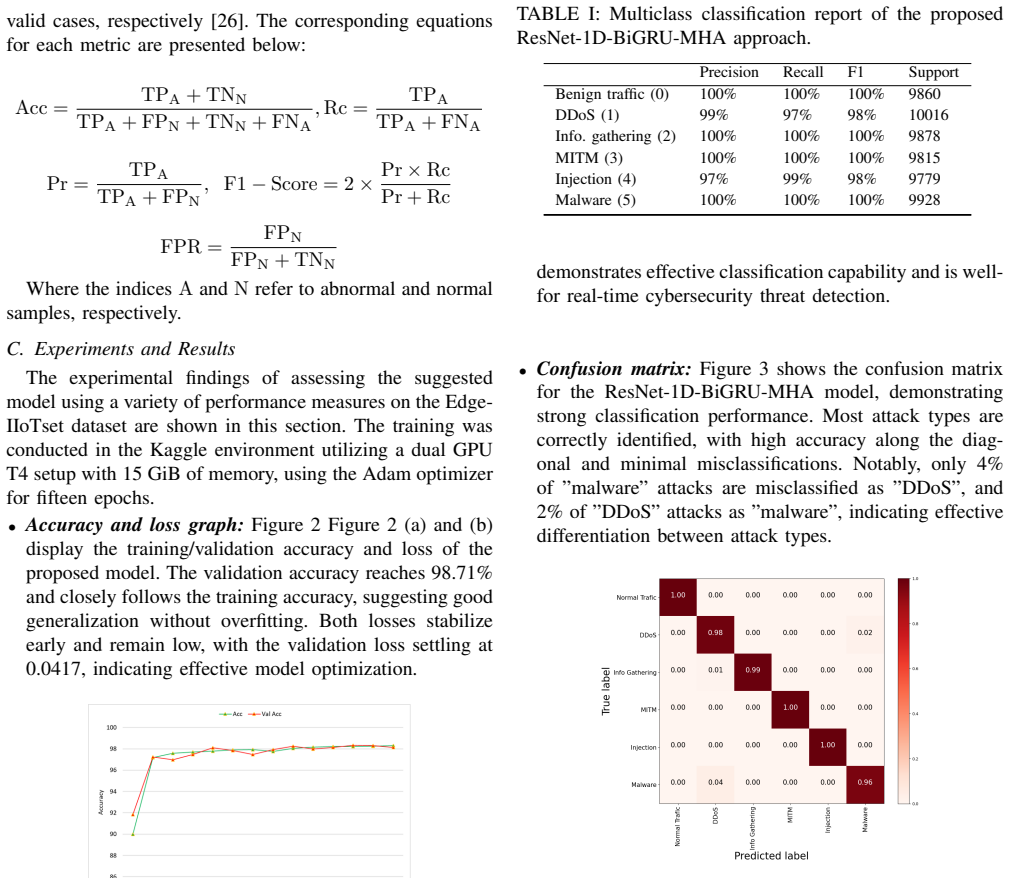

Figure 3. Figure 3: Confusion matrix of the proposed ResNet-1D [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 2

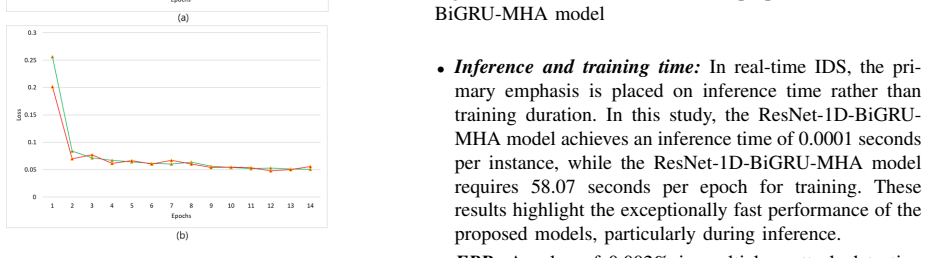

Figure 2. Figure 2: Accuracy and loss of the proposed ResNet-1D [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: ROC curves for multiclass classification of the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

This study introduces a hybrid deep learning model for intrusion detection in Industrial IoT (IIoT) systems, combining ResNet-1D, BiGRU, and Multi-Head Attention (MHA) for effective spatial-temporal feature extraction and attention-based feature weighting. To address class imbalance, SMOTE was applied during training on the EdgeHoTset dataset. The model achieved 98.71% accuracy, a loss of 0.0417%, and low inference latency (0.0001 sec /instance), demonstrating strong real-time capability. To assess generalizability, the model was also tested on the CICIoV2024 dataset, where it reached 99.99% accuracy and F1-score, with a loss of 0.0028, 0 % FPR, and 0.00014 sec/instance inference time. Across all metrics and datasets, the proposed model outperformed existing methods, confirming its robustness and effectiveness for real-time IoT intrusion detection.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a hybrid deep learning model integrating ResNet-1D, BiGRU, and Multi-Head Attention for cyberattack detection in Industrial IoT systems. SMOTE is used to address class imbalance on the EdgeHoTset dataset, yielding 98.71% accuracy and 0.0001 sec/instance latency. Evaluation on CICIoV2024 shows 99.99% accuracy, 0% FPR, and similar low latency, with claims of outperforming prior methods.

Significance. If validated without data leakage and with proper generalization, the low-latency hybrid model could advance real-time intrusion detection in resource-constrained IIoT environments. The dual-dataset evaluation is a positive step, but the significance hinges on whether the results reflect genuine improvements rather than dataset artifacts or improper validation.

major comments (3)
  1. [Methods (SMOTE application)] The abstract states SMOTE was applied 'during training' on EdgeHoTset, but no explicit statement confirms that the train/test split preceded SMOTE application. Without this, synthetic samples could have leaked into the test set, potentially inflating the 98.71% accuracy and 0% FPR. This is load-bearing for the performance claims.
  2. [Experimental Results] Details on hyperparameter tuning (e.g., learning rate, number of heads in MHA, hidden sizes) and whether test data was used in tuning are absent. The free parameters listed include these, raising risk of overfitting to the specific datasets.
  3. [Evaluation and Generalizability] No cross-dataset transfer experiments, adversarial robustness tests, or analysis of how well EdgeHoTset and CICIoV2024 represent real industrial IoT traffic distributions are provided. This undermines the claim of 'robustness ... for real-time IoT intrusion detection'.
minor comments (2)
  1. [Abstract] The loss is reported as 0.0417% which seems unusually low; clarify if this is cross-entropy loss or percentage.
  2. [Notation] Ensure consistent use of terms like 'FPR' and full expansion on first use.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive feedback on our manuscript. We have addressed each of the major comments by revising the paper to clarify the SMOTE application process, provide hyperparameter tuning details, and discuss generalizability limitations. Our responses are provided point-by-point below.

read point-by-point responses

  1. Referee: [Methods (SMOTE application)] The abstract states SMOTE was applied 'during training' on EdgeHoTset, but no explicit statement confirms that the train/test split preceded SMOTE application. Without this, synthetic samples could have leaked into the test set, potentially inflating the 98.71% accuracy and 0% FPR. This is load-bearing for the performance claims.

    Authors: We thank the referee for highlighting this critical methodological detail. The full Methods section (Section 3.2) describes that the EdgeHoTset dataset was first partitioned into an 80/20 train/test split using stratified sampling to maintain class proportions, after which SMOTE was applied exclusively to the training set. No synthetic samples were generated or included in the test set. To remove any potential ambiguity in the abstract, we have revised it to read: 'The EdgeHoTset dataset was split into training and test sets prior to applying SMOTE exclusively to the training data.' We have also added an explicit paragraph in the Methods section outlining the exact sequence of operations and confirming the absence of leakage. revision: yes

  2. Referee: [Experimental Results] Details on hyperparameter tuning (e.g., learning rate, number of heads in MHA, hidden sizes) and whether test data was used in tuning are absent. The free parameters listed include these, raising risk of overfitting to the specific datasets.

    Authors: We appreciate the referee's concern about transparency in hyperparameter selection and the associated risk of overfitting. In the revised manuscript, we have inserted a new subsection 'Hyperparameter Optimization and Model Selection' under Experimental Setup. This subsection specifies the search ranges (learning rate: 1e-4 to 1e-2; number of MHA heads: 2, 4, 8; BiGRU hidden sizes: 64, 128, 256), the optimization method (grid search with 5-fold cross-validation performed solely on the training partition), and the final selected values. We explicitly state that the test set was never used during tuning or model selection, and we provide the complete list of chosen hyperparameters for reproducibility. revision: yes

  3. Referee: [Evaluation and Generalizability] No cross-dataset transfer experiments, adversarial robustness tests, or analysis of how well EdgeHoTset and CICIoV2024 represent real industrial IoT traffic distributions are provided. This undermines the claim of 'robustness ... for real-time IoT intrusion detection'.

    Authors: We acknowledge that cross-dataset transfer learning, adversarial robustness evaluations, and a quantitative comparison of dataset distributions against real-world IIoT traffic would provide stronger evidence of generalizability. Our current evaluation already demonstrates consistent high performance across two datasets with differing characteristics and attack profiles. In the revised manuscript we have added a 'Limitations and Future Directions' section that discusses these gaps, includes a qualitative comparison of traffic features to published IIoT benchmarks, and outlines planned follow-up experiments on transfer and adversarial settings. Because performing the additional experiments would require substantial new computation and data collection beyond the scope of this revision, we have addressed the comment through expanded discussion rather than new empirical results. revision: partial

Circularity Check

0 steps flagged

No circularity: purely empirical model evaluation with no derivation chain

full rationale

The paper proposes a hybrid neural architecture (ResNet-1D + BiGRU + Multi-Head Attention) and reports empirical accuracies, F1, loss, and latency on two public datasets after SMOTE oversampling during training. No mathematical derivation, first-principles prediction, or equation chain is claimed or present; performance figures are direct experimental outputs, not quantities that reduce to fitted parameters or self-citations by construction. The central claims rest on standard train/test evaluation rather than any self-definitional or load-bearing self-referential step, satisfying the self-contained benchmark criterion.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard supervised classification assumptions plus the empirical performance on two public datasets. No new physical or mathematical axioms are introduced.

free parameters (2)
  • SMOTE oversampling ratio
    Chosen to balance classes; exact ratio not stated in abstract but required for reproducibility.
  • Model hyperparameters (learning rate, number of heads, hidden sizes)
    Fitted during training; not enumerated in abstract.
axioms (1)
  • domain assumption Network traffic features are sufficient to distinguish attacks from normal behavior.
    Implicit in any intrusion-detection model using packet or flow data.
