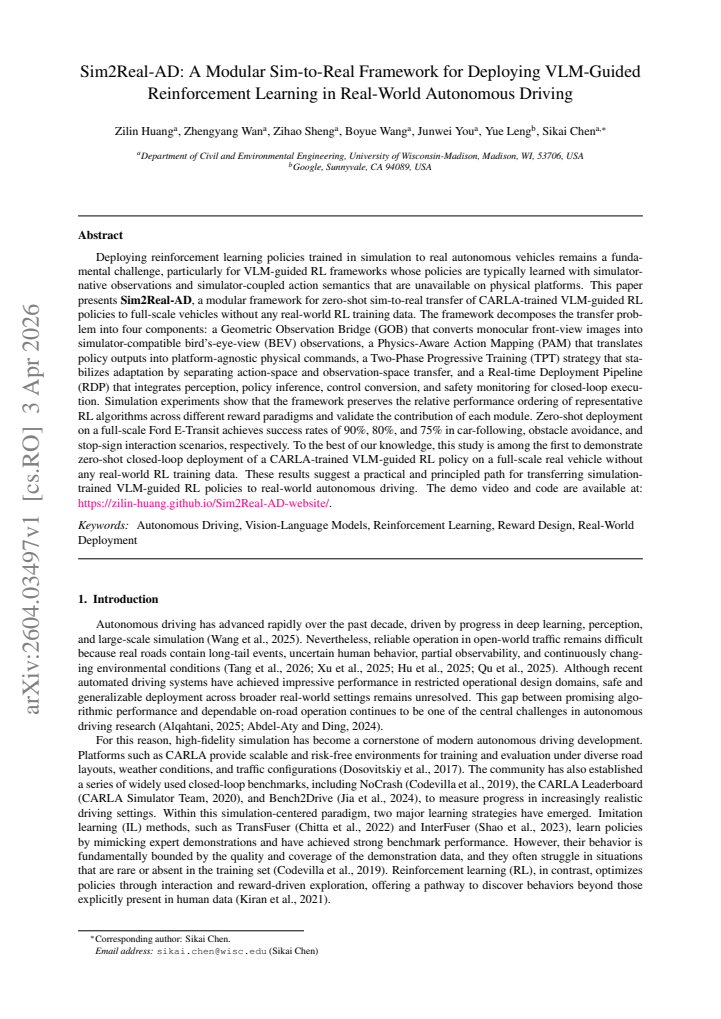

Sim2Real-AD: A Modular Sim-to-Real Framework for Deploying VLM-Guided Reinforcement Learning in Real-World Autonomous Driving

Zilin Huang , Zhengyang Wan , Zihao Sheng , Boyue Wang , Junwei You , Yue Leng , Sikai Chen
Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:15 UTC · model grok-4.3

classification 💻 cs.RO cs.AIcs.CV
keywords sim-to-real transferreinforcement learningautonomous drivingVLM-guided RLCARLA simulationzero-shot deploymentgeometric observation bridgephysics-aware action mapping
0
0 comments X

The pith

A modular framework transfers CARLA-trained VLM-guided RL policies to a full-scale Ford E-Transit vehicle with zero real-world training data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Sim2Real-AD to solve the transfer gap that normally blocks reinforcement learning policies from moving out of simulation. It splits the problem into four parts: converting real camera images into simulator-style bird's-eye views, mapping policy outputs to physical vehicle commands, training in two phases to stabilize the shift, and running everything in a closed-loop pipeline with safety checks. Demonstrations on a full-size van reach 90 percent success in car following, 80 percent in obstacle avoidance, and 75 percent at stop signs without any real driving data used for learning. If the approach holds, it removes the need to collect dangerous or expensive real-world interaction data before deployment.

Core claim

Sim2Real-AD decomposes sim-to-real transfer for VLM-guided RL into a Geometric Observation Bridge that turns monocular images into BEV observations, a Physics-Aware Action Mapping that converts policy actions into platform commands, a Two-Phase Progressive Training schedule that separates action and observation adaptation, and a Real-time Deployment Pipeline that handles perception, inference, and monitoring. This combination preserves relative algorithm performance in simulation and produces 90 percent, 80 percent, and 75 percent success rates in car-following, obstacle avoidance, and stop-sign interaction on a full-scale Ford E-Transit without any real-world RL training data.

What carries the argument

The Sim2Real-AD framework, whose four modules (Geometric Observation Bridge, Physics-Aware Action Mapping, Two-Phase Progressive Training, and Real-time Deployment Pipeline) convert simulator-native observations and actions into real-vehicle equivalents.

If this is right

  • Relative ordering of RL algorithms across reward types remains consistent after transfer.
  • Closed-loop control runs safely on full-scale hardware using only simulation training.
  • No real-world data collection for policy learning is required for the three evaluated scenarios.
  • Safety monitoring in the deployment pipeline prevents unsafe actions during real execution.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same modular split could apply to other simulators or vehicle platforms if the observation and action bridges are reimplemented.
  • Extending the two-phase training to include more complex urban maneuvers would test whether the gap-closing effect scales.
  • Replacing the VLM component with other perception models would isolate how much the transfer success depends on vision-language features.

Load-bearing premise

The Geometric Observation Bridge, Physics-Aware Action Mapping, and Two-Phase Progressive Training together close the sim-to-real gap for the tested driving scenarios without any real-world reinforcement learning data or fine-tuning.

What would settle it

Success rates falling below 50 percent in obstacle avoidance or stop-sign interaction on the Ford E-Transit when the four modules are applied would show that the framework does not close the gap as claimed.

Figures

Figures reproduced from arXiv: 2604.03497 by Boyue Wang, Junwei You, Sikai Chen, Yue Leng, Zhengyang Wan, Zihao Sheng, Zilin Huang.

Figure 1
Figure 1. Figure 1: Overview of the sim-to-real challenge and the proposed Sim2Real-AD framework. Direct transfer fails because of the coupled observation [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of Sim2Real-AD. The framework bridges sim-to-real transfer through four components: the Geometric Observation Bridge [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Geometric Observation Bridge from monocular front-view images to simulator-compatible BEV observations. Phase 1 uses simulator [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: ChatScene training curves: Original (dashed, GT-BEV + Direct Action, [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: VLM-RL training curves: Original (dashed, GT-BEV + Direct Action, [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: DriveVLM-RL training curves: Original (dashed, GT-BEV + Direct Action, [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: CARLA GOB evaluation on 4 representative frames (2 per row). Each case shows (left to right): front-view camera input, GOB-BEV, [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Quantitative GOB evaluation on 200 CARLA frames. (a) Per-channel IoU between GOB-BEV and GT-BEV: road achieves moderate [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Temporal consistency of the road mask: IoU between adjacent frames on real-world driving data. cam0 (forward-facing) achieves mean [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Real-world GOB output on 12 representative frames (Frame 0–110, interval 10) from the Ford E-Transit primary forward-facing camera [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Real-world experimental platform and evaluation scenarios. (a) Lab-developed full-scale electric Ford E-Transit autonomous vehicle [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Quantitative real-world evaluation results over 20 trials per scenario. (a) Safety driver interventions across three scenarios. (b) Task [PITH_FULL_IMAGE:figures/full_fig_p022_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Representative DriveVLM-RL car-following episode (S1). Top row: forward-facing camera view (cam0), used as policy input through [PITH_FULL_IMAGE:figures/full_fig_p023_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Qualitative analysis of S1 (routine car-following). (a) Temporal evolution of reward components for VLM-RL. (b) Temporal evolution [PITH_FULL_IMAGE:figures/full_fig_p023_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Representative VLM-RL failure case in S2 (static obstacle avoidance). Top row: forward-facing camera view (cam0), used as policy [PITH_FULL_IMAGE:figures/full_fig_p024_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Quantitative signal analysis of S2 (static obstacle avoidance). (a) VLM-RL reward components: dynamic pathway remains inactive [PITH_FULL_IMAGE:figures/full_fig_p024_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: DriveVLM-RL reward mechanism and trajectory in S2. (a) Temporal evolution of DriveVLM-RL’s reward components: static reward, [PITH_FULL_IMAGE:figures/full_fig_p025_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Representative episode in S3 (stop sign interaction with pedestrian). Top row: forward-facing camera view (cam0), used as policy input [PITH_FULL_IMAGE:figures/full_fig_p026_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Quantitative signal analysis of S3 (stop sign interaction). (a) VLM-RL reward components: static reward provides no signal for stop sign [PITH_FULL_IMAGE:figures/full_fig_p026_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: DriveVLM-RL dynamic pathway reasoning and behavioral profiles in S3. (a) LVLM reasoning process when the attentional gate acti [PITH_FULL_IMAGE:figures/full_fig_p027_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Real-time feasibility on the Ford E-Transit onboard GPU. Sim2Real-AD satisfies the 20 Hz control budget with an average end-to-end [PITH_FULL_IMAGE:figures/full_fig_p028_21.png] view at source ↗
read the original abstract

Deploying reinforcement learning policies trained in simulation to real autonomous vehicles remains a fundamental challenge, particularly for VLM-guided RL frameworks whose policies are typically learned with simulator-native observations and simulator-coupled action semantics that are unavailable on physical platforms. This paper presents Sim2Real-AD, a modular framework for zero-shot sim-to-real transfer of CARLA-trained VLM-guided RL policies to full-scale vehicles without any real-world RL training data. The framework decomposes the transfer problem into four components: a Geometric Observation Bridge (GOB) that converts monocular front-view images into simulator-compatible bird's-eye-view (BEV) observations, a Physics-Aware Action Mapping (PAM) that translates policy outputs into platform-agnostic physical commands, a Two-Phase Progressive Training (TPT) strategy that stabilizes adaptation by separating action-space and observation-space transfer, and a Real-time Deployment Pipeline (RDP) that integrates perception, policy inference, control conversion, and safety monitoring for closed-loop execution. Simulation experiments show that the framework preserves the relative performance ordering of representative RL algorithms across different reward paradigms and validate the contribution of each module. Zero-shot deployment on a full-scale Ford E-Transit achieves success rates of 90%, 80%, and 75% in car-following, obstacle avoidance, and stop-sign interaction scenarios, respectively. To the best of our knowledge, this study is among the first to demonstrate zero-shot closed-loop deployment of a CARLA-trained VLM-guided RL policy on a full-scale real vehicle without any real-world RL training data. The demo video and code are available at: https://zilin-huang.github.io/Sim2Real-AD-website/.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents Sim2Real-AD, a modular framework for zero-shot sim-to-real transfer of CARLA-trained VLM-guided RL policies to full-scale vehicles. It decomposes the problem into Geometric Observation Bridge (GOB) for monocular-to-BEV conversion, Physics-Aware Action Mapping (PAM), Two-Phase Progressive Training (TPT), and Real-time Deployment Pipeline (RDP). Simulation results preserve RL algorithm performance ordering across reward paradigms, while real-world zero-shot tests on a Ford E-Transit report success rates of 90%, 80%, and 75% in car-following, obstacle avoidance, and stop-sign scenarios without any real-world RL training data. The work claims to be among the first such demonstrations.

Significance. If the results hold, this would be a significant contribution to sim-to-real transfer in autonomous driving, providing one of the first zero-shot closed-loop deployments of a CARLA-trained VLM-RL policy on a full-scale vehicle. The modular design and explicit separation of observation and action transfer via TPT offer a structured, potentially reusable approach. Availability of code and demo video supports reproducibility.

major comments (2)
  1. [Abstract and GOB section] Abstract and GOB description: The zero-shot claim depends on GOB producing BEV observations distributionally close to CARLA's native BEV. No quantitative validation (IoU, depth error, or similar) is reported against LiDAR ground truth under the Ford E-Transit's exact camera intrinsics, mounting, and lighting; this is load-bearing because unquantified domain shift could account for the 75-90% success rates rather than the framework.
  2. [Results] Results section: Success rates are stated without error bars, trial counts, or statistical tests. While module contributions are asserted, specific ablation numbers quantifying the isolated effect of GOB, PAM, and TPT on the sim-to-real gap are not provided, weakening support for the claim that the full framework is necessary.
minor comments (2)
  1. [Abstract] Abstract: Add the number of real-world trials and any variance measures to the reported success rates for clarity.
  2. [Methods] Methods: A diagram of the Two-Phase Progressive Training phases would improve readability of the adaptation strategy.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback, which highlights important areas for strengthening the validation and statistical rigor of our claims. We address each major comment below and commit to revisions that improve the manuscript without misrepresenting the work.

read point-by-point responses

  1. Referee: [Abstract and GOB section] Abstract and GOB description: The zero-shot claim depends on GOB producing BEV observations distributionally close to CARLA's native BEV. No quantitative validation (IoU, depth error, or similar) is reported against LiDAR ground truth under the Ford E-Transit's exact camera intrinsics, mounting, and lighting; this is load-bearing because unquantified domain shift could account for the 75-90% success rates rather than the framework.

    Authors: We agree that quantitative validation of GOB outputs (e.g., IoU or depth error) against LiDAR ground truth would provide stronger support for distributional closeness. However, the Ford E-Transit test platform is equipped only with monocular cameras and lacks LiDAR sensors, making direct LiDAR-based ground truth unavailable. In the revision we will add: (i) explicit reporting of the camera intrinsics, extrinsic mounting parameters, and lighting conditions used; (ii) qualitative side-by-side visualizations of GOB-generated BEV versus CARLA-native BEV under matched geometries; and (iii) proxy quantitative metrics on simulated data with realistic noise injection to estimate domain shift. We will also clarify that zero-shot success is demonstrated via closed-loop task performance rather than isolated observation matching. revision: partial

  2. Referee: [Results] Results section: Success rates are stated without error bars, trial counts, or statistical tests. While module contributions are asserted, specific ablation numbers quantifying the isolated effect of GOB, PAM, and TPT on the sim-to-real gap are not provided, weakening support for the claim that the full framework is necessary.

    Authors: We accept that the current results lack sufficient statistical detail and isolated ablation numbers. The revised manuscript will report the exact trial counts (20 independent trials per scenario), include error bars (standard deviation) on all success rates, and add a new ablation subsection that quantifies the performance degradation when each module is removed individually. These ablations will directly measure the contribution of GOB, PAM, and TPT to closing the sim-to-real gap, supported by paired statistical tests where appropriate. revision: yes

standing simulated objections not resolved
  • Direct quantitative validation of GOB (IoU, depth error) against LiDAR ground truth on the Ford E-Transit, as the vehicle is not instrumented with LiDAR.

Circularity Check

0 steps flagged

No significant circularity; framework is independent engineering construction

full rationale

The paper describes a modular sim-to-real framework (GOB, PAM, TPT, RDP) whose components are explicitly engineered and then validated through separate simulation experiments and real-vehicle deployments. No equations, derivations, or self-citations reduce any claimed result to a fitted parameter or prior output by construction. Success rates (90/80/75%) are reported as empirical outcomes on the Ford E-Transit, not as tautological consequences of the framework definition itself. The derivation chain consists of design choices followed by empirical testing, with no load-bearing step that collapses to self-reference or renaming of inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 4 invented entities

Ledger extracted from abstract; full paper may list additional hyperparameters or assumptions.

axioms (1)
  • domain assumption CARLA simulator provides sufficiently realistic observations and physics for the targeted driving scenarios
    Required for zero-shot transfer to succeed on real vehicle.
invented entities (4)
  • Geometric Observation Bridge (GOB) no independent evidence
    purpose: Converts monocular front-view images into simulator-compatible bird's-eye-view observations
    New module introduced to address observation mismatch
  • Physics-Aware Action Mapping (PAM) no independent evidence
    purpose: Translates policy outputs into platform-agnostic physical commands
    New module introduced to address action semantics mismatch
  • Two-Phase Progressive Training (TPT) no independent evidence
    purpose: Stabilizes adaptation by separating action-space and observation-space transfer
    New training strategy introduced
  • Real-time Deployment Pipeline (RDP) no independent evidence
    purpose: Integrates perception, policy inference, control conversion, and safety monitoring for closed-loop execution
    New deployment system introduced
