arxiv: 2604.06072 · v1 · submitted 2026-04-07 · 🧮 math.QA · cs.IT· math.FA· math.IT· quant-ph

Recognition: no theorem link

A multigraph approach to confusability in quantum channels

Sk Asfaq Hossain , Angshuman Bhattacharya

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:55 UTC · model grok-4.3

classification 🧮 math.QA cs.ITmath.FAmath.ITquant-ph

keywords quantum confusabilitymultigraphsquantum channelsquantum relationsconfusability graphsquantum graph theory

0 comments

The pith

Quantum confusability in channels is captured by multigraphs whose edge counts recover the standard graph.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces quantum confusability multigraphs that include output information in their structure for quantum channels. Counting the edges between two vertices in this multigraph recovers the traditional single-edged confusability graph. The authors develop a theory of quantum multigraphs using Weaver's quantum relations framework and explore its properties. They conclude with a necessary and sufficient condition that identifies exactly which quantum multigraphs arise from quantum channels.

Core claim

We introduce a new approach to confusability in a quantum channel, namely quantum confusability multigraph, which incorporates the output information into the graphical structure. By counting the edges between two vertices of this confusability multigraph, one recovers the traditional confusability single-edged graph of the channel. With this physical motivation, we therefore develop a theory of quantum multigraphs from Weaver's quantum relations point of view and explore its quantum graph theoretic properties. Finally, we provide a necessary and sufficient condition characterizing those quantum multigraphs that arise as quantum confusability multigraphs.

What carries the argument

The quantum confusability multigraph, constructed via quantum relations, in which edge multiplicity between vertices encodes additional output information from the channel.

If this is right

The procedure of counting edges in the multigraph recovers the standard confusability graph of the channel.
Quantum multigraphs admit a range of quantum graph theoretic properties.
The necessary and sufficient condition fully characterizes the multigraphs that correspond to quantum channels.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This multigraph representation could allow defining refined quantum graph invariants that capture output distinctions not visible in standard graphs.
The characterization might help classify channels according to the multiplicity patterns in their confusability structures.

Load-bearing premise

That the edge-counting in the multigraph accurately recovers the traditional confusability graph and that Weaver's quantum relations directly model the confusability without extra constraints.

What would settle it

Finding a quantum channel whose confusability multigraph does not meet the necessary and sufficient condition, or identifying a quantum multigraph that satisfies the condition but does not correspond to any quantum channel.

Figures

Figures reproduced from arXiv: 2604.06072 by Angshuman Bhattacharya, Sk Asfaq Hossain.

**Figure 1.** Figure 1: Stinespring representation for Φ∗ : O → I It is called “minimal” iff K = span {π(T)V ξ | T ∈ O, ξ ∈ Hin}. The quantum confusability graph of a quantum channel Φ is given by theorem 6.4 of [Daw24]. Theorem 3.1. Let Φ : I → O be a quantum channel. Let (π, V, K) be a Stinespring representation of the UCP map Φ ∗ : O → I, then the quantum confusability graph SΦ ∈ B(Hin) associated with Φ is given by SΦ = V ∗π(… view at source ↗

**Figure 2.** Figure 2: single-edged confusability graph from confusaibility multigraph As W∗L(E)W = S˜ Φ, to prove the desired result, it is enough to show that i ∗ (3.3) (T)i = (id ⊗ tr)(T) for all T ∈ L(MΦ). For ξ, η ∈ Hin and b ∈ Oop we observe that, ⟨η, i∗ (ξ ⊗ b)⟩ = tr(⟨η ⊗ 1, ξ ⊗ b⟩Oop ) = ⟨η, ξ⟩tr(b). Therefore i ∗ (ξ ⊗ b) = ξ tr(b). As Hin = span {e i a | i, a}, we write B(Hin) = span {e ab ij | i, j, a, b}. Therefore a… view at source ↗

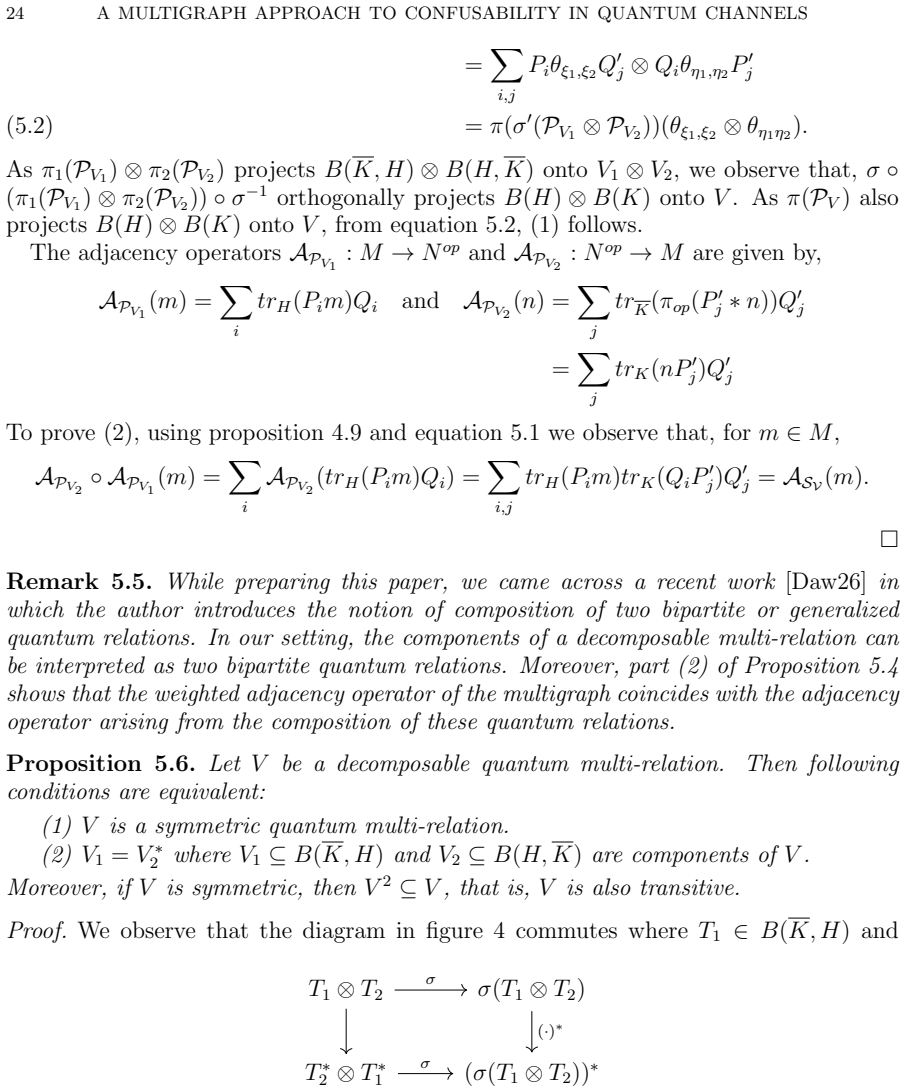

**Figure 4.** Figure 4: Components of V ∗ for a decomposable multi-relation V T2 ∈ B(H, K) and σ : B(K, H) ⊗ B(H, K) → B(H) ⊗ B(K) defined in notation 5.1. Therefore V ∗ = σ(V ∗ 2 ⊗ V ∗ 1 )(5.3) [PITH_FULL_IMAGE:figures/full_fig_p024_4.png] view at source ↗

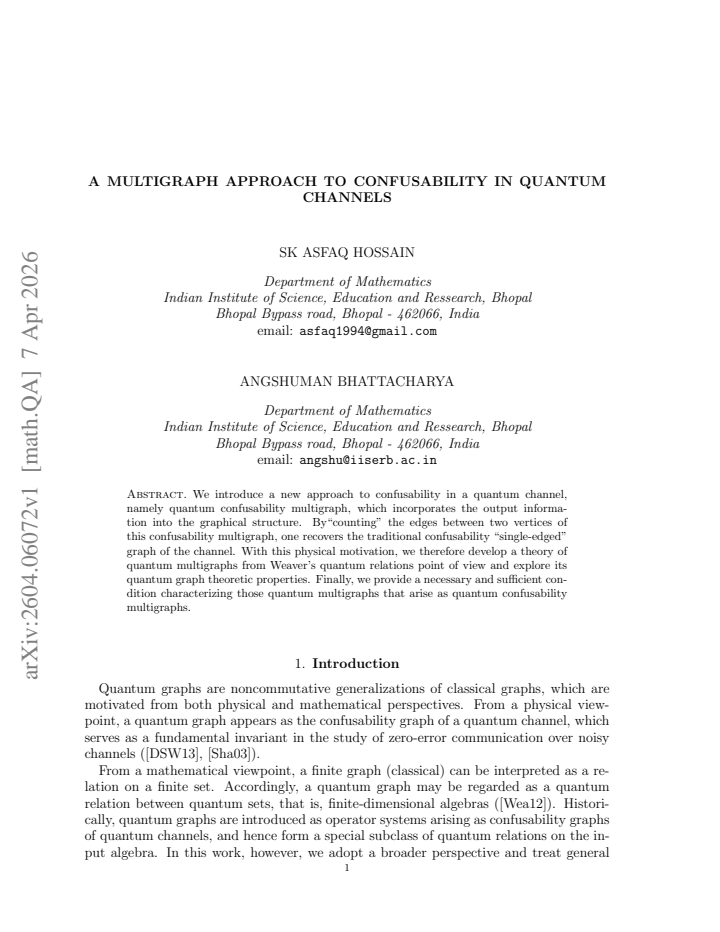

read the original abstract

We introduce a new approach to confusability in a quantum channel, namely quantum confusability multigraph, which incorporates the output information into the graphical structure. By``counting" the edges between two vertices of this confusability multigraph, one recovers the traditional confusability ``single-edged" graph of the channel. With this physical motivation, we therefore develop a theory of quantum multigraphs from Weaver's quantum relations point of view and explore its quantum graph theoretic properties. Finally, we provide a necessary and sufficient condition characterizing those quantum multigraphs that arise as quantum confusability multigraphs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a multigraph lift of quantum confusability graphs using Weaver relations and states a nec+suff condition for which ones come from channels.

read the letter

The core move is to replace the usual single-edge confusability graph with a multigraph whose edge multiplicities encode output-state information from the channel. Counting those edges is supposed to recover the ordinary confusability graph, and the authors then characterize exactly which quantum multigraphs arise this way via a condition phrased in Weaver's quantum-relations language. That is the new piece. The construction itself is straightforward once you accept the multigraph definition, and tying the multiplicity back to the standard graph is a useful sanity check that keeps the work grounded in the usual channel picture. The development of basic properties for quantum multigraphs also looks systematic and stays within the existing framework rather than inventing new axioms. This is the part that works cleanly. The soft spot is the sufficiency direction of the claimed necessary-and-sufficient condition. Necessity follows from the construction, but it is not obvious that an arbitrary multigraph obeying the algebraic condition on its quantum relations can always be realized by some completely positive trace-preserving map whose output overlaps produce exactly those multiplicities. The abstract gives no examples, no explicit Kraus-operator checks, and no verification against standard channels such as the depolarizing or amplitude-damping maps. Without those, it is hard to know whether extra positivity or complete-positivity constraints have been missed. The paper is written for people already comfortable with quantum graphs and Weaver's relations; a reader outside that circle will find the motivation thin. It is still worth sending to referees because the claim is precise, the extension is modest but well-motivated, and the sufficiency question is falsifiable with a couple of worked examples. I would recommend peer review with a request for at least one non-trivial channel example that confirms the condition holds in both directions.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces quantum confusability multigraphs for quantum channels, which encode output-state information in a multigraph structure derived from Weaver's quantum relations. Edge counting between vertices recovers the classical single-edged confusability graph of the channel. The authors develop algebraic and graph-theoretic properties of quantum multigraphs and conclude with a necessary and sufficient condition characterizing precisely which quantum multigraphs arise as confusability multigraphs of some quantum channel.

Significance. If the central characterization is correct, the work supplies a new graphical formalism that augments standard confusability graphs with multiplicity data reflecting output overlaps. This could furnish concrete tools for analyzing zero-error capacities and related invariants in quantum information, extending Weaver's quantum-relation framework in a physically motivated direction. The explicit recovery of the classical graph via edge counting is a clear strength, as is the attempt at a complete algebraic characterization.

major comments (2)

[final characterization theorem] The sufficiency direction of the necessary-and-sufficient condition (final theorem) does not appear to enforce the complete-positivity and trace-preservation constraints required of the underlying channel. An arbitrary quantum multigraph obeying the stated algebraic condition on its quantum relations may fail to arise from any CPTP map once Kraus-operator overlaps and output-state positivity are imposed; the proof should exhibit an explicit channel construction or show that the condition implies the existence of a valid Kraus representation.
[construction of the confusability multigraph] The edge-counting procedure that recovers the traditional confusability graph must be shown to be independent of the choice of Kraus representation and to match the standard definition (non-orthogonality of output states) for every channel. Without an explicit verification that the multiplicity function is well-defined and reproduces the classical graph in all cases, the claimed physical motivation remains incomplete.

minor comments (2)

[preliminaries] Notation for quantum relations and multigraph edge multiplicities should be introduced with a short comparison table to the classical confusability graph to aid readers unfamiliar with Weaver's framework.
[abstract] The abstract asserts a 'necessary and sufficient condition' without indicating whether the condition is purely algebraic or also involves positivity; a one-sentence clarification would improve accessibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and insightful comments on our manuscript. The feedback highlights important points for strengthening the presentation of the characterization theorem and the physical motivation of the multigraph construction. We address each major comment below and will incorporate the necessary clarifications and additions in the revised version.

read point-by-point responses

Referee: [final characterization theorem] The sufficiency direction of the necessary-and-sufficient condition (final theorem) does not appear to enforce the complete-positivity and trace-preservation constraints required of the underlying channel. An arbitrary quantum multigraph obeying the stated algebraic condition on its quantum relations may fail to arise from any CPTP map once Kraus-operator overlaps and output-state positivity are imposed; the proof should exhibit an explicit channel construction or show that the condition implies the existence of a valid Kraus representation.

Authors: We agree that the sufficiency direction would be strengthened by an explicit construction. The algebraic conditions on the quantum relations are intended to encode the necessary overlap data from output states, but the current proof sketch does not fully detail the Kraus-operator assembly. In the revision we will add a constructive argument: given a quantum multigraph satisfying the stated conditions, we explicitly build a set of Kraus operators whose pairwise overlaps reproduce the given multiplicities and whose output states satisfy positivity and trace preservation. This will confirm that the condition is sufficient for the existence of a CPTP map. revision: yes
Referee: [construction of the confusability multigraph] The edge-counting procedure that recovers the traditional confusability graph must be shown to be independent of the choice of Kraus representation and to match the standard definition (non-orthogonality of output states) for every channel. Without an explicit verification that the multiplicity function is well-defined and reproduces the classical graph in all cases, the claimed physical motivation remains incomplete.

Authors: The multiplicity function is defined intrinsically through the dimension of the intersection subspaces in the quantum relation, which is representation-independent. Nevertheless, we acknowledge that an explicit verification is needed. In the revised manuscript we will insert a short lemma proving that (i) the multiplicity between any pair of vertices is invariant under unitary change of Kraus operators, and (ii) the total edge count between two vertices is positive if and only if the corresponding output states are non-orthogonal, thereby recovering the classical confusability graph exactly. This will make the physical motivation fully rigorous. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation independent of inputs via external framework

full rationale

The paper motivates quantum confusability multigraphs from channel output information, develops their theory using Weaver's external quantum relations framework, and states a necessary and sufficient condition characterizing those arising from channels. No self-definitional reductions, fitted inputs renamed as predictions, or load-bearing self-citations appear; the characterization is derived within the adopted framework rather than reducing to the paper's own inputs by construction. The approach remains self-contained against the external benchmark of Weaver's relations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of Weaver's quantum relations to channel confusability and standard definitions from quantum information theory; no free parameters, invented entities, or ad-hoc axioms are introduced in the abstract.

axioms (1)

domain assumption Weaver's quantum relations provide the appropriate framework for defining quantum multigraphs in the context of channel confusability
The paper explicitly develops the theory from Weaver's quantum relations point of view.

pith-pipeline@v0.9.0 · 5398 in / 1190 out tokens · 38620 ms · 2026-05-10T17:55:18.330762+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

1 extracted references

[1]

MR548728 [Ver24] Dominic Verdon,Covariant quantum combinatorics with applications to zero-error commu- nication, Comm. Math. Phys.405(2024), no. 2, Paper No. 51, 57. MR4707042 [Wea12] Nik Weaver,Quantum relations, Mem. Amer. Math. Soc.215(2012), no. 1010, v–vi, 81–

2024
