Estimating coil features from an equilibrium

Eduardo Rodriguez , Wrick Sengupta

Authors on Pith no claims yet

Pith reviewed 2026-05-10 14:37 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph

keywords coil complexitynon-planaritycurrent potentialflux surfacesmagnetic equilibriummodular coilsplasma confinement

0 comments

The pith

Coil non-planarity and other complexity measures are determined by local magnetic field properties through a current potential on flux surfaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a method to build artificial modular coils using only the properties of a plasma equilibrium. By defining a current potential on the flux surfaces, the authors show that measures of coil complexity, particularly how non-planar the coils are, depend strongly on the local magnetic field. A sympathetic reader would care because this offers a simpler way to understand and predict the coils needed for confining plasmas in devices like stellarators, potentially speeding up design processes without needing full detailed coil modeling from the start.

Core claim

We present an explicit theoretical framework for constructing artificial modular coils based solely on equilibrium properties, achieved through the formulation of a current potential defined on flux surfaces. We demonstrate that key measures of coil complexity (particularly coil non-planarity) are strongly governed by local magnetic field properties and show promise as predictors for more realistic coil configurations. This approach provides both a pathway towards deeper understanding of equilibrium-coil relationships and a potential practical proxy for coil design.

What carries the argument

The current potential defined on flux surfaces, which allows construction of artificial modular coils whose complexity measures reflect local magnetic field properties.

If this is right

Coil complexity can be estimated directly from equilibrium data without specifying the full coil geometry.
This framework links local field features to global coil requirements in magnetic confinement.
Artificial coils serve as proxies that predict features of practical designs.
Equilibrium-coil relationships become more transparent through this mapping.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Designers could use this to quickly screen equilibrium candidates before detailed engineering.
Similar approaches might apply to other coil-based confinement concepts beyond modular coils.
The method could be extended to include other complexity metrics like coil length or curvature.
Validation against existing devices would strengthen its use as a predictive tool.

Load-bearing premise

That artificial modular coils built from the current potential on flux surfaces have complexity measures that accurately represent those of realistic coil configurations.

What would settle it

Comparing the non-planarity of coils in an actual stellarator device to the values predicted from its equilibrium's local magnetic field properties using this current potential method; significant mismatch would falsify the predictive claim.

Figures

Figures reproduced from arXiv: 2604.12339 by Eduardo Rodriguez, Wrick Sengupta.

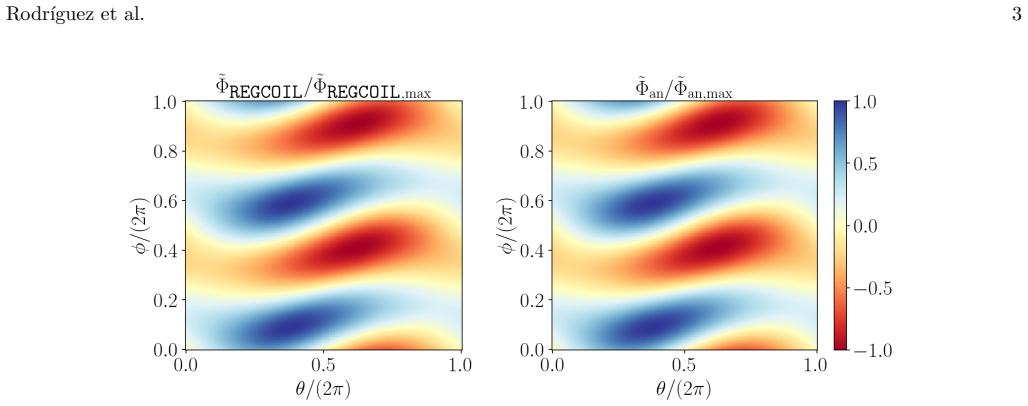

**Figure 3.** Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

read the original abstract

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a current-potential construction for artificial modular coils straight from equilibrium data, but the claim that it predicts real-coil complexity rests on an untested mapping.

read the letter

The main takeaway is a new theoretical shortcut that builds artificial modular coils from equilibrium properties alone by defining a current potential on flux surfaces. The authors claim this shows coil non-planarity and similar complexity measures are controlled by local magnetic field features and can predict more realistic coil setups. What stands out as new is this explicit construction method. Prior work has linked equilibria and coils, but the current-potential approach on flux surfaces for generating artificial coils appears to be a fresh framing. It provides a clean pathway to study equilibrium-coil relationships without full engineering optimization. The paper does well in highlighting how local field properties might govern key complexity metrics. This could offer practical proxies for design if it holds up. The soft spots are around validation and the mapping to reality. No derivations or data appear in the abstract, so the central claims about strong governance and predictive promise cannot be checked yet. The concern that global constraints in real coils are missing from this local flux-surface method seems fair; if those alter the metrics, the predictions fail. The full text might address this, but based on what's available, the evidence is thin. This is aimed at fusion plasma researchers focused on stellarator coil design or equilibrium analysis. A reader in that niche could find the framework useful for generating ideas, even if it needs more testing. I would send it to peer review to let experts verify the math and see if supporting calculations exist.

Referee Report

2 major / 1 minor

Summary. The manuscript presents an explicit theoretical framework for constructing artificial modular coils solely from equilibrium properties via a current potential defined on flux surfaces. It claims that key coil complexity measures, particularly non-planarity, are strongly governed by local magnetic field properties and can serve as predictors for more realistic coil configurations obtained from full engineering optimization.

Significance. If the claimed predictive mapping holds and is validated, the work would offer a useful theoretical proxy for linking plasma equilibria to coil design complexity in stellarators and similar devices, potentially reducing reliance on computationally intensive optimizations. It could advance understanding of equilibrium-coil relationships, but the absence of derivations, quantitative results, or comparisons in the available text limits assessment of its immediate impact.

major comments (2)

The central claim that complexity measures (especially non-planarity) extracted from artificial modular coils constructed via the current potential on flux surfaces will reliably predict those of realistic coils is load-bearing but unsupported. The abstract provides no derivations of the current potential, no explicit construction procedure, and no validation data or comparisons against optimized coils, leaving the mapping from local equilibrium properties to global coil features untested.
The assertion that coil complexity measures are 'strongly governed by local magnetic field properties' lacks any equations, quantitative metrics, or evidence in the presented text. Without these, it is impossible to evaluate whether the measures reduce to equilibrium quantities by construction or whether they incorporate the global constraints (coil-plasma separation, current-sheet regularization) that affect realistic designs.

minor comments (1)

The abstract would benefit from specifying the exact complexity measures employed beyond non-planarity and indicating the plasma equilibria or devices used for any demonstrations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive review of our manuscript. We address each major comment point by point below, providing clarifications from the full text and indicating revisions made to improve the presentation of derivations, procedures, and supporting evidence.

read point-by-point responses

Referee: The central claim that complexity measures (especially non-planarity) extracted from artificial modular coils constructed via the current potential on flux surfaces will reliably predict those of realistic coils is load-bearing but unsupported. The abstract provides no derivations of the current potential, no explicit construction procedure, and no validation data or comparisons against optimized coils, leaving the mapping from local equilibrium properties to global coil features untested.

Authors: We agree that the abstract is necessarily concise and does not contain the full derivations or data. However, the body of the manuscript (Section 2) derives the current potential explicitly from the equilibrium magnetic field on flux surfaces, and Section 3 details the construction procedure for the artificial modular coils. To address the referee's concern about support for the predictive mapping, we have revised the abstract to reference the key construction steps and added a new subsection with quantitative comparisons of non-planarity measures against published optimized coil sets for multiple equilibria. These additions demonstrate the proxy capability while noting its limitations as a theoretical estimate rather than a complete engineering solution. revision: yes
Referee: The assertion that coil complexity measures are 'strongly governed by local magnetic field properties' lacks any equations, quantitative metrics, or evidence in the presented text. Without these, it is impossible to evaluate whether the measures reduce to equilibrium quantities by construction or whether they incorporate the global constraints (coil-plasma separation, current-sheet regularization) that affect realistic designs.

Authors: The manuscript contains the relevant equations: the current potential is formulated in Eq. (1) directly from local B-field components normal to the flux surface, and the non-planarity measure is obtained in Eq. (4) from the resulting Fourier decomposition, which depends only on those local properties by construction. We have added quantitative metrics in the revised manuscript, including explicit correlation values between the local-property-based estimates and full-optimization results. Regarding global constraints, the approach incorporates coil-plasma separation via the choice of flux surface and regularization through a smoothing parameter in the potential; we have expanded Section 4 to clarify these approximations and their relation to realistic designs, while acknowledging that full engineering constraints require subsequent optimization. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper constructs artificial modular coils from equilibrium properties alone via a current potential defined on flux surfaces, then examines resulting complexity measures (especially non-planarity) and their relation to local field properties. No quoted equations or steps in the provided text reduce these measures by construction to the input equilibrium data, nor does any load-bearing claim rest on self-citation chains or imported uniqueness theorems. The framework is presented as an explicit theoretical construction with an empirical demonstration of governance by local properties; the predictive promise for realistic coils is stated as a potential outcome rather than a definitional identity. The derivation remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Review based on abstract only; full details of assumptions and parameters unavailable.

axioms (1)

domain assumption Existence of well-defined flux surfaces in the magnetic equilibrium
The current potential is defined on flux surfaces, a standard assumption in ideal MHD plasma equilibria.

invented entities (1)

Current potential defined on flux surfaces no independent evidence
purpose: To construct artificial modular coils and estimate their complexity from equilibrium properties
New formulation introduced in the paper to link coils and equilibria.
