When do trajectories matter? Identifiability analysis for stochastic transport phenomena

Matthew J Simpson, Michael J Plank

Pith reviewed 2026-05-10 08:00 UTC · model grok-4.3

classification 🌊 nlin.CG q-bio.QMstat.AP
keywords stochastic transportidentifiability analysisrandom walkdiffusiontrajectory datacount datapopulation dispersalmean-field approximation
0
0 comments X

The pith

In stochastic diffusion models, count data from fixed regions can fail to uniquely identify parameters due to structural non-identifiability, but trajectory data resolves it.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines a lattice-based random walk model for population dispersal and tests how well different data types pin down the underlying parameters. It shows that count data collected over fixed sampling areas sometimes produces structural non-identifiability, where distinct parameter combinations generate identical observations. Adding data on individual movement paths removes this ambiguity and lets the model parameters be estimated reliably. The work also compares several protocols for collecting trajectory data to show how design choices affect the precision of those estimates.

Core claim

For the lattice-based random walk and its mean-field approximation, likelihood-based identifiability analysis reveals that count data alone can be structurally non-identifiable for some experimental designs, while supplementing with trajectory data makes the parameters identifiable and allows comparison of practical identifiability across different trajectory collection schemes.

What carries the argument

Likelihood-based estimation combined with structural identifiability checks on the random walk model and its mean-field PDE limit, using both agent-based simulations and analytical approximations.

If this is right

  • Model parameters become estimable when trajectory data supplement count data.
  • Different protocols for recording trajectories change the resulting precision of parameter estimates.
  • Predictions from the fitted model improve once identifiability is achieved.
  • The same analysis framework can be applied to other experimental layouts to test identifiability before data collection.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Researchers modeling cell or animal movement may need to collect at least some individual paths rather than relying solely on population snapshots.
  • The non-identifiability result could extend to continuous-space diffusion models if similar count-based sampling is used.
  • Open implementations of the estimation and identifiability routines make it straightforward to test the same question on new data sets.
  • The trade-off between count data volume and trajectory data volume could be optimized for cost in field studies.

Load-bearing premise

The lattice-based random walk and its mean-field PDE are assumed to correctly represent the real stochastic transport process for the designs being studied.

What would settle it

A controlled experiment in which count data alone produces a unique maximum-likelihood estimate with narrow confidence intervals while the true parameters are known would show that the claimed structural non-identifiability does not hold.

Figures

Figures reproduced from arXiv: 2604.15598 by Matthew J Simpson, Michael J Plank.

Figure 1
Figure 1. Figure 1: Schematic snapshot of a random walk process involving a population of individuals [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

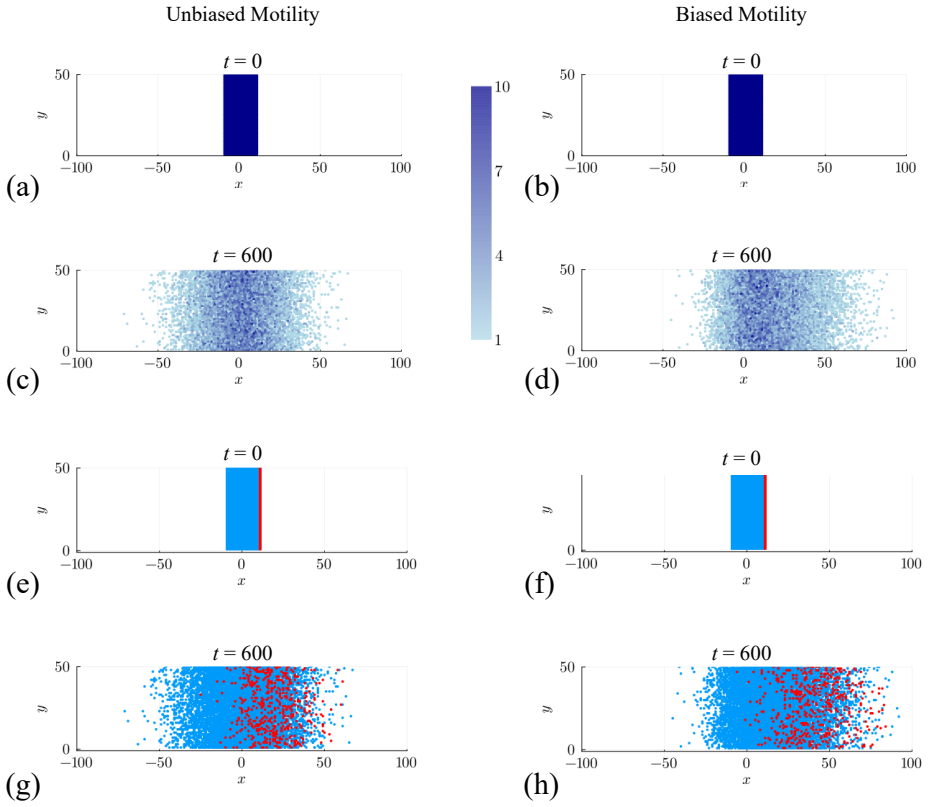

Figure 2. Figure 2: Visualization of the random walk model. Snapshots in the left column correspond [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

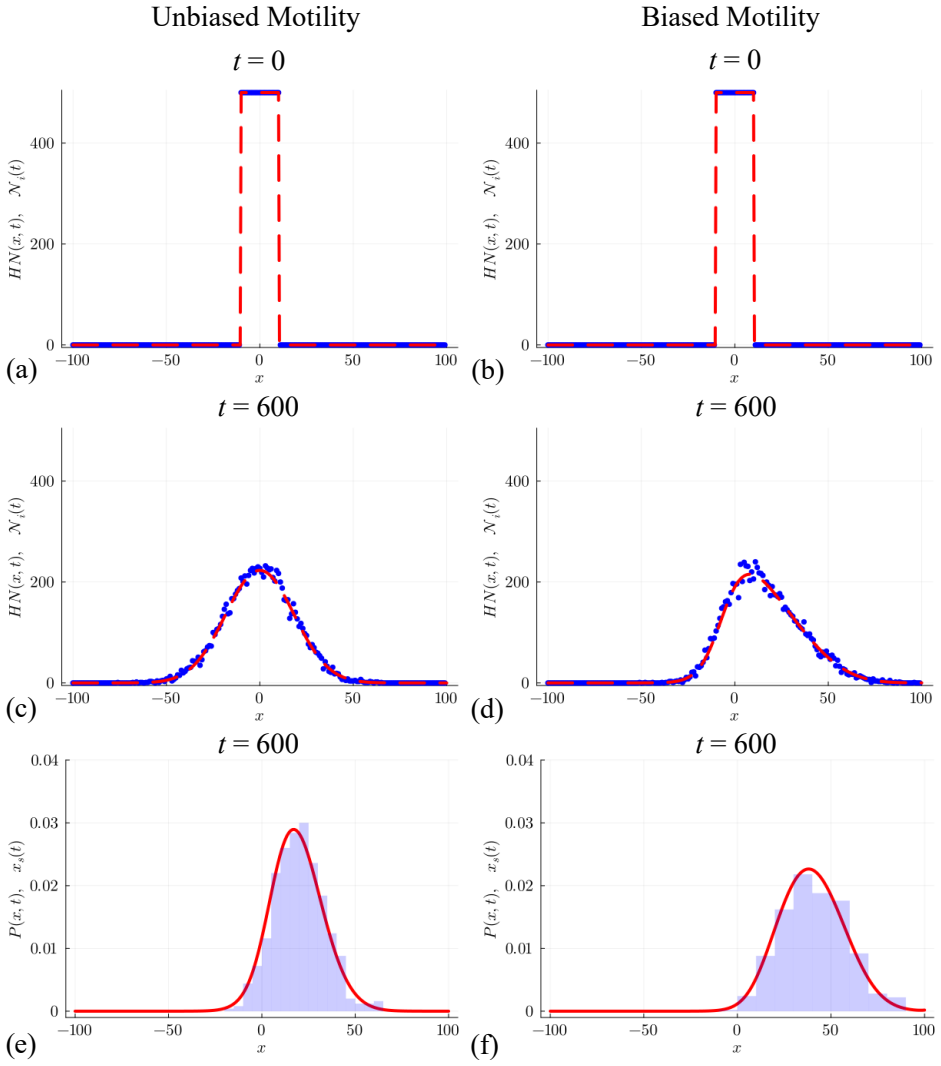

Figure 3. Figure 3: Continuum-discrete comparison for the simulation data from Figure 2. Profiles [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Estimation and identifiability for unbiased motility using data from Figure 2. (a)– [PITH_FULL_IMAGE:figures/full_fig_p021_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: Likelihood-based prediction for unbiased motion with data taken from Figure 2(e) [PITH_FULL_IMAGE:figures/full_fig_p029_7.png] view at source ↗

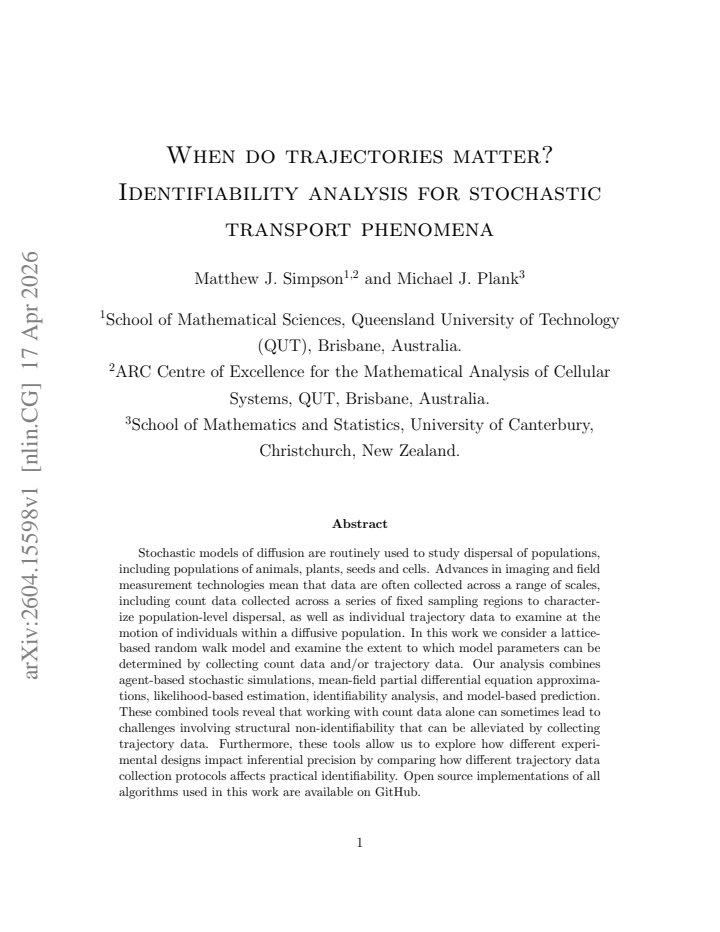

read the original abstract

Stochastic models of diffusion are routinely used to study dispersal of populations, including populations of animals, plants, seeds and cells. Advances in imaging and field measurement technologies mean that data are often collected across a range of scales, including count data collected across a series of fixed sampling regions to characterize population-level dispersal, as well as individual trajectory data to examine at the motion of individuals within a diffusive population. In this work we consider a lattice-based random walk model and examine the extent to which model parameters can be determined by collecting count data and/or trajectory data. Our analysis combines agent-based stochastic simulations, mean-field partial differential equation approximations, likelihood-based estimation, identifiability analysis, and model-based prediction. These combined tools reveal that working with count data alone can sometimes lead to challenges involving structural non-identifiability that can be alleviated by collecting trajectory data. Furthermore, these tools allow us to explore how different experimental designs impact inferential precision by comparing how different trajectory data collection protocols affects practical identifiability. Open source implementations of all algorithms used in this work are available on GitHub.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper examines identifiability in a lattice-based random walk model of stochastic transport/diffusion. It combines agent-based stochastic simulations, mean-field PDE approximations, likelihood estimation, and identifiability analysis to show that count data alone can produce structural non-identifiability in some regimes, which is alleviated by adding trajectory data; it also compares how different trajectory sampling protocols affect practical identifiability.

Significance. If the central claim holds, the work offers practical guidance on experimental design for dispersal studies in ecology, cell biology, and related fields by clarifying when trajectory data is required for reliable parameter recovery. The open-source GitHub implementations of the simulation, estimation, and identifiability algorithms are a clear strength, supporting reproducibility.

major comments (1)
  1. [identifiability analysis / methods] The structural non-identifiability conclusions appear to be obtained via likelihood analysis on the mean-field PDE approximation (abstract and methods description). However, the data-generating process is the discrete stochastic lattice random walk; it is not shown whether the degeneracy structure diagnosed in the continuum limit is preserved under the exact stochastic likelihood (including finite-population fluctuations). This is load-bearing for the claim that trajectory data alleviates non-identifiability for the model under study.
minor comments (2)
  1. The abstract states that 'open source implementations of all algorithms used in this work are available on GitHub' but does not provide the repository URL or commit hash; this should be added for immediate reproducibility.
  2. Clarify the precise definition of 'structural non-identifiability' versus 'practical non-identifiability' used in the analysis, and state explicitly whether the former is diagnosed symbolically on the PDE or via profile-likelihood on simulated data.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying this important methodological point. We address the major comment below.

read point-by-point responses

  1. Referee: The structural non-identifiability conclusions appear to be obtained via likelihood analysis on the mean-field PDE approximation (abstract and methods description). However, the data-generating process is the discrete stochastic lattice random walk; it is not shown whether the degeneracy structure diagnosed in the continuum limit is preserved under the exact stochastic likelihood (including finite-population fluctuations). This is load-bearing for the claim that trajectory data alleviates non-identifiability for the model under study.

    Authors: We agree that the structural identifiability analysis relies on the mean-field PDE approximation rather than the exact stochastic likelihood. This choice was made because the exact likelihood for the full lattice random walk is intractable for the population sizes considered, owing to the combinatorial explosion of the state space. The mean-field limit provides the appropriate deterministic setting in which to diagnose structural non-identifiability. In the manuscript we already complement this analysis with agent-based stochastic simulations that demonstrate the same practical estimation difficulties with count data and their alleviation by trajectory data. In the revised manuscript we will add a new subsection that (i) explicitly states the scope of the structural analysis, (ii) derives the mean-field limit from the underlying stochastic process, and (iii) presents additional numerical comparisons of profile-likelihood contours obtained from stochastic realizations against the mean-field predictions, thereby confirming that the degeneracy structure carries over to the discrete stochastic setting. revision: yes

Circularity Check

0 steps flagged

No circularity: identifiability conclusions derived from external simulations and likelihood analysis

full rationale

The paper applies agent-based stochastic simulations, mean-field PDE approximations, likelihood-based estimation, and identifiability analysis to compare count data versus trajectory data. These are independent computational and statistical tools applied to the lattice random walk model, not reductions of the target claim to fitted parameters or self-citations defined by the claim itself. The abstract and description contain no self-definitional steps, no renaming of known results as new predictions, and no load-bearing self-citations that collapse the central result. The derivation chain remains self-contained against external benchmarks (simulations and profile likelihood), consistent with a score of 0.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that the chosen stochastic model class and mean-field limit are appropriate for the dispersal phenomena studied; no new entities are postulated.

free parameters (1)
  • random walk jump probabilities or diffusion coefficients
    These are the target parameters whose identifiability is being tested; their values are fitted from data in the analysis.
axioms (2)
  • domain assumption The lattice-based random walk accurately captures the stochastic transport process
    Invoked throughout the model setup and mean-field approximation.
  • domain assumption Mean-field PDE provides a valid deterministic approximation to the stochastic agent-based model
    Used to support analytical identifiability insights alongside simulations.
