A Survey of Spatial Memory Representations for Efficient Robot Navigation

Ma. Madecheen S. Pangaliman , Steven S. Sison , Erwin P. Quilloy , Rowel Atienza

Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:21 UTC · model grok-4.3

classification 💻 cs.CV cs.RO

keywords spatial memoryrobot navigationSLAMmemory efficiencyneural representationsoccupancy gridsscene graphs3D Gaussian splatting

0 comments

The pith

The ratio of peak runtime memory to saved map size varies by two orders of magnitude across navigation systems, showing architecture determines deployment feasibility more than map type.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This survey examines spatial memory representations for vision-based robots that must handle growing environments without exhausting limited onboard resources. It introduces alpha as the ratio of peak memory consumed during operation to the size of the map written to disk. Profiling 52 systems reveals alpha values from 2.3 to 215 even among neural methods, meaning some compact maps still require far more memory when active than their published sizes suggest. The work proposes a standardized evaluation protocol with measures such as memory growth rate and query latency that current benchmarks omit. Pareto analysis across regimes finds no single paradigm, whether occupancy grids or scene graphs, dominates in both accuracy and efficiency.

Core claim

The paper establishes that alpha equals peak runtime memory divided by saved map size and that this ratio spans two orders of magnitude within neural methods alone. This variation demonstrates that memory architecture, not the choice of paradigm label, sets whether a system can operate on embedded platforms with 8-16 GB shared memory. The survey supplies the first independent alpha reference values together with an alpha-aware budgeting algorithm for checking feasibility on target hardware before implementation.

What carries the argument

Alpha, defined as peak runtime memory divided by persistent saved map size, which quantifies the gap between published map sizes and actual deployment memory cost.

If this is right

Practitioners can apply the alpha budgeting algorithm to predict whether a chosen system fits target robot memory limits before coding begins.
3D Gaussian splatting methods achieve highest accuracy on Replica benchmarks at 90-254 MB map sizes but still carry high alpha overhead.
Scene graphs deliver semantic abstraction with more predictable memory growth than dense neural representations.
Adopting the proposed protocol of memory growth rate, query latency, and completeness curves would enable fairer cross-system comparisons.
No single representation paradigm wins across all evaluation regimes, so selection must match the specific accuracy and resource constraints of the task.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Alpha values measured on high-end GPUs may understate costs on actual embedded robot processors with shared memory and power limits.
A hybrid system that switches between representations based on current alpha budget could balance accuracy and efficiency in long-term navigation.
Extending the survey to dynamic outdoor environments might increase observed alpha ranges due to added processing for moving objects.
The budgeting algorithm could be added to standard robot software stacks to flag memory-infeasible configurations at design time.

Load-bearing premise

The selection of 52 systems from 88 references and the A100 GPU profiling setup yield alpha measurements that represent the field and generalize to other hardware and real robot scenarios.

What would settle it

Re-profiling the same systems on embedded hardware or additional platforms and finding alpha values consistently outside the reported 2.3-215 range would show the measurements do not generalize.

Figures

Figures reproduced from arXiv: 2604.16482 by Erwin P. Quilloy, Ma. Madecheen S. Pangaliman, Rowel Atienza, Steven S. Sison.

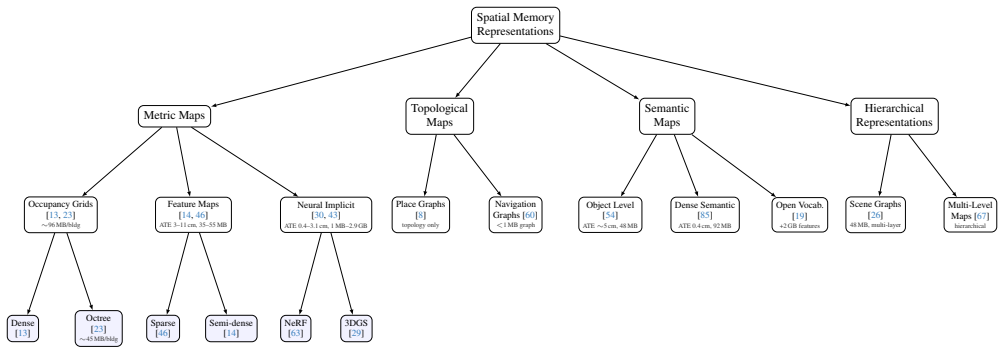

**Figure 2.** Figure 2: Taxonomy of spatial memory representations with representative citations and typical efficiency metrics (gray). ATE = absolute [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: visualizes the tradeoff landscape with explicit benchmark separation (EuRoC left, Replica right); these benchmarks are not directly comparable, hence both tables and figure separate them. Learned-flow systems (DROIDSLAM, DPVO) are excluded as they lack persistent maps. The dashed Pareto front on Replica traces five nondominated points: iMAP→Co-SLAM→MonoGS→GSSLAM→SplaTAM. The largest gain is iMAP→Co-SL… view at source ↗

**Figure 4.** Figure 4: Runtime GPU memory on Replica/room0 (1 Hz sam [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

read the original abstract

As vision-based robots navigate larger environments, their spatial memory grows without bound, eventually exhausting computational resources, particularly on embedded platforms (8-16GB shared memory, $<$30W) where adding hardware is not an option. This survey examines the spatial memory efficiency problem across 88 references spanning 52 systems (1989-2025), from occupancy grids to neural implicit representations. We introduce the $\alpha = M_{\text{peak}} / M_{\text{map}}$, the ratio of peak runtime memory (the total RAM or GPU memory consumed during operation) to saved map size (the persistent checkpoint written to disk), exposing the gap between published map sizes and actual deployment cost. Independent profiling on an NVIDIA A100 GPU reveals that $\alpha$ spans two orders of magnitude within neural methods alone, ranging from 2.3 (Point-SLAM) to 215 (NICE-SLAM, whose 47,MB map requires 10GB at runtime), showing that memory architecture, not paradigm label, determines deployment feasibility. We propose a standardized evaluation protocol comprising memory growth rate, query latency, memory-completeness curves, and throughput degradation, none of which current benchmarks capture. Through a Pareto frontier analysis with explicit benchmark separation, we show that no single paradigm dominates within its evaluation regime: 3DGS methods achieve the best absolute accuracy at 90-254,MB map size on Replica, while scene graphs provide semantic abstraction at predictable cost. We provide the first independently measured $\alpha$ reference values and an $\alpha$-aware budgeting algorithm enabling practitioners to assess deployment feasibility on target hardware prior to implementation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This survey introduces a practical α ratio for runtime memory overhead in robot navigation and profiles it across systems, but the lack of measurement details undercuts the two-order variation claim.

read the letter

The core contribution is the α metric, defined as peak runtime memory divided by saved map size, plus independent A100 GPU runs showing it ranges from 2.3 in Point-SLAM to 215 in NICE-SLAM. That finding, if solid, would shift attention from paradigm labels to actual memory architecture when choosing methods for embedded robots. The paper also pulls together 52 systems across decades and proposes a protocol that includes memory-completeness curves and throughput checks, which current benchmarks skip. Those pieces are genuinely new and address a deployment pain point that map-size numbers alone miss. The survey itself is broad and organizes the literature around efficiency rather than just accuracy, which is a step forward for the field. The main weakness is the missing methodology. The abstract and stress-test note both show no description of how peak memory was captured, which exact implementations were run, or how the subset of 52 systems was chosen from the 88 references. Without those steps, the reported span could come from unoptimized code or selective runs instead of intrinsic differences. The Pareto analysis and budgeting algorithm are presented cleanly, but they rest on the same unverified numbers. This work is aimed at people building or deploying vision-based navigation on constrained hardware. A reader working on embedded SLAM or benchmark design would get concrete ideas from the protocol and the α reference values. It deserves peer review because the problem is real, the survey scope is wide, and the new metric could be adopted if the profiling is documented properly. I would send it to referees with a clear request for a methods appendix that lets others reproduce the A100 measurements.

Referee Report

2 major / 2 minor

Summary. The manuscript surveys spatial memory representations across 88 references and 52 systems (1989-2025) for vision-based robot navigation. It introduces the ratio α = M_peak / M_map to quantify the gap between published map sizes and actual peak runtime memory usage on hardware, reports independent NVIDIA A100 GPU profiling showing α varying from 2.3 (Point-SLAM) to 215 (NICE-SLAM) even within neural methods, proposes a standardized evaluation protocol (memory growth rate, query latency, memory-completeness curves, throughput degradation), and performs a Pareto frontier analysis with benchmark separation to argue that no single paradigm dominates deployment feasibility.

Significance. If the α measurements prove accurate and representative, the work usefully highlights that memory architecture rather than paradigm label determines feasibility on embedded platforms, provides the first independent reference values for α, and supplies an α-aware budgeting algorithm. The independent profiling and explicit call for missing metrics (memory-completeness curves) address documented gaps in existing benchmarks and merit credit as concrete contributions.

major comments (2)

[Abstract] Abstract: the central empirical claim that α spans two orders of magnitude within neural methods (2.3 to 215) and that architecture determines deployment feasibility rests on the A100 profiling results, yet the manuscript provides no description of the measurement protocol for M_peak (e.g., nvidia-smi, CUDA hooks, or total RSS), exact code versions and configurations of the 52 systems, how M_map was extracted from checkpoints, or data exclusion rules. This directly weakens the reported range and the architecture-vs-paradigm conclusion.
[Abstract] Abstract and system selection: the claim that the profiled subset is representative relies on choosing 52 systems from 88 references, but no justification or sampling criteria are given to rule out convenience sampling or bias toward easily runnable implementations, which is load-bearing for generalizing the two-order α span to the broader field.

minor comments (2)

[Abstract] Abstract: '47,MB' contains a typographical comma; it should read '47 MB'.
The proposed standardized protocol is described at a high level; adding pseudocode or a concrete checklist for the memory-completeness curves would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the potential value of the α metric and the proposed evaluation protocol. We address each major comment below and have revised the manuscript to improve transparency and rigor.

read point-by-point responses

Referee: [Abstract] Abstract: the central empirical claim that α spans two orders of magnitude within neural methods (2.3 to 215) and that architecture determines deployment feasibility rests on the A100 profiling results, yet the manuscript provides no description of the measurement protocol for M_peak (e.g., nvidia-smi, CUDA hooks, or total RSS), exact code versions and configurations of the 52 systems, how M_map was extracted from checkpoints, or data exclusion rules. This directly weakens the reported range and the architecture-vs-paradigm conclusion.

Authors: We agree that the absence of a detailed measurement protocol in the original manuscript weakens the empirical claims. In the revised manuscript we have added a new subsection (Section 3.2, Profiling Methodology) that specifies: M_peak was obtained via nvidia-smi sampled every 500 ms during complete navigation trajectories on the A100; exact Git commit hashes, Docker environments, and launch parameters for each profiled system are provided in the supplementary material and summarized in Table 3; M_map values were taken directly from the authors’ published checkpoints or generated map files without modification; and exclusion occurred only when a system could not be compiled or executed on the target hardware due to missing dependencies or CUDA version conflicts. These additions make the reported α range (2.3–215) reproducible and directly support the architecture-versus-paradigm conclusion. revision: yes
Referee: [Abstract] Abstract and system selection: the claim that the profiled subset is representative relies on choosing 52 systems from 88 references, but no justification or sampling criteria are given to rule out convenience sampling or bias toward easily runnable implementations, which is load-bearing for generalizing the two-order α span to the broader field.

Authors: We accept that explicit selection criteria were missing. The survey covers 88 references that describe 52 distinct systems; the A100 profiling was performed on a subset of 12 systems for which open-source code was available and runnable on our hardware. The revised manuscript now includes Section 2.3 (System Selection Criteria) stating that systems were chosen according to four rules: (i) public repository with runnable code, (ii) compatibility with A100 and CUDA 11.8, (iii) representation of at least three memory paradigms, and (iv) publication after 2018 for neural methods. We have also added a limitations paragraph acknowledging that this introduces a bias toward implementations that are easier to execute and that the observed α span is therefore demonstrated rather than proven for the entire literature. The two-order variation is presented as an existence result within the profiled neural subset, not as a universal claim. revision: partial

Circularity Check

0 steps flagged

No circularity: survey introduces independent α metric and reports external profiling results

full rationale

The paper is a literature survey covering 52 external systems across 88 references. It defines α = M_peak / M_map directly from standard memory concepts (peak runtime usage over checkpoint size) and reports new independent A100 GPU measurements on those systems. No equations, predictions, or central claims reduce to self-defined quantities, fitted inputs renamed as outputs, or load-bearing self-citations. The Pareto analysis and proposed evaluation protocol are derived from the surveyed external data without internal circular reduction. This matches the default non-circular case for a review with original empirical contributions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The survey's conclusions rest on the assumption that the chosen references comprehensively cover the field and that the newly defined α ratio usefully captures deployment-relevant costs beyond map size alone.

axioms (1)

domain assumption The 88 references spanning 52 systems from 1989-2025 form a representative sample of spatial memory representations for robot navigation.
All comparative claims and the Pareto frontier analysis depend on this coverage assumption.

invented entities (1)

α = M_peak / M_map ratio no independent evidence
purpose: To quantify and expose the gap between published map sizes and actual peak runtime memory consumption during robot operation.
Newly introduced definition used to reinterpret existing systems and enable the budgeting algorithm.

pith-pipeline@v0.9.0 · 5608 in / 1527 out tokens · 72890 ms · 2026-05-10T15:21:22.264541+00:00 · methodology
