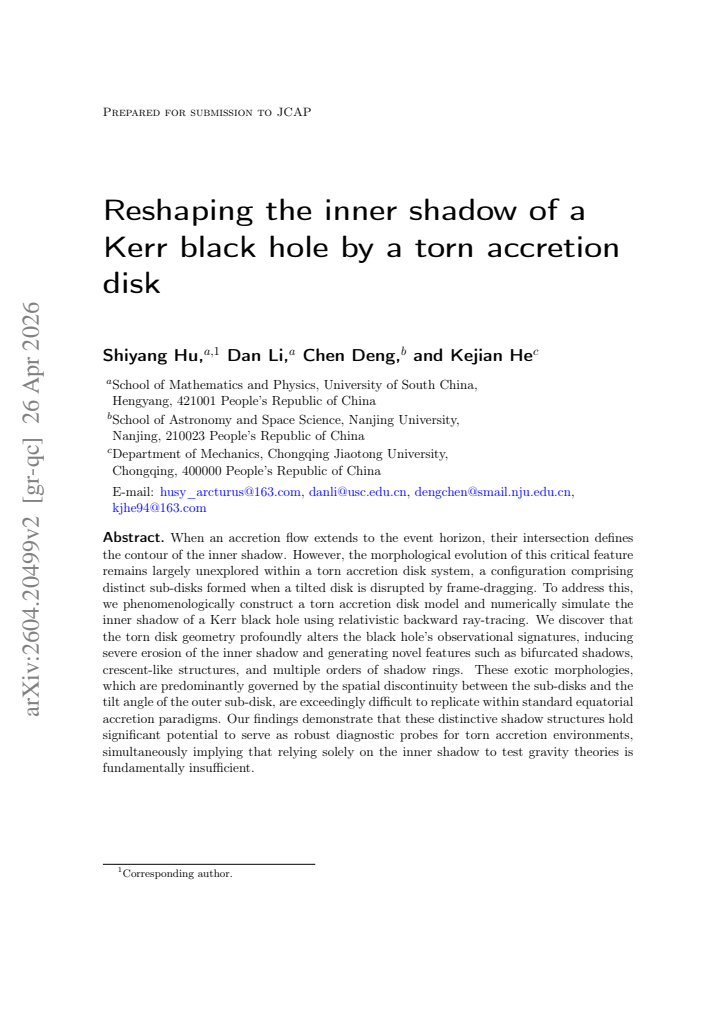

Reshaping the inner shadow of a Kerr black hole by a torn accretion disk

Shiyang Hu , Dan Li , Chen Deng , Kejian He

Authors on Pith no claims yet

Pith reviewed 2026-05-09 23:52 UTC · model grok-4.3

classification 🌀 gr-qc astro-ph.HE

keywords torn accretion diskKerr black holeinner shadowblack hole shadowrelativistic ray-tracingframe-draggingaccretion disk tiltshadow morphology

0 comments

The pith

Torn accretion disks around Kerr black holes erode the inner shadow and create bifurcated, crescent, and ring structures that standard disks cannot produce.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper builds a phenomenological model of a torn accretion disk made of distinct sub-disks separated by spatial gaps and tilted by frame-dragging, then runs relativistic backward ray-tracing to map the inner shadow of a Kerr black hole. The simulation shows that the torn geometry erodes the shadow boundary and produces new shapes such as bifurcated shadows, crescent structures, and multiple shadow rings. These features arise mainly from the gaps between sub-disks and the outer tilt angle. A reader would care because the resulting morphologies could identify torn disks in real images and show that inner-shadow measurements alone cannot reliably test gravity theories.

Core claim

When an accretion flow reaches the event horizon its intersection traces the inner shadow contour. In a torn disk composed of separate sub-disks created by frame-dragging disruption of a tilted flow, a phenomenological model and relativistic backward ray-tracing show that the geometry causes severe erosion of this contour and generates novel features including bifurcated shadows, crescent-like structures, and multiple orders of shadow rings. These morphologies are controlled by the spatial discontinuity between sub-disks and the tilt of the outer sub-disk, and cannot be reproduced in standard equatorial accretion setups. The structures therefore offer diagnostic signatures of torn accretion,

What carries the argument

Phenomenological torn accretion disk model consisting of distinct sub-disks with spatial discontinuity and outer tilt, combined with relativistic backward ray-tracing that recomputes the inner-shadow contour defined by the accretion-flow intersection with the event horizon.

If this is right

The torn-disk geometry produces severe erosion of the standard inner-shadow boundary.
Bifurcated shadows, crescent-like structures, and multiple orders of shadow rings appear as new morphological features.
These features are controlled by the spatial gap between sub-disks and the tilt angle of the outer sub-disk.
The exotic shadow shapes can function as diagnostic probes for the presence of torn accretion.
Inner-shadow observations by themselves are insufficient to test gravity theories.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Future Event Horizon Telescope or next-generation images could use the presence or absence of these shadow features to distinguish torn-disk from equatorial accretion in real sources.
Shadow-based constraints on black-hole spin or metric parameters may need to include possible non-equatorial disk geometries to remain robust.
Comparable shadow distortions could arise in other warped or disrupted disk systems, suggesting a broader class of observable signatures.
Detection of the predicted multi-ring or bifurcated patterns would support the physical reality of frame-dragging-induced disk tearing.

Load-bearing premise

The chosen phenomenological model of separate sub-disks with imposed spatial discontinuity and outer tilt accurately represents the physical outcome of frame-dragging on a tilted disk, and the ray-tracing code captures all relevant emission and absorption without omissions.

What would settle it

High-resolution images of a black hole whose accretion flow shows independent evidence of tilt but whose shadow displays none of the bifurcated, crescent, or multi-ring features predicted for torn disks would falsify the central claim.

read the original abstract

When an accretion flow extends to the event horizon, their intersection defines the contour of the inner shadow. However, the morphological evolution of this critical feature remains largely unexplored within a torn accretion disk system, a configuration comprising distinct sub-disks formed when a tilted disk is disrupted by frame-dragging. To address this, we phenomenologically construct a torn accretion disk model and numerically simulate the inner shadow of a Kerr black hole using relativistic backward ray-tracing. We discover that the torn disk geometry profoundly alters the black hole's observational signatures, inducing severe erosion of the inner shadow and generating novel features such as bifurcated shadows, crescent-like structures, and multiple orders of shadow rings. These exotic morphologies, which are predominantly governed by the spatial discontinuity between the sub-disks and the tilt angle of the outer sub-disk, are exceedingly difficult to replicate within standard equatorial accretion paradigms. Our findings demonstrate that these distinctive shadow structures hold significant potential to serve as robust diagnostic probes for torn accretion environments, simultaneously implying that relying solely on the inner shadow to test gravity theories is fundamentally insufficient.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Ray-tracing on a hand-built torn-disk model with an imposed gap produces bifurcated and ringed inner shadows, but the features depend on parameters that lack dynamical justification.

read the letter

The main thing to know is that this paper runs relativistic backward ray-tracing on a Kerr black hole surrounded by two sub-disks separated by a spatial gap and with different tilts. The resulting images show the inner shadow getting eroded and breaking into bifurcated shapes, crescents, and multiple concentric rings, controlled mainly by the gap size and outer tilt angle. These patterns do not appear in the equatorial or simple tilted-disk cases they reference, so the numerical exercise itself is new and produces clear visuals of the effect.

Referee Report

3 major / 2 minor

Summary. The paper constructs a phenomenological model of a torn accretion disk around a Kerr black hole consisting of distinct sub-disks separated by a spatial discontinuity, with the outer sub-disk having a chosen tilt angle. Using relativistic backward ray-tracing, it computes the inner shadow and reports that this geometry causes severe erosion of the inner shadow along with novel features such as bifurcated shadows, crescent-like structures, and multiple orders of shadow rings. These morphologies are stated to be governed primarily by the discontinuity scale and outer tilt, difficult to replicate in equatorial models, and to imply that the inner shadow alone is insufficient for testing gravity theories while serving as diagnostics for torn disks.

Significance. If the reported morphologies prove robust under more self-consistent modeling, the work would demonstrate how non-equatorial accretion geometries can produce distinctive black-hole shadow signatures potentially observable at high resolution. The explicit phenomenological construction and numerical ray-tracing constitute a strength, enabling direct mapping of geometric parameters to image features. However, the significance is tempered by the forward-simulation nature of the study and the absence of dynamical justification for the imposed discontinuity.

major comments (3)

[§2] §2 (phenomenological model definition): the torn-disk geometry is defined by introducing a spatial discontinuity and an outer-sub-disk tilt as free parameters; the central claim that this produces 'severe erosion' and 'exotic morphologies' that are 'exceedingly difficult to replicate' in equatorial paradigms therefore rests on the specific ad-hoc choices rather than on a derivation from frame-dragging dynamics or GRMHD evolution of tearing.
[§3] §3 (ray-tracing implementation): no validation against standard equatorial Kerr thin-disk shadows, no convergence tests with respect to ray sampling or integration tolerances, and no error estimates on the reported shadow contours are provided; these omissions directly affect the reliability of the novel features (bifurcations, multiple rings) claimed in the results.
[§5] §5 (implications for gravity tests): the assertion that 'relying solely on the inner shadow to test gravity theories is fundamentally insufficient' is load-bearing for the paper's broader conclusion, yet it is not supported by a quantitative demonstration that equatorial models with varied parameters cannot reproduce comparable erosion or ring structures.

minor comments (2)

[Figures] Figure captions and text: parameter values (discontinuity scale, tilt angle) used for each displayed image are not uniformly stated, hindering reproducibility of the specific morphologies shown.
[Abstract] Abstract and §1: the concept of a 'torn accretion disk' is introduced without a concise reference to the prior literature on tilted-disk tearing or frame-dragging disruption.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their constructive and detailed report. We address each major comment point by point below, indicating planned revisions where appropriate. Our responses focus on strengthening the manuscript while preserving its phenomenological scope.

read point-by-point responses

Referee: [§2] §2 (phenomenological model definition): the torn-disk geometry is defined by introducing a spatial discontinuity and an outer-sub-disk tilt as free parameters; the central claim that this produces 'severe erosion' and 'exotic morphologies' that are 'exceedingly difficult to replicate' in equatorial paradigms therefore rests on the specific ad-hoc choices rather than on a derivation from frame-dragging dynamics or GRMHD evolution of tearing.

Authors: We agree that the model is explicitly phenomenological, as stated in the title, abstract, and §2. The discontinuity and tilt are introduced as free parameters to isolate and map their effects on shadow morphology via ray-tracing, which is the paper's core contribution. This exploratory approach is motivated by frame-dragging tearing in tilted disks (with references to relevant literature on Bardeen-Petterson and disk tearing). We will revise §2 to expand the physical motivation, add caveats on the ad-hoc nature, and include a brief summary of equatorial parameter surveys showing that standard thin-disk models do not produce the bifurcations or multi-ring structures. This supports the 'difficult to replicate' claim without claiming a full dynamical derivation. revision: partial
Referee: [§3] §3 (ray-tracing implementation): no validation against standard equatorial Kerr thin-disk shadows, no convergence tests with respect to ray sampling or integration tolerances, and no error estimates on the reported shadow contours are provided; these omissions directly affect the reliability of the novel features (bifurcations, multiple rings) claimed in the results.

Authors: This is a fair and important point. The current implementation follows standard backward ray-tracing methods for Kerr metrics, but we did not include explicit validation or tests. In the revised manuscript we will add: (i) direct comparisons of equatorial thin-disk shadows to well-known analytic and numerical benchmarks in the literature; (ii) convergence tests varying ray density and integrator tolerances with quantitative metrics; and (iii) error estimates (e.g., uncertainty bands) on the extracted shadow contours. These additions will be placed in §3 and will directly support the reliability of the reported bifurcated and multi-ring features. revision: yes
Referee: [§5] §5 (implications for gravity tests): the assertion that 'relying solely on the inner shadow to test gravity theories is fundamentally insufficient' is load-bearing for the paper's broader conclusion, yet it is not supported by a quantitative demonstration that equatorial models with varied parameters cannot reproduce comparable erosion or ring structures.

Authors: We accept that the conclusion would be stronger with explicit quantitative comparisons. Our existing parameter explorations indicate that varying spin, observer inclination, and equatorial disk properties within standard thin-disk models does not generate the discontinuity-driven bifurcations or higher-order rings. In the revision we will add a concise quantitative comparison (new figure or table in §5) contrasting a representative set of equatorial configurations against the torn-disk cases, highlighting the unique role of the spatial discontinuity. This will provide the requested support while keeping the focus on the phenomenological results. revision: partial

standing simulated objections not resolved

A self-consistent dynamical derivation of the discontinuity scale and tilt from GRMHD evolution of a tearing tilted disk, which lies beyond the scope of this ray-tracing study.

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper constructs a phenomenological torn-disk geometry (distinct sub-disks with imposed discontinuity and outer tilt) as an input model, then applies backward ray-tracing to compute the resulting shadow morphologies. The reported features (erosion, bifurcated shadows, crescents, rings) are numerical outputs of that forward simulation on the chosen geometry; no equation or step reduces a claimed prediction back to a fitted parameter or self-citation that defines the same quantity. The central claim is therefore a direct consequence of the assumed inputs rather than a tautological re-expression of them.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The claim rests on a phenomenological disk geometry whose parameters are chosen by hand and on the standard Kerr metric plus ray-tracing assumptions; no new physical entities are introduced beyond the torn-disk configuration itself.

free parameters (2)

outer sub-disk tilt angle
Chosen to explore different configurations; directly controls the reported shadow erosion and ring multiplicity.
spatial discontinuity scale between sub-disks
Phenomenological parameter that sets the gap size and thereby the bifurcation and crescent features.

axioms (2)

standard math Kerr spacetime metric governs photon geodesics
Invoked for all ray-tracing calculations.
domain assumption Backward ray-tracing with vacuum propagation accurately maps the observed shadow boundary
Standard assumption in black-hole imaging simulations; no emission or absorption from the sub-disks is modeled.

invented entities (1)

torn accretion disk with distinct sub-disks no independent evidence
purpose: To represent the outcome of frame-dragging disruption of a tilted disk
Constructed phenomenologically; no independent observational or simulation evidence is supplied in the abstract.
