SparKV: Overhead-Aware KV Cache Loading for Efficient On-Device LLM Inference
Pith reviewed 2026-05-08 14:04 UTC · model grok-4.3
The pith
SparKV models per-chunk KV cache costs to decide between cloud streaming and local computation on device, overlapping the paths and refining schedules at runtime.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
SparKV is an adaptive KV loading framework that combines cloud-based KV streaming with on-device computation. It models the cost of individual KV chunks and decides whether each chunk should be streamed or computed locally, while overlapping the two execution paths to reduce latency. To handle fluctuations in wireless connectivity and edge resource availability, SparKV refines offline-generated schedules at runtime to rebalance communication and computation costs, delivering 1.3x-5.1x lower time-to-first-token and 1.5x-3.3x lower energy per request with negligible effect on output quality.
What carries the argument
The per-chunk cost model and runtime decision engine that selects streaming versus local recomputation while overlapping execution and refining schedules on the fly.
If this is right
- Time-to-first-token drops across multiple LLMs and edge hardware platforms.
- Energy consumption per request decreases while response quality remains essentially unchanged.
- Dynamic rebalancing keeps performance stable when network conditions fluctuate.
- Both communication and local computation are used only where each is cheaper according to the current cost model.
Where Pith is reading between the lines
- The same chunk-level cost modeling could be applied to other hybrid cloud-edge workloads such as on-device image or video generation.
- Combining SparKV with existing model compression or quantization would likely compound the latency and energy gains.
- Longer-running conversations might benefit from carrying forward refined cost estimates across multiple requests.
- The approach suggests a general pattern for any system that can choose between fetching precomputed state or regenerating it locally.
Load-bearing premise
Offline-generated cost models for KV chunks stay accurate enough after runtime refinement to produce reliable choices across changing wireless conditions and device loads without adding significant overhead.
What would settle it
Measure time-to-first-token and energy on the same devices and models while deliberately varying wireless bandwidth and CPU availability; if the observed speedups fall below 1.3x or the refinement step adds measurable latency, the central claim does not hold.
Figures

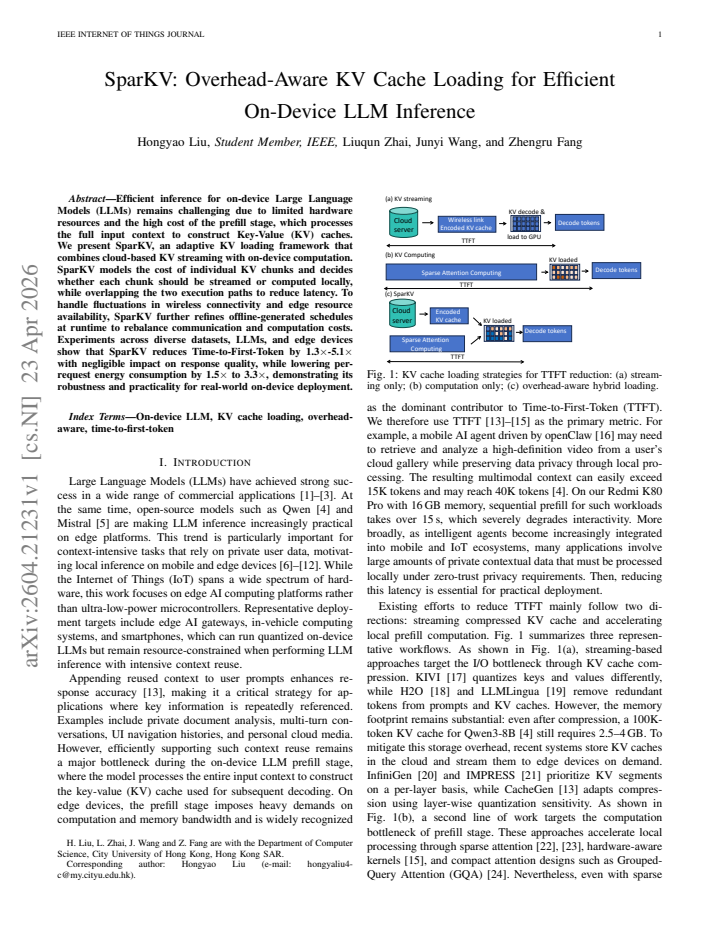

read the original abstract
Efficient inference for on-device Large Language Models (LLMs) remains challenging due to limited hardware resources and the high cost of the prefill stage, which processes the full input context to construct Key-Value (KV) caches. We present SparKV, an adaptive KV loading framework that combines cloud-based KV streaming with on-device computation. SparKV models the cost of individual KV chunks and decides whether each chunk should be streamed or computed locally, while overlapping the two execution paths to reduce latency. To handle fluctuations in wireless connectivity and edge resource availability, SparKV further refines offline-generated schedules at runtime to rebalance communication and computation costs. Experiments across diverse datasets, LLMs, and edge devices show that SparKV reduces Time-to-First-Token by 1.3$x-5.1x with negligible impact on response quality, while lowering per-request energy consumption by 1.5x to 3.3x, demonstrating its robustness and practicality for real-world on-device deployment.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces SparKV, an adaptive framework for on-device LLM inference that decides per-KV-chunk whether to stream from the cloud or compute locally on the device. It overlaps the two paths to hide latency, uses offline-generated cost models refined at runtime to adapt to wireless and resource fluctuations, and reports experimental results showing TTFT reductions of 1.3x–5.1x and energy reductions of 1.5x–3.3x with negligible quality impact across datasets, models, and edge devices.
Significance. If the performance claims hold under rigorous evaluation, the work would be significant for practical on-device LLM deployment, as it directly targets the prefill-stage bottleneck with an overhead-aware hybrid cloud-edge design. The empirical hardware evaluation and focus on runtime adaptation to variable connectivity are strengths that could inform future systems work in this area.
major comments (2)
- [Abstract and §4] Abstract and §4 (runtime refinement): the central TTFT and energy claims rest on the assumption that offline cost models, after runtime refinement, remain accurate and low-overhead under fluctuating wireless/edge conditions, yet no quantitative data on refinement overhead, convergence speed, or trace-driven variability is provided; without this, the overlapping-execution benefit cannot be verified.
- [§5] §5 (experimental evaluation): the reported speedups (1.3x–5.1x TTFT, 1.5x–3.3x energy) are stated without naming the exact baselines, number of runs, statistical significance tests, or error bars, and without describing the precise measurement methodology for TTFT and energy; this prevents assessment of whether the gains are robust or reproducible.
minor comments (2)
- [Abstract] The abstract mentions 'negligible impact on response quality' but does not specify the quality metric or threshold used; a brief clarification would improve readability.
- [§3] Notation for cost models and chunk decisions could be introduced earlier with a small diagram to aid readers unfamiliar with KV-cache streaming.
Simulated Author's Rebuttal
We sincerely thank the referee for the constructive and detailed feedback on our work. We have carefully addressed each of the major comments in the revised manuscript and provide point-by-point responses below.
read point-by-point responses
-
Referee: [Abstract and §4] Abstract and §4 (runtime refinement): the central TTFT and energy claims rest on the assumption that offline cost models, after runtime refinement, remain accurate and low-overhead under fluctuating wireless/edge conditions, yet no quantitative data on refinement overhead, convergence speed, or trace-driven variability is provided; without this, the overlapping-execution benefit cannot be verified.
Authors: We appreciate this comment. While the runtime refinement process is outlined in Section 4, including its use of recent measurements to adjust schedules, we agree that additional quantitative evidence on the overhead, convergence speed, and performance under trace-driven variability would strengthen the claims. In the revised manuscript, we have added a new analysis subsection with quantitative data from experiments and trace-driven simulations. This includes measurements showing low refinement overhead, rapid convergence, and maintained accuracy under varying wireless conditions. These results support the effectiveness of the overlapping execution. We have also updated the abstract to reflect these findings. revision: yes
-
Referee: [§5] §5 (experimental evaluation): the reported speedups (1.3x–5.1x TTFT, 1.5x–3.3x energy) are stated without naming the exact baselines, number of runs, statistical significance tests, or error bars, and without describing the precise measurement methodology for TTFT and energy; this prevents assessment of whether the gains are robust or reproducible.
Authors: We agree that more details are necessary for assessing robustness and reproducibility. The revised Section 5 now explicitly identifies the baselines (full on-device computation, full cloud KV streaming, and a non-adaptive hybrid approach). All experiments are conducted over 10 runs, with results reported as means accompanied by standard deviation error bars. We have included statistical significance testing using paired t-tests. Additionally, we have provided a detailed description of the TTFT measurement (using device timers from prompt submission to first token generation) and energy measurement (using on-device power monitoring APIs calibrated with external equipment). These revisions ensure the experimental claims are fully supported and verifiable. revision: yes
Circularity Check
No circularity: empirical systems design without derivation chain
full rationale
The paper describes an adaptive KV loading framework (SparKV) that uses offline cost models refined at runtime, with performance claims (TTFT and energy reductions) supported solely by hardware experiments across datasets, models, and devices. No equations, fitted parameters presented as predictions, self-definitional constructs, or load-bearing self-citations appear in the abstract or description. The contribution is a practical systems implementation and evaluation rather than a claimed derivation that could reduce to its inputs by construction.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
M. L. Team, “The llama 3 herd of models,”arXiv preprint arXiv:2407.21783, 2024
work page internal anchor Pith review arXiv 2024
-
[2]
OpenAI, J. Achiam, S. Adler, S. Agarwal, L. Ahmad, I. Akkaya, F. K. Aleman, D. Almeida, J. Altenschmidt, S. Altman,et al., “Gpt-4 technical report,”arXiv preprint arXiv:2303.08774, 2023
work page internal anchor Pith review arXiv 2023
-
[3]
Gemini: A Family of Highly Capable Multimodal Models
G. Team and Google, “Gemini: A family of highly capable multimodal models,”arXiv preprint arXiv:2312.11805, 2023
work page internal anchor Pith review arXiv 2023
-
[4]
Q. Team, “Qwen3 technical report,” 2025. [Online]. Available: https://arxiv.org/abs/2505.09388
work page internal anchor Pith review arXiv 2025
-
[5]
A. Q. Jiang, A. Sablayrolles, A. Mensch, C. Bamford, D. S. Chaplot, D. de las Casas, F. Bressand, G. Lengyel, G. Lample, L. Saulnier, L. R. Lavaud, M.-A. Lachaux, P.-A. Stock, T. L. Scao, T. Lavril, T. Wang, T. Lacroix, and W. E. Sayed, “Mistral 7b,”arXiv preprint arXiv:2310.06825, 2023
work page internal anchor Pith review arXiv 2023
-
[6]
Fast on-device llm inference with npus,
D. Xu, H. Zhang, L. Yang, R. Liu, G. Huang, M. Xu, and X. Liu, “Fast on-device llm inference with npus,” inProceedings of the 30th ACM International Conference on Architectural Support for Programming Languages and Operating Systems, Volume 1, 2025, pp. 445–462
2025
-
[7]
Aif: Accelerating on-device llm inference using in-flash processing,
J. Lee, H. Kim, S. Oh, M. Chun, M. Kim, and J. Kim, “Aif: Accelerating on-device llm inference using in-flash processing,” inProceedings of the 52nd Annual International Symposium on Computer Architecture, 2025, pp. 529–543
2025
-
[8]
Edgellm: Fast on-device llm inference with speculative decoding,
D. Xu, W. Yin, H. Zhang, X. Jin, Y . Zhang, S. Wei, M. Xu, and X. Liu, “Edgellm: Fast on-device llm inference with speculative decoding,” IEEE Transactions on Mobile Computing, 2024
2024
-
[9]
Edgeshard: Efficient llm inference via collaborative edge computing,
M. Zhang, X. Shen, J. Cao, Z. Cui, and S. Jiang, “Edgeshard: Efficient llm inference via collaborative edge computing,”IEEE Internet of Things Journal, vol. 12, no. 10, pp. 13 119–13 131, 2025
2025
-
[10]
Edge-llm: A collaborative framework for large language model serving in edge computing,
F. Cai, D. Yuan, Z. Yang, and L. Cui, “Edge-llm: A collaborative framework for large language model serving in edge computing,” in 2024 IEEE International Conference on Web Services (ICWS). IEEE, 2024, pp. 799–809
2024
-
[11]
Switchable and dual-tunable multilayered terahertz absorber based on patterned graphene and vanadium dioxide,
H. Liu, P. Wang, J. Wu, X. Yan, X. Yuan, Y . Zhang, and X. Zhang, “Switchable and dual-tunable multilayered terahertz absorber based on patterned graphene and vanadium dioxide,”Micromachines, vol. 12, no. 6, p. 619, 2021
2021
-
[12]
Research on terahertz band electromagnetic characteristics of propagation and scattering in the cold magnetized plasma medium,
H.-y. Liu and Y . Chao, “Research on terahertz band electromagnetic characteristics of propagation and scattering in the cold magnetized plasma medium,”Optik, vol. 217, p. 164905, 2020
2020
-
[13]
Cachegen: Kv cache compression and streaming for fast large language model serving,
Y . Liu, H. Li, Y . Cheng, S. Ray, Y . Huang, Q. Zhang, K. Du, J. Yao, S. Lu, G. Ananthanarayanan,et al., “Cachegen: Kv cache compression and streaming for fast large language model serving,” inProceedings of the ACM SIGCOMM 2024 Conference, 2024, pp. 38–56
2024
-
[14]
Efficient memory management for large language model serving with pagedattention,
W. Kwon, Z. Li, S. Zhuang, Y . Sheng, L. Zheng, C. H. Yu, J. Gonzalez, H. Zhang, and I. Stoica, “Efficient memory management for large language model serving with pagedattention,” inProceedings of the 29th symposium on operating systems principles, 2023, pp. 611–626
2023
-
[15]
FlashAttention-2: Faster Attention with Better Parallelism and Work Partitioning
T. Dao, “Flashattention-2: Faster attention with better parallelism and work partitioning,”arXiv preprint arXiv:2307.08691, 2023
work page internal anchor Pith review arXiv 2023
-
[16]
Openclaw: Personal ai assistant,
P. Steinberger, “Openclaw: Personal ai assistant,” https://openclaw.ai/
-
[17]
KIVI: A Tuning-Free Asymmetric 2bit Quantization for KV Cache
Z. Liu, J. Yuan, H. Jin, S. Zhong, Z. Xu, V . Braverman, B. Chen, and X. Hu, “Kivi: A tuning-free asymmetric 2bit quantization for kv cache,” arXiv preprint arXiv:2402.02750, 2024
work page internal anchor Pith review arXiv 2024
-
[18]
H2o: Heavy-hitter oracle for efficient generative inference of large language models,
Z. Zhang, Y . Sheng, T. Zhou, T. Chen, L. Zheng, R. Cai, Z. Song, Y . Tian, C. R´e, C. Barrett,et al., “H2o: Heavy-hitter oracle for efficient generative inference of large language models,”Advances in Neural Information Processing Systems, vol. 36, pp. 34 661–34 710, 2023
2023
- [19]
-
[20]
{InfiniGen}: Efficient generative inference of large language models with dynamic{KV}cache manage- ment,
W. Lee, J. Lee, J. Seo, and J. Sim, “{InfiniGen}: Efficient generative inference of large language models with dynamic{KV}cache manage- ment,” in18th USENIX Symposium on Operating Systems Design and Implementation (OSDI 24), 2024, pp. 155–172
2024
-
[21]
W. Chen, S. He, H. Qu, R. Zhang, S. Yang, P. Chen, Y . Zheng, B. Huai, and G. Chen, “{IMPRESS}: An{Importance-Informed}{Multi-Tier} LIU et al. SPARKV: OVERHEAD-AW ARE KV CACHE LOADING FOR EFFICIENT ON-DEVICE LLM INFERENCE 11 prefix{KV}storage system for large language model inference,” in 23rd USENIX Conference on File and Storage Technologies (FAST 25), ...
2025
-
[22]
Spargeat- tention: Accurate and training-free sparse attention accelerating any model inference,
J. Zhang, C. Xiang, H. Huang, H. Xi, J. Zhu, J. Chen,et al., “Spargeat- tention: Accurate and training-free sparse attention accelerating any model inference,” inForty-second International Conference on Machine Learning, 2025
2025
-
[23]
Minference 1.0: Accelerating pre-filling for long-context llms via dynamic sparse attention,
H. Jiang, Y . Li, C. Zhang, Q. Wu, X. Luo, S. Ahn, Z. Han, A. H. Abdi, D. Li, C.-Y . Lin,et al., “Minference 1.0: Accelerating pre-filling for long-context llms via dynamic sparse attention,”Advances in Neural Information Processing Systems, vol. 37, pp. 52 481–52 515, 2024
2024
-
[24]
GQA: Training Generalized Multi-Query Transformer Models from Multi-Head Checkpoints
J. Ainslie, J. Lee-Thorp, M. De Jong, Y . Zemlyanskiy, F. Lebr ´on, and S. Sanghai, “Gqa: Training generalized multi-query transformer models from multi-head checkpoints,”arXiv preprint arXiv:2305.13245, 2023
work page internal anchor Pith review arXiv 2023
-
[25]
Compute or load kv cache? why not both?
S. Jin, X. Liu, Q. Zhang, and Z. M. Mao, “Compute or load kv cache? why not both?”arXiv preprint arXiv:2410.03065, 2024
-
[26]
Awq: Activation-aware weight quanti- zation for on-device llm compression and acceleration,
J. Lin, J. Tang, H. Tang, S. Yang, W.-M. Chen, W.-C. Wang, G. Xiao, X. Dang, C. Gan, and S. Han, “Awq: Activation-aware weight quanti- zation for on-device llm compression and acceleration,”Proceedings of machine learning and systems, vol. 6, pp. 87–100, 2024
2024
-
[27]
Llm as a system service on mobile devices,
W. Yin, M. Xu, Y . Li, and X. Liu, “Llm as a system service on mobile devices,”arXiv preprint arXiv:2403.11805, 2024
-
[28]
Attention is all you need,
A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin, “Attention is all you need,”Advances in neural information processing systems, vol. 30, 2017
2017
-
[29]
Xattention: Block sparse attention with antidiagonal scoring.arXiv preprint arXiv:2503.16428,
R. Xu, G. Xiao, H. Huang, J. Guo, and S. Han, “Xattention: Block sparse attention with antidiagonal scoring,”arXiv preprint arXiv:2503.16428, 2025
-
[30]
J. Zhang, H. Huang, P. Zhang, J. Wei, J. Zhu, and J. Chen, “Sageatten- tion2: Efficient attention with thorough outlier smoothing and per-thread int4 quantization,”arXiv preprint arXiv:2411.10958, 2024
-
[31]
Alibaba cloud,
Alibaba, “Alibaba cloud,” https://www.alibabacloud.com, 2025
2025
-
[32]
Llama-3.1-8b,
Meta AI Team, “Llama-3.1-8b,” https://huggingface.co/meta-llama/ Llama-3.1-8B, 2024
2024
-
[33]
Transformers: State- of-the-art natural language processing,
T. Wolf, L. Debut, V . Sanh, J. Chaumond, C. Delangue, A. Moi, P. Cistac, T. Rault, R. Louf, M. Funtowicz,et al., “Transformers: State- of-the-art natural language processing,” inProceedings of the 2020 conference on empirical methods in natural language processing: system demonstrations, 2020, pp. 38–45
2020
-
[34]
llama.cpp,
“llama.cpp,” https://github.com/ggml-org/llama.cpp, 2026
2026
-
[35]
TriviaQA: A Large Scale Distantly Supervised Challenge Dataset for Reading Comprehension
M. Joshi, E. Choi, D. S. Weld, and L. Zettlemoyer, “Triviaqa: A large scale distantly supervised challenge dataset for reading comprehension,” arXiv preprint arXiv:1705.03551, 2017
work page internal anchor Pith review arXiv 2017
-
[36]
HotpotQA: A Dataset for Diverse, Explainable Multi-hop Question Answering
Z. Yang, P. Qi, S. Zhang, Y . Bengio, W. W. Cohen, R. Salakhutdinov, and C. D. Manning, “Hotpotqa: A dataset for diverse, explainable multi-hop question answering,”arXiv preprint arXiv:1809.09600, 2018
work page internal anchor Pith review arXiv 2018
-
[37]
Video-mme: The first-ever comprehensive evaluation benchmark of multi-modal llms in video analysis,
C. Fu, Y . Dai, Y . Luo, L. Li, S. Ren, R. Zhang, Z. Wang, C. Zhou, Y . Shen, M. Zhang,et al., “Video-mme: The first-ever comprehensive evaluation benchmark of multi-modal llms in video analysis,” inPro- ceedings of the Computer Vision and Pattern Recognition Conference, 2025, pp. 24 108–24 118
2025
-
[38]
Dynamic huffman coding,
D. E. Knuth, “Dynamic huffman coding,”Journal of algorithms, vol. 6, no. 2, pp. 163–180, 1985
1985
-
[39]
Gurobi optimizer reference manual, version 11.0,
Gurobi Optimization, LLC, “Gurobi optimizer reference manual, version 11.0,” https://www.gurobi.com, 2024
2024
-
[40]
Roofline: an insightful visual performance model for multicore architectures,
S. Williams, A. Waterman, and D. Patterson, “Roofline: an insightful visual performance model for multicore architectures,”Communications of the ACM, vol. 52, no. 4, pp. 65–76, 2009
2009
-
[41]
Multilayer perceptron and neural networks,
M.-C. Popescu, V . E. Balas, L. Perescu-Popescu, and N. Mastorakis, “Multilayer perceptron and neural networks,”WSEAS Transactions on Circuits and Systems, vol. 8, no. 7, pp. 579–588, 2009
2009
-
[42]
Internvl: Scaling up vision foundation models and aligning for generic visual-linguistic tasks,
Z. Chen, J. Wu, W. Wang, W. Su, G. Chen, S. Xing, M. Zhong, Q. Zhang, X. Zhu, L. Lu,et al., “Internvl: Scaling up vision foundation models and aligning for generic visual-linguistic tasks,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2024, pp. 24 185–24 198
2024
-
[43]
RepoBench : Benchmarking repository-level code auto-completion systems
T. Liu, C. Xu, and J. McAuley, “Repobench: Benchmarking repository- level code auto-completion systems,”arXiv preprint arXiv:2306.03091, 2023
-
[44]
How long can open-source LLMs truly promise on context length?
D. Li, R. Shao, A. Xie, Y . Sheng, L. Zheng, J. E. Gonzalez, I. Stoica, X. Ma, and H. Zhang, “How long can open-source LLMs truly promise on context length?” https://lmsys.org/blog/2023-06-29-longchat, Jun 2023
2023
-
[45]
Efficient attentions for long document summarization,
L. Huang, S. Cao, N. Parulian, H. Ji, and L. Wang, “Efficient attentions for long document summarization,”arXiv preprint arXiv:2104.02112, 2021
-
[46]
The narrativeqa reading comprehension challenge,
T. Ko ˇcisk`y, J. Schwarz, P. Blunsom, C. Dyer, K. M. Hermann, G. Melis, and E. Grefenstette, “The narrativeqa reading comprehension challenge,” Transactions of the Association for Computational Linguistics, vol. 6, pp. 317–328, 2018
2018
-
[47]
LongBench: A Bilingual, Multitask Benchmark for Long Context Understanding
Y . Bai, X. Lv, J. Zhang, H. Lyu, J. Tang, Z. Huang, Z. Du, X. Liu, A. Zeng, L. Hou,et al., “Longbench: A bilingual, multitask benchmark for long context understanding,”arXiv preprint arXiv:2308.14508, 2023
work page internal anchor Pith review arXiv 2023
-
[48]
Longbench v2: Towards deeper understanding and reasoning on realistic long-context multitasks, 2025
Y . Bai, S. Tu, J. Zhang, H. Peng, X. Wang, X. Lv, S. Cao, J. Xu, L. Hou, Y . Dong,et al., “Longbench v2: Towards deeper understanding and reasoning on realistic long-context multitasks,”arXiv preprint arXiv:2412.15204, 2024
-
[49]
A survey of wi-fi 6: Technologies, advances, and challenges,
E. Mozaffariahrar, F. Theoleyre, and M. Menth, “A survey of wi-fi 6: Technologies, advances, and challenges,”Future Internet, vol. 14, no. 10, p. 293, 2022
2022
-
[50]
Industrial internet of things with large language models (llms): an intelligence- based reinforcement learning approach,
Y . Ren, H. Zhang, F. R. Yu, W. Li, P. Zhao, and Y . He, “Industrial internet of things with large language models (llms): an intelligence- based reinforcement learning approach,”IEEE Transactions on Mobile Computing, 2024
2024
-
[51]
Next-gen service function chain deployment: Combining multi-objective optimiza- tion with ai large language models,
Y . Li, Q. Zhang, H. Yao, R. Gao, X. Xin, and M. Guizani, “Next-gen service function chain deployment: Combining multi-objective optimiza- tion with ai large language models,”IEEE Network, 2025
2025
-
[52]
C.-C. Chang, C.-Y . Lin, Y . Akhauri, W.-C. Lin, K.-C. Wu, L. Ceze, and M. S. Abdelfattah, “xkv: Cross-layer svd for kv-cache compression,” arXiv preprint arXiv:2503.18893, 2025
-
[53]
R. Zhang, K. Wang, L. Liu, S. Wang, H. Cheng, C. Zhang, and Y . Shen, “Lorc: Low-rank compression for llms kv cache with a progressive compression strategy,”arXiv preprint arXiv:2410.03111, 2024
-
[54]
Cacheblend: Fast large language model serving for rag with cached knowledge fusion,
J. Yao, H. Li, Y . Liu, S. Ray, Y . Cheng, Q. Zhang, K. Du, S. Lu, and J. Jiang, “Cacheblend: Fast large language model serving for rag with cached knowledge fusion,” inProceedings of the Twentieth European Conference on Computer Systems, 2025, pp. 94–109
2025
