arxiv: 2604.22276 · v1 · submitted 2026-04-24 · 📡 eess.AS · cs.SD

Recognition: unknown

Audio Effect Estimation with DNN-Based Prediction and Search Algorithm

Haruhiro Katayose, Youichi Okita

Pith reviewed 2026-05-08 08:58 UTC · model grok-4.3

classification 📡 eess.AS cs.SD

keywords audio effect estimationDNN predictionsearch-based reconstructionwet signaleffect configurationtask divisiondry signal estimationparameter optimization

0 comments

The pith

A hybrid DNN prediction plus reconstruction search method estimates applied audio effects more accurately than prediction alone.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to solve audio effect estimation by merging data-driven prediction with reconstruction-based search. Deep networks first guess the original dry signal and the set of effects that were applied; a search stage then refines the order and parameter values by measuring how well the guessed effects reproduce the observed wet signal. This division lets the reconstruction objective correct or improve the network outputs. A reader would care because reliable reverse estimation of effects could support better audio editing tools, forensic analysis of recordings, and automated sound-design assistance.

Core claim

The paper claims that integrating DNN-based prediction of the dry signal and effect configuration with a subsequent search that optimizes order and parameters via wet-signal reconstruction similarity produces higher accuracy than using the predictive model by itself. The most effective split is to let the network predict the combination of effect types while reserving the search for determining their order and numerical settings.

What carries the argument

The two-stage pipeline in which DNNs supply an initial dry-signal estimate and effect-type combination that initializes a search maximizing reconstruction fidelity to the input wet signal.

If this is right

Hybrid methods achieve higher accuracy than predictive-only methods across standard metrics.
Predicting effect-type combinations first and then searching for order and parameters is the most effective task split.
Estimating the dry signal in the prediction stage enables reconstruction similarity to serve as a corrective objective.
The combined approach can improve or complement initial DNN outputs without replacing them.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same prediction-then-search pattern could be tested on inverse problems outside audio, such as estimating image filters or video processing chains.
If the search component can be made fast enough, the method might support real-time effect identification in live mixing consoles.
The results suggest that other signal-processing tasks currently solved by pure neural nets might gain from an added reconstruction-verification stage.

Load-bearing premise

The DNN predictions must supply a starting point sufficiently close to the true effect configuration that the reconstruction search can improve it rather than becoming trapped in poor solutions.

What would settle it

A test set in which random or deliberately poor DNN initializations still yield higher final accuracy than the full hybrid pipeline, or in which the hybrid pipeline shows no gain over pure prediction on held-out recordings, would show the claimed benefit does not hold.

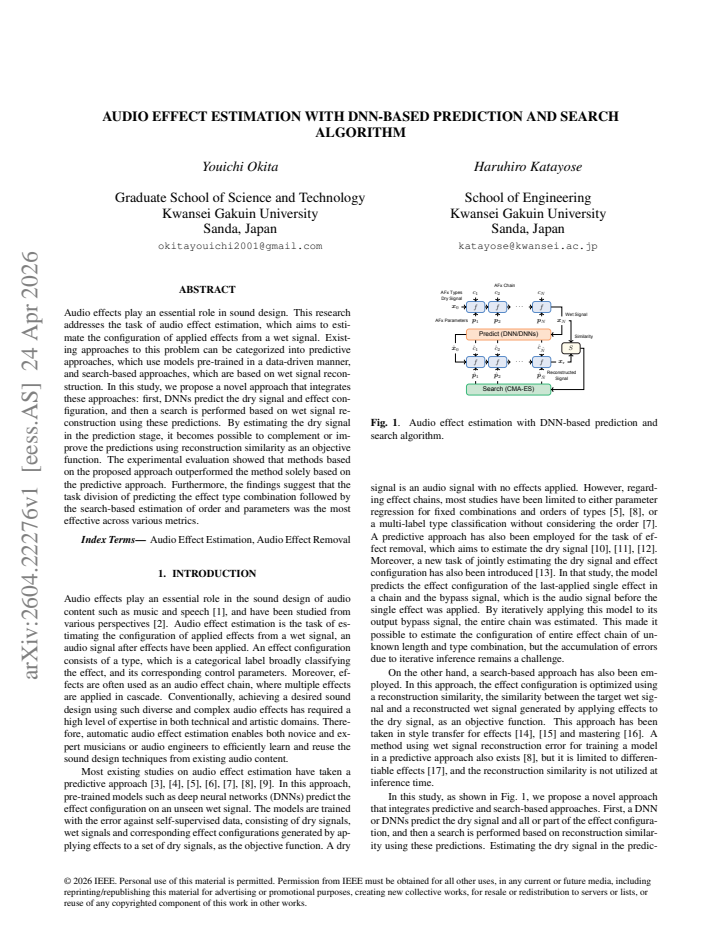

read the original abstract

Audio effects play an essential role in sound design. This research addresses the task of audio effect estimation, which aims to estimate the configuration of applied effects from a wet signal. Existing approaches to this problem can be categorized into predictive approaches, which use models pre-trained in a data-driven manner, and search-based approaches, which are based on wet signal reconstruction. In this study, we propose a novel approach that integrates these approaches: first, DNNs predict the dry signal and effect configuration, and then a search is performed based on wet signal reconstruction using these predictions. By estimating the dry signal in the prediction stage, it becomes possible to complement or improve the predictions using reconstruction similarity as an objective function. The experimental evaluation showed that methods based on the proposed approach outperformed the method solely based on the predictive approach. Furthermore, the findings suggest that the task division of predicting the effect type combination followed by the search-based estimation of order and parameters was the most effective across various metrics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The hybrid DNN-plus-search method for audio effect estimation is a practical incremental step that beats pure prediction in the reported tests, with the task split of guessing effect types first then refining order and parameters coming out strongest.

read the letter

The hybrid approach here combines DNN-based prediction of the dry signal and effect types with a reconstruction-driven search for order and parameters. Experiments indicate the hybrid outperforms pure prediction, and that splitting the task by first predicting effect combinations then searching the details is the most effective. What is new is the use of dry signal estimation in the prediction stage to allow the search to complement or improve the initial guesses via similarity to the wet signal. This is distinct from prior predictive-only or search-only methods, and the paper positions it well against the literature. The paper does well in demonstrating the benefit of this task division across various metrics. The central claim holds up based on the reported outperformance, with no obvious circularity or unjustified leaps. The soft spots are minor but worth noting: the abstract lacks specifics on datasets, baselines, and controls, which makes it harder to fully assess generalizability without the full text. The DNN hyperparameters are free parameters that could influence results. The concern about search getting stuck in local minima is addressed by the hybrid setup but could be tested more explicitly in edge cases. This paper is for researchers and practitioners in audio effect analysis and music technology tools. A reader interested in practical hybrid methods for signal estimation would find it useful. It shows honest engagement with the problem and prior work, so it deserves a serious referee. I would recommend sending it to peer review.

Referee Report

0 major / 2 minor

Summary. The paper proposes a hybrid approach to audio effect estimation from wet signals: DNNs first predict the dry signal and effect configuration, after which a search algorithm refines the estimates via wet-signal reconstruction similarity. The central empirical claim is that hybrid variants outperform a pure predictive baseline, with the most effective task division being prediction of effect-type combinations followed by search-based estimation of order and parameters.

Significance. If the reported gains hold under replication, the work demonstrates a practical way to combine the strengths of data-driven prediction and reconstruction-based optimization in audio processing. The identification of an effective task division supplies a concrete, falsifiable guideline for future hybrid systems. The manuscript's explicit comparison between hybrid and baseline methods is a strength that supports its contribution.

minor comments (2)

[Abstract] Abstract: the headline claims of outperformance and optimal task division would be more immediately verifiable if the abstract briefly named the primary metrics and dataset characteristics (even if full details appear in §4).
[§3] §3 (Method): the description of how the DNN-predicted dry signal is used inside the reconstruction objective could be expanded with a short pseudocode block or equation to clarify the interface between the two stages.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary, acknowledgment of the significance of combining DNN prediction with search-based refinement, and recommendation for minor revision. The assessment correctly identifies the core contribution of our hybrid method and the empirical finding on effective task division.

Circularity Check

0 steps flagged

No significant circularity in empirical hybrid method evaluation

full rationale

The paper proposes an algorithmic hybrid for audio effect estimation: DNN-based prediction of dry signal and effect configuration, followed by search-based refinement via wet-signal reconstruction similarity. The central claims rest on experimental comparisons demonstrating that hybrid variants outperform a pure predictive baseline, with one task-division strategy performing best across metrics. No load-bearing step reduces by construction to its inputs; there are no self-definitional equations, fitted parameters presented as independent predictions, or self-citation chains that substitute for external verification. The work is self-contained as a standard empirical ML study whose results can be reproduced from the described training, search procedure, and metric definitions.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim depends on standard machine-learning assumptions about model generalization to audio signals and the validity of reconstruction error as an optimization objective. No new physical entities or ad-hoc constants are introduced beyond typical DNN training.

free parameters (1)

DNN architecture and training hyperparameters
Standard learned parameters in the predictive models; not enumerated in the abstract but required for any neural-network component.

axioms (2)

domain assumption Deep neural networks can learn mappings from wet audio signals to dry signals and effect configurations
Invoked as the foundation of the prediction stage.
domain assumption Similarity between original and reconstructed wet signals serves as a reliable objective for refining effect order and parameters
Used to justify the search stage that improves upon DNN outputs.

pith-pipeline@v0.9.0 · 5464 in / 1505 out tokens · 67382 ms · 2026-05-08T08:58:55.872416+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

35 extracted references · 1 canonical work pages · 1 internal anchor

[1]

Audio Effect Estimation with DNN-Based Prediction and Search Algorithm

INTRODUCTION Audio effects play an essential role in the sound design of audio content such as music and speech [1], and have been studied from various perspectives [2]. Audio effect estimation is the task of es- timating the configuration of applied effects from a wet signal, an audio signal after effects have been applied. An effect configuration consis...

work page internal anchor Pith review Pith/arXiv arXiv 2026
[2]

PROBLEM FORMULATION We formulate the audio effect chain estimation task addressed in this study. First, the application of a single audio effect to an audio signal can be expressed asx 1 =f c,p (x0), wherex 0 is the dry signal, x1 is the wet signal,f c,p is the effect,cis its type, andpare the parameters corresponding toc. Next, we consider an audio effec...
[3]

(2), as shown in Fig

PROPOSED METHODS In this study, we propose a two-stage approach for the task repre- sented by Eq. (2), as shown in Fig. 1, which consists of DNN-based prediction and search based on wet signal reconstruction. In a two- stage approach, the division of tasks between them is an essential design choice. Therefore, we define three settings of task division for...
[4]

Dataset First, we collected dry signals from existing datasets

EXPERIMENTAL EV ALUATION 4.1. Dataset First, we collected dry signals from existing datasets. We ex- tracted a total of 2231 non-overlapping chunks of10.0 sfrom musical excerpts played on the guitar without effects applied, from IDMT-SMT-Guitar [25], GuitarSet [26], EGDB [27], and Guitar- TECHS [28]. The number of channels was unified to 1, the sampling f...
[5]

The experimental evaluation showed that methods based on the proposed approach out- performed the method solely based on the predictive approach

CONCLUSION This study proposed an approach for audio effect estimation that in- tegrates predictive and search-based approaches. The experimental evaluation showed that methods based on the proposed approach out- performed the method solely based on the predictive approach. Fur- thermore, the findings suggest that the task division of predicting the effec...
[6]

A his- tory of audio effects,

T. Wilmering, D. Moffat, A. Milo, and M. B. Sandler, “A his- tory of audio effects,”Appl. Sci., vol. 10, no. 3, pp. 791, 2020

2020
[7]

AFxResearch: a repository and website of audio effects research,

M. Comunit `a and J. D. Reiss, “AFxResearch: a repository and website of audio effects research,” inProc. Digit. Music Res. Netw. Workshop, 2024

2024
[8]

Recognizing gui- tar effects and their parameter settings,

H. J ¨urgens, R. Hinrichs, and J. Ostermann, “Recognizing gui- tar effects and their parameter settings,” inProc. Int. Conf. Digit. Audio Effects, 2020, pp. 310–316

2020
[9]

Guitar effects recognition and parameter estimation with convolutional neu- ral networks,

M. Comunit `a, D. Stowell, and J. D. Reiss, “Guitar effects recognition and parameter estimation with convolutional neu- ral networks,”J. Audio Eng. Soc., vol. 69, no. 7/8, pp. 594–604, 2021

2021
[10]

Convo- lutional neural networks for the classification of guitar effects and extraction of the parameter settings of single and multi- guitar effects from instrument mixes,

R. Hinrichs, K. Gerkens, A. Lange, and J. Ostermann, “Convo- lutional neural networks for the classification of guitar effects and extraction of the parameter settings of single and multi- guitar effects from instrument mixes,”EURASIP J. Audio, Speech, Music Process., vol. 2022, no. 1, pp. 28, 2022

2022
[11]

Blind estimation of audio processing graph,

S. Lee, J. Park, S. Paik, and K. Lee, “Blind estimation of audio processing graph,” inProc. IEEE Int. Conf. Acoust., Speech, Signal Process., 2023

2023
[12]

Automatic recognition of cascaded guitar effects,

J. Guo and B. McFee, “Automatic recognition of cascaded guitar effects,” inProc. Int. Conf. Digit. Audio Effects, 2023

2023
[13]

Blind estimation of audio ef- fects using an auto-encoder approach and differentiable digital signal processing,

C. Peladeau and G. Peeters, “Blind estimation of audio ef- fects using an auto-encoder approach and differentiable digital signal processing,” inProc. IEEE Int. Conf. Acoust., Speech, Signal Process., 2024, pp. 856–860

2024
[14]

Hyperbolic em- beddings for order-aware classification of audio effect chains,

A. Wada, T. Nakamura, and H. Saruwatari, “Hyperbolic em- beddings for order-aware classification of audio effect chains,” inProc. Int. Conf. Digit. Audio Effects, 2025, pp. 396–402

2025
[15]

Distortion audio effects: Learn- ing how to recover the clean signal,

J. Imort, G. Fabbro, M. A. Mart ´ınez-Ram´ırez, S. Uhlich, Y . Koyama, and Y . Mitsufuji, “Distortion audio effects: Learn- ing how to recover the clean signal,” inProc. Int. Soc. Music Inf. Retrieval Conf., 2022, pp. 218–225

2022
[16]

General purpose audio effect removal,

M. Rice, C. J. Steinmetz, G. Fazekas, and J. D. Reiss, “General purpose audio effect removal,” inProc. IEEE Workshop Appl. Signal Process. Audio Acoust., 2023

2023
[17]

Distortion recovery: A two-stage method for guitar effect removal,

Y .-S. Lee, Y .-P. Peng, J.-T. Wu, M. Cheng, L. Su, and Y .-H. Yang, “Distortion recovery: A two-stage method for guitar effect removal,” inProc. Int. Conf. Digit. Audio Effects, 2024, pp. 177–184

2024
[18]

Audio effect chain estimation and dry signal recovery from multi-effect-processed musical signals,

O. Take, K. Watanabe, T. Nakatsuka, T. Cheng, T. Nakano, M. Goto, S. Takamichi, and H. Saruwatari, “Audio effect chain estimation and dry signal recovery from multi-effect-processed musical signals,” inProc. Int. Conf. Digit. Audio Effects, 2024, pp. 1–8

2024
[19]

ST-ITO: Controlling audio effects for style transfer with inference-time optimization,

C. J. Steinmetz, S. Singh, M. Comunit `a, I. Ibnyahya, S. Yuan, E. Benetos, and J. D. Reiss, “ST-ITO: Controlling audio effects for style transfer with inference-time optimization,” inProc. Int. Soc. Music Inf. Retrieval Conf., 2024, pp. 661–668

2024
[20]

Improving inference-time optimi- sation for vocal effects style transfer with a gaussian prior,

C.-Y . Yu, M. A. Mart´ınez-Ram´ırez, J. Koo, W.-H. Liao, Y . Mit- sufuji, and G. Fazekas, “Improving inference-time optimi- sation for vocal effects style transfer with a gaussian prior,” inProc. IEEE Workshop Appl. Signal Process. Audio Acoust., 2025

2025
[21]

ITO-Master: Inference-time optimization for audio effects modeling of music mastering processors,

J. Koo, M. A. Mart ´ınez-Ram´ırez, W.-H. Liao, G. Fabbro, M. Mancusi, and Y . Mitsufuji, “ITO-Master: Inference-time optimization for audio effects modeling of music mastering processors,” inProc. Int. Soc. Music Inf. Retrieval Conf., 2025, pp. 134–141

2025
[22]

DDSP: Differ- entiable digital signal processing,

J. Engel, L. Hantrakul, C. Gu, and A. Roberts, “DDSP: Differ- entiable digital signal processing,” inProc. Int. Conf. Learn. Representations, 2020

2020
[23]

Blind extraction of guitar effects through blind system inversion and neural guitar effect modeling,

R. Hinrichs, K. Gerkens, A. Lange, and J. Ostermann, “Blind extraction of guitar effects through blind system inversion and neural guitar effect modeling,”EURASIP J. Audio, Speech, Music Process., vol. 2024, no. 1, pp. 9, 2024

2024
[24]

Hybrid transformers for music source separation,

S. Rouard, F. Massa, and A. D ´efossez, “Hybrid transformers for music source separation,” inProc. IEEE Int. Conf. Acoust., Speech, Signal Process., 2023

2023
[25]

Parallel WaveGAN: A fast waveform generation model based on generative adver- sarial networks with multi-resolution spectrogram,

R. Yamamoto, E. Song, and J.-M. Kim, “Parallel WaveGAN: A fast waveform generation model based on generative adver- sarial networks with multi-resolution spectrogram,” inProc. IEEE Int. Conf. Acoust., Speech, Signal Process., 2020, pp. 6199–6203

2020
[26]

auraloss: Audio-focused loss functions in PyTorch,

C. J. Steinmetz and J. D. Reiss, “auraloss: Audio-focused loss functions in PyTorch,” inProc. Digit. Music Res. Netw. Work- shop, 2020

2020
[27]

SDR – half-baked or well done?,

J. Le Roux, S. Wisdom, H. Erdogan, and J. R. Hershey, “SDR – half-baked or well done?,” inProc. IEEE Int. Conf. Acoust., Speech, Signal Process., 2019, pp. 626–630

2019
[28]

Adapting arbitrary normal mu- tation distributions in evolution strategies: the covariance ma- trix adaptation,

N. Hansen and A. Ostermeier, “Adapting arbitrary normal mu- tation distributions in evolution strategies: the covariance ma- trix adaptation,” inProc. IEEE Int. Conf. Evol. Comput., 1996, pp. 312–317

1996
[29]

Algorithms for hyper-parameter optimization,

J. Bergstra, R. Bardenet, Y . Bengio, and B. K´egl, “Algorithms for hyper-parameter optimization,” inAdvances Neural Inf. Process. Syst., 2011

2011
[30]

Automatic tablature transcription of electric guitar recordings by estima- tion of score- and instrument-related parameters,

C. Kehling, J. Abeßer, C. Dittmar, and G. Schuller, “Automatic tablature transcription of electric guitar recordings by estima- tion of score- and instrument-related parameters,” inProc. Int. Conf. Digit. Audio Effects, 2014, pp. 219–226

2014
[31]

Gui- tarSet: A dataset for guitar transcription,

Q. Xi, R. M. Bittner, J. Pauwels, X. Ye, and J. P. Bello, “Gui- tarSet: A dataset for guitar transcription,” inProc. Int. Soc. Music Inf. Retrieval Conf., 2018, pp. 453–460

2018
[32]

Towards automatic transcription of polyphonic elec- tric guitar music: A new dataset and a multi-loss transformer model,

Y .-H. Chen, W.-Y . Hsiao, T.-K. Hsieh, J.-S. R. Jang, and Y .-H. Yang, “Towards automatic transcription of polyphonic elec- tric guitar music: A new dataset and a multi-loss transformer model,” inProc. IEEE Int. Conf. Acoust., Speech, Signal Pro- cess., 2022, pp. 786–790

2022
[33]

Guitar- TECHS: An electric guitar dataset covering techniques, musi- cal excerpts, chords and scales using a diverse array of hard- ware,

H. Pedroza, W. Abreu, R. M. Corey, and I. R. Roman, “Guitar- TECHS: An electric guitar dataset covering techniques, musi- cal excerpts, chords and scales using a diverse array of hard- ware,” inProc. IEEE Int. Conf. Acoust., Speech, Signal Pro- cess., 2025

2025
[34]

Decoupled weight decay regular- ization,

I. Loshchilov and F. Hutter, “Decoupled weight decay regular- ization,” inProc. Int. Conf. Learn. Representations, 2019

2019
[35]

Op- tuna: A next-generation hyperparameter optimization frame- work,

T. Akiba, S. Sano, T. Yanase, T. Ohta, and M. Koyama, “Op- tuna: A next-generation hyperparameter optimization frame- work,” inProc. ACM SIGKDD Int. Conf. Knowl. Discovery & Data Mining, 2019, pp. 2623–2631

2019
