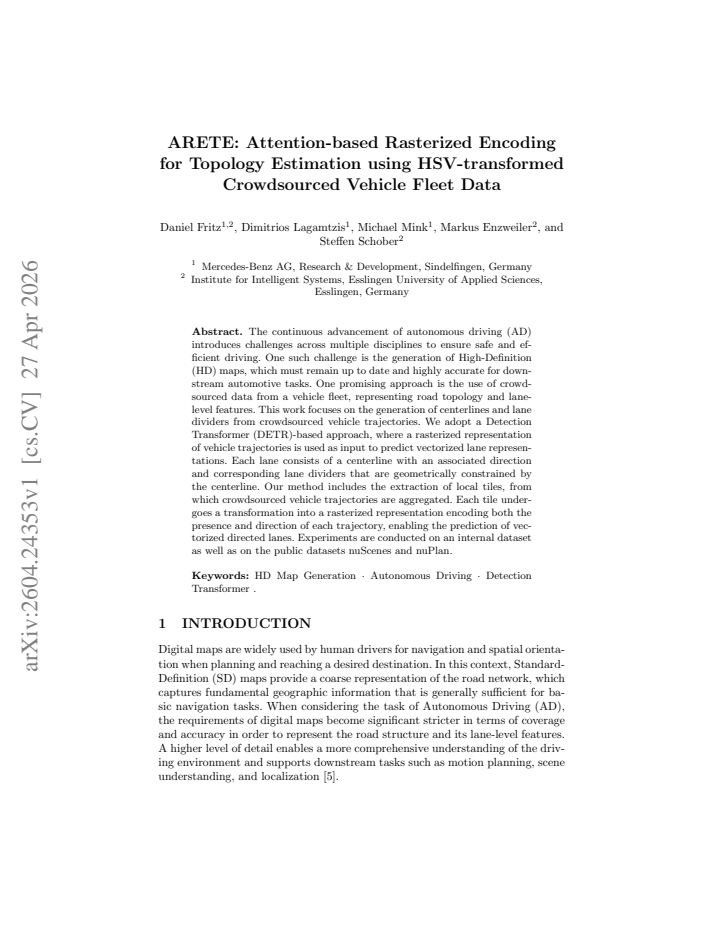

ARETE: Attention-based Rasterized Encoding for Topology Estimation using HSV-transformed Crowdsourced Vehicle Fleet Data

Daniel Fritz; Dimitrios Lagamtzis; Markus Enzweiler; Michael Mink; Steffen Schober

arxiv: 2604.24353 · v1 · submitted 2026-04-27 · 💻 cs.CV · cs.AI· cs.LG· cs.RO

ARETE: Attention-based Rasterized Encoding for Topology Estimation using HSV-transformed Crowdsourced Vehicle Fleet Data

Daniel Fritz , Dimitrios Lagamtzis , Michael Mink , Markus Enzweiler , Steffen Schober This is my paper

Pith reviewed 2026-05-08 04:36 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.LGcs.RO

keywords crowdsourced trajectoriesHD map generationlane topology estimationDETRHSV rasterizationvectorized lanesautonomous driving maps

0 comments

The pith

Rasterizing crowdsourced vehicle paths with HSV encoding lets a DETR model extract directed centerlines and constrained lane dividers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to turn raw crowdsourced trajectories from many vehicles into local raster tiles that a transformer detector can read. Each tile encodes both where vehicles drove and the direction they took by mapping speed or heading into HSV color channels. The model then outputs vectorized lanes, each defined by a directed centerline plus lane dividers that must stay geometrically tied to that centerline. This matters because HD maps for autonomous driving need frequent updates, and fleet data is already being collected at scale. If the encoding step keeps enough geometry, the method removes the need for separate manual annotation of every road feature.

Core claim

The central claim is that an attention-based Detection Transformer can recover accurate vectorized lane topology directly from rasterized representations of aggregated crowdsourced trajectories. Each input tile is formed by binning vehicle paths, then applying an HSV transform that stores presence in one channel and direction in the hue and saturation channels. The network predicts centerlines carrying explicit direction together with associated lane dividers whose positions are forced to remain consistent with the centerline geometry. Experiments on an internal fleet dataset plus the public nuScenes and nuPlan collections are used to measure how well the predicted lanes match ground-truthHD

What carries the argument

HSV-transformed rasterized encoding of aggregated vehicle trajectories, which packs presence and direction into a single image-like input for a Detection Transformer that outputs geometrically constrained vectorized lanes.

If this is right

Produces lanes that each consist of one directed centerline and multiple dividers whose geometry is explicitly constrained by the centerline.
Supports automated, frequent updates to HD maps using only data already collected by production vehicle fleets.
Runs on both proprietary fleet recordings and public benchmarks such as nuScenes and nuPlan.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same raster-plus-transformer pipeline could be applied to other sparse trajectory sources, such as delivery fleets or rideshare logs, to bootstrap maps in new cities.
Adding a second stage that refines divider positions with raw point clouds might reduce residual geometric error where raster binning smooths sharp turns.
The directed-centerline output naturally supplies the input needed for downstream lane-following planners, so the topology estimates could be plugged directly into existing autonomy stacks.

Load-bearing premise

Aggregating and HSV-coloring the trajectories into fixed raster tiles keeps enough precise geometric information that the transformer can reconstruct accurate directed centerlines and their dividers without losing critical detail or introducing encoding artifacts.

What would settle it

Systematic misalignment between the model's predicted centerlines and the actual dominant paths visible in the raw trajectory points on a held-out set of curved or merging road segments.

Figures

Figures reproduced from arXiv: 2604.24353 by Daniel Fritz, Dimitrios Lagamtzis, Markus Enzweiler, Michael Mink, Steffen Schober.

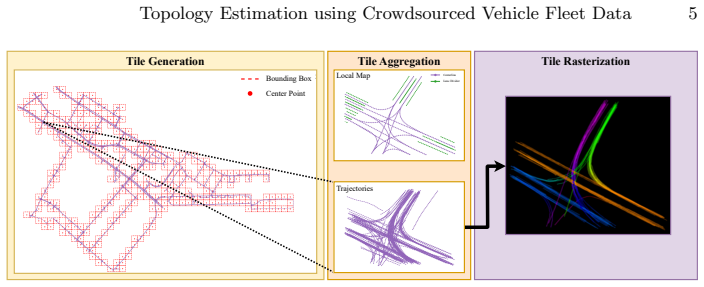

**Figure 1.** Figure 1: Simplified illustration of the pipeline for generating local tiles. Tile selection is performed based on a location-level vectorized map. For each local tile, all possible ground truth paths are extracted, and corresponding vehicle trajectories are aggregated. Finally, each tile is rasterized using the aggregated vehicle trajectories. the requirement for a valid tile is the availability of both crowdsourc… view at source ↗

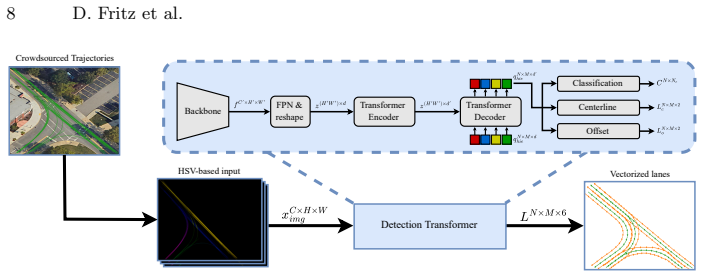

**Figure 2.** Figure 2: Overview of the model for vectorized lane prediction. The input is a rasterized version of the crowdsourced vehicle trajectories. The deformable DETR processes the features from the backbone and outputs lane representations consisting of a centerline and its corresponding left and right lane dividers. dividers can be computed as Ll = Lc + Lo and Lr = Lc − Lo, respectively. The final lane can be denoted as … view at source ↗

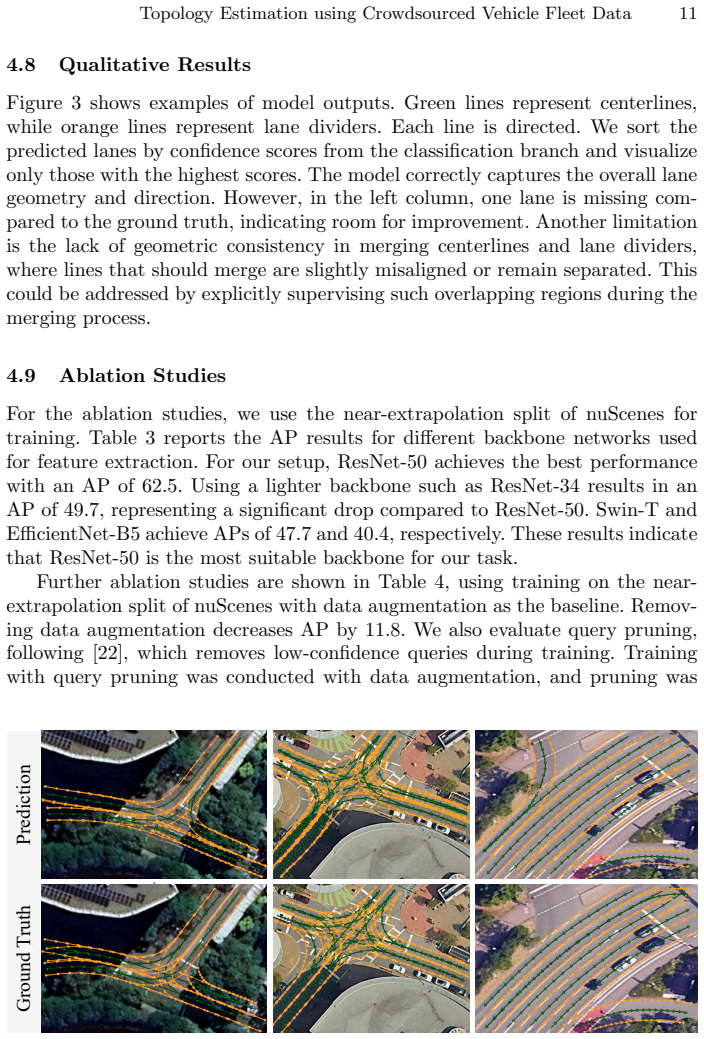

**Figure 3.** Figure 3: shows examples of model outputs. Green lines represent centerlines, while orange lines represent lane dividers. Each line is directed. We sort the predicted lanes by confidence scores from the classification branch and visualize only those with the highest scores. The model correctly captures the overall lane geometry and direction. However, in the left column, one lane is missing compared to the ground t… view at source ↗

read the original abstract

The continuous advancement of autonomous driving (AD) introduces challenges across multiple disciplines to ensure safe and efficient driving. One such challenge is the generation of High-Definition (HD) maps, which must remain up to date and highly accurate for downstream automotive tasks. One promising approach is the use of crowdsourced data from a vehicle fleet, representing road topology and lane-level features. This work focuses on the generation of centerlines and lane dividers from crowdsourced vehicle trajectories. We adopt a Detection Transformer (DETR)-based approach, where a rasterized representation of vehicle trajectories is used as input to predict vectorized lane representations. Each lane consists of a centerline with an associated direction and corresponding lane dividers that are geometrically constrained by the centerline. Our method includes the extraction of local tiles, from which crowdsourced vehicle trajectories are aggregated. Each tile undergoes a transformation into a rasterized representation encoding both the presence and direction of each trajectory, enabling the prediction of vectorized directed lanes. Experiments are conducted on an internal dataset as well as on the public datasets nuScenes and nuPlan.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper outlines a DETR pipeline for lane topology from HSV-rasterized crowdsourced trajectories but supplies no metrics or ablations, leaving the core claim about preserved geometry untested.

read the letter

The main takeaway is a DETR model that ingests raster tiles of aggregated vehicle paths, with HSV encoding for presence and direction, then predicts vectorized centerlines plus geometrically constrained lane dividers. They extract local tiles from fleet data and test the whole thing on nuScenes, nuPlan, and an internal dataset. That combination of rasterized trajectory input with a transformer for directed topology is the concrete new piece, and it directly targets the practical headache of keeping HD maps current without constant manual work. The framing is clear and the geometric constraint idea makes sense on the surface for producing usable lane representations. The soft spots stand out because the abstract and description contain zero quantitative results, no error metrics on centerline accuracy or divider placement, no ablation on tile resolution or the HSV mapping, and no baseline comparisons. Without those, it is impossible to tell whether the rasterization and HSV step actually retain enough continuous geometry for the model to recover accurate directions and enforce the constraints, or whether the outputs only look right after extra post-processing. The stress-test concern about discretization artifacts at intersections or dense areas lands directly here, since the paper gives no tile size, exact HSV function, or constraint mechanism details to check against. This is aimed at researchers and engineers working on crowdsourced HD map construction for autonomous driving. A reader who needs ideas for turning raw fleet trajectories into structured lanes could pull useful elements from the pipeline description. It deserves a serious referee because the problem is real and the method is laid out enough to review, even if the current evidence is thin. I would send it to peer review but expect the authors to add full results, ablations, and implementation specifics before it could be convincing.

Referee Report

2 major / 2 minor

Summary. The paper introduces ARETE, a DETR-based approach for HD map topology estimation from crowdsourced vehicle fleet trajectories. Local tiles are extracted and aggregated trajectories are rasterized with an HSV transformation to encode both presence and direction; the transformer then predicts vectorized lane representations consisting of a directed centerline plus geometrically constrained lane dividers. Experiments are reported on an internal dataset together with nuScenes and nuPlan.

Significance. If the quantitative claims hold, the work would demonstrate a scalable, data-driven route to up-to-date lane-level maps that relies only on fleet trajectories rather than dedicated mapping sensors. The combination of rasterized directional encoding with a DETR decoder for constrained vector output is a timely technical choice. No machine-checked proofs, open code, or parameter-free derivations are described.

major comments (2)

[Abstract] Abstract: the description supplies no quantitative results, ablation studies, error metrics, or validation details, making it impossible to assess whether the DETR recovers the claimed topology from the rasterized input.
[Method] Method section (rasterization and encoding): no tile resolution, HSV mapping function, or constraint mechanism (learned loss versus post-hoc projection) is specified. Rasterization and hue quantization can introduce aliasing or merging at intersections; without an explicit demonstration that the DETR decoder plus any constraint term recovers metric centerline-divider relations, the geometric-constraint claim rests on an unverified information-preservation step.

minor comments (2)

[Abstract] The acronym ARETE is not expanded in the abstract or title footnote.
A diagram showing an example HSV-encoded tile and the corresponding ground-truth centerlines/dividers would clarify the input-output relationship.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and have prepared revisions to the manuscript that incorporate the requested clarifications, details, and supporting evidence.

read point-by-point responses

Referee: [Abstract] Abstract: the description supplies no quantitative results, ablation studies, error metrics, or validation details, making it impossible to assess whether the DETR recovers the claimed topology from the rasterized input.

Authors: We agree that the original abstract omitted numerical results and validation details. In the revised version we will expand the abstract to include key quantitative outcomes (e.g., centerline and divider F1 scores on nuScenes and nuPlan) together with a concise reference to the ablation studies and error metrics reported in the experiments section. revision: yes
Referee: [Method] Method section (rasterization and encoding): no tile resolution, HSV mapping function, or constraint mechanism (learned loss versus post-hoc projection) is specified. Rasterization and hue quantization can introduce aliasing or merging at intersections; without an explicit demonstration that the DETR decoder plus any constraint term recovers metric centerline-divider relations, the geometric-constraint claim rests on an unverified information-preservation step.

Authors: We acknowledge that the submitted manuscript did not provide the concrete implementation parameters. We will revise the method section to state the tile resolution, give the exact HSV mapping (hue encodes normalized direction, saturation encodes presence), and clarify that geometric constraints are enforced by a dedicated loss term rather than post-hoc projection. We will also add a short analysis and visualizations addressing potential aliasing at intersections, showing that the attention mechanism separates trajectories sufficiently for the decoder to recover metric centerline-divider relations; quantitative verification of these relations will be included in the experiments. revision: yes

Circularity Check

0 steps flagged

No circularity: standard learned DETR pipeline on rasterized inputs

full rationale

The paper presents a data-driven pipeline: aggregate crowdsourced trajectories into tiles, apply rasterization with HSV encoding of presence and direction, then feed to a DETR model that outputs vectorized centerlines plus geometrically constrained dividers. No equations define outputs in terms of themselves, no fitted parameters are relabeled as predictions, and no self-citations or uniqueness theorems are invoked to force the architecture. The geometric constraints are part of the model output specification, not a reduction of the result to the input by construction. Evaluation on nuScenes/nuPlan and internal data provides external grounding. This is a conventional supervised prediction setup with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the method description implies standard deep-learning assumptions but none are stated.
