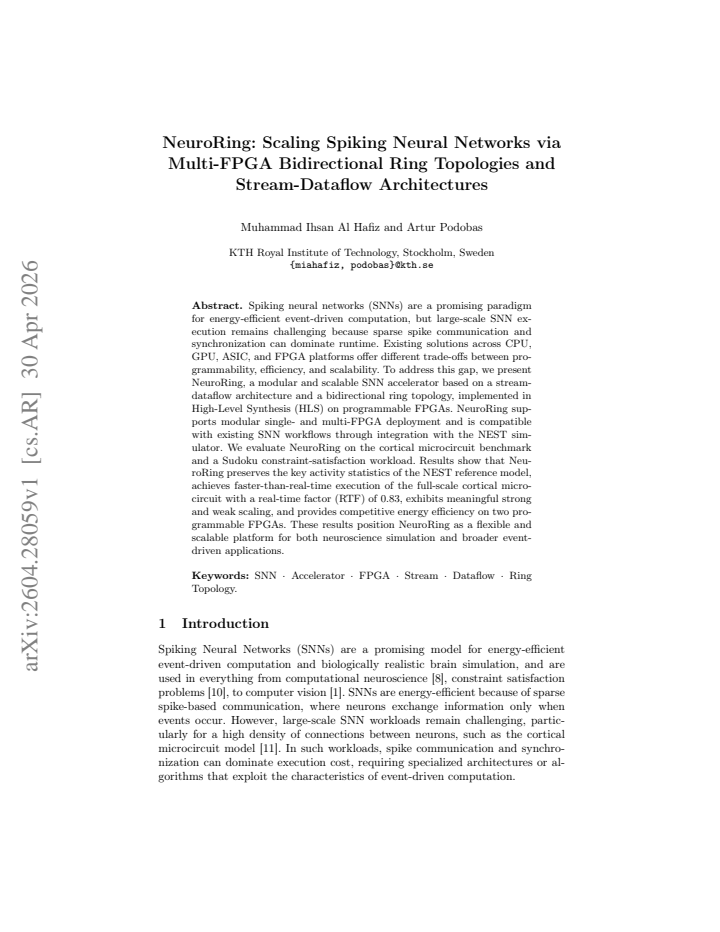

NeuroRing: Scaling Spiking Neural Networks via Multi-FPGA Bidirectional Ring Topologies and Stream-Dataflow Architectures

Artur Podobas, Muhammad Ihsan Al Hafiz

Authors on Pith no claims yet

Pith reviewed 2026-05-07 06:13 UTC · model grok-4.3

classification 💻 cs.AR cs.DCcs.NE

keywords spiking neural networksFPGA accelerationring topologystream dataflowcortical microcircuitreal-time factorenergy efficiencyscalability

0 comments

The pith

A bidirectional ring topology and stream-dataflow architecture on FPGAs enables scalable faster-than-real-time execution of large spiking neural networks while preserving activity statistics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents NeuroRing as a modular accelerator for spiking neural networks that uses a bidirectional ring topology to connect multiple FPGAs and a stream-dataflow architecture to process sparse spike events. This design is implemented through high-level synthesis on programmable FPGAs and supports both single- and multi-device setups while remaining compatible with standard simulation tools. Evaluation on the cortical microcircuit benchmark shows that the system maintains the key activity statistics of the reference model and reaches a real-time factor of 0.83 on two FPGAs, indicating faster-than-real-time performance. It also exhibits meaningful strong and weak scaling along with competitive energy efficiency. These outcomes indicate that reconfigurable hardware can support large-scale event-driven simulations without fixed-function custom chips.

Core claim

NeuroRing implements a stream-dataflow architecture over a bidirectional ring topology on programmable FPGAs to accelerate spiking neural networks. The approach supports modular single- and multi-FPGA deployment and preserves the activity statistics of the reference cortical microcircuit model while achieving a real-time factor of 0.83 on two devices, along with strong and weak scaling and competitive energy efficiency.

What carries the argument

Bidirectional ring topology for inter-device communication combined with stream-dataflow architecture for efficient handling of sparse spike events.

If this is right

The modular design allows adding more FPGAs to handle larger networks while keeping the same performance characteristics.
Integration with existing simulation tools enables direct use in neuroscience workflows without major code changes.
The achieved real-time factor of 0.83 on two devices demonstrates that reconfigurable hardware can outperform real-time biological timescales for full-scale models.
Competitive energy efficiency positions the approach as viable for sustained large-scale event-driven computations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The ring topology's benefits for sparse communication could extend to other event-driven hardware if the dataflow principles prove platform-independent.
Testing with varied sparsity patterns would reveal whether the architecture needs tuning for different application domains beyond neural circuits.
Hybrid systems combining this FPGA setup with conventional processors might handle mixed workloads more flexibly than either alone.

Load-bearing premise

The bidirectional ring topology and stream-dataflow architecture continue to avoid communication bottlenecks and synchronization overhead when scaled beyond two FPGAs or applied to networks with different spike sparsity patterns.

What would settle it

Running the cortical microcircuit on three or more FPGAs or on a network with denser spikes and observing a real-time factor above 1.0 or clear deviations in activity statistics would show the design fails to scale as claimed.

Figures

Figures reproduced from arXiv: 2604.28059 by Artur Podobas, Muhammad Ihsan Al Hafiz.

**Figure 1.** Figure 1: Architecture of our proposed NeuroRing core, showing (left) the overarching core architecture, and (right) details of the NPU and the accumulator structure. the NPU generates a global synchronization token that propagates through the right ring to signal the timestep’s completion across all cores. During this period, the spike recorder writes spike traces back to HBM. The HBM interface uses one AXI4 maste… view at source ↗

**Figure 2.** Figure 2: Bidirectional ring topology and experiment setup. replicated and connected to neighboring cores via their left and right AXI-stream ports. Within a single device, these connections form a closed bidirectional ring. Across devices, the ring is extended through high-speed serial links. Figure 2a shows the system-level organization. Each device contains multiple NeuroRing cores and two Aurora kernels located … view at source ↗

**Figure 3.** Figure 3: Layer-wise raster plots of the cortical microcircuit. 0 10 20 0.0 0.2 0.4 0.6 0.8 p L23E NEST NeuroRing 0 10 20 0.0 0.2 0.4 0.6 0.8 L23I 0.0 0.5 1.0 1.5 0 1 2 3 L23E 0.0 0.5 1.0 1.5 0 1 2 3 L23I 0.00 0.05 0 25 50 75 100 125 L23E 0.00 0.05 0 25 50 75 100 125 L23I 0 10 20 0.0 0.2 0.4 0.6 0.8 p L4E 0 10 20 0.0 0.2 0.4 0.6 0.8 L4I 0.0 0.5 1.0 1.5 0 1 2 3 L4E 0.0 0.5 1.0 1.5 0 1 2 3 L4I 0.00 0.05 0 25 50 75 100… view at source ↗

**Figure 4.** Figure 4: Layer-wise statistical comparison for the full-size cortical microcircuit. 6.3 Architectural Design Space Exploration This experiment explores how neuron capacity per core affects real-time performance, power, and energy efficiency under a full-size cortical microcircuit workload on a fixed two-FPGA deployment view at source ↗

**Figure 5.** Figure 5: Impact of core capacity variation on RTF, Power, and Energy is lower than that of the 4096- and 8192-neuron/core cases. This indicates that the performance trend is influenced not only by the number of cores but also by the achievable clock frequency after implementation. Figure 5b shows that lower core capacity increases total power consumption, from about 70 W for the 8192- and 5632-neuron/core cases to … view at source ↗

**Figure 6.** Figure 6: Strong-scaling comparison for the Half cortical microcircuit between NeuroRing and the Dardel CPU system. Quarter (5 Cores) (1 FPGA) 304.1 MHz Half (10 Cores) (1 FPGA) 203.5 MHz Full (20 Cores) (2 FPGAs) 272.4 MHz 0.4 0.6 0.8 1 Hardware Shift to 2 FPGAs 0.52 0.73 0.83 RTF a) Weak Scaling RTF Quarter (5 Cores) (1 FPGA) 304.1 MHz Half (10 Cores) (1 FPGA) 203.5 MHz Full (20 Cores) (2 FPGAs) 272.4 MHz 0 50 100… view at source ↗

**Figure 7.** Figure 7: Performance weak scaling of the NeuroRing architecture (4096 Neurons/core). FPGA communication, while for Dardel, it is associated with inter-node MPI communication. Figures 6b and 6c show that the reduction in runtime is accompanied by higher power and energy cost on both platforms. For NeuroRing, total power increases from 32.71 W to 79.17 W, and energy per synaptic event rises from 49 nJ to 84 nJ when … view at source ↗

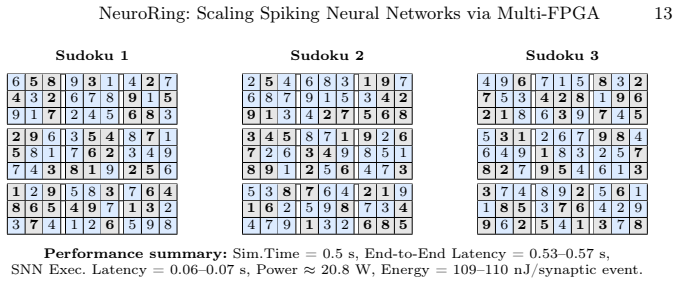

**Figure 8.** Figure 8: Three Sudoku benchmarks. Gray cells: given puzzle. Blue cells: solver solution. 6.6 Beyond Neuroscience: Constraint Satisfaction Problem To demonstrate that NeuroRing is not limited to neuroscience workloads, we apply it to Sudoku, formulated here as an SNN winner-takes-all network as described in Section 5. Three Sudoku benchmark puzzles are executed on a single FPGA using one NeuroRing core with 4096 ne… view at source ↗
