Hierarchical Visual Agent: Managing Contexts in Joint Image-Text Space for Advanced Chart Reasoning
Pith reviewed 2026-05-08 17:03 UTC · model grok-4.3
The pith
A hierarchical agent maintains compact joint image-text contexts to improve multi-step reasoning on complex charts.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that iteratively building and updating a working context in joint image-text space, with a manager maintaining a compact distilled record and workers using a zoom-in tool to restrict visual input, enables stronger performance on advanced chart question answering than flat multimodal large language models.
What carries the argument
The manager-worker hierarchy that keeps separate visual and textual contexts and applies a zoom-in tool to scope visual attention to relevant chart elements.
If this is right
- Hierarchical planning plus scoped visual context together produce larger gains than either alone on multi-plot reasoning tasks.
- Distilling context at each iteration prevents overload while preserving information needed for later steps.
- The three components—architecture, visual scoping, and context distillation—each add measurable independent value according to the reported ablations.
- The method yields consistent accuracy lifts over strong multimodal baselines on the CharXiv reasoning subset.
Where Pith is reading between the lines
- The same context-management pattern could be applied to other sequential visual tasks such as document navigation or diagram-based problem solving.
- Explicit separation of planning and perception might reduce error accumulation in longer reasoning chains beyond charts.
- Testing the framework on charts with increasing numbers of subplots would reveal whether the compactness benefit scales.
Load-bearing premise
The manager can always create correct plans and retain every necessary detail in its compact context without loss, and the zoom-in tool can isolate exactly the visual parts required for each worker step.
What would settle it
An ablation on the CharXiv reasoning subset that removes the hierarchy or the zoom-in tool and measures whether performance drops to baseline levels, or a test on new multi-subplot charts where the agent loses critical details across reasoning steps.
Figures

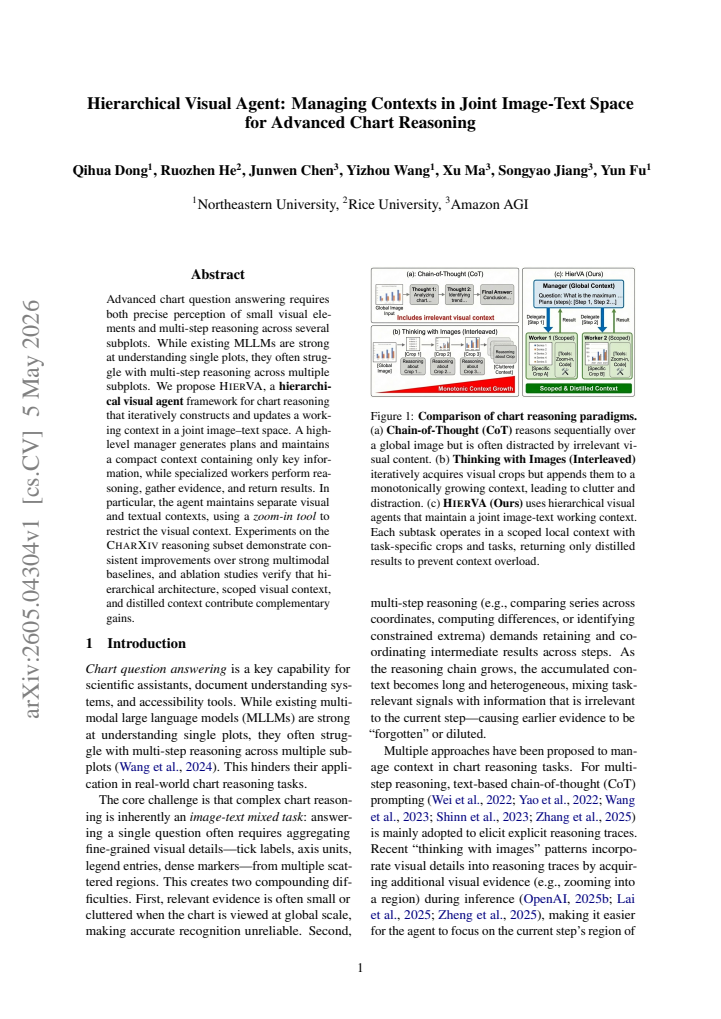

read the original abstract
Advanced chart question answering requires both precise perception of small visual elements and multi-step reasoning across several subplots. While existing MLLMs are strong at understanding single plots, they often struggle with multi-step reasoning across multiple subplots. We propose HierVA, a hierarchical visual agent framework for chart reasoning that iteratively constructs and updates a working context in a joint image--text space. A high-level manager generates plans and maintains a compact context containing only key information, while specialized workers perform reasoning, gather evidence, and return results. In particular, the agent maintains separate visual and textual contexts, using a zoom-in tool to restrict the visual context. Experiments on the CharXiv reasoning subset demonstrate consistent improvements over strong multimodal baselines, and ablation studies verify that hierarchical architecture, scoped visual context, and distilled context contribute complementary gains.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces HierVA, a hierarchical visual agent framework for advanced chart reasoning. A high-level manager generates plans and maintains a compact working context in joint image-text space, while specialized workers execute reasoning, gather evidence, and return results; a zoom-in tool is used to scope the visual context. Experiments on the CharXiv reasoning subset are claimed to demonstrate consistent improvements over strong multimodal baselines, with ablation studies verifying complementary gains from the hierarchical architecture, scoped visual context, and distilled context.
Significance. If the reported results hold with detailed validation, the hierarchical separation of planning from execution and the joint management of scoped visual and distilled textual contexts could offer a practical advance for multimodal models on complex chart tasks that require both fine-grained perception of small elements and multi-step reasoning across subplots. This design directly targets limitations of current MLLMs and, if the ablations confirm non-redundant contributions, would provide a reusable template for context-efficient agentic systems in vision-language reasoning.
major comments (2)
- [Experiments] Experiments section: the central claim of 'consistent improvements over strong multimodal baselines' and 'complementary gains' from the three ablated components rests entirely on experimental outcomes, yet the manuscript text supplies no quantitative metrics, baseline names or scores, dataset statistics, statistical significance tests, or error analysis. Without these, the magnitude, reliability, and reproducibility of the gains cannot be assessed and the claim remains unverifiable.
- [Method] Method section (description of manager and zoom-in tool): the framework presupposes that the high-level manager reliably produces plans that preserve all necessary information in a compact context and that the zoom-in tool isolates relevant visual elements without introducing errors or omissions. No robustness analysis, failure-case discussion, or empirical check of information retention is provided, which is load-bearing for the asserted benefits of the hierarchical design and scoped contexts.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive review. We address each major comment below and describe the revisions we will incorporate.
read point-by-point responses
-
Referee: Experiments section: the central claim of 'consistent improvements over strong multimodal baselines' and 'complementary gains' from the three ablated components rests entirely on experimental outcomes, yet the manuscript text supplies no quantitative metrics, baseline names or scores, dataset statistics, statistical significance tests, or error analysis. Without these, the magnitude, reliability, and reproducibility of the gains cannot be assessed and the claim remains unverifiable.
Authors: We agree that the main-text narrative does not explicitly enumerate the numerical results, baseline identities, dataset statistics, significance tests, or error analysis, even though these appear in the accompanying tables and figures. In the revised manuscript we will expand the Experiments section to state the CharXiv reasoning-subset statistics, list all baseline models and their exact scores, report the observed improvements with numerical deltas, include any statistical significance results, and add a concise error analysis of recurring failure modes. These additions will make the central claims directly verifiable from the text. revision: yes
-
Referee: Method section (description of manager and zoom-in tool): the framework presupposes that the high-level manager reliably produces plans that preserve all necessary information in a compact context and that the zoom-in tool isolates relevant visual elements without introducing errors or omissions. No robustness analysis, failure-case discussion, or empirical check of information retention is provided, which is load-bearing for the asserted benefits of the hierarchical design and scoped contexts.
Authors: We acknowledge the absence of a dedicated robustness analysis, failure-case discussion, or quantitative check of information retention for the manager and zoom-in tool. In the revision we will add a short subsection (or paragraph within the Method/Experiments) that discusses potential failure modes—such as omitted plan elements or incomplete visual scoping—supported by qualitative examples drawn from our development set. We will also report an empirical information-retention check on a held-out sample, using either human annotation or a proxy metric that compares the distilled context against ground-truth key facts. revision: yes
Circularity Check
No significant circularity; claims rest on empirical validation
full rationale
The paper describes an architectural framework (HierVA) for chart reasoning via a hierarchical manager-worker agent that maintains scoped visual and textual contexts, then validates it through experiments on CharXiv and ablation studies showing complementary gains. No derivation chain, equations, fitted parameters, or first-principles results are present that could reduce to self-referential inputs by construction. Claims of improvement are grounded in reported experimental outcomes rather than any self-definition, renamed known results, or load-bearing self-citations. The central premise is externally falsifiable via the ablations and baselines, making the work self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Existing MLLMs struggle with multi-step reasoning across multiple subplots
invented entities (2)
-
HierVA hierarchical visual agent
no independent evidence
-
Zoom-in tool
no independent evidence
Reference graph
Works this paper leans on
-
[7]
Chain-of-Thought Prompting Elicits Reasoning in Large Language Models
Chain-of-Thought Prompting Elicits Reasoning in Large Language Models , author =. arXiv preprint arXiv:2201.11903 , year =
work page internal anchor Pith review arXiv
-
[8]
2025 , month = apr, url =
OpenAI o3 and o4-mini System Card , author =. 2025 , month = apr, url =
2025
-
[9]
DeepEyes: Incentivizing "Thinking with Images" via Reinforcement Learning
DeepEyes: Incentivizing ``Thinking with Images'' via Reinforcement Learning , author =. arXiv preprint arXiv:2505.14362 , year =
work page internal anchor Pith review arXiv
-
[10]
Mini-o3: Scaling Up Reasoning Patterns and Interaction Turns for Visual Search , author =. arXiv preprint arXiv:2509.07969 , year =
-
[11]
International Conference on Learning Representations (ICLR) , year =
ChartQA: A Benchmark for Question Answering about Charts with Visual and Logical Reasoning , author =. International Conference on Learning Representations (ICLR) , year =
-
[12]
2025 , month = aug, day =
OpenAI , title =. 2025 , month = aug, day =
2025
-
[16]
Findings of the Association for Computational Linguistics: ACL 2024 , month = aug, year =
ChartAssistant: A Universal Chart Multimodal Language Model via Chart-to-Table Pre-training and Multitask Instruction Tuning , author =. Findings of the Association for Computational Linguistics: ACL 2024 , month = aug, year =
2024
-
[22]
Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) , month =
Gupta, Tanmay and Kembhavi, Aniruddha , title =. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) , month =. 2023 , pages =
2023
-
[25]
L La V A- N e X T: Improved reasoning, OCR, and world knowledge
Liu, Haotian and Li, Chunyuan and Li, Yuheng and Li, Bo and Zhang, Yuanhan and Shen, Sheng and Lee, Yong Jae. L La V A- N e X T: Improved reasoning, OCR, and world knowledge. 2024
2024
-
[32]
Shuai Bai, Yuxuan Cai, Ruizhe Chen, Keqin Chen, Xionghui Chen, Zesen Cheng, Lianghao Deng, Wei Ding, Chang Gao, Chunjiang Ge, Wenbin Ge, Zhifang Guo, Qidong Huang, Jie Huang, Fei Huang, Binyuan Hui, Shutong Jiang, Zhaohai Li, Mingsheng Li, and 2 others. 2025. Qwen3-vl technical report. arXiv preprint arXiv:2511.21631
work page internal anchor Pith review arXiv 2025
- [33]
-
[34]
Tanmay Gupta and Aniruddha Kembhavi. 2023. https://openaccess.thecvf.com/content/CVPR2023/html/Gupta_Visual_Programming_Compositional_Visual_Reasoning_Without_Training_CVPR_2023_paper.html Visual programming: Compositional visual reasoning without training . In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), pages...
2023
-
[35]
Mengkang Hu, Tianxing Chen, Qiguang Chen, Yao Mu, Wenqi Shao, and Ping Luo. 2024. https://doi.org/10.48550/arXiv.2408.09559 Hiagent: Hierarchical working memory management for solving long-horizon agent tasks with large language model . arXiv preprint arXiv:2408.09559
-
[36]
Amanpreet Kaur, Ahmed Masry, Enamul Hoque, and Shafiq Joty. 2025. https://doi.org/10.48550/arXiv.2501.09007 Chartagent: A multimodal agent for visually grounded reasoning in complex chart question answering . arXiv preprint arXiv:2501.09007
-
[37]
Xin Lai, Junyi Li, Wei Li, Tao Liu, Tianjian Li, and Hengshuang Zhao. 2025. https://doi.org/10.48550/arXiv.2509.07969 Mini-o3: Scaling up reasoning patterns and interaction turns for visual search . arXiv preprint arXiv:2509.07969
-
[38]
Guohao Li, Hasan Abed Al Kader Hammoud, Hani Itani, Dmitrii Khizbullin, and Bernard Ghanem. 2023. https://doi.org/10.48550/arXiv.2303.17760 Camel: Communicative agents for 'mind' exploration of large language model society . arXiv preprint arXiv:2303.17760. Accepted at NeurIPS 2023
work page internal anchor Pith review doi:10.48550/arxiv.2303.17760 2023
-
[39]
Fangyu Liu, Julian Eisenschlos, Francesco Piccinno, Syrine Krichene, Chenxi Pang, Kenton Lee, Mandar Joshi, Wenhu Chen, Nigel Collier, and Yasemin Altun. 2023 a . https://doi.org/10.18653/v1/2023.findings-acl.660 D e P lot: One-shot visual language reasoning by plot-to-table translation . In Findings of the Association for Computational Linguistics: ACL 2...
-
[40]
Fangyu Liu, Francesco Piccinno, Syrine Krichene, Chenxi Pang, Kenton Lee, Mandar Joshi, Yasemin Altun, Nigel Collier, and Julian Eisenschlos. 2023 b . https://doi.org/10.18653/v1/2023.acl-long.714 M at C ha: Enhancing visual language pretraining with math reasoning and chart derendering . In Proceedings of the 61st Annual Meeting of the Association for Co...
-
[41]
Haotian Liu, Chunyuan Li, Yuheng Li, Bo Li, Yuanhan Zhang, Sheng Shen, and Yong Jae Lee. 2024. https://llava-vl.github.io/blog/2024-01-30-llava-next/ L la V a- N e X t: Improved reasoning, ocr, and world knowledge . LLaVA Blog
2024
-
[42]
Ahmed Masry, Parsa Kavehzadeh, Xuan Long Do, Enamul Hoque, and Shafiq Joty. 2023. https://doi.org/10.18653/v1/2023.emnlp-main.906 U ni C hart: A universal vision-language pretrained model for chart comprehension and reasoning . In Proceedings of the 2023 Conference on Empirical Methods in Natural Language Processing, pages 14662--14684, Singapore. Associa...
-
[43]
Ahmed Masry, Do Long, Jia Tan, Shafiq Joty, and Enamul Hoque. 2022. Chartqa: A benchmark for question answering about charts with visual and logical reasoning. In International Conference on Learning Representations (ICLR)
2022
-
[44]
Ahmed Masry, Mehrad Shahmohammadi, Md Rizwan Parvez, Enamul Hoque, and Shafiq Joty. 2024 a . https://doi.org/10.18653/v1/2024.findings-acl.619 C hart I nstruct: Instruction tuning for chart comprehension and reasoning . In Findings of the Association for Computational Linguistics: ACL 2024, pages 10387--10409, Bangkok, Thailand. Association for Computatio...
-
[45]
Ahmed Masry, Megh Thakkar, Aayush Bajaj, Aaryaman Kartha, Enamul Hoque, and Shafiq Joty. 2024 b . https://doi.org/10.48550/arXiv.2407.04172 Chartgemma: Visual instruction-tuning for chart reasoning in the wild . arXiv preprint arXiv:2407.04172
-
[46]
Fanqing Meng, Wenqi Shao, Quanfeng Lu, Peng Gao, Kaipeng Zhang, Yu Qiao, and Ping Luo. 2024. https://doi.org/10.18653/v1/2024.findings-acl.463 Chartassistant: A universal chart multimodal language model via chart-to-table pre-training and multitask instruction tuning . In Findings of the Association for Computational Linguistics: ACL 2024, pages 7775--780...
-
[47]
OpenAI. 2025 a . GPT-5 system card. https://openai.com/index/gpt-5-system-card/. Accessed: 2026-01-05
2025
-
[48]
OpenAI. 2025 b . https://cdn.openai.com/pdf/2221c875-02dc-4789-800b-e7758f3722c1/o3-and-o4-mini-system-card.pdf Openai o3 and o4-mini system card . Technical report, OpenAI
2025
-
[49]
MemGPT: Towards LLMs as Operating Systems
Charles Packer, Sarah Wooders, Kevin Lin, Vivian Fang, Shishir G. Patil, Ion Stoica, and Joseph E. Gonzalez. 2023. https://doi.org/10.48550/arXiv.2310.08560 Memgpt: Towards llms as operating systems . arXiv preprint arXiv:2310.08560
work page internal anchor Pith review doi:10.48550/arxiv.2310.08560 2023
-
[50]
Noah Shinn, Federico Cassano, Edward Berman, Ashwin Gopinath, Karthik Narasimhan, and Shunyu Yao. 2023. Reflexion: Language agents with verbal reinforcement learning. arXiv preprint arXiv:2303.11366
work page internal anchor Pith review arXiv 2023
-
[51]
Didac Suris, Sachit Menon, and Carl Vondrick. 2023. https://doi.org/10.48550/arXiv.2303.08128 Vipergpt: Visual inference via python execution for reasoning . arXiv preprint arXiv:2303.08128
- [52]
-
[53]
Zihan Wang, Ahmed Masry, Enamul Hoque, and Shafiq Joty. 2024. https://doi.org/10.48550/arXiv.2406.18521 Charxiv: Charting gaps in realistic chart understanding in multimodal llms . arXiv preprint arXiv:2406.18521
-
[54]
Chain-of-Thought Prompting Elicits Reasoning in Large Language Models
Jason Wei, Xuezhi Wang, Dale Schuurmans, Maarten Bosma, Brian Ichter, Fei Xia, Ed H. Chi, Quoc V. Le, and Denny Zhou. 2022. https://doi.org/10.48550/arXiv.2201.11903 Chain-of-thought prompting elicits reasoning in large language models . arXiv preprint arXiv:2201.11903
work page internal anchor Pith review doi:10.48550/arxiv.2201.11903 2022
-
[55]
Chenfei Wu, Shengming Yin, Weizhen Qi, Xiaodong Wang, Zecheng Tang, and Nan Duan. 2023 a . https://doi.org/10.48550/arXiv.2303.04671 Visual chatgpt: Talking, drawing and editing with visual foundation models . arXiv preprint arXiv:2303.04671
work page internal anchor Pith review doi:10.48550/arxiv.2303.04671 2023
-
[56]
AutoGen: Enabling Next-Gen LLM Applications via Multi-Agent Conversation
Qingyun Wu, Gagan Bansal, Jieyu Zhang, Yiran Wu, Beibin Li, Erkang Zhu, Li Jiang, Xiaoyun Zhang, Shaokun Zhang, Jiale Liu, Ahmed Hassan Awadallah, Ryen W. White, Doug Burger, and Chi Wang. 2023 b . https://doi.org/10.48550/arXiv.2308.08155 Autogen: Enabling next-gen llm applications via multi-agent conversation . arXiv preprint arXiv:2308.08155
-
[57]
Binfeng Xu, Zhiyuan Peng, Bowen Lei, Subhabrata Mukherjee, Yuchen Liu, and Dongkuan Xu. 2023. https://doi.org/10.48550/arXiv.2305.18323 Rewoo: Decoupling reasoning from observations for efficient augmented language models . arXiv preprint arXiv:2305.18323
-
[58]
Zhengyuan Yang, Linjie Li, Jianfeng Wang, Kevin Lin, Ehsan Azarnasab, Faisal Ahmed, Zicheng Liu, Ce Liu, Michael Zeng, and Lijuan Wang. 2023. https://doi.org/10.48550/arXiv.2303.11381 Mm-react: Prompting chatgpt for multimodal reasoning and action . arXiv preprint arXiv:2303.11381
work page internal anchor Pith review doi:10.48550/arxiv.2303.11381 2023
-
[59]
Tree of Thoughts: Deliberate Problem Solving with Large Language Models
Shunyu Yao, Dian Yu, Jeffrey Zhao, Izhak Shafran, Thomas L. Griffiths, Yuan Cao, and Karthik Narasimhan. 2023. https://doi.org/10.48550/arXiv.2305.10601 Tree of thoughts: Deliberate problem solving with large language models . arXiv preprint arXiv:2305.10601. NeurIPS 2023 camera-ready version
work page internal anchor Pith review doi:10.48550/arxiv.2305.10601 2023
-
[60]
Shunyu Yao, Jeffrey Zhao, Dian Yu, Nan Du, Izhak Shafran, Karthik Narasimhan, and Yuan Cao. 2022. React: Synergizing reasoning and acting in language models. arXiv preprint arXiv:2210.03629
work page internal anchor Pith review arXiv 2022
-
[61]
Alex L. Zhang, Tim Kraska, and Omar Khattab. 2025. Recursive language models. arXiv preprint arXiv:2512.24601
work page Pith review arXiv 2025
-
[62]
Ziwei Zheng, Michael Yang, Jack Hong, Chenxiao Zhao, Guohai Xu, Le Yang, Chao Shen, and Xing Yu. 2025. https://doi.org/10.48550/arXiv.2505.14362 Deepeyes: Incentivizing ``thinking with images'' via reinforcement learning . arXiv preprint arXiv:2505.14362
work page internal anchor Pith review doi:10.48550/arxiv.2505.14362 2025
