arxiv: 2605.08953 · v1 · submitted 2026-05-09 · 🧬 q-bio.BM · physics.bio-ph· physics.comp-ph· q-bio.QM

Recognition: 2 theorem links

· Lean Theorem

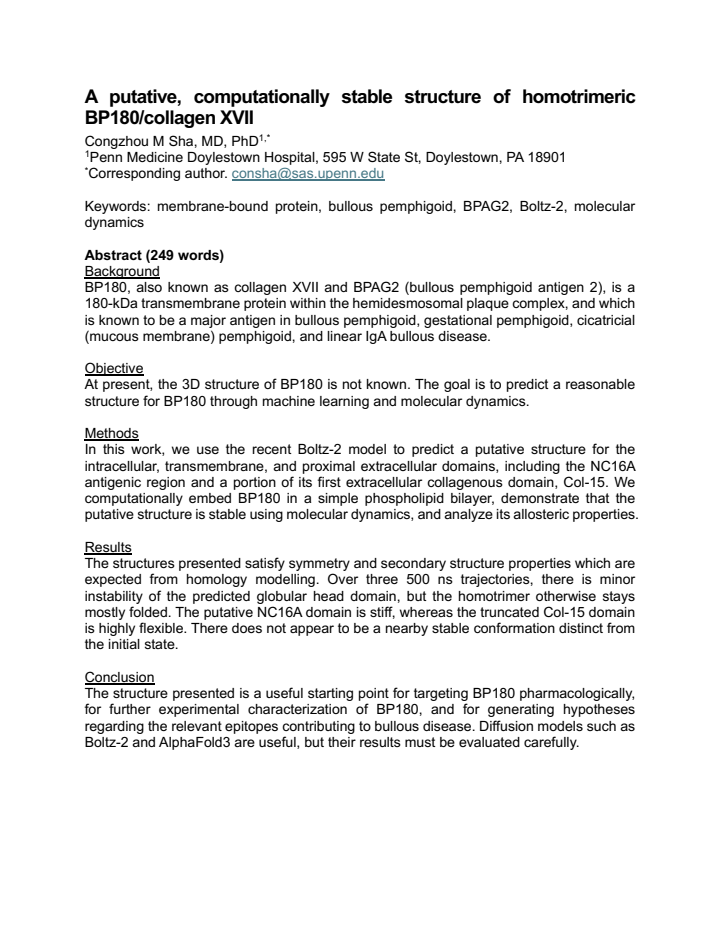

A putative, computationally stable structure of homotrimeric BP180/collagen XVII

Congzhou M Sha

Pith reviewed 2026-05-12 01:55 UTC · model grok-4.3

classification 🧬 q-bio.BM physics.bio-phphysics.comp-phq-bio.QM

keywords BP180collagen XVIIhomotrimerstructure predictionmolecular dynamicsbullous pemphigoidNC16A domain

0 comments

The pith

A machine learning model yields a stable homotrimeric structure for BP180 that holds together in membrane simulations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to supply the missing three-dimensional structure of BP180, a transmembrane protein that anchors skin cells at hemidesmosomes and serves as the main antigen in several autoimmune blistering disorders. It applies the Boltz-2 model to build a homotrimer covering the intracellular, transmembrane, NC16A antigenic, and proximal Col-15 collagenous segments, then embeds the model in a phospholipid bilayer and runs molecular dynamics. Across three 500-nanosecond trajectories the structure preserves the symmetry and secondary-structure features expected from homology, with the overall trimer remaining mostly folded. The NC16A segment stays stiff while the truncated Col-15 segment fluctuates, and no alternate stable state appears nearby. The resulting model supplies a concrete starting point for drug design, epitope mapping, and further experiments on BP180 function.

Core claim

Boltz-2 produces a putative homotrimeric structure of BP180 that satisfies symmetry and secondary-structure expectations. When the model is placed in a phospholipid bilayer and simulated for 500 ns in each of three independent trajectories, the homotrimer remains mostly folded, showing only minor instability in the globular head domain. The NC16A region is stiff, the truncated Col-15 region is highly flexible, and the simulation does not locate any nearby distinct stable conformation.

What carries the argument

Boltz-2 diffusion model for homotrimer prediction, followed by all-atom molecular dynamics in a simple phospholipid bilayer to test conformational stability and domain flexibility.

If this is right

The structure can serve as a starting point for pharmacological targeting of BP180 in bullous pemphigoid and related diseases.
It supports generation of hypotheses about which epitopes contribute to autoimmune bullous responses.
The model aids experimental characterization of BP180 within the hemidesmosomal complex.
Diffusion models require careful dynamics validation before their outputs are treated as reliable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The stiffness of NC16A versus the flexibility of Col-15 may affect how the protein presents antigens or transmits forces if the full-length extracellular region were included.
The same prediction-plus-simulation workflow could be applied to other transmembrane collagens to test whether they share similar domain behaviors.
Longer simulations that include the complete extracellular tail or additional membrane proteins could test whether the minor head-domain fluctuations influence overall stability in a cellular context.

Load-bearing premise

The structure produced by Boltz-2 is close enough to the true native fold of BP180 that the stability observed in the 500 ns simulations is biologically meaningful.

What would settle it

An experimental atomic-resolution structure of BP180 obtained by cryo-electron microscopy or X-ray methods that shows a different trimer arrangement or unfolding of the globular head domain would show the computational model is not useful.

read the original abstract

Background: BP180, also known as collagen XVII and BPAG2 (bullous pemphigoid antigen 2), is a 180-kDa transmembrane protein within the hemidesmosomal plaque complex, and which is known to be a major antigen in bullous pemphigoid, gestational pemphigoid, cicatricial (mucous membrane) pemphigoid, and linear IgA bullous disease. Objective: At present, the 3D structure of BP180 is not known. The goal is to predict a reasonable structure for BP180 through machine learning and molecular dynamics. Methods: In this work, we use the recent Boltz-2 model to predict a putative structure for the intracellular, transmembrane, and proximal extracellular domains, including the NC16A antigenic region and a portion of its first extracellular collagenous domain, Col-15. We computationally embed BP180 in a simple phospholipid bilayer, demonstrate that the putative structure is stable using molecular dynamics, and analyze its allosteric properties. Results: The structures presented satisfy symmetry and secondary structure properties which are expected from homology modelling. Over three 500 ns trajectories, there is minor instability of the predicted globular head domain, but the homotrimer otherwise stays mostly folded. The putative NC16A domain is stiff, whereas the truncated Col-15 domain is highly flexible. There does not appear to be a nearby stable conformation distinct from the initial state. Conclusion: The structure presented is a useful starting point for targeting BP180 pharmacologically, for further experimental characterization of BP180, and for generating hypotheses regarding the relevant epitopes contributing to bullous disease. Diffusion models such as Boltz-2 and AlphaFold3 are useful, but their results must be evaluated carefully.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper delivers a new computational homotrimer model for BP180 that includes the NC16A antigenic region, but the stability rests on an unverified Boltz-2 starting point and short 500 ns runs.

read the letter

The key thing to know is that the work produces a specific putative structure for the BP180 homotrimer covering the intracellular, transmembrane, and proximal extracellular parts with the NC16A domain and truncated Col-15. They feed the sequence into Boltz-2, embed the output in a simple bilayer, and run three 500 ns MD trajectories to check behavior. The model keeps expected symmetry and secondary structure, the trimer stays mostly folded with only minor head-domain movement, NC16A looks stiff, and Col-15 looks flexible. No other stable state appears nearby. That is new for this protein segment, which lacked a prior homotrimeric model in the cited literature. It does a clean job of turning the AI output into a usable starting point for epitope or allosteric ideas in bullous disease research. The conclusion is appropriately cautious about needing careful evaluation. The soft spots sit where the evidence is thinnest. The abstract gives no force-field name, lipid composition, equilibration steps, or quantitative numbers such as per-residue RMSF or secondary-structure persistence, so it is difficult to judge whether the minor head instability is normal fluctuation or a sign of trouble. Five hundred nanoseconds is short for a transmembrane collagenous trimer, and the whole stability argument depends on Boltz-2 having produced coordinates close enough to native that the MD behavior is informative rather than an artifact. No homology cross-checks or experimental restraints are described. This is for structural biologists and dermatological immunologists who need a concrete model to generate hypotheses about BP180 function or targeting. A reader already running similar AI-plus-MD pipelines on membrane proteins will recognize the standard workflow and may pick up the domain-flexibility observations. It deserves a serious referee because the target protein matters and the model is concrete enough to be tested or improved. I would send it out with the expectation that reviewers ask for method details, longer runs or controls, and clearer metrics before the stability claim can be taken as firm.

Referee Report

3 major / 1 minor

Summary. The manuscript uses the Boltz-2 diffusion model to generate a putative homotrimeric structure of BP180/collagen XVII spanning the intracellular, transmembrane, and proximal extracellular regions (including the NC16A antigenic domain and a truncated Col-15 collagenous segment). The model is embedded in a minimal phospholipid bilayer and subjected to three independent 500 ns molecular dynamics trajectories. The authors report that the structure satisfies expected symmetry and secondary-structure features, remains mostly folded with only minor instability in the globular head domain, that NC16A is stiff while Col-15 is flexible, and that no distinct nearby stable conformation is observed. They position the result as a starting point for pharmacological targeting and experimental characterization of BP180 in bullous pemphigoid.

Significance. If the Boltz-2 coordinates are sufficiently close to the native state and the 500 ns timescale is adequate, the work supplies a computationally generated 3D model for a medically relevant transmembrane collagen that currently lacks an experimental structure. This could facilitate epitope mapping and hypothesis generation for autoimmune skin diseases. The explicit use of a recent AI structure-prediction tool followed by MD is a timely methodological choice, and the cautionary tone in the conclusion is appropriate.

major comments (3)

[Results] Results (stability analysis): The central claim that the homotrimer 'stays mostly folded' with only 'minor instability' of the head domain rests on three 500 ns trajectories, yet no quantitative metrics (RMSD time series, per-residue RMSF, secondary-structure persistence, or membrane tilt angles) are supplied. Without these data it is impossible to judge whether the reported head-domain fluctuations exceed normal thermal motion or indicate incipient unfolding, directly undermining the computational-stability conclusion.
[Methods] Methods (MD protocol): Essential technical details required to evaluate the MD results—force field, lipid composition and bilayer setup, equilibration protocol, thermostat/barostat parameters, and any control simulations—are absent. These omissions are load-bearing because the observed minor head-domain instability could be an artifact of an unstated simulation condition rather than a property of the BP180 model.
[Results] Results (validation of starting model): The biological relevance of the entire MD analysis depends on the Boltz-2 homotrimer coordinates being close enough to the unknown native structure that the observed dynamics are informative. No orthogonal checks (comparison to known collagen-trimer geometries, cross-linking constraints, or homology modeling against experimental collagen structures) are reported, leaving the stability conclusion resting on an untested premise.

minor comments (1)

[Abstract] The abstract states that 'the structures presented satisfy symmetry and secondary structure properties which are expected from homology modelling' but does not specify which symmetry elements or secondary-structure elements were checked or how they were quantified.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thoughtful and constructive review, which highlights important areas for improvement in clarity and rigor. We have carefully considered each major comment and will revise the manuscript to address them where possible, strengthening the presentation of our computational results on the putative BP180 homotrimer.

read point-by-point responses

Referee: [Results] Results (stability analysis): The central claim that the homotrimer 'stays mostly folded' with only 'minor instability' of the head domain rests on three 500 ns trajectories, yet no quantitative metrics (RMSD time series, per-residue RMSF, secondary-structure persistence, or membrane tilt angles) are supplied. Without these data it is impossible to judge whether the reported head-domain fluctuations exceed normal thermal motion or indicate incipient unfolding, directly undermining the computational-stability conclusion.

Authors: We agree that quantitative metrics are necessary to substantiate the stability claims. In the revised manuscript, we will include RMSD time series for the full trimer and individual domains (head, NC16A, Col-15), per-residue RMSF plots, DSSP-based secondary structure persistence over the trajectories, and membrane tilt angle monitoring. These additions will show that head-domain fluctuations remain within expected thermal amplitudes for a globular region, while NC16A stiffness and Col-15 flexibility are preserved, supporting the conclusion that the structure stays mostly folded without incipient unfolding. revision: yes
Referee: [Methods] Methods (MD protocol): Essential technical details required to evaluate the MD results—force field, lipid composition and bilayer setup, equilibration protocol, thermostat/barostat parameters, and any control simulations—are absent. These omissions are load-bearing because the observed minor head-domain instability could be an artifact of an unstated simulation condition rather than a property of the BP180 model.

Authors: We apologize for these omissions in the original submission. The revised Methods section will provide complete details: CHARMM36m force field for the protein and CHARMM36 for lipids, a pure POPC bilayer setup with the trimer embedded via the CHARMM-GUI protocol, a standard equilibration workflow (energy minimization, NVT heating to 310 K, NPT equilibration with restraints), Nose-Hoover thermostat, Parrinello-Rahman barostat, and confirmation that the three 500 ns production runs were the only simulations performed. These additions will enable full reproducibility and evaluation of whether the observed dynamics reflect the model rather than simulation artifacts. revision: yes
Referee: [Results] Results (validation of starting model): The biological relevance of the entire MD analysis depends on the Boltz-2 homotrimer coordinates being close enough to the unknown native structure that the observed dynamics are informative. No orthogonal checks (comparison to known collagen-trimer geometries, cross-linking constraints, or homology modeling against experimental collagen structures) are reported, leaving the stability conclusion resting on an untested premise.

Authors: We recognize that the lack of experimental structure makes full validation challenging. The Boltz-2 model was chosen because it satisfied expected homotrimeric symmetry and collagen triple-helix features in Col-15. In the revision, we will add explicit comparisons of the predicted Col-15 segment to experimental collagen trimer geometries from the PDB (e.g., short triple-helical peptides), including backbone RMSD to ideal models and hydrogen-bonding analysis. We will also expand the discussion to stress the putative nature of the model and the need for experimental follow-up. However, without a known native structure or cross-linking data for BP180, exhaustive orthogonal validation remains limited. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper generates a putative BP180 structure via the external Boltz-2 model, embeds it in a bilayer, and runs independent 500 ns MD trajectories to assess stability and flexibility. No load-bearing step reduces by construction to its own inputs: there are no self-definitional equations, fitted parameters renamed as predictions, self-citation chains justifying uniqueness, or ansatzes smuggled via prior author work. The derivation treats the AI output as an independent starting point and evaluates it with standard simulation protocols, remaining self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim depends on the reliability of the Boltz-2 structure prediction and the interpretation of short MD runs as evidence of stability; no new physical entities are introduced.

axioms (2)

domain assumption Boltz-2 produces a sufficiently accurate initial conformation for BP180
Invoked to generate the starting structure before any MD is performed.
domain assumption Standard MD force fields and 500 ns timescales are adequate to assess structural stability of this membrane protein
Used to interpret the trajectories as support for the putative structure.

pith-pipeline@v0.9.0 · 5634 in / 1394 out tokens · 65000 ms · 2026-05-12T01:55:17.863171+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear
We use the recent Boltz-2 model to predict a putative structure... embed BP180 in a simple phospholipid bilayer, demonstrate that the putative structure is stable using molecular dynamics, and analyze its allosteric properties.
IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
The putative NC16A domain is stiff, whereas the truncated Col-15 domain is highly flexible.

Reference graph

Works this paper leans on

3 extracted references · 3 canonical work pages

[1]

Abramson, J

J. Abramson, J. Adler, J. Dunger, R. Evans, T. Green, A. Pritzel, O. Ronneberger, L. Willmore, A.J. Ballard, J. Bambrick, S.W. Bodenstein, D.A. Evans, C.C. Hung, M. O’Neill, D. Reiman, K. Tunyasuvunakool, Z. Wu, A. Žemgulytė, E. Arvaniti, C. Beattie, O. Bertolli, A. Bridgland, A. Cherepanov, M. Congreve, A.I. Cowen-Rivers, A. Cowie, M. Figurnov, F.B. Fuch...

work page doi:10.1038/s41586-024-07487-w 2024
[2]

Abraham, T

M.J. Abraham, T. Murtola, R. Schulz, S. Páll, J.C. Smith, B. Hess, E. Lindah, GROMACS: High performance molecular simulations through multi-level parallelism from laptops to supercomputers, SoftwareX 1–2 (2015) 19–25. https://doi.org/10.1016/J.SOFTX.2015.06.001. [30] J. Lee, X. Cheng, J.M. Swails, M.S. Yeom, P.K. Eastman, J.A. Lemkul, S. Wei, J. Buckner, ...

work page doi:10.1016/j.softx.2015.06.001 2015
[3]

Lipman, R.T.Q

Y. Lipman, R.T.Q. Chen, H. Ben-Hamu, M. Nickel, M. Le, Flow matching for generative modeling, in: 11th International Conference on Learning Representations, ICLR 2023, 2023. [53] A. Burden, R. L. Burden, J. Douglas Faires, Numerical Analysis, 10th ed., 2015. [54] P.E. Kloeden, R.A. Pearson, The numerical solution of stochastic differential equations, The ...

work page doi:10.1017/s0334270000001405 2023
