arxiv: 2605.08959 · v1 · submitted 2026-05-09 · 🧮 math.NA · cs.NA· math.FA· math.PR

Recognition: no theorem link

A Primer on the Karhunen-Lo\`eve Expansion

Alen Alexanderian

Pith reviewed 2026-05-12 02:27 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.FAmath.PR

keywords Karhunen-Loève expansionrandom fieldscovariance operatorspectral theoremuncertainty quantificationmean-square convergenceoptimal approximation

0 comments

The pith

The Karhunen-Loève expansion represents a random field as a series of eigenfunctions of its covariance operator.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This primer explains how to represent random fields using the Karhunen-Loève expansion, which decomposes them into deterministic spatial functions multiplied by random coefficients. The expansion is derived from the spectral theorem applied to the covariance operator, ensuring mean-square convergence under standard conditions. It is optimal because the partial sums minimize the approximation error among all possible bases for a fixed number of terms. The paper connects these theoretical properties to practical considerations in modeling uncertainty in computational simulations.

Core claim

The Karhunen-Loève expansion of a random field X(t) is given by X(t) = sum sqrt(lambda_k) phi_k(t) xi_k, where lambda_k and phi_k are eigenvalues and eigenfunctions of the covariance operator, and xi_k are uncorrelated random variables with zero mean and unit variance. This follows from the fact that the covariance operator is compact and self-adjoint, so the spectral theorem provides an orthonormal basis of eigenfunctions. The expansion converges in the mean-square sense to the original field.

What carries the argument

The covariance operator associated with the random field, whose eigen-decomposition furnishes the basis functions and coefficients for the expansion.

If this is right

The truncation of the series after a few terms provides the minimal possible mean-square error for that number of terms.
Rapid decay of the eigenvalues allows low-dimensional approximations for many random fields encountered in applications.
The random coefficients can be sampled independently if the field is Gaussian, simplifying Monte Carlo simulations.
Computational implementation requires solving the integral eigenvalue problem for the covariance kernel.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Discretizing the covariance operator via finite elements or other methods turns the KLE into a practical tool for high-dimensional uncertainty quantification.
Extensions to non-Gaussian fields or fields on complex domains would require similar spectral analysis but with adjusted convergence guarantees.
Comparing the KLE to other expansions like Fourier or wavelet bases can highlight its superiority in error minimization for a given truncation level.

Load-bearing premise

The covariance operator must be compact and self-adjoint on the underlying Hilbert space so that the spectral theorem applies and furnishes the eigenfunction expansion.

What would settle it

Construct a random field whose covariance operator is not compact, such as one with a covariance that does not decay sufficiently at infinity, and show that the corresponding series fails to converge in mean square to the field.

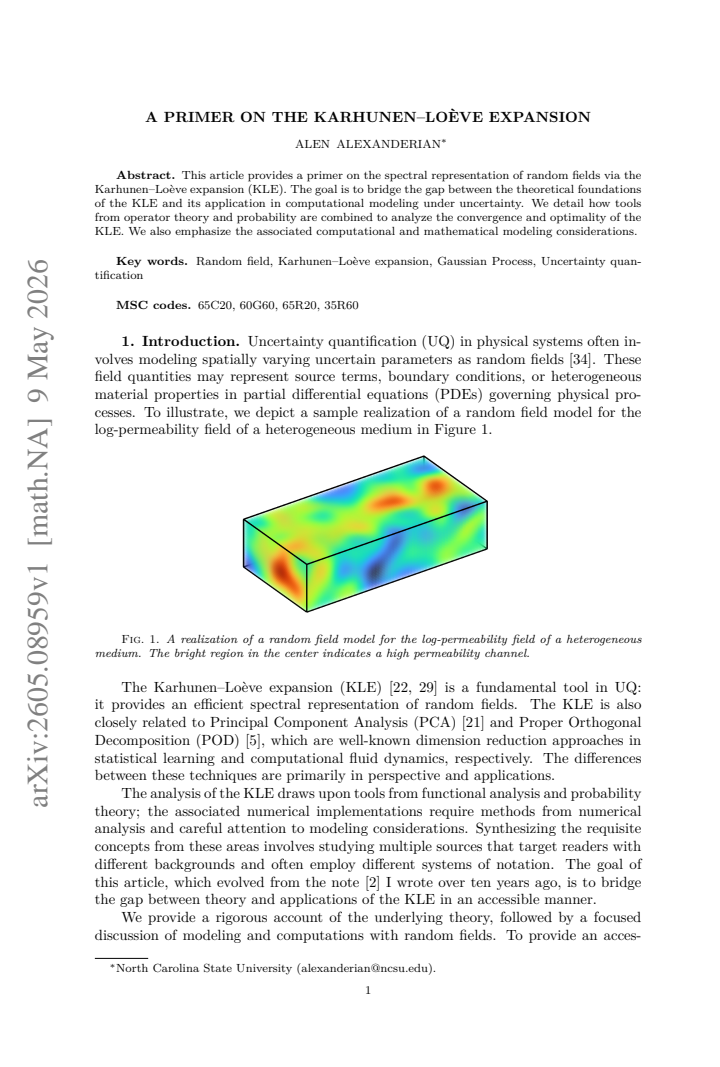

read the original abstract

This article provides a primer on the spectral representation of random fields via the Karhunen-Lo\`eve Expansion (KLE). The goal is to bridge the gap between the theoretical foundations of the KLE and its application in computational modeling under uncertainty. We detail how tools from operator theory and probability are combined to analyze the convergence and optimality of the KLE. We also emphasize the associated computational and mathematical modeling considerations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

A straightforward, well-organized primer on the standard Karhunen-Loève expansion that explains the operator-theory and probability ingredients clearly but adds no new theorems or relaxed assumptions.

read the letter

This manuscript is an expository primer on the Karhunen-Loève expansion for random fields. It walks through how the spectral theorem for compact self-adjoint covariance operators on Hilbert space, together with basic probability, yields the eigenfunction representation, L2 optimality of the truncation, and convergence rates. The text also flags practical modeling and computational points that come up when people actually use the expansion in uncertainty quantification codes. That combination is useful for someone who has seen the KLE in a paper but wants the underlying operator facts laid out in one place without chasing references. The derivations are the classical ones; nothing is relaxed or extended, and the compactness assumption is stated up front as usual. No internal contradictions appear in the setup, and the optimality argument follows directly from the spectral theorem once the covariance operator is in place. The paper stays within textbook territory, so the soundness is high for what it claims to be. Soft spots are minor and expected for a primer: the computational section is necessarily high-level rather than a full implementation guide, and readers already comfortable with functional analysis will not find new angles. It is aimed at practitioners in uncertainty quantification who need a reliable reference rather than researchers looking for open problems. The work shows clear, honest engagement with the established literature. I would bring it to a reading group for students or postdocs entering the area, but I would not cite it in my own research papers. It is the sort of piece that belongs in a journal with an expository track and deserves a serious referee.

Referee Report

0 major / 3 minor

Summary. This manuscript is an expository primer on the Karhunen-Loève Expansion (KLE) for the spectral representation of random fields. It combines tools from operator theory (the spectral theorem applied to compact self-adjoint covariance operators on Hilbert space) and probability to derive the KLE, establish its convergence, and prove L2-optimality of finite truncations, while discussing associated computational and mathematical modeling considerations for uncertainty quantification.

Significance. The KLE is a classical tool whose theoretical foundations are textbook material. A clear, self-contained primer that explicitly links the spectral theorem, convergence rates, and practical implementation could be useful for researchers entering uncertainty quantification and stochastic PDEs. The paper correctly identifies the key assumption (compactness and self-adjointness of the covariance operator) that enables the spectral decomposition, but it does not introduce new theorems, relax classical hypotheses, or derive non-standard error bounds.

minor comments (3)

[Introduction] Introduction: The original references to Karhunen (1947) and Loève (1948) are not cited; adding them would anchor the historical context of the KLE.
[§3] §3: The transition from the covariance operator to the integral kernel (Mercer theorem) uses notation for the inner product that is introduced only later; defining ⟨·,·⟩_H at first appearance would improve readability.
[Computational considerations] Computational considerations section: The discussion of truncation error would benefit from a brief remark on how eigenvalue decay rates depend on the regularity of the covariance kernel, with a pointer to standard results (e.g., for Matérn kernels).

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their careful review and positive evaluation of the manuscript as a self-contained expository primer that links the spectral theorem for compact self-adjoint operators with probabilistic convergence and optimality results for the Karhunen-Loève Expansion. We appreciate the recommendation for minor revision.

Circularity Check

0 steps flagged

No significant circularity; expository primer on textbook theory

full rationale

The manuscript is explicitly a primer whose purpose is to combine standard, externally established results: the spectral theorem for compact self-adjoint covariance operators on Hilbert space, Mercer's theorem, and classical L2-optimality of the Karhunen-Loève truncation. No new theorems are proved, no parameters are fitted to data, no self-citations are used to justify uniqueness or ansatzes, and no predictions are derived from the paper's own inputs. All load-bearing steps trace to independent, pre-existing mathematical facts rather than to any internal definition or fit. This is the expected outcome for an expository survey.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The primer rests on standard results from functional analysis and probability; no new free parameters or invented entities are introduced.

axioms (1)

standard math The covariance operator is a compact, self-adjoint, positive semi-definite operator on a Hilbert space.
This is the standard assumption that guarantees the existence of the eigenfunction expansion via the spectral theorem.
