Complex methods in the asymptotics of M\"obius energy integrals of helix curves

Max Lipton

Authors on Pith no claims yet

Pith reviewed 2026-05-14 19:21 UTC · model grok-4.3

classification 🧮 math.DG math.CAmath.CV

keywords Möbius energyhelix curvesasymptotic analysismeromorphic extensioncontour integrationknot energiesphysical knot theory

0 comments

The pith

The arclength-rescaled Möbius energy density of a helix admits a precise asymptotic expansion as it coils infinitely tight, derived from meromorphic extension of the integrand despite infinitely many poles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies the Möbius energy of helix curves in two limits: as the helix unravels toward a straight line and as it coils tighter and tighter. The uncoiling case yields an energy decay that follows from a direct estimate. The coiling case produces an energy blow-up whose leading term requires a more technical argument: the relevant integrand is extended to a meromorphic function in the complex plane, after which contour integration extracts the dominant contribution even though poles accumulate infinitely often. A reader would care because helices form a geometrically natural one-parameter family that lets one test how the energy responds to controlled changes in curvature and torsion, which appear in models of physical knots and filaments.

Core claim

The arclength-rescaled Möbius energy density for the helix admits a precise asymptotic description as the pitch tends to zero. This description is obtained by constructing a meromorphic extension of the integrand arising from the chord-arc formulation of the energy and then applying contour integration that accounts for the infinite sequence of poles to isolate the leading term.

What carries the argument

Meromorphic extension of the integrand from the Möbius energy integral on the helix parametrization, which permits residue calculus or contour shifting to isolate the dominant contribution in the tight-coiling limit.

If this is right

The rescaled energy density blows up at a specific rate determined by the residue at the dominant pole as the helix pitch tends to zero.
The uncoiling limit produces a decay in the rescaled energy that is captured by a short real-variable estimate.
The infinite collection of poles does not obstruct the extraction of the leading asymptotic term once the meromorphic extension is established.
These asymptotics align with the expected divergence behavior implied by the inverse-square chord-arc comparison built into the Möbius energy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same meromorphic-extension technique may apply to other curves whose parametrizations are periodic or admit a complex-analytic continuation of the energy integrand.
Numerical checks could compare the predicted leading coefficient against discretized integrals on helices with very small pitch to test the rate of approach.
The result supplies an analytic benchmark that could be used to validate approximation schemes for knot energies on curves close to helical shapes.

Load-bearing premise

The specific integrand coming from the Möbius energy on the helix admits a meromorphic extension in the complex plane whose pole structure permits rigorous extraction of the leading asymptotic term via contour integration.

What would settle it

A direct numerical evaluation of the rescaled Möbius energy integral for helices with successively smaller pitch that fails to match the leading term predicted by the contour integral would falsify the claimed asymptotics.

Figures

Figures reproduced from arXiv: 2605.12815 by Max Lipton.

**Figure 1.** Figure 1: Plots of Mρ(t), for various 0 < ρ ≤ 1. Hence I(ρ) ≤ 1 2ρ 2 Z ∞ −∞ 1 − sinc2 t t 2 dt = π 3ρ 2 . The prior definite integral is well known, appearing in [MR65] and [GR07]. Next, as ρ 2 + sinc2 t ≤ ρ 2 + 1, we have I(ρ) ≥ 1 2(ρ 2 + 1) Z ∞ −∞ 1 − sinc2 t t 2 dt = π 3(ρ 2 + 1). Again, we have used the same definite integral from [GR07]. □ As we expect, I(ρ) is monotonic. In fact, I is differentiable and strict… view at source ↗

**Figure 2.** Figure 2: The oriented contour ΓR and its four subcontours. Here, ΓR,3 is the segment of the circle of radius R √ 2 centered at 0 joining the points R + iR and −R + iR. 3.2. Expansion of I(ρ) into a series of residues. In order to calculate the asymptotics of I, we rewrite I as a discrete infinite series. We have that I(ρ) = 2πi X Imz>0 (7) Res (Mρ, z). This equality must be justified, even though it matches our int… view at source ↗

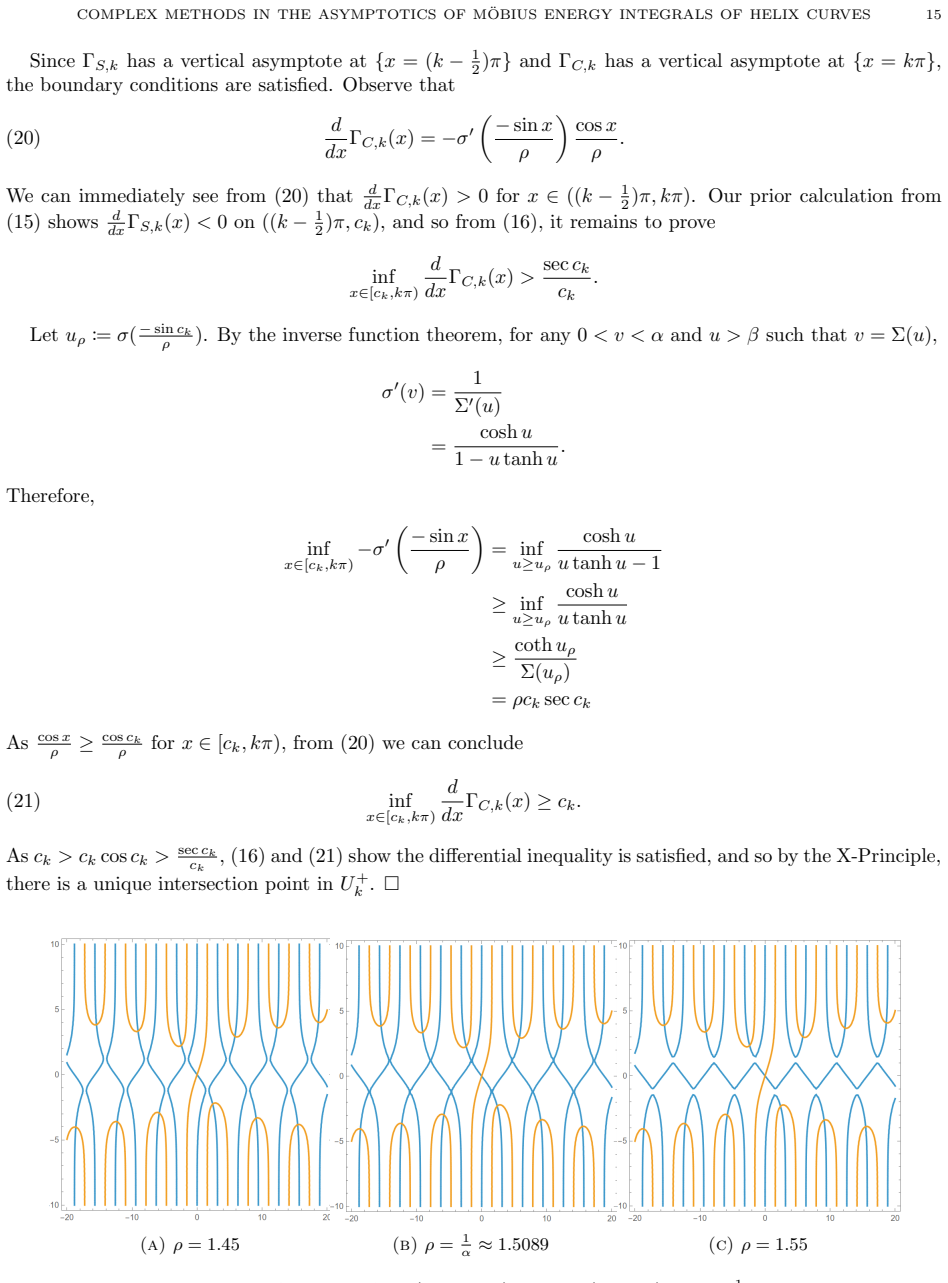

**Figure 3.** Figure 3: The bifurcation of ΓS (in orange) and ΓC (in blue) at ρ = 1 α ≈ 1.5089 [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗

read the original abstract

The M\"obius energy of a curve is a topic of interest to physical knot theorists, harmonic analysts, and geometric analysts. The Gateaux derivative indicates its variation is dependent on curvature and torsion, leading us to consider the family of helix curves, where the ratio of torsion to curvature is a constant proportional to the pitch. We fix a helix, and study the coiling in both directions: as the helix unravels to a straight line, and as it coils infinitely tight. Specifically, we study the arclength-rescaled M\"obius energy density, which emerges as a naturally tractable quantity under the M\"obius energy's chord-arc comparison of inverse-square laws. The asymptotics of the uncoiling helix, corresponding to an energy decay, can be proven with a short estimate. However, the asymptotics of the helix as it coils infinitely tight, blowing up the energy, is a much more involved calculation. Our strategy for proving the asymptotics, initially reminiscent of the work by Kim-Kusner, begins with a meromorphic extension of the integrand. However, proving the asymptotic equivalence is fundamentally distinct because our integrand has infinitely many poles. Much of the underlying mathematical phenomena becomes apparent only upon rigorous proof. keywords: M\"obius energy, helix, complex asymptotics, knot energies, physical knot theory, curves

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a concrete asymptotic for the Möbius energy of tightly coiling helices using an infinite-pole meromorphic extension, though the required decay on expanding contours may need more justification.

read the letter

The main takeaway is that Lipton derives the asymptotic rate for the rescaled Möbius energy density of a helix as the pitch parameter goes to zero, by extending the integrand to a meromorphic function and summing residues over infinitely many poles. The uncoiling limit is simpler and done with a basic estimate. What stands out is the technical handling of the infinite collection of poles, which sets it apart from finite-pole contour integrals in prior work. For this parametric family it provides concrete asymptotics that could be checked numerically if the proof is tight. The abstract indicates that the proof reveals more about the mathematical phenomena than the outline suggests. The potential issue is whether the integrand decays sufficiently on large contours to justify passing the limit inside the residue theorem. The helix is quasi-periodic, so its complex extension might grow too fast along certain directions, requiring careful choice of contours or additional estimates that aren't obvious from the setup. If those bounds are missing or loose, the leading term extraction could have gaps. The stress test note flags exactly this point about decay estimates not being guaranteed by the parametrization. This paper is for specialists in geometric knot energies who care about explicit calculations on symmetric curves. It is not a broad reorganization but adds a precise result to the literature on physical knot theory. I would recommend sending it to peer review, asking the referee to focus on the contour control step and verify the error terms.

Referee Report

1 major / 2 minor

Summary. The paper claims to establish the asymptotics of the arclength-rescaled Möbius energy density for helix curves, with a short estimate for the uncoiling regime (energy decay) and a complex-analytic proof for the coiling regime (energy blow-up) as the pitch tends to zero. The latter proceeds by meromorphic extension of the chord-arc integrand to the complex plane followed by residue extraction via contour integration, explicitly distinguishing the infinite-pole case from prior finite-pole calculations such as Kim-Kusner.

Significance. If the contour-control step can be completed, the work supplies a rigorous complex-analytic treatment of Möbius-energy asymptotics on helices that handles an infinite accumulation of poles; this is a concrete advance for physical knot theory and geometric analysis of knot energies, where explicit asymptotic formulae for model curves are scarce.

major comments (1)

[§4] §4 (contour integration argument): the claim that the integral over expanding contours enclosing infinitely many poles vanishes or is o(1) in the limit requires explicit decay estimates on the integrand as |z|→∞; the helix parametrization yields a quasi-periodic integrand whose growth is not a priori of order less than 1, so the standard residue-at-infinity argument does not close without additional bounds or cut-offs.

minor comments (2)

[Abstract] Abstract: the phrase 'much of the underlying mathematical phenomena becomes apparent only upon rigorous proof' is vague; replace with a concrete statement of the new technical obstacle (infinite poles) that is overcome.
[§2] Notation: the definition of the arclength-rescaled density should be displayed as an equation with a numbered label rather than inline, to facilitate later reference in the contour argument.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and for identifying the gap in the contour-integration justification in §4. We agree that explicit decay estimates are required and will revise the manuscript to supply them.

read point-by-point responses

Referee: [§4] §4 (contour integration argument): the claim that the integral over expanding contours enclosing infinitely many poles vanishes or is o(1) in the limit requires explicit decay estimates on the integrand as |z|→∞; the helix parametrization yields a quasi-periodic integrand whose growth is not a priori of order less than 1, so the standard residue-at-infinity argument does not close without additional bounds or cut-offs.

Authors: We agree that the present argument in §4 is incomplete without explicit decay estimates on the quasi-periodic integrand as |z|→∞. In the revised version we will insert a new lemma (Lemma 4.3) that establishes the required bound: for the specific meromorphic extension arising from the helix, |f(z)| = O(1/|z|^{1+δ}) uniformly in sectors away from the real axis, with δ>0 coming from the exponential decay induced by the torsion term in the imaginary direction. The proof of the lemma uses the explicit form of the chord-arc integrand together with the quasi-periodicity to control the growth; once this estimate is in place the standard residue-at-infinity contour argument closes and yields the claimed o(1) vanishing. This addition will also clarify the distinction from the finite-pole setting of Kim–Kusner. revision: yes

Circularity Check

0 steps flagged

No circularity: standard meromorphic extension and contour integration applied to helix integrand

full rationale

The derivation proceeds by extending the arclength-rescaled Möbius energy density integrand (arising from the chord-arc form on the helix parametrization) to a meromorphic function in the complex plane, then extracting the leading asymptotic term as the pitch tends to zero via residues at the poles. This uses classical complex-analysis tools (meromorphic continuation, residue theorem, and contour estimates) without redefining any quantity in terms of the target asymptotic, without fitting parameters to data subsets and relabeling them as predictions, and without load-bearing self-citations whose content reduces to the present claim. The abstract explicitly distinguishes the argument from prior work (Kim-Kusner) precisely because of the infinite-pole structure, confirming the steps are independent of the inputs. No self-definitional, fitted-input, or ansatz-smuggling patterns appear.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the standard definition of Möbius energy, the standard parametrization of a helix, and the applicability of meromorphic continuation and contour integration from complex analysis; no new free parameters or invented entities are introduced.

axioms (2)

domain assumption The integrand of the rescaled Möbius energy on a helix admits a meromorphic extension to the complex plane.
Invoked to justify contour integration for the coiling limit.
standard math Standard results on residues and asymptotic extraction for meromorphic functions with infinitely many poles apply without additional restrictions.
Required for the rigorous proof of the blow-up rate.
