Generative Floor Plan Design with LLMs via Reinforcement Learning with Verifiable Rewards
Pith reviewed 2026-05-15 04:58 UTC · model grok-4.3
The pith
Fine-tuning an LLM then applying reinforcement learning with verifiable rewards produces floor plans that meet both room connectivity and exact numerical constraints on dimensions and areas.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors introduce a text-based floor plan generation approach that fine-tunes a large language model on real plans and applies reinforcement learning with verifiable rewards to improve adherence to topological and numerical constraints while discouraging invalid or overlapping outputs, generating floor plans that satisfy user-defined connectivity and numerical constraints and outperforming existing methods on Realism, Compatibility, and Diversity metrics with at least a 94% relative reduction in Compatibility.
What carries the argument
Reinforcement learning with verifiable rewards (RLVR) applied after fine-tuning an LLM, where automatically checkable rewards enforce room connectivity, dimensions, and areas while penalizing overlaps and invalid outputs.
Load-bearing premise
Verifiable rewards based on connectivity and numerical constraints are sufficient to ensure the functional validity of floor plans without missing buildability, safety, or aesthetic requirements that matter in real use.
What would settle it
A side-by-side evaluation in which licensed architects attempt to construct or obtain permits for the generated plans and report any violations of building codes or safety rules not encoded in the reward functions.
Figures
read the original abstract
An AI system for professional floor plan design must precisely control room dimensions and areas while respecting the desired connectivity between rooms and maintaining functional and aesthetic quality. Existing generative approaches focus primarily on respecting the requested connectivity between rooms, but do not support generating floor plans that respect numerical constraints. We introduce a text-based floor plan generation approach that fine-tunes a large language model (LLM) on real plans and then applies reinforcement learning with verifiable rewards (RLVR) to improve adherence to topological and numerical constraints while discouraging invalid or overlapping outputs. Furthermore, we design a set of constraint adherence metrics to systematically measure how generated floor plans align with user-defined constraints. Our model generates floor plans that satisfy user-defined connectivity and numerical constraints and outperforms existing methods on Realism, Compatibility, and Diversity metrics. Across all tasks, our approach achieves at least a 94% relative reduction in Compatibility compared with existing methods. Our results demonstrate that LLMs can effectively handle constraints in this setting, suggesting broader applications for text-based generative modeling.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces a text-based floor plan generation system that fine-tunes an LLM on real plans and then applies reinforcement learning with verifiable rewards (RLVR) to enforce topological connectivity and numerical constraints while discouraging invalid or overlapping outputs. It defines constraint adherence metrics and reports that the resulting model outperforms existing methods on Realism, Compatibility, and Diversity, achieving at least a 94% relative reduction in Compatibility errors across tasks.
Significance. If the empirical claims hold under rigorous verification, the work shows that LLMs augmented with RLVR can handle mixed topological and numerical constraints in structured generative tasks, filling a gap left by prior connectivity-focused methods. The verifiable-reward framework and accompanying metrics offer a reusable template for evaluating constraint satisfaction in text-to-structured-output settings. The approach is notable for its explicit handling of numerical constraints (room dimensions/areas) alongside connectivity, which prior generative floor-plan systems largely omit.
major comments (3)
- [§4] §4 (RLVR reward formulation): the description of verifiable rewards appears to operate primarily on parsed textual constraints and simple area summations; it is unclear whether the reward explicitly penalizes 2D polygon intersections, non-aligned walls, or negative dimensions after coordinate placement. Without such geometric enforcement, high metric scores could coexist with physically invalid layouts, weakening the functional-validity claim.
- [§5] §5 (Experiments): the reported 94% relative Compatibility reduction lacks error bars, details on train/validation/test splits, baseline hyper-parameters, and exact reward implementations, preventing independent verification of the outperformance. The abstract and results tables must include these elements for the central empirical claim to be load-bearing.
- [§3.2] §3.2 (constraint adherence metrics): the metrics are defined on parsed text and area sums but do not appear to include topological checks (e.g., planarity of the dual graph or wall-adjacency consistency) in coordinate space; this risks overestimating validity relative to professional buildability criteria.
minor comments (2)

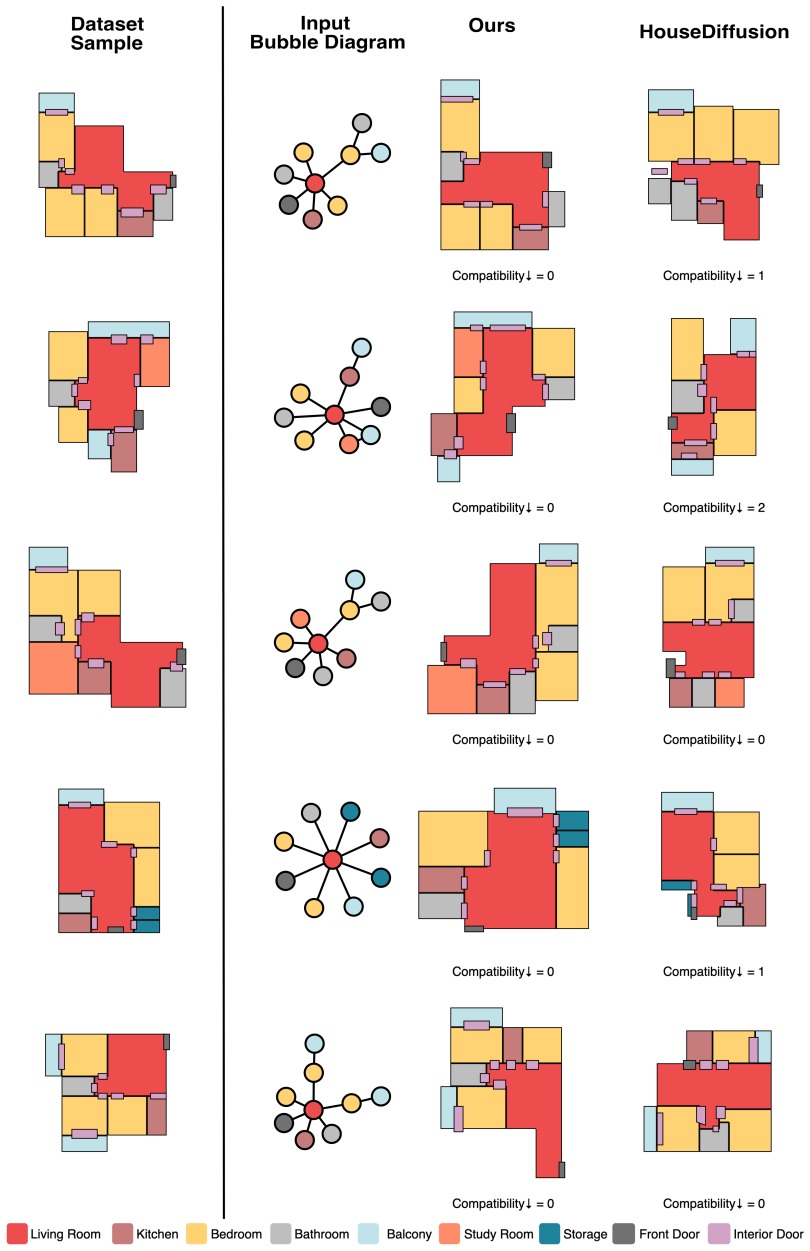

- [Figure 2] Figure 2 caption should explicitly state the coordinate system origin and scale used for the generated plans.
