fARfetch: Enabling Collocated AR-HRC in Large Visually Diverse Environments with VLM-Driven AR Content Adaptation

Christian Fronk , Hanting Ye , David Hunt , Miroslav Pajic , Maria Gorlatova This is my paper

Pith reviewed 2026-06-25 23:43 UTC · model grok-4.3

classification 💻 cs.RO cs.CVcs.HC
keywords augmented realityhuman-robot collaborationvision-language modelsoutdoor environmentsAR content adaptationshared semantic mappinglegibilityuser study
0
0 comments X

The pith

fARfetch uses vision-language models to adapt AR visuals so humans and robots can collaborate effectively across large outdoor spaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces fARfetch as an AR system for human-robot collaboration that adds shared semantic mapping of landmarks, a miniature world view for path planning, and automatic adjustment of virtual content via a vision-language model. In a study with 13 participants performing a 30.5-meter outdoor inspection task, the system produced 66 percent faster completion times and lower reported mental demand, temporal demand, and frustration compared with a non-AR baseline. The adaptation keeps overlaid information readable despite changing backgrounds and long distances. A sympathetic reader would care because outdoor settings have long blocked wider use of AR for directing robots in real work.

Core claim

The paper establishes that a combination of shared semantic environment mapping, a context-aware world-in-miniature interface, and vision-language-model-driven adaptation of AR content color, size, and orientation enables collocated human-robot collaboration to remain usable in large visually diverse outdoor environments, as shown by significantly improved task speed and reduced workload in a real-world 30.5 m inspection study.

What carries the argument

VLM-driven AR view management that jointly adapts virtual content color, size, and orientation to maintain legibility.

If this is right

  • Landmark-grounded go-to commands become usable because detected landmarks appear as AR anchors visible to both human and robot.
  • Fine-grained path authoring is supported through the miniature representation without requiring the operator to walk the full route.
  • Virtual overlays stay readable at long distances and across varied backgrounds, removing a key barrier to outdoor AR-HRC.
  • Overall operator workload decreases measurably in mental demand, temporal demand, and frustration during extended tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same adaptation loop could be applied to indoor scenes with rapidly changing lighting or to mobile robots operating in construction zones.
  • Removing the need for manual AR tuning might let non-expert users direct robots in new environments without prior calibration.
  • Extending the shared mapping to include dynamic objects could support collaboration in settings where both people and robots move continuously.
  • If the VLM adaptation proves robust, similar view-management logic might transfer to other mixed-reality interfaces that must handle scale and visual diversity.

Load-bearing premise

The vision-language model can adapt AR content to preserve legibility without introducing unacceptable latency or errors across the range of outdoor visual conditions.

What would settle it

A direct test showing whether legibility scores drop or error rates rise when the same 30.5 m task is repeated under extreme lighting shifts such as full sun versus deep shadow.

Figures

Figures reproduced from arXiv: 2606.25162 by Christian Fronk, David Hunt, Hanting Ye, Maria Gorlatova, Miroslav Pajic.

Figure 1
Figure 1. Figure 1: fARfetch WIM usage. (a) Initial WIM with robot [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

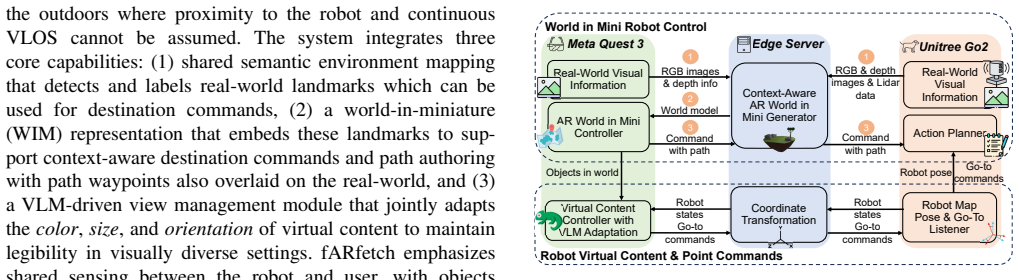

Figure 2. Figure 2: fARfetch system diagram. 1) Context-Aware WIM Generation: A generated WIM combines the headset’s and robot’s semantic understanding of the environment with the robot’s structural map of that same environment. The Quest and Go2 each stream RGB images paired with depth data, which the edge server pro￾cesses through the context-aware WIM generator, as seen in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Example of fARfetch’s go-to command. (a) fARfetch [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Instruction prompt used for AR content adaptation. [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 7

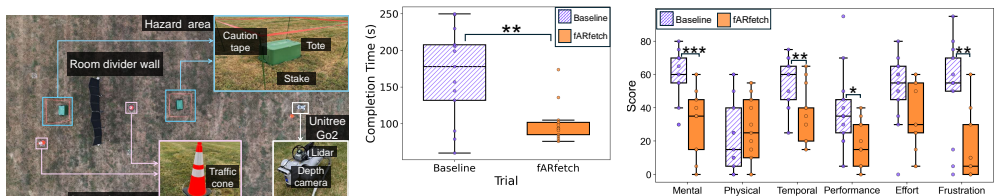

Figure 7. Figure 7: Task completion time results for all users in the baseline and AR trials. (**): p ≤ 0.01 Baseline fARfetch *** ** * ** [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: fARfetch virtual content legibility survey responses. [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
read the original abstract

Augmented Reality (AR) can improve collocated human-robot collaboration by making robot state and intent visible and enabling intuitive control, yet large, visually diverse environments like the outdoors challenge both interaction and content legibility, especially at long distances and beyond visual line of sight. We present fARfetch, an AR-HRC system that integrates (i) shared semantic environment mapping across an AR headset and robot that visualizes detected landmarks in AR to support landmark-grounded go-to commands, (ii) a context-aware world-in-miniature representation of the shared environment for fine-grained path authoring, and (iii) vision-language-model driven AR view management that jointly adapts virtual content color, size, and orientation to maintain legibility in large visually diverse environments. We implement fARfetch with a Meta Quest 3 headset and Unitree Go2 quadruped robot, and conduct a within-subjects user study (N=13) on a real-world large-scale (30.5m) outdoor inspection task. fARfetch yielded significantly faster completion times than a non-AR baseline (66%) and significantly lower workload in mental demand (-43%), temporal demand (-34%), and frustration (-66%). A custom legibility survey indicated fARfetch effectively maintained virtual content legibility in the large outdoor environment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents fARfetch, an AR-HRC system for collocated collaboration in large visually diverse outdoor environments. It integrates (i) shared semantic environment mapping between AR headset and robot for landmark-grounded commands, (ii) a context-aware world-in-miniature for path authoring, and (iii) VLM-driven joint adaptation of virtual content color, size, and orientation to preserve legibility. Implemented on a Meta Quest 3 and Unitree Go2, a within-subjects user study (N=13) on a real 30.5 m outdoor inspection task reports 66% faster completion times versus a non-AR baseline, workload reductions (mental demand -43%, temporal demand -34%, frustration -66%), and positive results on a custom legibility survey.

Significance. If the VLM adaptation component functions reliably, the work offers a practical contribution to outdoor AR-HRC by addressing legibility at distance and under visual variation. The real-hardware, outdoor evaluation with statistically significant time and workload gains provides ecological validity that is uncommon in AR robotics studies. The combination of mapping, miniature, and adaptive view management could inform systems for inspection, search-and-rescue, and field robotics where operators must maintain awareness beyond line-of-sight.

major comments (2)
  1. [User Study Results] User Study Results: The central performance claims (66% faster completion and workload reductions) are presented as resulting from the full fARfetch pipeline, yet the manuscript reports no quantitative VLM metrics—adaptation accuracy, failure rate, or latency—under the actual outdoor lighting, vegetation, and background conditions of the 30.5 m task. This omission leaves open the possibility that observed gains derive primarily from components (i) and (ii) rather than the VLM adaptation in (iii).
  2. [VLM-Driven AR Content Adaptation] VLM-Driven AR Content Adaptation section: The legibility claims rest on a custom survey outcome, but the paper provides no description of the VLM prompting strategy, model choice, or handling of edge cases (e.g., low light, high contrast vegetation). Without these details or failure-mode analysis, it is difficult to assess whether the adaptation introduces unacceptable latency or errors across the tested visual diversity.
minor comments (2)
  1. [Abstract] Abstract and Results: The abstract states results are 'significantly' different but omits the statistical test, degrees of freedom, and exact p-values; these should be supplied for reproducibility.
  2. [Implementation] Implementation: The description of the shared mapping and miniature components would benefit from a brief diagram or pseudocode showing data flow between headset and robot to clarify how semantic landmarks are synchronized.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important areas for clarification regarding the VLM component's evaluation and implementation details. We address each major comment below and commit to revisions that strengthen the paper without misrepresenting the current work.

read point-by-point responses

  1. Referee: [User Study Results] User Study Results: The central performance claims (66% faster completion and workload reductions) are presented as resulting from the full fARfetch pipeline, yet the manuscript reports no quantitative VLM metrics—adaptation accuracy, failure rate, or latency—under the actual outdoor lighting, vegetation, and background conditions of the 30.5 m task. This omission leaves open the possibility that observed gains derive primarily from components (i) and (ii) rather than the VLM adaptation in (iii).

    Authors: We agree that the user study evaluates the integrated fARfetch system against a non-AR baseline and does not provide isolated quantitative metrics for the VLM adaptation component. The 66% time reduction and workload improvements are reported for the complete pipeline, which is consistent with the ecological validity goal of the outdoor evaluation. However, this leaves the specific contribution of component (iii) unquantified. In the revision, we will add a new subsection reporting VLM-specific metrics collected during the study (adaptation accuracy, failure rate, and latency) under the actual 30.5 m outdoor conditions to better attribute the observed gains. revision: yes

  2. Referee: [VLM-Driven AR Content Adaptation] VLM-Driven AR Content Adaptation section: The legibility claims rest on a custom survey outcome, but the paper provides no description of the VLM prompting strategy, model choice, or handling of edge cases (e.g., low light, high contrast vegetation). Without these details or failure-mode analysis, it is difficult to assess whether the adaptation introduces unacceptable latency or errors across the tested visual diversity.

    Authors: We accept that the current manuscript omits key implementation details of the VLM-driven adaptation. The legibility survey results are presented without supporting technical description. In the revised manuscript, we will expand the VLM-Driven AR Content Adaptation section to specify the VLM model, the prompting strategy for jointly adapting color, size, and orientation, and include a failure-mode analysis drawn from the outdoor trials (including low-light and vegetation contrast cases) along with measured latency. revision: yes

Circularity Check

0 steps flagged

No significant circularity: empirical user-study results with no derivation chain

full rationale

The paper presents an AR-HRC system evaluated via a within-subjects user study (N=13) on a 30.5m outdoor task, reporting completion time and workload metrics directly from participant measurements. No equations, parameter fitting, or mathematical derivations appear in the provided abstract or description. Claims rest on empirical outcomes rather than any self-referential reduction of predictions to inputs or load-bearing self-citations. The VLM adaptation component is described as implemented but its reliability is assessed only via a custom legibility survey; this is a measurement, not a circular derivation. No steps match the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced; the work relies on standard assumptions from AR, robotics, and VLM usage.
