MixFP4: Enhancing NVFP4 with Adaptive FP4/INT4 Block Representations

Jiaxiang Zou , Yonghao Chen , Ruilong Wu , Xinyu Chen This is my paper

Pith reviewed 2026-06-28 20:15 UTC · model grok-4.3

classification 💻 cs.AR
keywords FP4 quantizationblock scalingLLM inferencetensor coremixed micro-formatNVFP4low-precision arithmeticE2M1 E1M2
0
0 comments X

The pith

MixFP4 selects between E2M1 and E1M2 micro-formats per FP4 block by repurposing the FP8 scale sign bit and decodes both to a shared E2M2 internal format.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a single FP4 micro-format often fails to match the varied statistics inside individual blocks of LLM tensors. MixFP4 solves this by letting each block pick either the E2M1 or E1M2 stored format while still following the existing NVFP4 block-scaled execution path. The choice is hidden inside the sign bit of the already-present FP8 E4M3 block scale, so no extra metadata is added. Both formats are decoded into one internal E2M2 representation to avoid duplicating hardware paths. The result is higher accuracy than plain NVFP4 at a reported cost of 3.1 percent area and 1.5 percent power in the tensor core.

Core claim

MixFP4 extends NVFP4 by selecting per block between the stored FP4 micro-formats E2M1 and E1M2, reuses the existing scale hierarchy, encodes the selection inside the sign bit of the FP8 E4M3 block scale with zero added metadata, and decodes the chosen values into a unified E2M2 internal representation so that the compute datapath stays single.

What carries the argument

Per-block choice between E2M1 and E1M2 micro-formats, signaled by the sign bit of the FP8 E4M3 scale and mapped to a common E2M2 internal representation.

If this is right

  • FP4 quantization becomes more robust to heterogeneous block statistics while preserving the standard block-scaled MMA and GEMM execution path.
  • Accuracy gains appear across representative LLM families with only 3.1 percent area and 1.5 percent power overhead in the tensor core.
  • No additional selection metadata or datapath duplication is required.
  • The same scale hierarchy already used by NVFP4 continues to apply without modification.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sign-bit encoding trick could be reused to switch among three or more micro-formats if future hardware supports an extra internal representation.
  • Unified internal formats may become a general pattern for letting storage precision diversify while keeping compute units simple.
  • The method suggests a route to apply similar per-block adaptation at even lower precisions such as 3-bit formats without increasing metadata traffic.

Load-bearing premise

That two micro-formats plus one shared internal representation are enough to cover the range of block statistics that appear in practice.

What would settle it

Running the same LLM workloads on a new model whose block value distributions fall outside the representable ranges of both E2M1 and E1M2 and checking whether accuracy still improves over NVFP4.

Figures

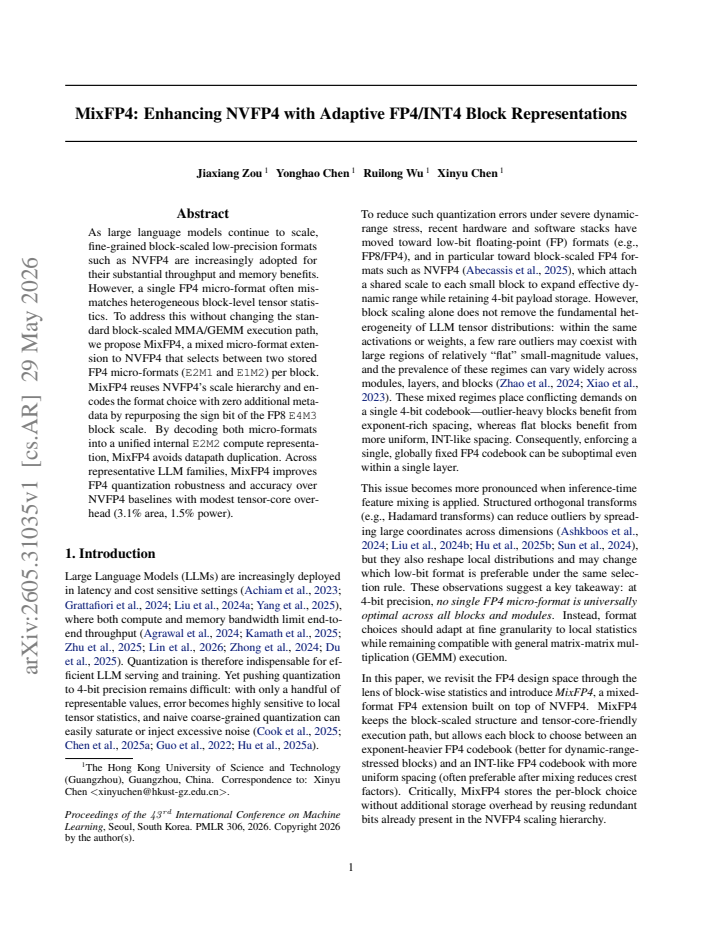

Figures reproduced from arXiv: 2605.31035 by Jiaxiang Zou, Ruilong Wu, Xinyu Chen, Yonghao Chen.

Figure 1

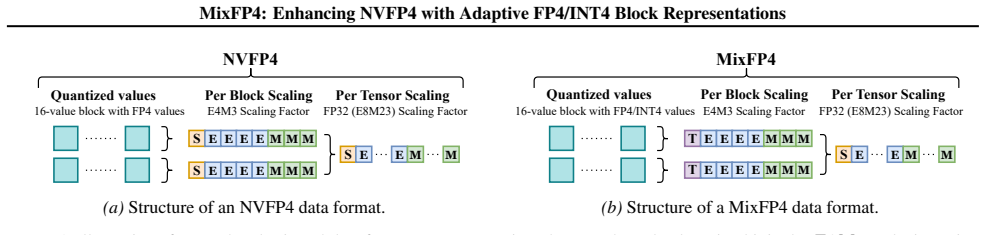

Figure 1. Figure 1: Illustration of NVFP4 and MixFP4 data format structures. MixFP4 reuses the redundant sign bit in the E4M3 scale, incurring zero extra storage overhead. Contributions. In this paper, we focus primarily on weight-and-activation quantization to 4-bits per parameter. We propose the following contributions: • We characterize the heterogeneity of block-wise tensor statistics in modern LLMs and show that orthogon… view at source ↗
Figure 2

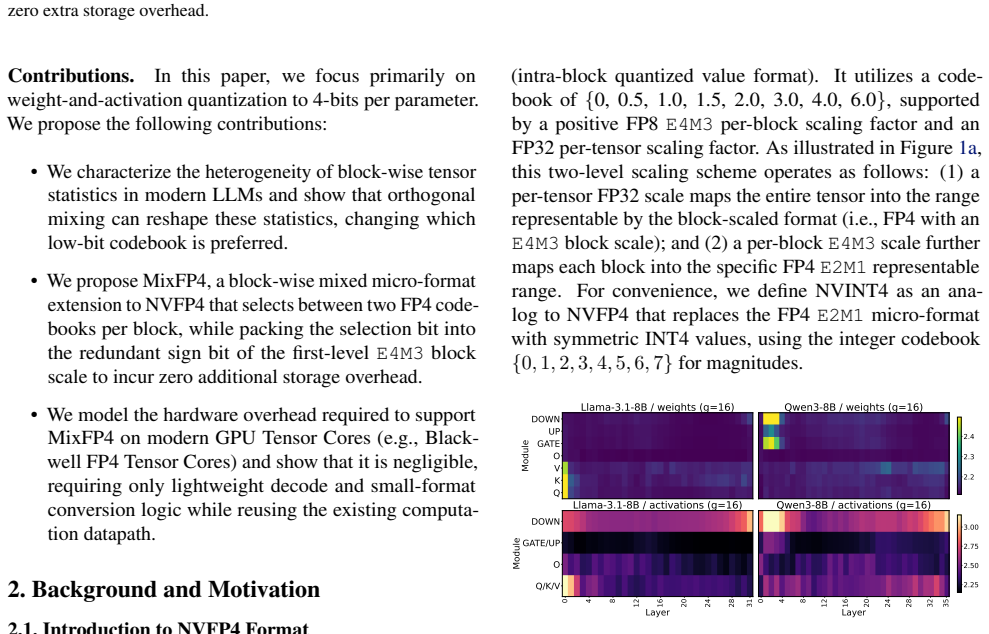

Figure 2. Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

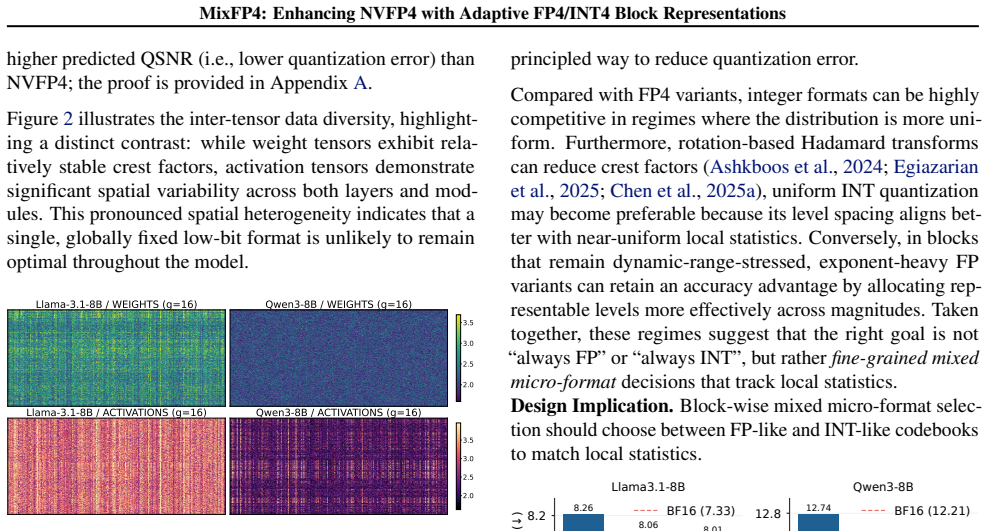

Figure 3. Figure 3: Even within a single tensor (Q projection, layer 0; g=16), blocks exhibit large variations in crest factor for both weights (top) and activation inputs (bottom) in Llama-3.1-8B and Qwen3-8B, highlighting strong intra-tensor dynamic-range heterogeneity and motivating block-wise format adaptivity. Color indicates within￾block crest factor (darker: flatter blocks; brighter: more outlier￾prone blocks). Crucial… view at source ↗
Figure 5

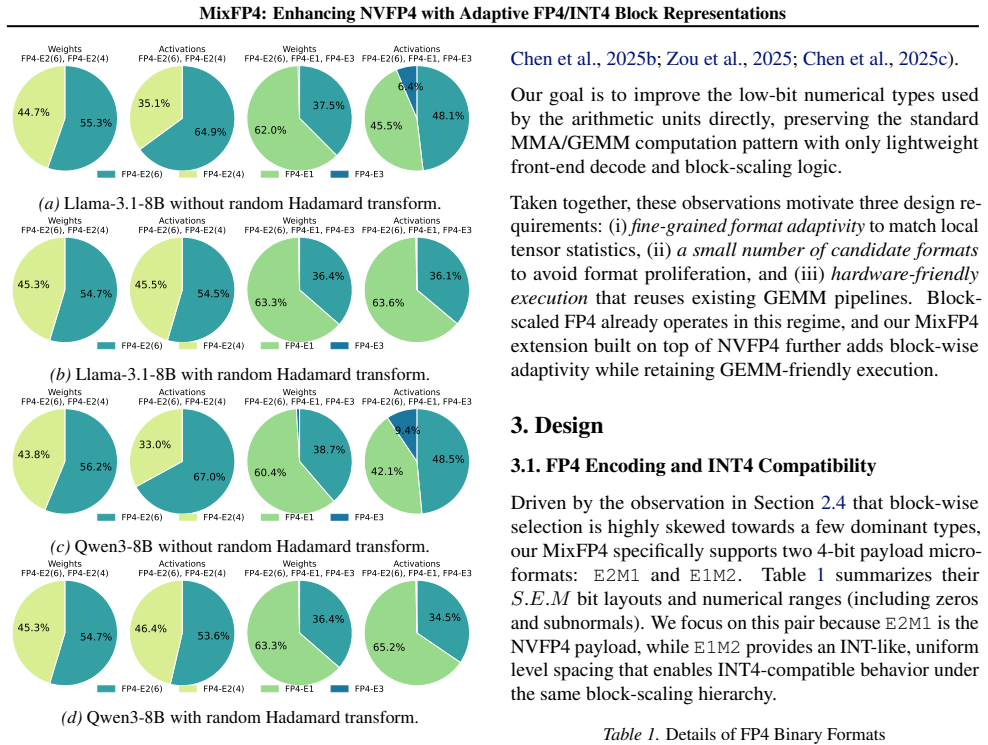

Figure 5. Figure 5: Format selection in Llama-3.1-8B and Qwen3-8B, com￾paring runs without and with random Hadamard transform. comes even stronger under random Hadamard transforms. This observation motivates a practical design choice: retain￾ing only a small, representative set of formats (E2M1(6) and E1M2) captures most of the accuracy gains, while avoiding the software and hardware overhead of supporting rarely selected var… view at source ↗
Figure 6

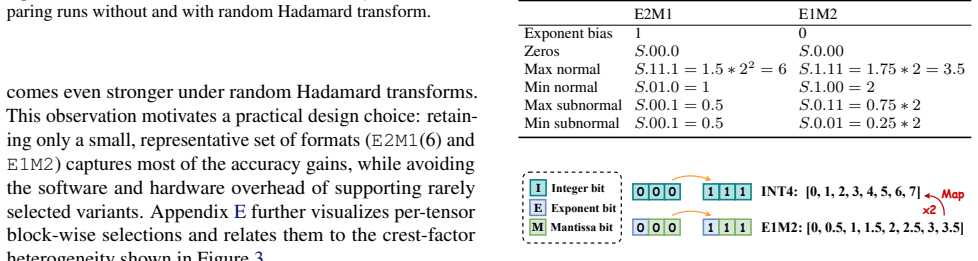

Figure 6. Figure 6: The uniform-step E1M2 codebook can represent sym￾metric INT4 values via scaling. A key observation is that the stored E1M2 magnitudes form a uniform codebook {0, 0.5, 1.0, . . . , 3.5}, whereas symmet￾ric INT4 uses integer levels {0, 1, . . . , 7} in the unsigned domain. MixFP4 bridges these lattices with a fixed ×2 remapping of the E1M2 magnitude, yielding an exact INT4- like lattice 0, 1, . . . , 7 ( [P… view at source ↗
Figure 7

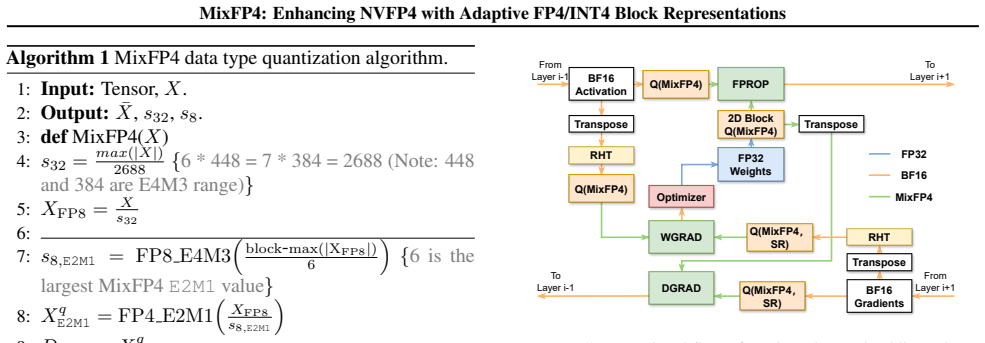

Figure 7. Figure 7: Computational flow of a MixFP4 quantized linear layer training. The core matrix multiplications (FPROP, DGRAD, WGRAD) are executed in simulated MixFP4 (green paths), while master weights are maintained in FP32 (blue), and acti￾vations/gradients are kept in BF16 (orange). Q(MixFP4) repre￾sents the proposed quantization mapping blocks to E2M1 or E1M2. Additionally, Stochastic Rounding (SR) and random Hadamar… view at source ↗
Figure 8

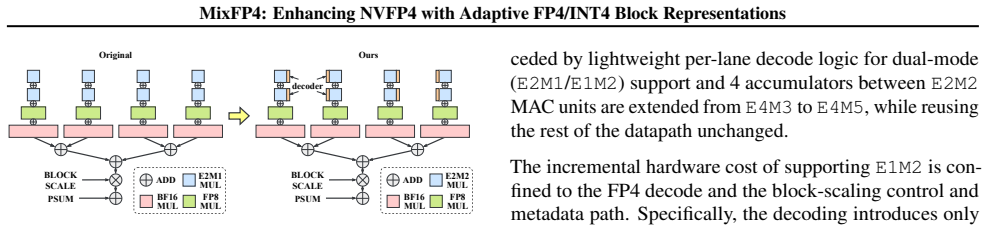

Figure 8. Figure 8: MixFP4 supported tensor core. E2M1 and each block is scaled by FP8 (E4M3). We extend the slice to additionally support an alternative FP4 micro￾format (E1M2) subject to three invariants—FP16/FP32 ac￾cumulation, block scaling granularity, and scale storage footprint—remaining unchanged, making the extension compatibility-preserving rather than a datapath redesign. The motivation is twofold. First, different… view at source ↗
Figure 9

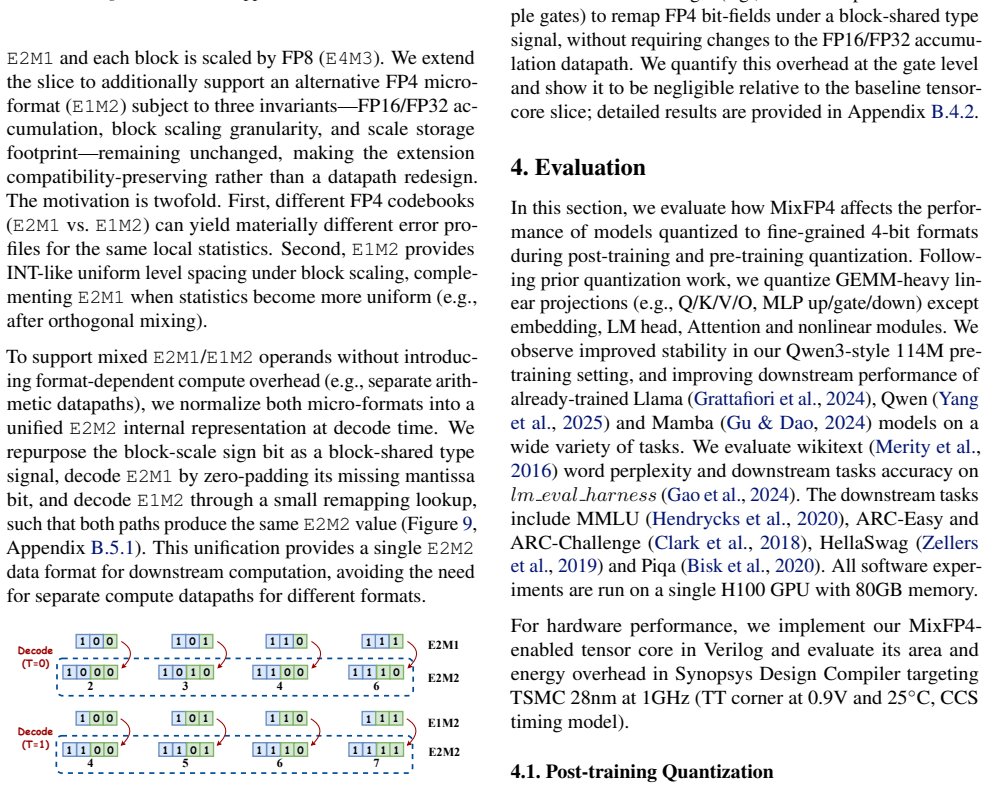

Figure 9. Figure 9: Decode E2M1 or E1M2 to E2M2 by T. We model the tensor core as a 3D array with normalized throughput BF16:FP8(FP6):FP4 = 4:8:16, corresponding to 4 × 4 × 4, 4 × 4 × 8, and 4 × 4 × 16 MMA per cycle, respectively ( [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 11

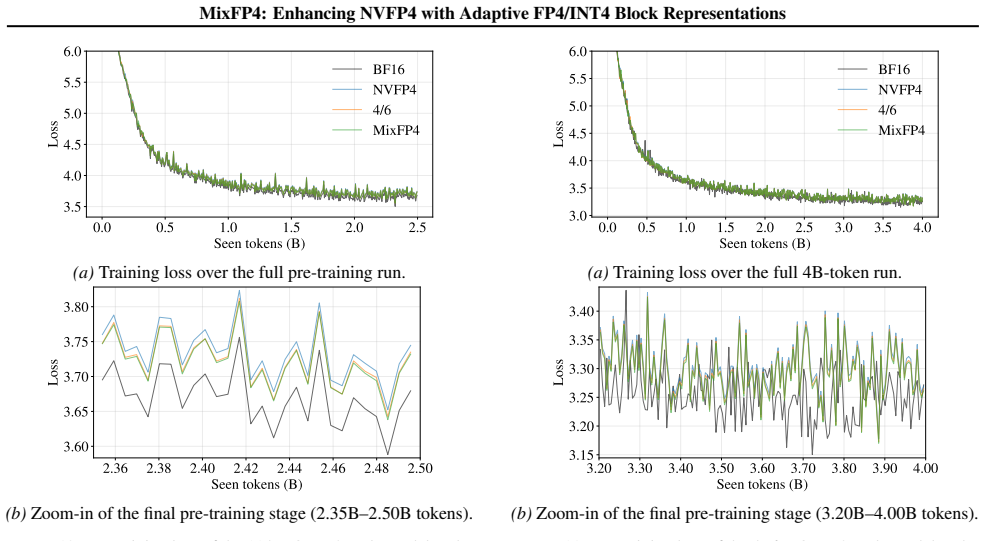

Figure 11. Figure 11: Pre-training loss of the 476M Qwen3-style model under BF16 and FP4 variants: (a) full run; (b) zoom-in. 4 key-value heads, intermediate size 2048, and 9 layers. To further evaluate scale, [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
Figure 12

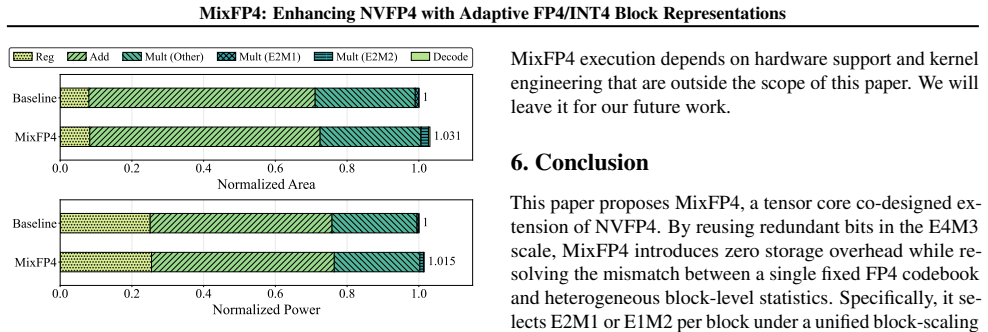

Figure 12. Figure 12: Relative area and power overhead of MixFP4 compared to the baseline tensor core. more heterogeneous values; under this coarser scaling gran￾ularity, FP4-E2+FP4-E3 becomes more favorable, as the exponent-heavy E3M0 format better accommodates blocks with wider dynamic range. 4.4. Hardware Evaluation For hardware performance, [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
Figure 13

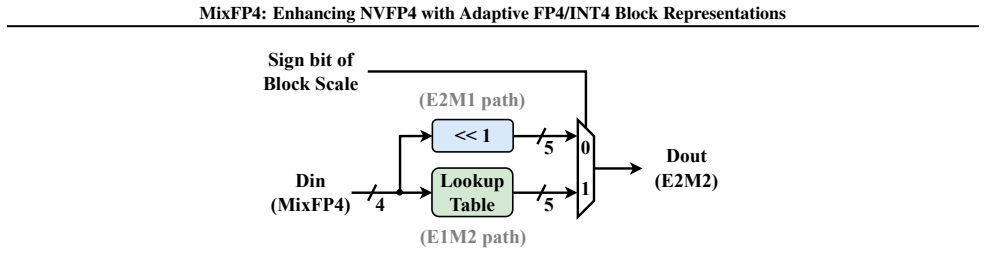

Figure 13. Figure 13: MixFP4 decoder. The block-scale sign bit selects between an E2M1 shift path and an E1M2 lookup path to produce a unified E2M2 internal representation. For E2M1, decoding is implemented as a simple bit extension (appending a trailing 0 bit), while E1M2 uses a small fixed lookup table to map 4-bit payloads into the same internal format. This simple decoder unifies both inputs into a common E2M2 internal rep… view at source ↗
Figure 14

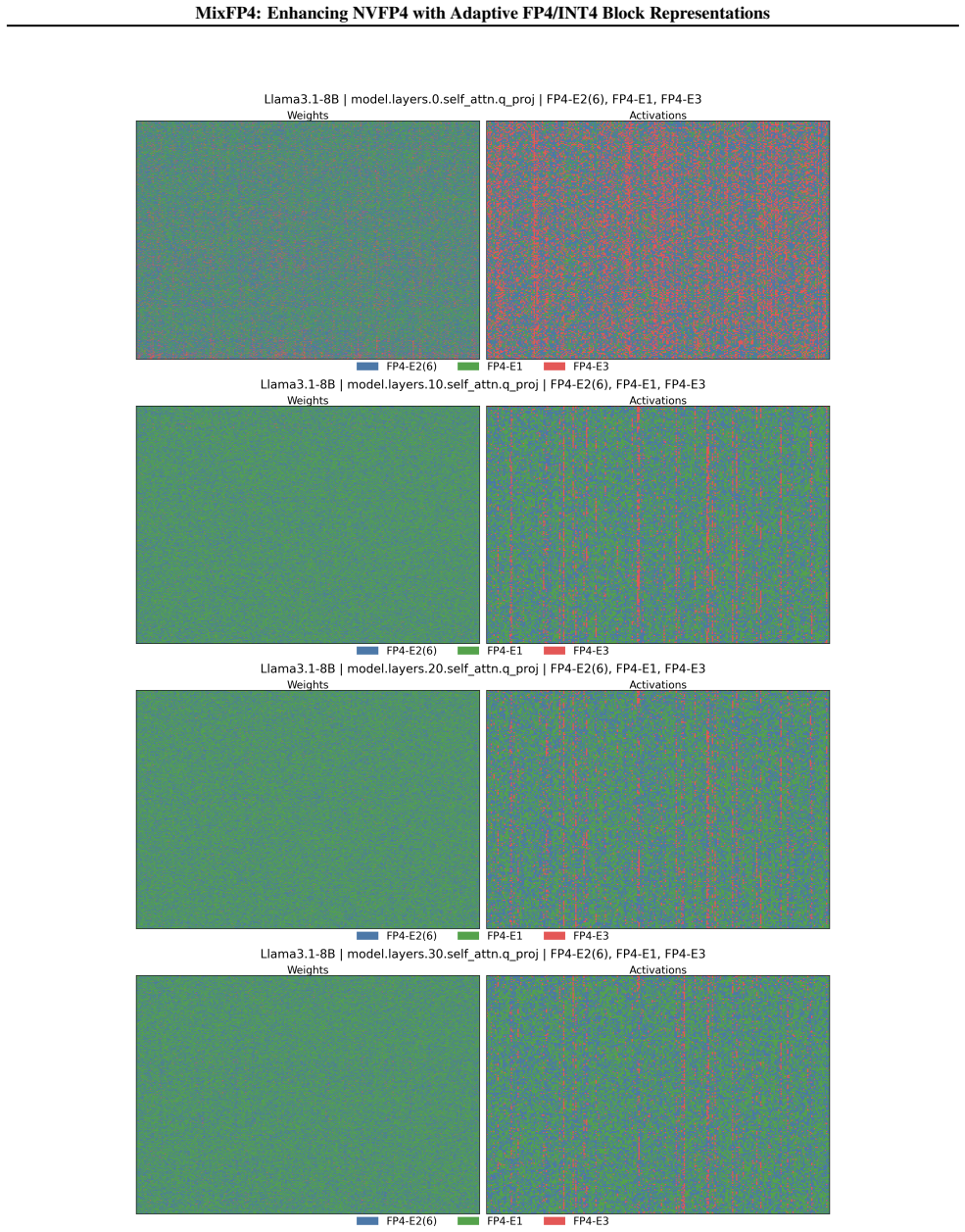

Figure 14. Figure 14: Block-wise format selection in Llama3.1-8B’s Q projection modules of layer 0, 10, 20, 30. 19 [PITH_FULL_IMAGE:figures/full_fig_p019_14.png] view at source ↗
Figure 15

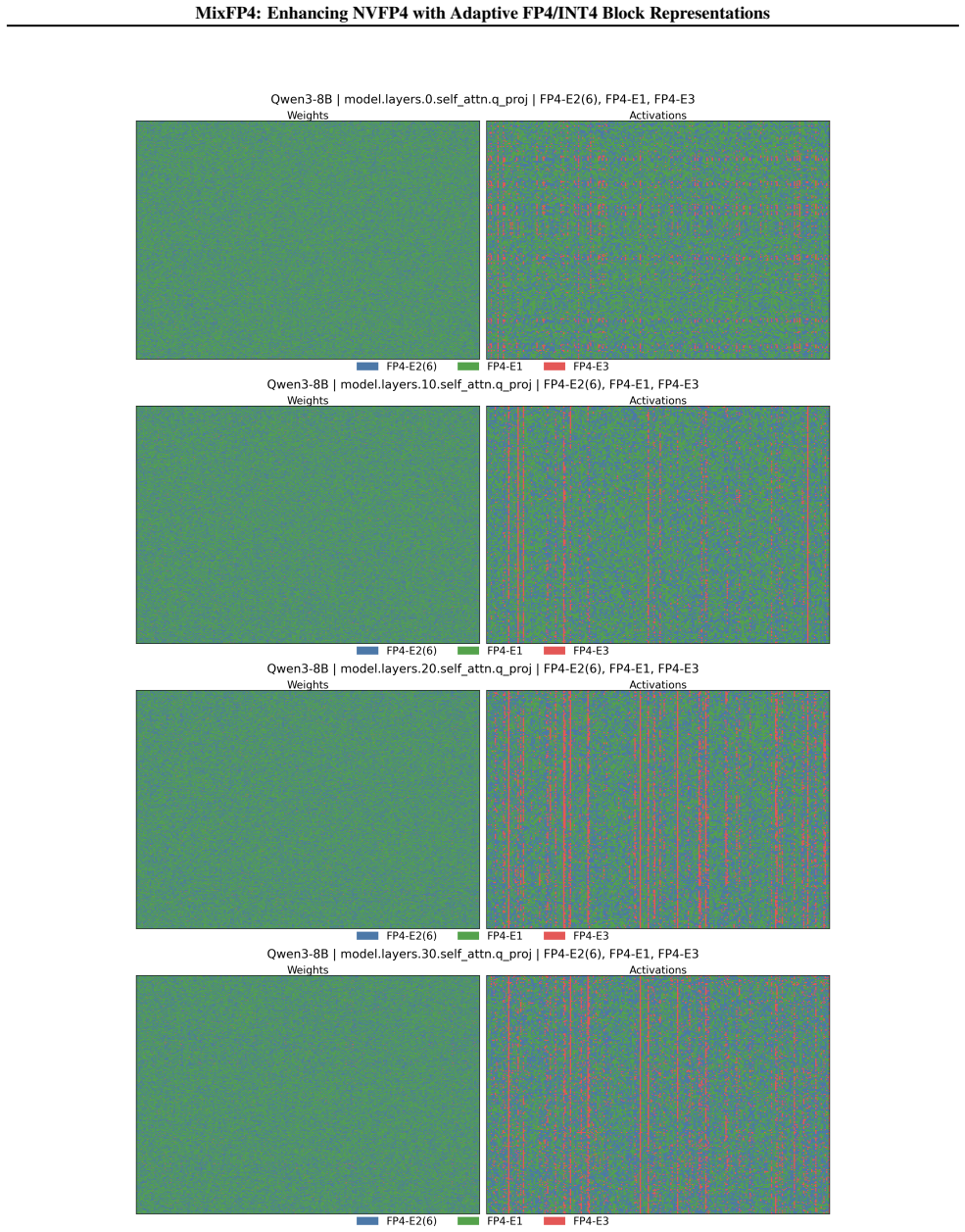

Figure 15. Figure 15: Block-wise format selection in Qwen3-8B’s Q projection modules of layer 0, 10, 20, 30. 20 [PITH_FULL_IMAGE:figures/full_fig_p020_15.png] view at source ↗
Figure 16

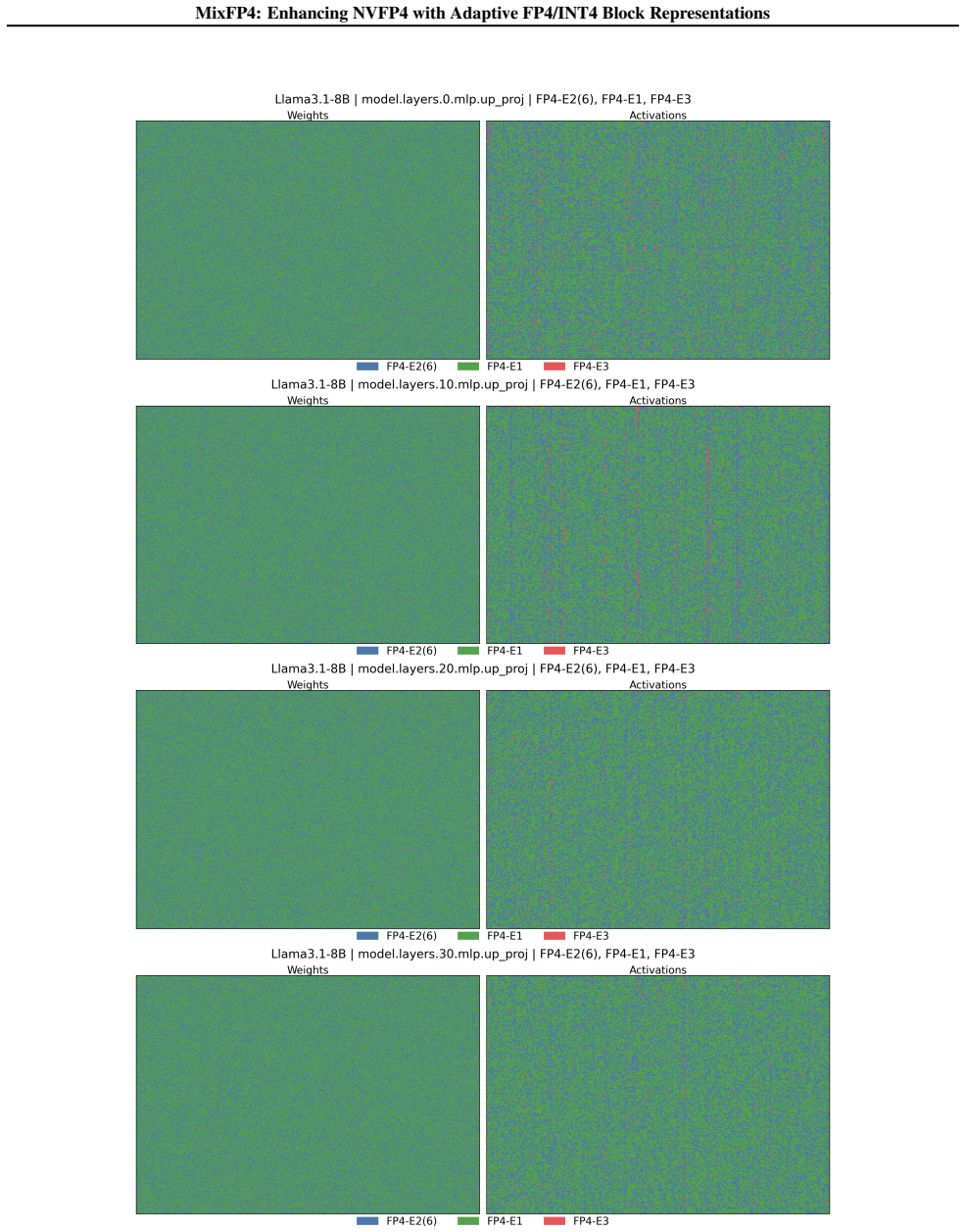

Figure 16. Figure 16: Block-wise format selection in Llama3.1-8B’s UP projection modules of layer 0, 10, 20, 30. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_16.png] view at source ↗
Figure 17

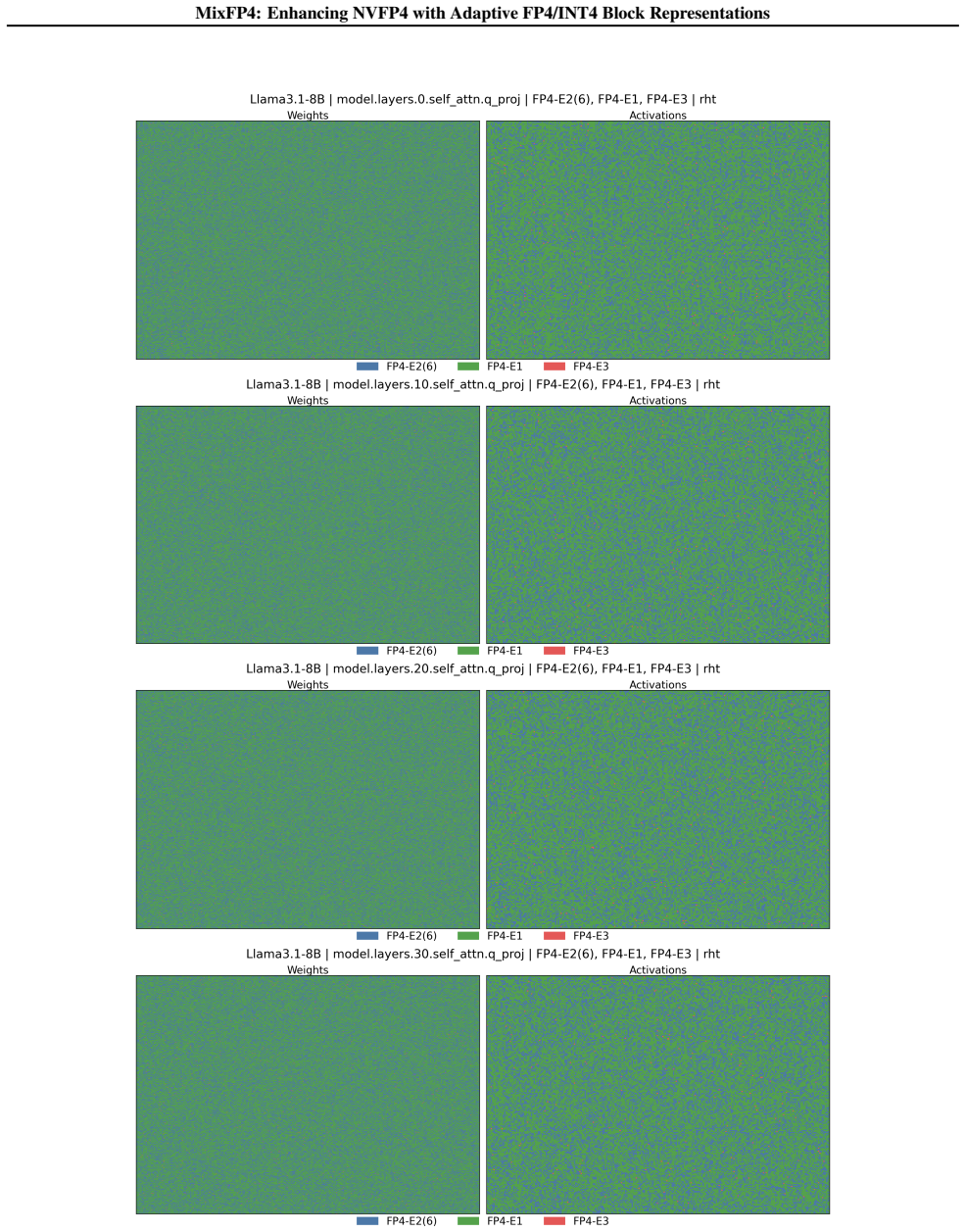

Figure 17. Figure 17: Block-wise format selection in Llama3.1-8B’s Q projection modules of layer 0, 10, 20, 30 with RHT. 22 [PITH_FULL_IMAGE:figures/full_fig_p022_17.png] view at source ↗
Figure 18

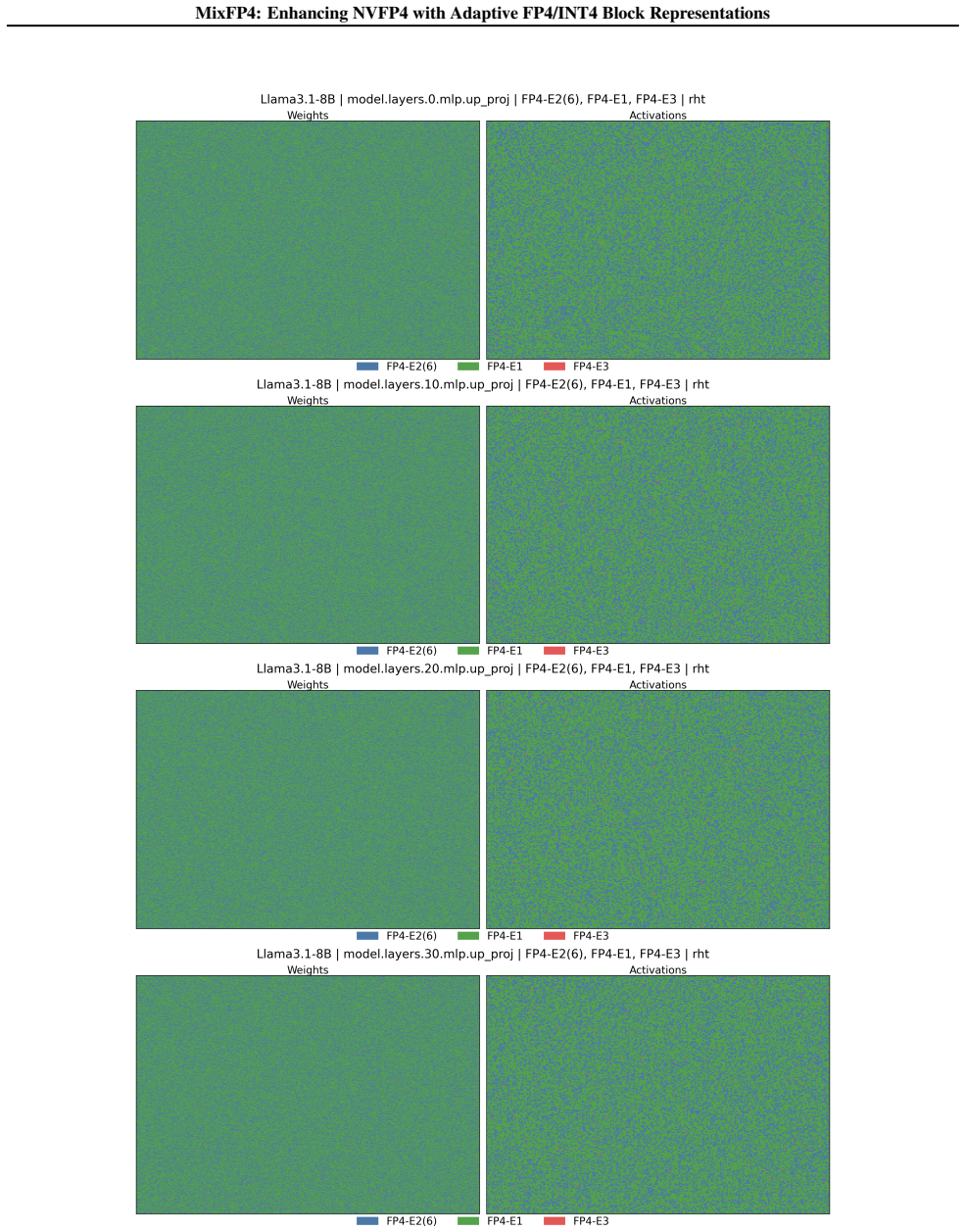

Figure 18. Figure 18: Block-wise format selection in Llama3.1-8B’s UP projection modules of layer 0, 10, 20, 30 with RHT. 23 [PITH_FULL_IMAGE:figures/full_fig_p023_18.png] view at source ↗
