pith. sign in

arxiv: 2606.20412 · v2 · pith:ANPNVUZAnew · submitted 2026-06-18 · ⚛️ physics.optics · cond-mat.mtrl-sci

Plasma Etch Process Optimization for Photonic-Grade Diamond-on-Insulator Substrates and Thickness Evaluation using Colorimetry

Tianyin Chen , Alessio Miranda , Leyla Rami , Ryoichi Ishihara , Salahuddin Nur This is my paper

Pith reviewed 2026-06-26 16:02 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mtrl-sci
keywords diamond-on-insulatorplasma etchingICP-RIEcolorimetryphotonic chipletsthin-film diamondquantum photonics
0
0 comments X

The pith

A plasma etch thins bonded diamond membranes to 300 nm thickness for photonic-grade DOI substrates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a plasma etch process to thin direct-bonded diamond plates on silicon dioxide into thin films suitable for photonic devices. The ICP-RIE recipe achieves diamond layers of 300 nm or less over 0.5 by 0.5 mm areas with surface roughness below 0.5 nm while keeping the bonding interface intact. It also introduces a colorimetric technique that determines diamond thickness from standard optical microscope images with 5 nm accuracy. These advances enable fabrication of diamond photonic chiplets using ordinary two-step lithography. The result supports scalable production of devices for quantum computing and sensing.

Core claim

An ICP-RIE plasma etch thins a 10 μm (100) SCD membrane bonded to SiO₂/Si into a DOI substrate with diamond thickness ≤300 nm over 0.5 × 0.5 mm², roughness <0.5 nm, and intact interface, from which free-standing photonic chiplets are fabricated via two-step lithography; colorimetry on SiO₂ enables thickness extrapolation at 5 nm resolution matching WLI.

What carries the argument

The ICP-RIE plasma etch recipe that thins diamond while preserving the bonding interface and controlling surface quality.

If this is right

  • Diamond photonic chiplets can be fabricated directly on the DOI using standard lithography without complex transfer or under-etching.
  • The colorimetric method provides automatic thickness evaluation from microscope images with 5 nm resolution.
  • The approach enables large-area photonic-grade DOI substrates for integration with manufacturing processes.
  • Free-standing chiplets support modular quantum systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The thinning technique could extend to other diamond thicknesses or substrate sizes for broader quantum photonic applications.
  • Colorimetry might serve as a quick validation tool in production lines for various thin-film materials.
  • Integration with existing semiconductor processes becomes more feasible for diamond-based quantum devices.

Load-bearing premise

The ICP-RIE recipe preserves diamond bonding and provides sufficient micromasking and surface-quality control without damaging the interface or introducing defects.

What would settle it

Observation of bonding interface damage, surface roughness above 0.5 nm, or thickness measurements differing by more than 5 nm between colorimetry and white-light interferometry after etching.

Figures

Figures reproduced from arXiv: 2606.20412 by Alessio Miranda, Leyla Rami, Ryoichi Ishihara, Salahuddin Nur, Tianyin Chen.

Figure 1
Figure 1. Figure 1: (a) Schematic of the diamond thinning process. Starting with a commercial diamond plate and Si wafer, we directly bond the two plates to form the initial [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

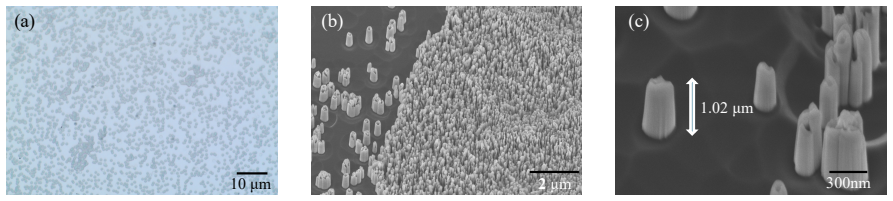

Figure 2. Figure 2: Observed surface damage after long etching with initial DOI etching recipe, without quartz mask. (a) optical microscope image of the surface. (b) [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

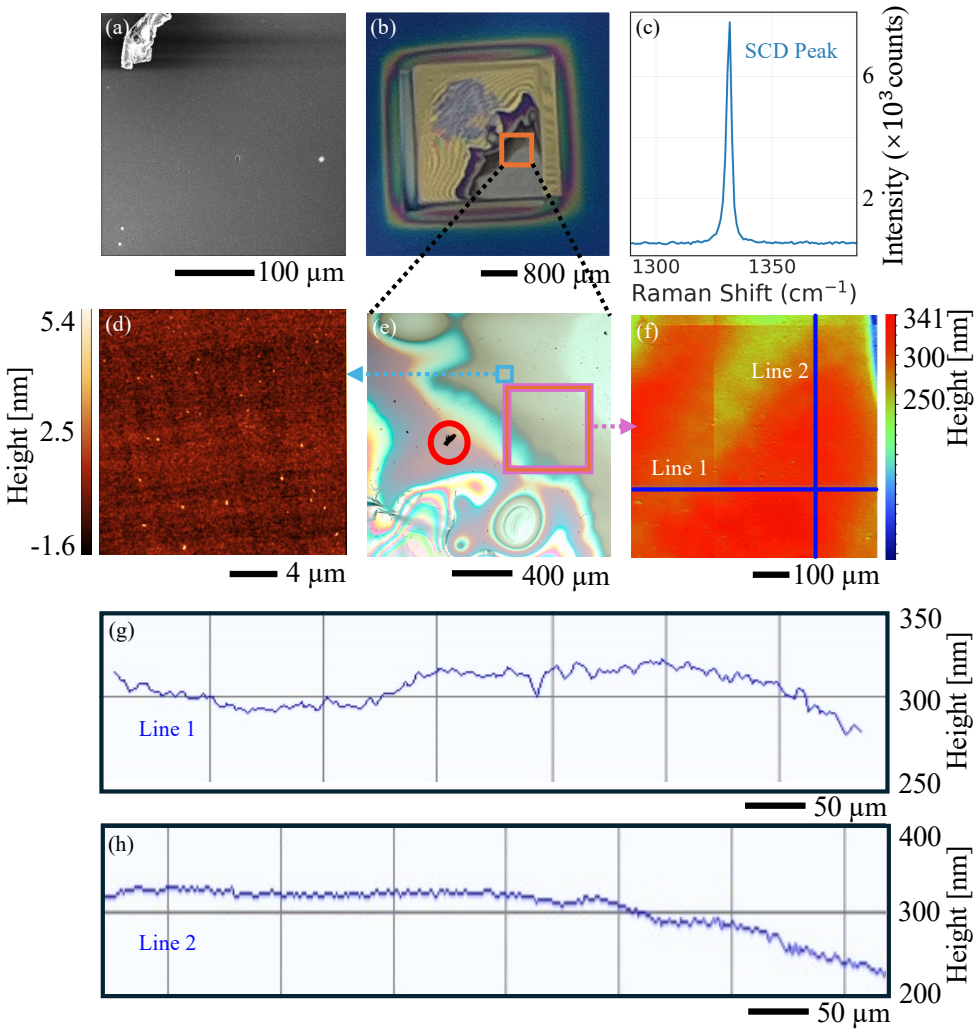

Figure 3. Figure 3: Overall characterization of the fabricated DOI thin film. (a) SEM image at [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

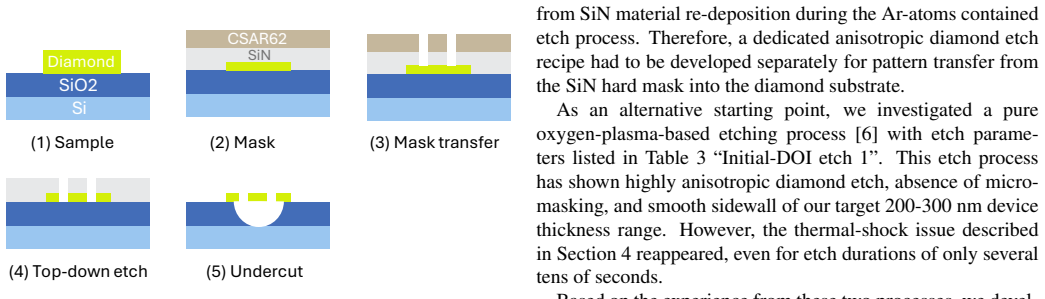

Figure 4. Figure 4: DOI based fabrication process. Sample is prepared from previous [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

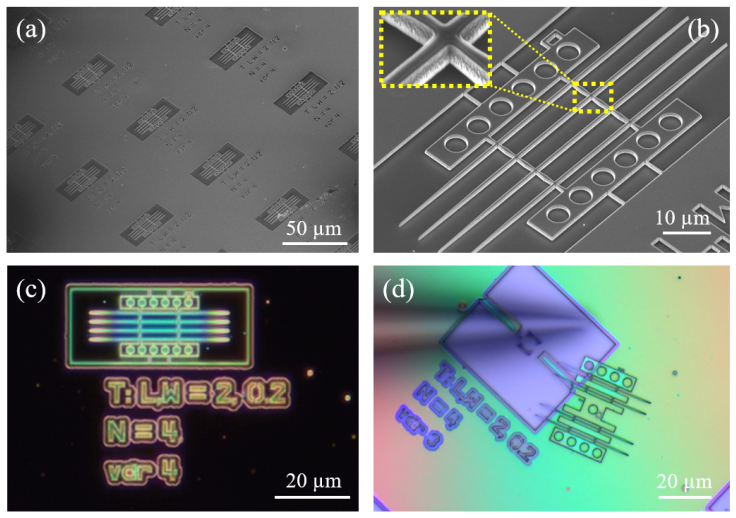

Figure 5. Figure 5: SEM and microscope inspection of fabricated chiplets. (a) Zoomed-out view of fabricated chiplets aray. (b) Zoomed-in image of a single chiplet. The [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

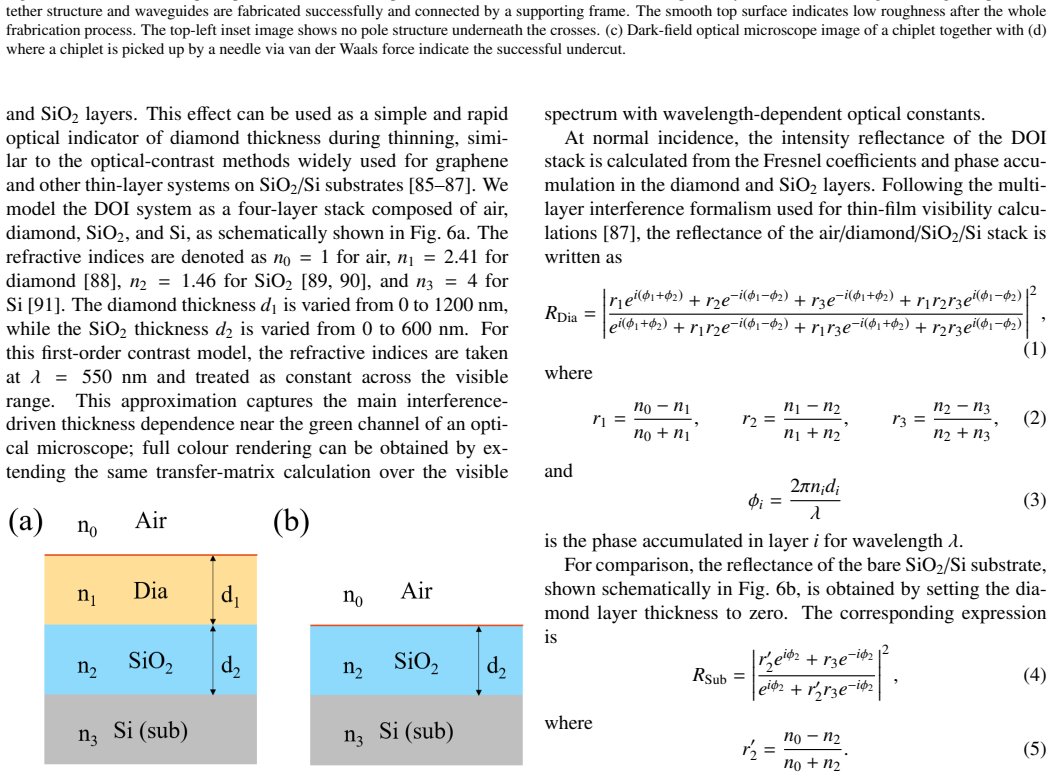

Figure 6. Figure 6: (a) Trilayer scheme of diamond on SiO2 / Si substrate and (b) bilayer scheme of the SiO2 / Si substrate. spectrum with wavelength-dependent optical constants. At normal incidence, the intensity reflectance of the DOI stack is calculated from the Fresnel coefficients and phase accu￾mulation in the diamond and SiO2 layers. Following the multi￾layer interference formalism used for thin-film visibility calcu￾l… view at source ↗
Figure 7

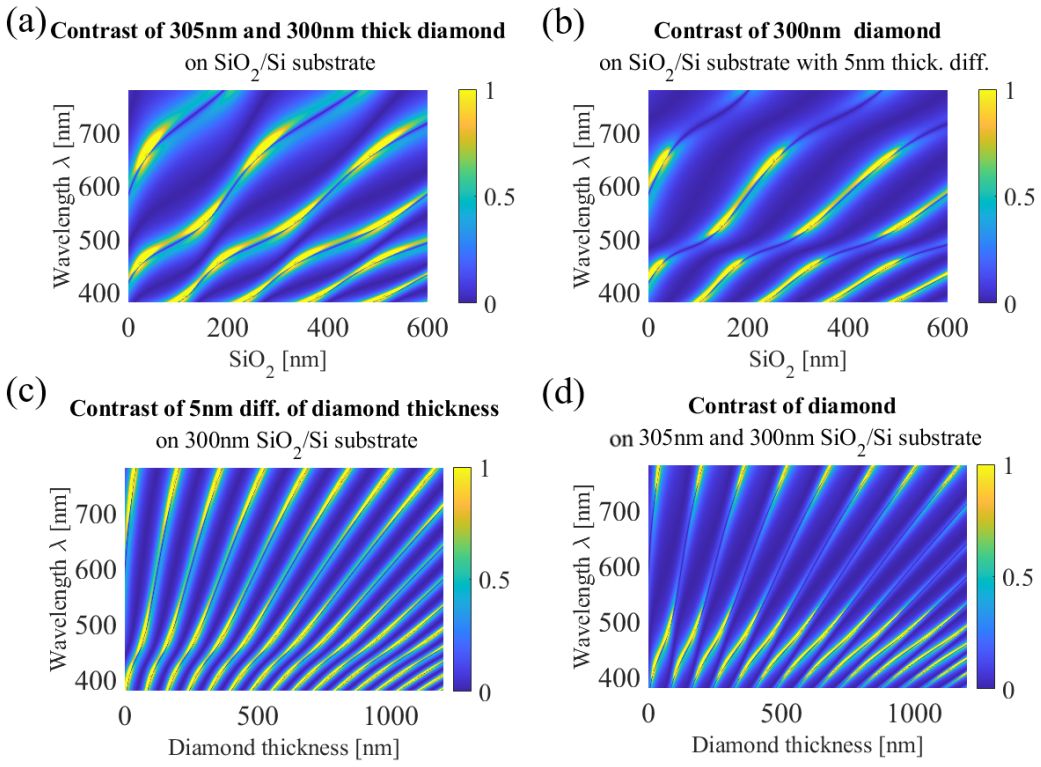

Figure 7. Figure 7: Contrast between (a) diamond layers with 305nm and 300nm thickness on SiO [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8

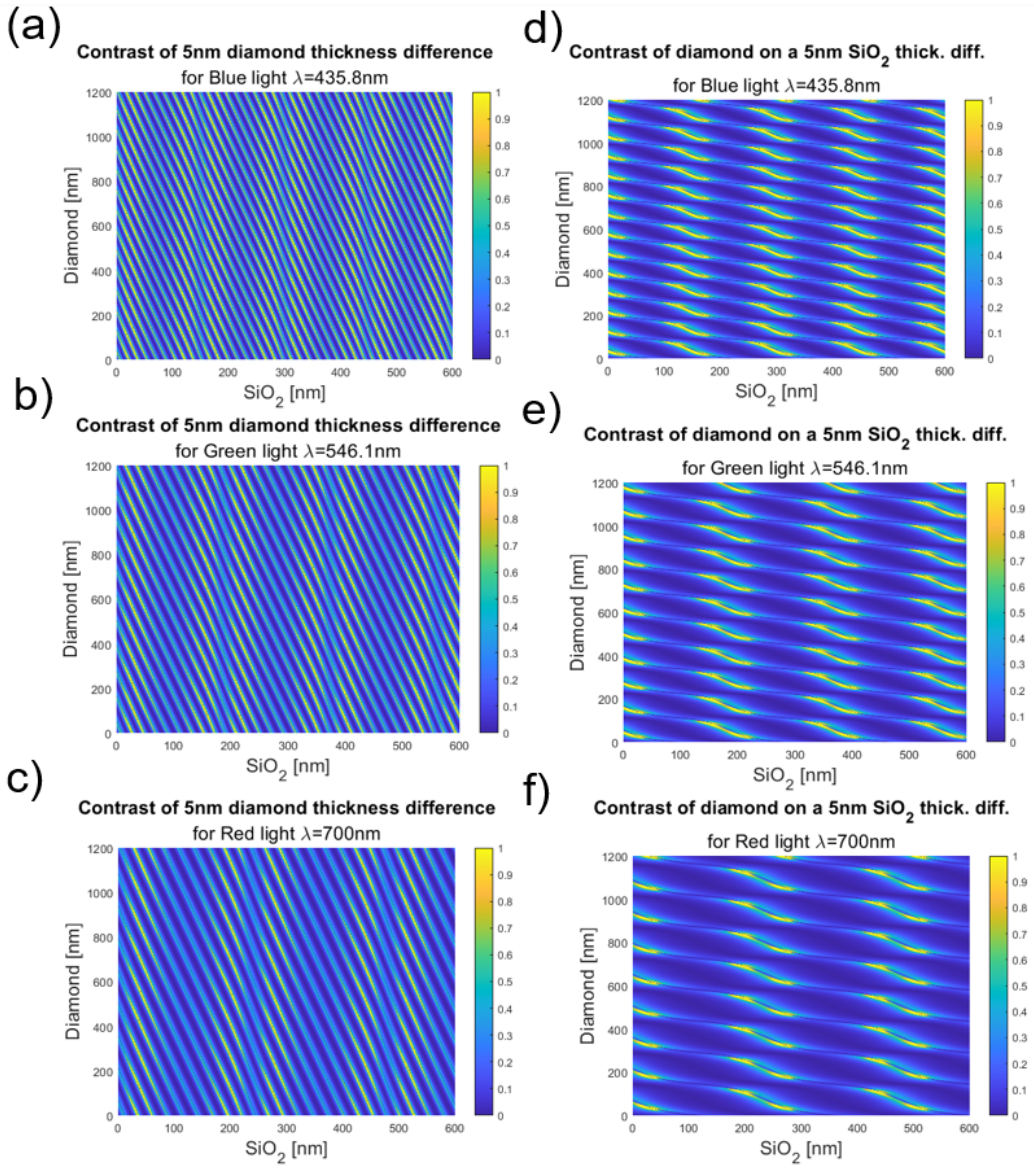

Figure 8. Figure 8: Contrast of diamond layers with 5nm thickness di [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9

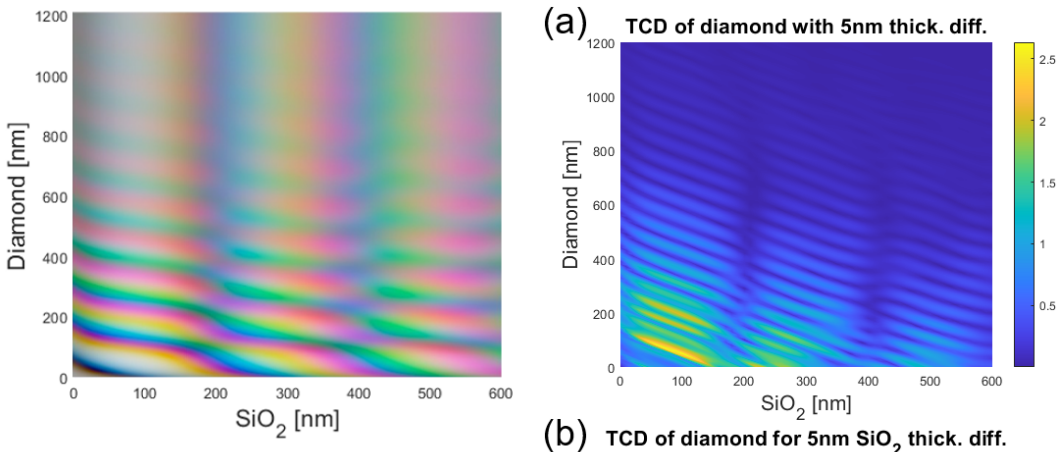

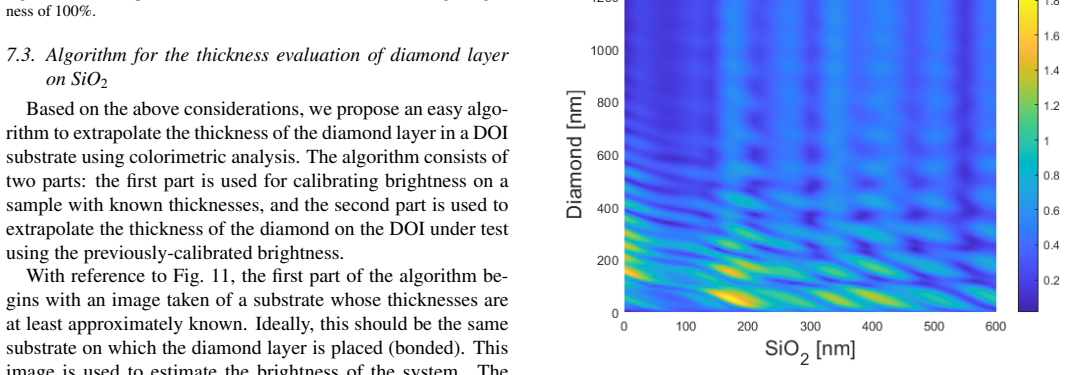

Figure 9. Figure 9: Colour map of diamond on a SiO2/Si substrate for assuming a bright￾ness of 100%. 7.3. Algorithm for the thickness evaluation of diamond layer on SiO2 Based on the above considerations, we propose an easy algo￾rithm to extrapolate the thickness of the diamond layer in a DOI substrate using colorimetric analysis. The algorithm consists of two parts: the first part is used for calibrating brightness on a samp… view at source ↗
Figure 10
Figure 10. Figure 10: Total Color Difference (TCD) for (a) diamond layers with 5nm thickness difference, (b) diamond layers with same thickness laying on SiO2 substrate with 5nm layer thickness. using the brightness parameter (P) obtained in the first part of the algorithm, and then transformed into CIE LAB coordinates (L ∗a ∗b ∗ ). Next, the system’s reflectivities are calculated over a range of diamond thicknesses. The calcu… view at source ↗
Figure 11

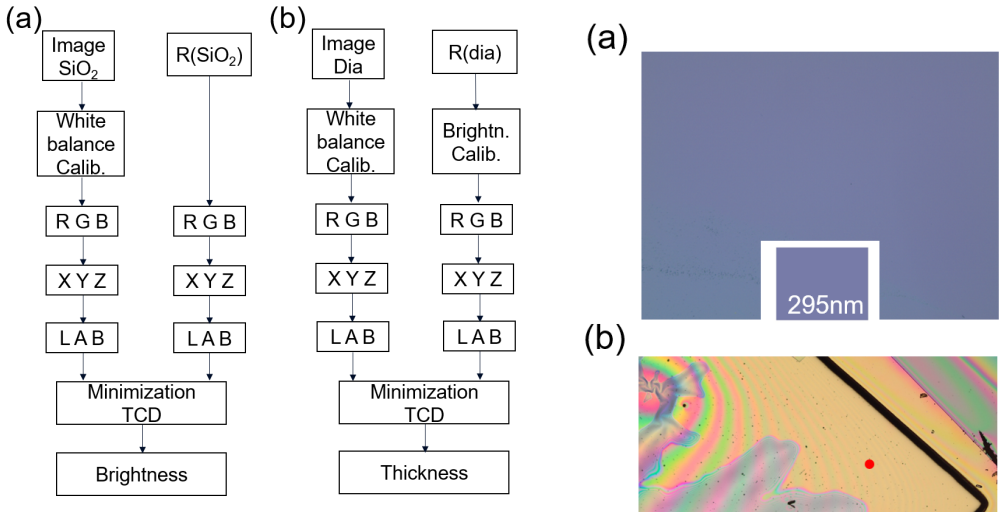

Figure 11. Figure 11: Schematics of the colorimetric algorithm used for the extrapolation [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
read the original abstract

Diamond color-center qubits integrated with photonic circuits can be initialized, manipulated, entangled, and read individually with high fidelity, making them attractive for large-scale modular quantum computers, quantum networks, and distributed quantum sensing. However, the limited size of heteroepitaxially grown single-crystal diamond (SCD) and photonic-grade diamond-on-insulator (DOI) substrates remains a challenge for integration with existing manufacturing processes. Here, we develop a plasma etch recipe to thin direct-bonded (100) SCD membranes (<50 $\mu$m) into large-area, thin-film DOI substrates, and demonstrate free-standing photonic chiplets fabricated from the resulting DOI. The ICP-RIE recipe preserves diamond bonding, provides sufficient micromasking and surface-quality control, and enables thin-film DOI manufacture. We thin a 10 $\mu$m diamond plate bonded to SiO$_2$/Si and obtain a photonic-grade DOI substrate with diamond thickness $\leq$300 nm. The DOI film is around 300 nm thick over 0.5 $\times$ 0.5 mm$^2$, with surface roughness < 0.5 nm, while the bonding interface remains intact. Diamond photonic chiplets are fabricated on this DOI substrate using a standard two-step lithography process, without complex thin-film transfer, under-etching, or pedestal formation. We also present a colorimetric study of diamond visibility on SiO$_2$ and quantify color differences across thicknesses in common colorimetric spaces. This analysis enables automatic diamond-thickness extrapolation from standard optical microscope images with 5 nm resolution, in good agreement with white-light interferometry (WLI) measurements. The DOI substrate and colorimetric thickness-evaluation method provide an effective fabrication platform and reliable validation route for scalable manufacturing of diamond nanophotonic devices, opening a path toward large-scale integrated quantum systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript describes the development of an ICP-RIE plasma etch recipe to thin direct-bonded (100) SCD membranes (<50 μm) bonded to SiO₂/Si into photonic-grade DOI substrates with diamond thickness ≤300 nm. It reports achieving this over 0.5 × 0.5 mm² areas with surface roughness <0.5 nm while preserving the bonding interface, followed by fabrication of free-standing photonic chiplets via standard lithography. A colorimetric method for diamond thickness evaluation on SiO₂ is also presented, claiming 5 nm resolution and agreement with white-light interferometry (WLI) measurements.

Significance. If substantiated with full process details and quantitative data, the work would provide a practical route to scalable DOI substrates for diamond color-center quantum photonics, avoiding complex thin-film transfer steps. The colorimetric thickness tool could enable simple, microscope-based validation in fabrication workflows. The experimental demonstration addresses a recognized bottleneck in diamond nanophotonics manufacturing.

major comments (3)
  1. [Methods] Methods section: No specific ICP-RIE parameters (gas flows, chamber pressure, RF/ICP powers, etch duration, or temperature) are reported, which directly undermines the central claim that a reproducible recipe achieves the stated thinning to ≤300 nm while preserving bonding and surface quality.
  2. [Results] Results on thickness and roughness: The claims of ≤300 nm thickness over 0.5 × 0.5 mm² and roughness <0.5 nm lack supporting data tables, AFM/WLI maps, error bars, or yield statistics across multiple samples or locations, making it impossible to assess uniformity or photonic-grade suitability.
  3. [Colorimetry] Colorimetry section: The stated 5 nm resolution and agreement with WLI are asserted without quantitative validation (e.g., no calibration curve, residual error analysis, or comparison table), which is load-bearing for the proposed automatic thickness extrapolation method.
minor comments (2)
  1. [Abstract] The abstract and text use 'photonic-grade' without defining the metric (e.g., specific loss or defect density thresholds) against which the substrate is evaluated.
  2. [Figures] Figure captions and axis labels for any thickness or roughness data should explicitly state measurement technique, number of samples, and uncertainty.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback and positive evaluation of the work's significance for diamond nanophotonics. We address each major comment below and commit to revisions that strengthen the manuscript's reproducibility and quantitative support.

read point-by-point responses

  1. Referee: [Methods] Methods section: No specific ICP-RIE parameters (gas flows, chamber pressure, RF/ICP powers, etch duration, or temperature) are reported, which directly undermines the central claim that a reproducible recipe achieves the stated thinning to ≤300 nm while preserving bonding and surface quality.

    Authors: We agree that explicit process parameters are required for reproducibility. The original manuscript focused on the overall process flow and outcomes; we will add a detailed table in the revised Methods section listing all ICP-RIE parameters including gas flows, chamber pressure, RF/ICP powers, etch duration, and temperature. revision: yes

  2. Referee: [Results] Results on thickness and roughness: The claims of ≤300 nm thickness over 0.5 × 0.5 mm² and roughness <0.5 nm lack supporting data tables, AFM/WLI maps, error bars, or yield statistics across multiple samples or locations, making it impossible to assess uniformity or photonic-grade suitability.

    Authors: The reported values derive from our measurements, but we acknowledge the need for more comprehensive presentation. In revision we will include representative AFM and WLI maps, a data table with thickness uniformity and roughness statistics from multiple locations and samples, error bars, and available yield information. revision: yes

  3. Referee: [Colorimetry] Colorimetry section: The stated 5 nm resolution and agreement with WLI are asserted without quantitative validation (e.g., no calibration curve, residual error analysis, or comparison table), which is load-bearing for the proposed automatic thickness extrapolation method.

    Authors: We agree that quantitative validation is essential. We will add a calibration curve, residual error analysis, and a direct comparison table between colorimetric thickness predictions and WLI measurements to the revised Colorimetry section to substantiate the claimed resolution and agreement. revision: yes

Circularity Check

0 steps flagged

No significant circularity: purely experimental demonstration

full rationale

The manuscript describes an experimental ICP-RIE thinning process for bonded diamond membranes, achieving specified thickness and roughness metrics, followed by chiplet fabrication and a colorimetric thickness-evaluation method validated against WLI. No equations, derivations, fitted models presented as predictions, or self-citation chains appear in the abstract or described claims. The colorimetric analysis is an empirical quantification and extrapolation tool, not a self-referential prediction. The work is self-contained against external benchmarks (WLI measurements) with no load-bearing steps that reduce to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical derivations or postulated entities; the central claims rest on experimental process parameters that are optimized rather than derived from first principles.

pith-pipeline@v0.9.1-grok · 5884 in / 1156 out tokens · 31074 ms · 2026-06-26T16:02:21.981534+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

97 extracted references · 86 canonical work pages · 3 internal anchors

  1. [1]

    C. M. Knaut, A. Suleymanzade, Y .-C. Wei, D. R. Assump- cao, P.-J. Stas, Y . Q. Huan, B. Machielse, E. N. Knall, M. Sutula, G. Baranes, N. Sinclair, C. De-Eknamkul, D. S. Levonian, M. K. Bhaskar, H. Park, M. Lon ˇcar, M. D. Lukin, Entanglement of nanophotonic quantum memory nodes in a telecom network, Nature 629 (8012) (2024) 573–578.doi:10.1038/s41586-02...

    work page doi:10.1038/s41586-024-07252-z 2024

  2. [2]

    M. Xu, D. Wang, K. Fu, D. H. Mudiyanselage, H. Fu, Y . Zhao, A review of ultrawide bandgap materials: prop- erties, synthesis and devices, Oxford Open Materials Sci- ence 2 (1) (2022) itac004.doi:10.1093/oxfmat/ita c004

    work page doi:10.1093/oxfmat/ita 2022

  3. [3]

    Aharonovich, A

    I. Aharonovich, A. D. Greentree, S. Prawer, Diamond photonics, Nature Photonics 5 (7) (2011) 397 – 405, 10.1038/nphoton.2011.54.doi:10.1038/nphoton. 2011.54

    work page doi:10.1038/nphoton.2011.54.doi:10.1038/nphoton 2011

  4. [4]

    Prawer, I

    S. Prawer, I. Aharonovich, Quantum Information Process- ing with Diamond: Principles and Applications, 1st Edi- tion, Woodhead Publishing, Limited, 2018

    2018

  5. [5]

    Material platforms for spin-based photonic quantum technologies

    M. Atatüre, D. Englund, N. Vamivakas, S.-Y . Lee, J. Wrachtrup, Material platforms for spin-based photonic quantum technologies, Nature Reviews Materials 491 (2018) 421.doi:10.1038/s41578-018-0008-9

    work page doi:10.1038/s41578-018-0008-9 2018

  6. [6]

    M. Ruf, N. H. Wan, H. Choi, D. Englund, R. Hanson, Quantum networks based on color centers in diamond, Journal of Applied Physics 130 (7) (2021) 070901.doi: 10.1063/5.0056534

    work page doi:10.1063/5.0056534 2021

  7. [7]

    Perez, A

    G. Perez, A. Maréchal, G. Chicot, P. Lefranc, P.-O. Jean- nin, D. Eon, N. Rouger, Diamond semiconductor perfor- mances in power electronics applications, Diamond and Related Materials 110 (2020) 108154.d o i : h t t p s : //doi.org/10.1016/j.diamond.2020.108154. URLhttps://www.sciencedirect.com/science/ article/pii/S092596352030707X

    work page doi:10.1016/j.diamond.2020.108154 2020

  8. [8]

    Donato, N

    N. Donato, N. Rouger, J. Pernot, G. Longobardi, F. Udrea, Diamond power devices: state of the art, modelling, fig- ures of merit and future perspective, Journal of Physics D: Applied Physics 53 (9) (2020) 093001.doi:10.1088/ 1361-6463/ab4eab

    2020

  9. [9]

    M. M. Hasan, C. Wang, N. Pala, M. Shur, Diamond for high-power, high-frequency, and terahertz plasma wave electronics, Nanomaterials 14 (5) (2024).doi:10.3390/ nano14050460. URLhttps://www.mdpi.com/2079-4991/14/5/460

    2024

  10. [10]

    Liang, N

    J. Liang, N. Shigekawa, Direct bonding of diamond and dissimilar materials for fabricating high performace power devices, in: S. Mandal, N. Yang (Eds.), Novel As- pects of Diamond II Science and Technology, Topics in Applied Physics, 2024, pp. 237–268.doi:10.1007/97 8-3-031-47556-6_9

    work page doi:10.1007/97 2024

  11. [11]

    Angelone, C

    M. Angelone, C. Verona, Properties of diamond-based neutron detectors operated in harsh environments, Jour- nal of Nuclear Engineering 2 (4) (2021) 422–470.doi: 10.3390/jne2040032. URLhttps://www.mdpi.com/2673-4362/2/4/32

    work page doi:10.3390/jne2040032 2021

  12. [12]

    V . K. Khanna, Diamond electronics for ultra-hot environ- ments, 2053-2563, IOP Publishing, 2023, Ch. 10, pp. 10– 1 to 10–33.doi:10.1088/978-0-7503-5072-3ch10. URLhttps://dx.doi.org/10.1088/978-0-7503- 5072-3ch10

    work page doi:10.1088/978-0-7503-5072-3ch10 2053

  13. [13]

    Umezawa, Diamond semiconductor devices for harsh environmental applications, in: 2022 6th IEEE Elec- tron Devices Technology & Manufacturing Conference 17 (EDTM), 2022, pp

    H. Umezawa, Diamond semiconductor devices for harsh environmental applications, in: 2022 6th IEEE Elec- tron Devices Technology & Manufacturing Conference 17 (EDTM), 2022, pp. 297–299.doi:10.1109/EDTM53 872.2022.9798392

    work page doi:10.1109/edtm53 2022

  14. [14]

    On-Chip Diamond Raman Laser

    P. Latawiec, V . Venkataraman, M. J. Burek, B. J. M. Haus- mann, I. Bulu, M. Lon ˇcar, On-chip diamond raman laser, Optica 2 (11) (2015) 924–928.arXiv:1509.00373, doi:10.1364/optica.2.000924

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1364/optica.2.000924 2015

  15. [15]

    B. J. M. Hausmann, I. Bulu, V . Venkataraman, P. Deotare, M. Lonˇcar, Diamond nonlinear photonics, Nature Photon- ics 8 (5) (2014) 369–374.doi:10.1038/nphoton.20 14.72

    work page doi:10.1038/nphoton.20 2014

  16. [16]

    Katsumi, K

    R. Katsumi, K. Takada, F. Jelezko, T. Yatsui, Recent progress in hybrid diamond photonics for quantum in- formation processing and sensing, Communications En- gineering 4 (1) (2025) 85, publisher: Nature Publishing Group.doi:10.1038/s44172-025-00398-2. URLhttps://www.nature.com/articles/s44172- 025-00398-2

    work page doi:10.1038/s44172-025-00398-2 2025

  17. [17]

    Bradac, W

    C. Bradac, W. Gao, J. Forneris, M. E. Trusheim, I. Aharonovich, Quantum nanophotonics with group IV defects in diamond, Nature Communications 10 (1) (2019) 5625.doi:10.1038/s41467-019-13332-w

    work page doi:10.1038/s41467-019-13332-w 2019

  18. [18]

    Janitz, M

    E. Janitz, M. K. Bhaskar, L. Childress, Cavity quantum electrodynamics with color centers in diamond, Optica 7 (10) (2020) 1232–1252, publisher: Optica Publishing Group.doi:10.1364/OPTICA.398628. URLhttps://opg.optica.org/optica/abstract .cfm?uri=optica-7-10-1232

    work page doi:10.1364/optica.398628 2020

  19. [19]

    Pezzagna, J

    S. Pezzagna, J. Meijer, Quantum computer based on color centers in diamond, Applied Physics Reviews 8 (1) (2021) 011308.doi:10.1063/5.0007444

    work page doi:10.1063/5.0007444 2021

  20. [20]

    Mizuochi, T

    N. Mizuochi, T. Makino, H. Kato, D. Takeuchi, M. Ogura, H. Okushi, M. Nothaft, P. Neumann, A. Gali, F. Jelezko, J. Wrachtrup, S. Yamasaki, Electrically driven single- photon source at room temperature in diamond, Nature Photonics 6 (5) (2012) 299–303.doi:10.1038/nphoto n.2012.75

    work page doi:10.1038/nphoto 2012

  21. [21]

    C. G. Torun, M. Gokce, T. K. Bracht, M. I. Monsalve, S. Benbouabdellah, O. O. Nacitarhan, M. E. Stucki, D. B. Alvaro, M. L. Markham, T. Pregnolato, J. H. D. Munns, G. Pieplow, D. E. Reiter, T. Schröder, SUPER and fem- tosecond spin-conserving coherent excitation of a tin- vacancy color center in diamond, Nature Communications 17 (1) (2026) 2154.doi:10.103...

    work page doi:10.1038/s41467- 2026

  22. [22]

    Nitrogen-Vacancy Centers in Diamond: Nanoscale Sensors for Physics and Biology

    R. Schirhagl, K. Chang, M. Loretz, C. L. Degen, Nitrogen-vacancy centers in diamond: Nanoscale sensors for physics and biology, dx.doi.org 65 (1) (2014) 83 – 105. doi:10.1146/annurev-physchem-040513-103659. URLh t t p s : / / d o i . o r g / 1 0 . 1 1 4 6 / a n n u r e v - physchem-040513-103659

    work page doi:10.1146/annurev-physchem-040513-103659 2014

  23. [23]

    E. V . Levine, M. J. Turner, P. Kehayias, C. A. Hart, N. Langellier, R. Trubko, D. R. Glenn, R. R. Fu, R. L. Walsworth, Principles and techniques of the quantum di- amond microscope, Nanophotonics 8 (11) (2019) 1945– 1973.doi:10.1515/nanoph-2019-0209

    work page doi:10.1515/nanoph-2019-0209 2019

  24. [24]

    Y . Wang, W. Zhang, H. Chai, Z. Zhang, S. Lin, X. Qin, J. Du, Fully integrated quantum magnetometer based on nitrogen-vacancy centers, Physical Review Applied 23 (3) (2025) 034008.doi:10.1103/physrevapplied.23. 034008

    work page doi:10.1103/physrevapplied.23 2025

  25. [25]

    Varveris, G

    I. Varveris, G. D. Aliberti, F. J. Barzilaij, Z. Jin, S. A. v. Rijs, Q. Dong, D. Brinks, S. Nur, R. Ishihara, Toward a CMOS-integrated quantum diamond biosensor based on NV centers (2026).arXiv:2602.20437,doi:10.485 50/arxiv.2602.20437. URLhttps://arxiv.org/abs/2602.20437

    arXiv 2026

  26. [26]

    G. D. Fuchs, G. Burkard, P. V . Klimov, D. D. Awschalom, A quantum memory intrinsic to single nitrogen–vacancy centres in diamond, Nature Physics 7 (10) (2011) 789– 793.doi:10.1038/nphys2026

    work page doi:10.1038/nphys2026 2011

  27. [27]

    P. C. Maurer, G. Kucsko, C. Latta, L. Jiang, N. Y . Yao, S. D. Bennett, F. Pastawski, D. Hunger, N. Chisholm, M. Markham, D. J. Twitchen, J. I. Cirac, M. D. Lukin, Room-temperature quantum bit memory exceeding one second, Science 336 (6086) (2012) 1283 – 1286.doi: 10.1126/science.1220513. URLhttp://science.sciencemag.org/content/3 36/6086/1283

    work page doi:10.1126/science.1220513 2012

  28. [28]

    C. E. Bradley, S. W. d. Bone, P. F. W. Möller, S. Baier, M. J. Degen, S. J. H. Loenen, H. P. Bartling, M. Markham, D. J. Twitchen, R. Hanson, D. Elkouss, T. H. Taminiau, Robust quantum-network memory based on spin qubits in isotopically engineered diamond, npj Quantum Informa- tion 8 (1) (2022) 122.doi:10.1038/s41534- 022- 00637-w

    work page doi:10.1038/s41534- 2022

  29. [29]

    Pompili, S

    M. Pompili, S. L. N. Hermans, S. Baier, H. K. C. Beukers, P. C. Humphreys, R. N. Schouten, R. F. L. Vermeulen, M. J. Tiggelman, L. d. S. Martins, B. Dirkse, S. Wehner, R. Hanson, Realization of a multinode quantum network of remote solid-state qubits, Science 372 (6539) (2021) 259–264.arXiv:2102.04471,doi:10.1126/scienc e.abg1919

    work page doi:10.1126/scienc 2021

  30. [30]

    Stas, Y .-C

    P.-J. Stas, Y .-C. Wei, M. Sirotin, Y . Q. Huan, U. Ya- zlar, F. A. Arias, E. Knyazev, G. Baranes, B. Machielse, S. Grandi, D. Riedel, J. Borregaard, H. Park, M. Lon ˇcar, A. Suleymanzade, M. D. Lukin, Entanglement-assisted non-local optical interferometry in a quantum network, Nature 651 (8105) (2026) 326–332.arXiv:2509.09464, doi:10.1038/s41586-026-10171-w

    work page doi:10.1038/s41586-026-10171-w 2026

  31. [31]

    P. K. Shandilya, S. Flgan, N. C. Carvalho, E. Zohari, V . K. Kavatamane, J. E. Losby, P. E. Barclay, Diamond integrated quantum nanophotonics: Spins, photons and 18 phonons, IEEE/OSA Journal of Lightwave Technology 40 (23) (2022) 7538–7571.a r X i v : 2 2 0 7 . 0 8 8 44, doi:10.1109/jlt.2022.3210466

    work page doi:10.1109/jlt.2022.3210466 2022

  32. [32]

    D. D. Awschalom, R. Hanson, J. Wrachtrup, B. B. Zhou, Quantum technologies with optically interfaced solid- state spins, Nature Photonics 12 (9) (2018) 516 – 527. doi:10.1038/s41566-018-0232-2. URLhttps://www.nature.com/articles/s41566- 018-0232-2

    work page doi:10.1038/s41566-018-0232-2 2018

  33. [33]

    Ishihara, J

    R. Ishihara, J. Hermias, S. Yu, K. Y . Yu, Y . Li, S. Nur, T. Iwai, T. Miyatake, K. Kawaguchi, Y . Doi, S. Sato, 3D Integration Technology for Quantum Computer based on Diamond Spin Qubits, in: 2021 IEEE International Elec- tron Devices Meeting (IEDM), IEEE, San Francisco, CA, USA, 2021, pp. 14.5.1–14.5.4.doi:10.1109/IEDM1957 4.2021.9720552

    work page doi:10.1109/iedm1957 2021

  34. [34]

    N. H. Wan, T.-J. Lu, K. C. Chen, M. P. Walsh, M. E. Trusheim, L. D. Santis, E. A. Bersin, I. B. Harris, S. L. Mouradian, I. R. Christen, E. S. Bielejec, D. Englund, Large-scale integration of artificial atoms in hybrid pho- tonic circuits, Nature 583 (2020) 226–231.a r X i v : 1911.05265,doi:10.1038/s41586-020-2441-3. URLhttps://www.nature.com/articles/s4...

    work page doi:10.1038/s41586-020-2441-3 2020

  35. [35]

    S. W. Ding, C. Jin, K. Kuruma, X. Guo, M. Haas, B. Ko- rzh, A. Beyer, M. D. Shaw, N. Sinclair, D. D. Awschalom, F. J. Heremans, N. Delegan, A. A. High, M. Loncar, Purcell-enhanced emissions from diamond color centers in slow light photonic crystal waveguides, Nano Letters 25 (32) (2025) 12125–12131.doi:10.1021/acs.nano lett.5c01079

    work page doi:10.1021/acs.nano 2025

  36. [36]

    Fischer, Y

    J. Fischer, Y . Herrmann, C. F. J. Wolfs, S. Scheijen, M. Ruf, R. Hanson, Spin-photon correlations from a purcell-enhanced diamond nitrogen-vacancy center cou- pled to an open microcavity, Nature Communications 16 (1) (2025) 11680.a r X i v : 2 5 0 6 . 2 0 7 22,d o i : 10.1038/s41467-025-66722-8

    work page doi:10.1038/s41467-025-66722-8 2025

  37. [37]

    S. W. Ding, M. Haas, X. Guo, K. Kuruma, C. Jin, Z. Li, D. D. Awschalom, N. Delegan, F. J. Heremans, A. A. High, M. Loncar, High-Q cavity interface for color cen- ters in thin film diamond, Nature Communications 15 (1) (2024) 6358, publisher: Nature Publishing Group.doi: 10.1038/s41467-024-50667-5. URLhttps://www.nature.com/articles/s41467- 024-50667-5

    work page doi:10.1038/s41467-024-50667-5 2024

  38. [38]

    A. E. Rugar, S. Aghaeimeibodi, D. Riedel, C. Dory, H. Lu, P. J. McQuade, Z.-X. Shen, N. A. Melosh, J. Vu ˇckovi´c, Quantum Photonic Interface for Tin-Vacancy Centers in Diamond, Physical Review X 11 (3) (2021) 031021, pub- lisher: American Physical Society.doi:10.1103/Phys RevX.11.031021. URLhttps://link.aps.org/doi/10.1103/PhysR evX.11.031021

    work page doi:10.1103/phys 2021

  39. [39]

    H. Lee, H. C. Kleidermacher, A. J. Stein, H. Oh, L. B. H. Wyatt, C. K. Kim, L. Basso, A. M. Mounce, Y . Wang, S. S. Su, M. Titze, A. C. B. Jayich, J. Vuˇckovi´c, Quantum nanophotonic interface for tin-vacancy centers in thin-film diamond, Physical Review Applied 25 (4) (2026) 044074. doi:10.1103/vwt7-b64x

    work page doi:10.1103/vwt7-b64x 2026

  40. [40]

    Riedel, T

    D. Riedel, T. Graziosi, Z. Wang, C. De-Eknamkul, A. Ab- ulnaga, J. Dietz, A. Mucchietto, M. Haas, M. Sutula, P. Barral, M. Pompili, M. Raha, C. Robens, J. Ha, D. Sukachev, D. Levonian, M. Bhaskar, M. Markham, B. Machielse, Scalable photonic quantum interconnect platform, Physical Review X 16 (1) (2026) 011063.doi: 10.1103/nfrg-zsts

    work page doi:10.1103/nfrg-zsts 2026

  41. [41]

    D. Rani, O. R. Opaluch, E. Neu, Recent advances in single crystal diamond device fabrication for photonics, sensing and nanomechanics, Micromachines 12 (1) (2020) 36.do i:10.3390/mi12010036

    work page doi:10.3390/mi12010036 2020

  42. [42]

    P. Hill, E. Gu, M. D. Dawson, M. J. Strain, Thin film di- amond membranes bonded on-demand with SOI ring res- onators, Diamond and Related Materials 88 (2018) 215– 221.doi:10.1016/j.diamond.2018.07.020

    work page doi:10.1016/j.diamond.2018.07.020 2018

  43. [43]

    A. H. Piracha, P. Rath, K. Ganesan, S. Kühn, W. H. P. Pernice, S. Prawer, Scalable Fabrication of Integrated Nanophotonic Circuits on Arrays of Thin Single Crys- tal Diamond Membrane Windows, Nano Letters 16 (5) (2016) 3341–3347, publisher: American Chemical Soci- ety.doi:10.1021/acs.nanolett.6b00974. URLhttps://doi.org/10.1021/acs.nanolett.6 b00974

    work page doi:10.1021/acs.nanolett.6b00974 2016

  44. [44]

    Uwihoreye, Y

    V . Uwihoreye, Y . Hu, G. Cao, X. Zhang, F. E. Oropeza, K. H. L. Zhang, Recent progress on heteroepitaxial growth of single crystal diamond films, Electron 2 (4) (2024).doi:10.1002/elt2.70

    work page doi:10.1002/elt2.70 2024

  45. [46]

    Mandal, Nucleation of diamond films on heteroge- neous substrates: a review, RSC Advances 11 (17) (2021) 10159–10182.doi:10.1039/d1ra00397f

    S. Mandal, Nucleation of diamond films on heteroge- neous substrates: a review, RSC Advances 11 (17) (2021) 10159–10182.doi:10.1039/d1ra00397f

    work page doi:10.1039/d1ra00397f 2021

  46. [47]

    T. Chen, J. Hermias, S. Nur, R. Ishihara, Hydrophilic di- rect bonding of (100) diamond and deposited SiO2 sub- strates, Applied Physics Letters 126 (23) (2025) 231901. doi:10.1063/5.0263008. URLhttps://doi.org/10.1063/5.0263008

    work page doi:10.1063/5.0263008 2025

  47. [48]

    M. J. Burek, Y . Chu, M. S. Z. Liddy, P. Patel, J. Rochman, S. Meesala, W. Hong, Q. Quan, M. D. Lukin, M. Lon ˇcar, High quality-factor optical nanocavities in bulk single- crystal diamond, Nature Communications 5 (2014) 5718. 19 doi:10.1038/ncomms6718. URLhttp://www.nature.com/ncomms/2014/14121 6/ncomms6718/full/ncomms6718.html

    work page doi:10.1038/ncomms6718 2014

  48. [49]

    J. C. Lee, A. P. Magyar, D. O. Bracher, I. Aharonovich, E. L. Hu, Fabrication of thin diamond membranes for photonic applications, Diamond and Related Materials 33 (2013) 45–48.doi:10.1016/j.diamond.2012.12.00 8

    work page doi:10.1016/j.diamond.2012.12.00 2013

  49. [50]

    X. Guo, N. Delegan, J. C. Karsch, Z. Li, T. Liu, R. Shreiner, A. Butcher, D. D. Awschalom, F. J. Here- mans, A. A. High, Tunable and Transferable Diamond Membranes for Integrated Quantum Technologies, Nano Letters 21 (24) (2021) 10392–10399, publisher: Ameri- can Chemical Society.doi:10.1021/acs.nanolett.1 c03703. URLhttps://doi.org/10.1021/acs.nanolett.1 c03703

    work page doi:10.1021/acs.nanolett.1 2021

  50. [51]

    X. Guo, M. Xie, A. Addhya, A. Linder, U. Zvi, S. Wang, X. Yu, T. D. Deshmukh, Y . Liu, I. N. Hammock, Z. Li, C. T. DeVault, A. Butcher, A. P. Esser-Kahn, D. D. Awschalom, N. Delegan, P. C. Maurer, F. J. Heremans, A. A. High, Direct-bonded diamond membranes for het- erogeneous quantum and electronic technologies, Nature Communications 15 (1) (2024) 8788.do...

    work page doi:10.1038/s4 2024

  51. [52]

    Khanaliloo, M

    B. Khanaliloo, M. Mitchell, A. C. Hryciw, P. E. Barclay, High-q/v monolithic diamond microdisks fabricated with quasi-isotropic etching, Nano Letters 15 (8) (2015) 5131– 5136, pMID: 26134379.doi:10.1021/acs.nanolett .5b01346. URLhttps://doi.org/10.1021/acs.nanolett.5 b01346

    work page doi:10.1021/acs.nanolett 2015

  52. [53]

    S. Mi, M. Kiss, T. Graziosi, N. Quack, Integrated photonic devices in single crystal diamond, Journal of Physics: Photonics 2 (4) (2020) 042001, publisher: IOP Publish- ing.doi:10.1088/2515-7647/aba171. URLhttps://doi.org/10.1088/2515-7647/aba17 1

    work page doi:10.1088/2515-7647/aba171 2020

  53. [54]

    Cross Waveguide Design for Color-Centers in Diamond for Photonic Quantum Computing

    A. Miranda, R. Ishihara, S. Nur, Cross waveguide de- sign for color-centers in diamond for photonic quantum computing, arXiv (2026).a r X i v : 2 6 0 4 . 1 9 5 94, doi:10.48550/arxiv.2604.19594. URLhttps://arxiv.org/abs/2604.19594

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.48550/arxiv.2604.19594 2026

  54. [55]

    Corazza, S

    A. Corazza, S. Ruffieux, Y . Zhu, C. A. J. Concha, Y . Fontana, C. Galland, R. J. Warburton, P. Maletinsky, Homogeneous free-standing nanostructures from bulk di- amond over millimeter scales for quantum technologies, Nano Letters 25 (40) (2025) 14526–14533.doi:10.102 1/acs.nanolett.5c03083

    2025

  55. [56]

    Bruel, Silicon on insulator material technology, Elec- tronics Letters 31 (14) (1995) 1201–1202.doi:10.104 9/el:19950805

    M. Bruel, Silicon on insulator material technology, Elec- tronics Letters 31 (14) (1995) 1201–1202.doi:10.104 9/el:19950805

    1995

  56. [57]

    Bogaerts, D

    W. Bogaerts, D. Taillaert, B. Luyssaert, P. Dumon, J. V . Campenhout, P. Bienstman, D. V . Thourhout, R. Baets, V . Wiaux, S. Beckx, Basic structures for photonic in- tegrated circuits in silicon-on-insulator, Optics Express 12 (8) (2004) 1583.doi:10.1364/opex.12.001583

    work page doi:10.1364/opex.12.001583 2004

  57. [58]

    Plößl, G

    A. Plößl, G. Kräuter, Silicon-on-insulator: materials as- pects and applications, Solid-State Electronics 44 (5) (2000) 775–782.doi:10.1016/s0038- 1101(99)0 0273-7

    work page doi:10.1016/s0038- 2000

  58. [59]

    Y . A. Vlasov, S. J. McNab, Losses in single-mode silicon- on-insulator strip waveguides and bends, Optics Express 12 (8) (2004) 1622.doi:10.1364/opex.12.001622

    work page doi:10.1364/opex.12.001622 2004

  59. [60]

    Ashida, M

    K. Ashida, M. Okano, T. Yasuda, M. Ohtsuka, M. Seki, N. Yokoyama, K. Koshino, K. Yamada, Y . Takahashi, Photonic crystal nanocavities with an average q factor of 1.9 million fabricated on a 300-mm-wide SOI wafer using a CMOS-compatible process, Journal of Lightwave Tech- nology 36 (20) (2018) 4774–4782.doi:10.1109/jlt. 2018.2861894

    work page doi:10.1109/jlt 2018

  60. [61]

    Nur, H.-J

    S. Nur, H.-J. Lim, J. Elzerman, J. J. L. Morton, Silicon photonic crystal cavities at near band-edge wavelengths, Applied Physics Letters 114 (9) (2019) 091101.doi: 10.1063/1.5067358. URLhttps://doi.org/10.1063/1.5067358

    work page doi:10.1063/1.5067358 2019

  61. [62]

    G. T. Reed, G. Mashanovich, F. Y . Gardes, D. J. Thomson, Silicon optical modulators, Nature Photonics 4 (8) (2010) 518–526.doi:10.1038/nphoton.2010.179

    work page doi:10.1038/nphoton.2010.179 2010

  62. [63]

    Khanaliloo, H

    B. Khanaliloo, H. Jayakumar, A. C. Hryciw, D. P. Lake, H. Kaviani, P. E. Barclay, Single-crystal diamond nanobeam waveguide optomechanics, Physical Review X 5 (4) (2015) 041051.doi:10.1103/physrevx.5.041 051

    work page doi:10.1103/physrevx.5.041 2015

  63. [64]

    Sipahigil, R

    A. Sipahigil, R. E. Evans, D. D. Sukachev, M. J. Bu- rek, J. Borregaard, M. K. Bhaskar, C. T. Nguyen, J. L. Pacheco, H. A. Atikian, C. Meuwly, R. M. Camacho, F. Jelezko, E. Bielejec, H. Park, M. Lon ˇcar, M. D. Lukin, An integrated diamond nanophotonics platform for quantum-optical networks, Science 354 (6314) (2016) 847–850, publisher: American Associati...

    work page doi:10.1126/science.aa 2016

  64. [65]

    Pasini, N

    M. Pasini, N. Codreanu, T. Turan, A. R. Moral, C. F. Pri- mavera, L. D. Santis, H. K. C. Beukers, J. M. Brevoord, C. Waas, J. Borregaard, R. Hanson, Nonlinear quantum photonics with a tin-vacancy center coupled to a one- dimensional diamond waveguide, Physical Review Let- ters 133 (2) (2024) 023603.a r X i v : 2 3 1 1 . 1 2 9 27, doi:10.1103/physrevlett.1...

    work page doi:10.1103/physrevlett.133.023603 2024

  65. [66]

    Jiang, S

    N. Jiang, S. Noguchi, K. Nishimura, T. Inaoka, Y . Shin- tani, A. Hiraki, Growth and characterization of diamond films on SiO2/si substrates, Japanese Journal of Applied Physics 41 (11R) (2002) 6493.doi:10.1143/jjap.4 1.6493

    work page doi:10.1143/jjap.4 2002

  66. [67]

    W. Wang, B. Liu, L. Zhang, J. Han, K. Liu, B. Dai, J. Zhu, Heteroepitaxy of diamond semiconductor on iridium: a review, Functional Diamond 2 (1) (2022) 215–235.doi: 10.1080/26941112.2022.2162348

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1080/26941112.2022.2162348 2022

  67. [68]

    Chrétien, P

    J. Chrétien, P. Gilles, F. Milesi, F. Berger, N. Bernier, N. Gauthier, G. Lapertot, C. Lecouvey, D. Mariolle, L. Colonel, P. Acosta Alba, F. Mazen, J. Widiez, I. Huyet, L. Le Van-Jodin, Transfer of diamond thin films using Smart Cut™technology, Diamond and Related Materi- als 155 (2025) 112295.doi:10.1016/j.diamond.20 25.112295. URLhttps://www.sciencedire...

    work page doi:10.1016/j.diamond.20 2025

  68. [69]

    M. Ruf, M. IJspeert, S. van Dam, N. de Jong, H. van den Berg, G. Evers, R. Hanson, Optically Coherent Nitrogen- Vacancy Centers in Micrometer-Thin Etched Diamond Membranes, Nano Letters 19 (6) (2019) 3987–3992, pub- lisher: American Chemical Society.doi:10.1021/acs. nanolett.9b01316. URLhttps://doi.org/10.1021/acs.nanolett.9 b01316

    work page doi:10.1021/acs 2019

  69. [70]

    Hicks, A

    M.-L. Hicks, A. C. Pakpour-Tabrizi, R. B. Jackman, Dia- mond Etching Beyond 10µm with Near-Zero Micromask- ing, Scientific Reports 9 (1) (2019) 15619, publisher: Na- ture Publishing Group.doi:10.1038/s41598- 019- 51970-8. URLhttps://www.nature.com/articles/s41598- 019-51970-8

    work page doi:10.1038/s41598- 2019

  70. [71]

    Toros, M

    A. Toros, M. Kiss, T. Graziosi, S. Mi, R. Berrazouane, M. Naamoun, J. Vukajlovic Plestina, P. Gallo, N. Quack, Reactive ion etching of single crystal diamond by in- ductively coupled plasma: State of the art and catalog of recipes, Diamond and Related Materials 108 (2020) 107839.doi:10.1016/j.diamond.2020.107839. URLhttps://www.sciencedirect.com/science/ ...

    work page doi:10.1016/j.diamond.2020.107839 2020

  71. [72]

    Heupel, M

    J. Heupel, M. Pallmann, J. Körber, R. Merz, M. Kop- narski, R. Stöhr, J. P. Reithmaier, D. Hunger, C. Popov, Fabrication and Characterization of Single-Crystal Dia- mond Membranes for Quantum Photonics with Tunable Microcavities, Micromachines 11 (12) (2020) 1080, pub- lisher: Multidisciplinary Digital Publishing Institute.do i:10.3390/mi11121080. URLhttp...

    work page doi:10.3390/mi11121080 2020

  72. [73]

    M. J. Burek, N. P. de Leon, B. J. Shields, B. J. M. Haus- mann, Y . Chu, Q. Quan, A. S. Zibrov, H. Park, M. D. Lukin, M. Lon ˇcar, Free-standing mechanical and pho- tonic nanostructures in single-crystal diamond, Nano Let- ters 12 (12) (2012) 6084–6089, pMID: 23163557.doi: 10.1021/nl302541e. URLhttps://doi.org/10.1021/nl302541e

    work page doi:10.1021/nl302541e 2012

  73. [74]

    Hicks, A

    M.-L. Hicks, A. C. Pakpour-Tabrizi, V . Zuerbig, L. Kirste, C. Nebel, R. B. Jackman, Optimizing reactive ion etch- ing to remove sub-surface polishing damage on diamond, Journal of Applied Physics 125 (24) (2019) 244502.doi: 10.1063/1.5094751. URLhttps://doi.org/10.1063/1.5094751

    work page doi:10.1063/1.5094751 2019

  74. [76]

    D. S. Hwang, T. Saito, N. Fujimori, New etching pro- cess for device fabrication using diamond, Diamond and Related Materials 13 (11) (2004) 2207–2210.d o i : 10.1016/j.diamond.2004.07.020. URLhttps://www.sciencedirect.com/science/ article/pii/S0925963504002572

    work page doi:10.1016/j.diamond.2004.07.020 2004

  75. [77]

    Enlund, J

    J. Enlund, J. Isberg, M. Karlsson, F. Nikolajeff, J. Olsson, D. J. Twitchen, Anisotropic dry etching of boron doped single crystal CVD diamond, Carbon 43 (9) (2005) 1839– 1842.doi:10.1016/j.carbon.2005.02.022. URLhttps://www.sciencedirect.com/science/ article/pii/S0008622305001284

    work page doi:10.1016/j.carbon.2005.02.022 2005

  76. [78]

    B. J. M. Hausmann, M. Khan, Y . Zhang, T. M. Babinec, K. Martinick, M. McCutcheon, P. R. Hemmer, M. Lonˇcar, Fabrication of diamond nanowires for quantum informa- tion processing applications, Diamond and Related Mate- rials 19 (5) (2010) 621–629.doi:10.1016/j.diamon d.2010.01.011. URLhttps://www.sciencedirect.com/science/ article/pii/S0925963510000312

    work page doi:10.1016/j.diamon 2010

  77. [79]

    C. L. Lee, E. Gu, M. D. Dawson, I. Friel, G. A. Scars- brook, Etching and micro-optics fabrication in diamond using chlorine-based inductively-coupled plasma, Dia- mond and Related Materials 17 (7) (2008) 1292–1296. doi:10.1016/j.diamond.2008.01.011. URLhttps://www.sciencedirect.com/science/ article/pii/S0925963508000174

    work page doi:10.1016/j.diamond.2008.01.011 2008

  78. [80]

    P. F. Egan, Expansivity of fused quartz glass measured within 6×10-10k-1, International Journal of Thermo- physics 45 (9) (2024) 131.doi:10.1007/s10765- 024-03422-3

    work page doi:10.1007/s10765- 2024

  79. [81]

    A. Kelly, Composite materials for thermal expansivity matching and high heat flux thermal management, Key 21 Engineering Materials 334-335 (2007) 1017–1020.doi: 10.4028/www.scientific.net/kem.334-335.1017

    work page doi:10.4028/www.scientific.net/kem.334-335.1017 2007

  80. [82]

    Haisma, B

    J. Haisma, B. A. C. M. Spierings, U. K. P. Biermann, A. A. Van Gorkum, Diversity and feasibility of direct bonding: A survey of a dedicated optical technology, Applied Op- tics 33 (7) (1994) 1154.doi:10.1364/AO.33.001154

    work page doi:10.1364/ao.33.001154 1994

Showing first 80 references.
