High-speed Networking for Giga-Scale AI Factories

Albert Gran Alcoz; Alon Gal; Amit Nishry; Barak Gafni; Dror Goldenberg; Gilad Shainer; Jacky Romano; Lior Maman; Mark Silberstein; Matty Kadosh

arxiv: 2605.21187 · v1 · pith:BZWASEE7new · submitted 2026-05-20 · 💻 cs.NI · cs.AI· cs.DC

High-speed Networking for Giga-Scale AI Factories

Sajy Khashab , Albert Gran Alcoz , Alon Gal , Jacky Romano , Rani Abboud , Yonatan Piasetzky , Lior Maman , Amit Nishry

show 6 more authors

Barak Gafni Omer Shabtai Matty Kadosh Dror Goldenberg Gilad Shainer Mark Silberstein

This is my paper

Pith reviewed 2026-05-21 01:27 UTC · model grok-4.3

classification 💻 cs.NI cs.AIcs.DC

keywords high-speed networkingAI training clustersmultiplane architecturehardware load balancingEthernetlow latencyGPU fabriclink failure resilience

0 comments

The pith

Spectrum-X multiplane Ethernet with hardware load balancing sustains 98% line rate and low jitter for hundred-thousand-GPU AI training.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Distributed AI training now spans hundreds of thousands of GPUs and creates traffic that changes at microsecond scales, overwhelming conventional hierarchical networks. The paper shows that replacing depth with parallel planes and performing load balancing in hardware inside NICs and switches lets the fabric react quickly enough to keep utilization high and latency stable. This produces networks that deliver 98% of theoretical speed with minimal jitter, isolate concurrent workloads, maintain proportional bandwidth, and recover from link failures with only a small latency penalty. If the approach holds, Ethernet can serve as the primary fabric for giga-scale AI clusters without custom alternatives. The design was validated on production-scale systems running real LLM training jobs.

Core claim

The Spectrum-X multiplane architecture replaces hierarchical depth with topological parallelism and adds hardware-accelerated load balancing in NICs and switches to handle the microsecond-timescale dynamics of AI training traffic. This combination yields 98% of theoretical line rate with low jitter-free latency, strong cross-tenant isolation, capacity-proportional bisection bandwidth, and only a 7% latency increase under 10% fabric link failures during LLM training.

What carries the argument

Multiplane topology paired with hardware-accelerated load balancing inside NICs and switches that reacts at microsecond timescales.

Load-bearing premise

AI training creates network conditions that fluctuate so rapidly at microsecond scales that only hardware load balancing can keep utilization and latency stable.

What would settle it

A controlled run of the same LLM training workload on an equivalent-scale cluster showing that software load balancing or a traditional hierarchical Ethernet fabric achieves within a few percent of the reported utilization and latency numbers.

Figures

Figures reproduced from arXiv: 2605.21187 by Albert Gran Alcoz, Alon Gal, Amit Nishry, Barak Gafni, Dror Goldenberg, Gilad Shainer, Jacky Romano, Lior Maman, Mark Silberstein, Matty Kadosh, Omer Shabtai, Rani Abboud, Sajy Khashab, Yonatan Piasetzky.

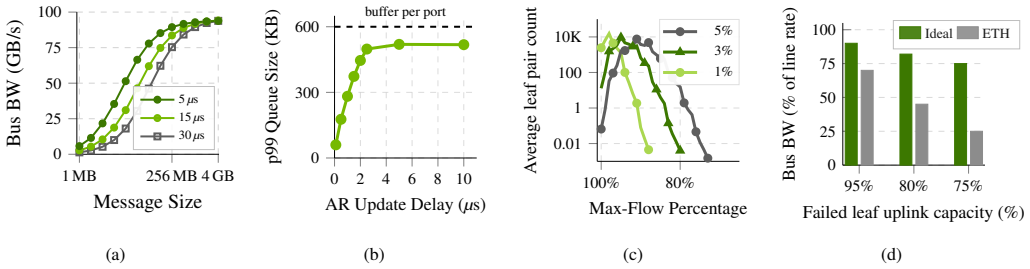

**Figure 1.** Figure 1: 1a Impact of network latency on All2All collective (256-endpoint simulation).1b Impact of switch load balancing delay on queue size. 1c Leaf-to-leaf max-flow distribution simulation. 1d All2All bandwidth under partial uplink failure. Host 1 NIC1 NIC2 NIC3 NIC4 GPU1 GPU2 GPU3 GPU4 Scale-up Fabric Host 2 NIC1 NIC2 NIC3 NIC4 GPU1 GPU2 GPU3 GPU4 Plane 4 Plane 3 Plane 2 Plane 1 Spine 1 Spine M Leaf 1 GPU Rail 1… view at source ↗

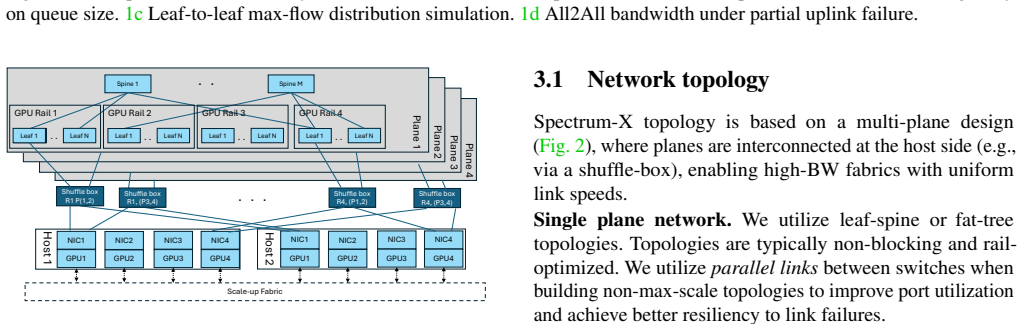

**Figure 2.** Figure 2: SPX topology overview: 2-level FT Multiplane rail [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 4.** Figure 4: NIC per-packet plane selection: (1) generate packet from QPs, (2) query CC contexts and mask rate-limited or failed planes, (3) choose shallowest eligible egress queue. This hierarchy ensures that E2E congestion state takes precedence: congested planes are excluded before local queue depth is consulted. Local queue depth provides fine-grained tie-breaking among uncontested planes. 4.4 Resiliency 4.4.1 Endp… view at source ↗

**Figure 3.** Figure 3: Congestion signaling and load balancing reaction [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 7.** Figure 7: Debugging using high-frequency telemetry (HFT). [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

**Figure 6.** Figure 6: Leaf switch per-port uplink BW: (a) AR expected [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

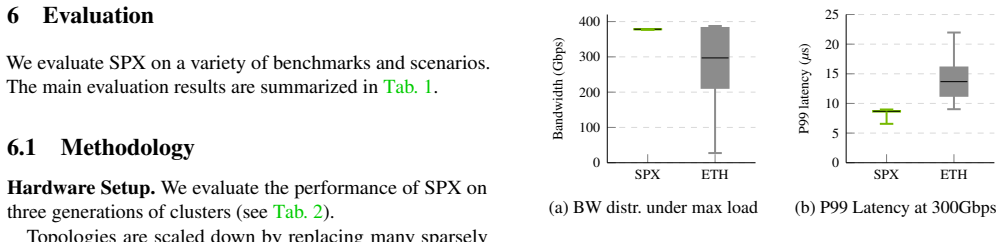

**Figure 8.** Figure 8: Performance under load: SPX vs. Ethernet (ETH). [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

**Figure 10.** Figure 10: DeepSeek-V3 Isolation 16N NVL8 proxy model. [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗

**Figure 9.** Figure 9: Single All2All (left); two concurrent All2All (right). [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗

**Figure 13.** Figure 13: Nemotron 3 Ultra training under dynamic failures. [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗

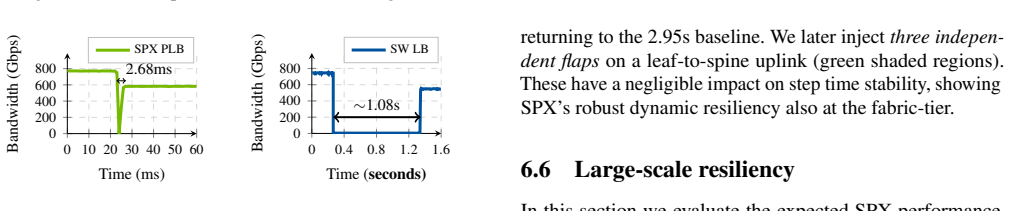

**Figure 12.** Figure 12: Endpoint single flap recovery in Blackwell_Ultra_MP with SPX hardware multi-plane (PLB) vs. software load balancer (SW LB). scribed in §2.3. While traditional Ethernet solutions degrade in a non-proportional way to the bandwidth loss, SPX maintains 3-10% of the ideal solution bandwidth. 6.5 Dynamic resiliency We compare the performance of SPX’s hardware-accelerated Plane Load Balancer (PLB) to a softwar… view at source ↗

**Figure 14.** Figure 14: Large-scale fault tolerance simulation of the three state: pristine (no failed links), failed (one failed plane), degraded (bandwidth converged to 75% of the line rate of four planes). We evaluate the latency of a single collective assuming one failed NIC, and record the performance of the collective in the pristine, failed and degraded state. To evaluate the full workload, we generate failure events in t… view at source ↗

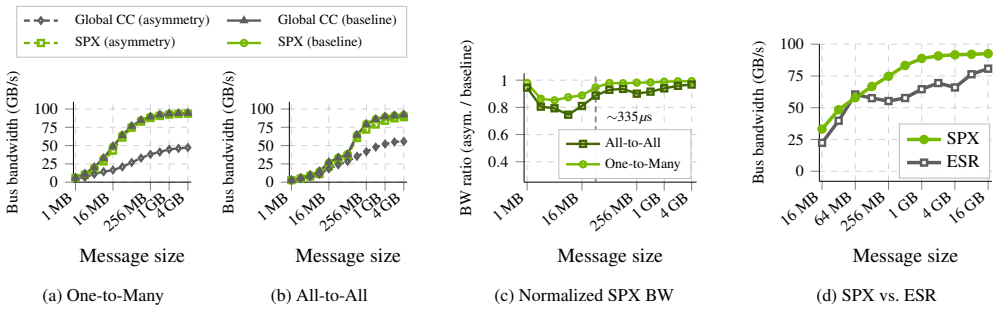

**Figure 15.** Figure 15: Collective bandwidth under noise-induced asymmetry (SPX green, Global CC gray; solid: symmetric baseline, dashed: [PITH_FULL_IMAGE:figures/full_fig_p012_15.png] view at source ↗

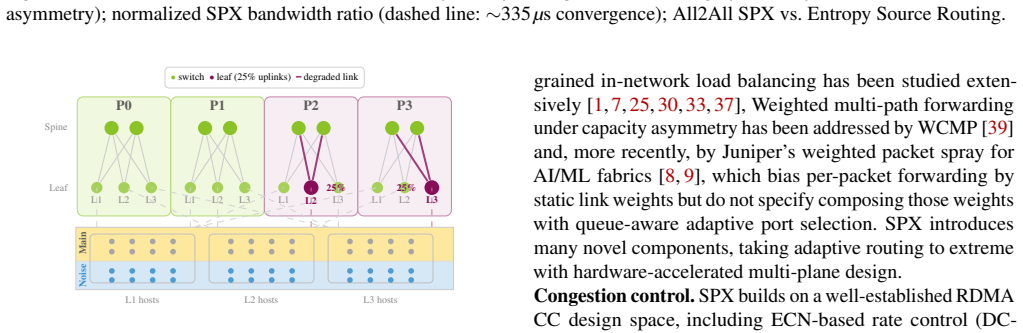

**Figure 16.** Figure 16: Multiplane load balancing testbed. Four planes [PITH_FULL_IMAGE:figures/full_fig_p012_16.png] view at source ↗

read the original abstract

As distributed model training scales to span hundreds of thousands of GPUs, scale-out networks face unprecedented performance and efficiency demands. NVIDIA Spectrum-X Ethernet has been designed from the ground up to achieve predictable and stable network performance with high utilization and low latency. This paper presents the Spectrum-X multiplane architecture, which replaces hierarchical depth with topological parallelism, and introduces hardware-accelerated load balancing in NICs and switches as the key architectural approach to provide fast reaction to highly dynamic network conditions at the microsecond timescales that AI training workloads demand. We describe the motivation, design principles, evaluation methodology and performance on state-of-the-art benchmarks, as well as the lessons we learned from deploying and debugging Spectrum-X networks in large-scale systems. Our evaluation highlights production-grade AI infrastructure performance across three core dimensions: 98% of the theoretical line rate with low jitter-free latency; strong cross-tenant isolation for concurrent workloads; robust, capacity-proportional bisection bandwidth and 7% latency increase for 10% fabric link failures; and rapid reaction to host and fabric link flaps during LLM training workloads.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Spectrum-X is a practical engineering description of NVIDIA's multiplane Ethernet with hardware load balancing that hits strong production numbers for large AI clusters, but it functions more as a technical report than a research advance.

read the letter

Colleague, the main thing to take from this paper is that NVIDIA's Spectrum-X uses a multiplane topology plus hardware-accelerated load balancing in NICs and switches to keep performance stable under the bursty, microsecond-scale traffic patterns of large LLM training runs. They report 98% of line rate, strong tenant isolation, capacity-proportional bisection bandwidth, and only a 7% latency bump when 10% of fabric links fail. That combination looks like a real operational win for clusters heading toward hundreds of thousands of GPUs. What the paper does well is spell out the motivation for replacing deep hierarchies with parallel planes and then back it with lessons from actual deployments and debugging at scale. The emphasis on fast hardware reaction times rather than software makes sense for the workloads they describe, and the failure-resilience numbers give a concrete sense of how the system behaves in production. On the soft spots, the evaluation stays high-level. The abstract and description give headline metrics without detailing the exact benchmarks, run counts, measurement methodology, or variability, so it's hard to judge how robust the 98% figure really is. There are also no direct comparisons to other high-speed fabrics or prior Ethernet work, which leaves the novelty claim resting mostly on the industrial application rather than new mechanisms. This is not a paper with new algorithms, proofs, or open artifacts. It is aimed at network engineers and AI infrastructure teams who need to evaluate options for scaling out training clusters. A reader looking for practical data from a major vendor will find useful details on what actually worked in the field. I would bring it to a reading group for the deployment insights, though not as core research. It deserves a serious referee because the topic is timely and the results come from real systems rather than simulation; some expansion on methodology and comparisons would strengthen it, but the core claims hold up on the evidence presented.

Referee Report

1 major / 2 minor

Summary. The paper describes NVIDIA Spectrum-X, a multiplane Ethernet architecture for giga-scale AI training clusters spanning hundreds of thousands of GPUs. It replaces hierarchical topologies with topological parallelism and relies on hardware-accelerated load balancing in NICs and switches to react to microsecond-scale dynamics in AI workloads. Production measurements and benchmarks are reported to demonstrate 98% of theoretical line rate with low jitter-free latency, strong cross-tenant isolation, capacity-proportional bisection bandwidth, and only a 7% latency increase under 10% fabric link failures during LLM training.

Significance. If the reported measurements hold, the work is significant as a detailed case study of a production-scale networking system tailored to the demands of large-scale distributed AI training. It supplies concrete lessons from deployment and debugging that are directly relevant to operators building next-generation AI factories, and the emphasis on hardware mechanisms for rapid adaptation addresses a practical gap between theoretical network designs and real AI workload behavior.

major comments (1)

Evaluation section: the headline metrics (98% line rate, 7% latency increase under 10% failures) are presented without accompanying information on benchmark configurations, number of trials, error bars, data filtering criteria, or precise measurement methodology. This absence makes it difficult to assess whether the results robustly support the central claims about utilization, isolation, and failure resilience.

minor comments (2)

The description of the multiplane topology and load-balancing mechanisms would benefit from a clearer diagram or pseudocode showing the interaction between NIC and switch hardware acceleration.
A short comparison table against prior Ethernet or InfiniBand solutions at similar scale would help readers situate the reported gains.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation of minor revision. We address the single major comment below.

read point-by-point responses

Referee: Evaluation section: the headline metrics (98% line rate, 7% latency increase under 10% failures) are presented without accompanying information on benchmark configurations, number of trials, error bars, data filtering criteria, or precise measurement methodology. This absence makes it difficult to assess whether the results robustly support the central claims about utilization, isolation, and failure resilience.

Authors: We agree that the Evaluation section would benefit from greater methodological transparency. In the revised manuscript we will add a dedicated subsection that specifies the benchmark configurations (including cluster sizes, workload types, and traffic patterns), the number of trials performed, error bars or confidence intervals where statistical variation is present, explicit data filtering criteria, and a precise description of the measurement methodology (including instrumentation points, sampling rates, and how line-rate and latency were computed). These additions will directly support assessment of the utilization, isolation, and failure-resilience claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on empirical measurements

full rationale

The paper is a systems description of the Spectrum-X multiplane Ethernet architecture and its hardware-accelerated load balancing for large-scale AI training. Performance claims (98% line rate, isolation, bisection bandwidth, failure resilience) are presented as results from production deployments, benchmark runs, and evaluation methodology rather than from any equations, derivations, or first-principles predictions. No load-bearing steps reduce by construction to fitted inputs, self-citations, or ansatzes; the architecture is justified by design principles and measured outcomes that are independently falsifiable through external benchmarks. This is the expected finding for an empirical systems paper without mathematical modeling.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, axioms, or invented entities are stated in the provided text.
