arxiv: 2607.01820 · v1 · pith:EO22OP44new · submitted 2026-07-02 · 🌌 astro-ph.HE · gr-qc

Polarization Architecture of Steady GRMHD Jets from the Horizon to Infinity

Zhenyu Zhang , Yehui Hou , Yu Song , Yosuke Mizuno , Bin Chen This is my paper

Pith reviewed 2026-07-03 07:59 UTC · model grok-4.3

classification 🌌 astro-ph.HE gr-qc
keywords GRMHD jetsblack hole spinpolarizationsemi-analytic modeljet collimationpolarimetric diagnosticsstationary axisymmetric flowsnear-horizon emission
0
0 comments X

The pith

Steady GRMHD jets converge near the horizon to a polarization pattern set only by black hole spin.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a semi-analytic framework for stationary, axisymmetric GRMHD jets that produces resolved polarized images from the near-horizon region out to 100,000 gravitational radii. It reveals a scale-dependent separation: outside the photon ring, plasma loading alters the polarization angle through inertia-driven magnetic winding, while at large radii the angle follows a power law fixed by the jet collimation profile. Near the horizon, all jets converge to one universal polarization pattern controlled solely by black hole spin. This convergence occurs hierarchically, with velocity and magnetic-field differences disappearing first and collimation effects lasting to smaller radii. The resulting achromatic diagnostic links jet dynamics directly to image structure and offers a route to constrain spin and formation mechanisms from high-resolution polarimetry.

Core claim

We develop a semi-analytic framework for stationary, axisymmetric GRMHD jets that efficiently generates resolved polarized images from the near-horizon region out to ∼10^5 rg across a broad parameter space. We identify a new scale-dependent separation in polarimetric diagnostics. Outside the photon ring, plasma loading strongly modifies the polarization-angle profile of the integrated jet-layer emission through inertia-driven winding of the magnetic field. At large image-plane radii, the polarization angle follows a power-law in radius, with an index determined by the jet collimation profile. Near the horizon, in contrast, jets converge to a universal polarization pattern controlled solely b

What carries the argument

The semi-analytic framework for stationary, axisymmetric GRMHD jets that generates polarized images and exposes the hierarchical convergence to a spin-controlled polarization pattern.

If this is right

  • Outside the photon ring, plasma loading modifies the polarization-angle profile through inertia-driven winding of the magnetic field.
  • At large image-plane radii the polarization angle follows a power-law whose index is fixed by the jet collimation profile.
  • The framework enables rapid parameter-space exploration of how gravity and MHD flows imprint scale-dependent signatures on jet morphology and polarization.
  • The results establish a largely achromatic polarimetric diagnostic that connects GRMHD jet dynamics to resolved image structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Polarization measurements at different image radii could separately constrain black hole spin and jet collimation.
  • The achromatic diagnostic may remain useful even when observations span a range of frequencies.
  • The same hierarchical separation could appear in other observables such as total intensity or rotation measure if the underlying flow assumptions hold.

Load-bearing premise

The semi-analytic framework for stationary, axisymmetric GRMHD jets accurately captures the essential dynamics needed to generate reliable polarized images across the full radial range without requiring full numerical GRMHD simulations for validation.

What would settle it

A full numerical GRMHD simulation or an observed polarized image near the horizon in which the polarization pattern still depends on jet velocity or magnetic structure rather than solely on spin would falsify the universal convergence claim.

Figures

Figures reproduced from arXiv: 2607.01820 by Bin Chen, Yehui Hou, Yosuke Mizuno, Yu Song, Zhenyu Zhang.

Figure 1

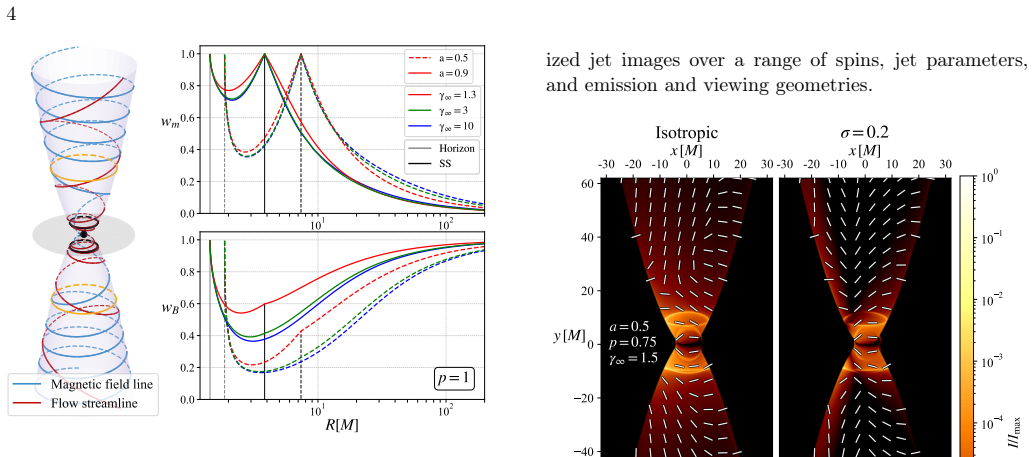

Figure 1. Figure 1: Left: Typical magnetic field line and flow stream￾line on the jet layer defined by r+ = r − |z|, with a = 0.5, γ∞ = 10. The black and yellow circles represent the SSs and outer light cylinders, respectively. Right: Degree of stream￾line and magnetic field line windings on the jet layer. The black and gray lines mark the SS and the event horizon, re￾spectively. In the BL coordinates u ϕ , Bϕ formally diverg… view at source ↗
Figure 2

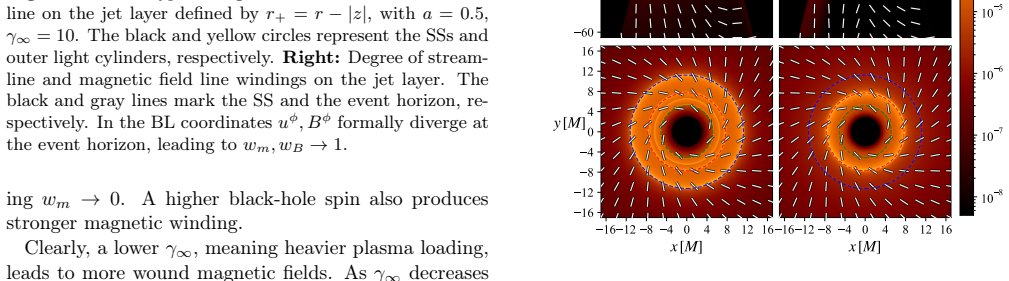

Figure 2. Figure 2: Intensity maps overlaid with EVPA of the jet layer, computed for a = 0.5, p = 0.75 and γ∞ = 1.5. The left panels correspond to an isotropic eDF, while the right panels show results for a bi-beam-like eDF with σ = 0.2. The top and bottom rows represent a nearly edge-on observer (θo = 80◦ ) and a face-on observer (θo = 0.01◦ ). For the face-on view, the dashed blue and red curves show the direct images of th… view at source ↗
Figure 3

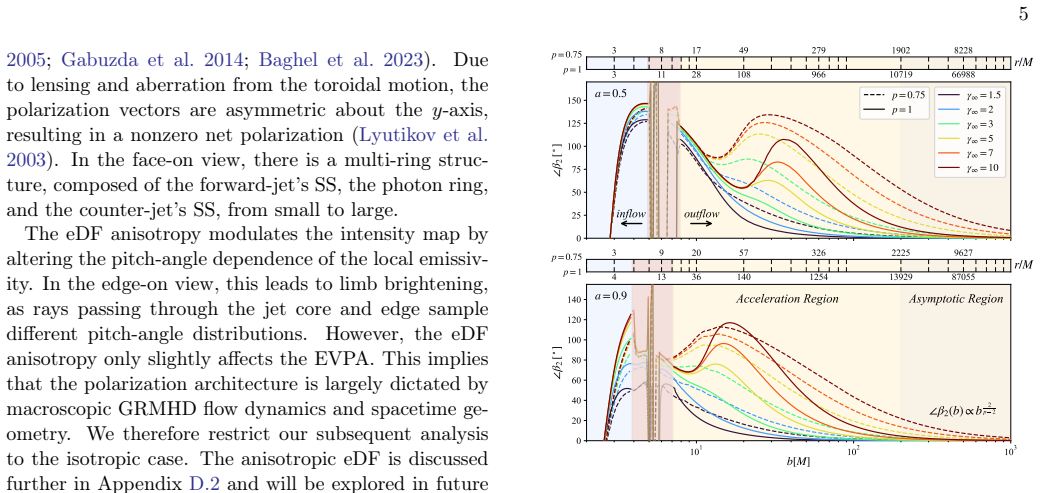

Figure 3. Figure 3: Polarization pattern vs. image-plane radius b = p x2 + y 2 for a nearly face-on view, produced along the jet with various γ∞ and p. From left to right, the colored regions mark the near-horizon region, lensing band, accelera￾tion region, and asymptotic region. In the asymptotic region, the GR effect is negligible for MHD flow, light emission, and propagation, and one can effectively work within the frame￾w… view at source ↗
Figure 4

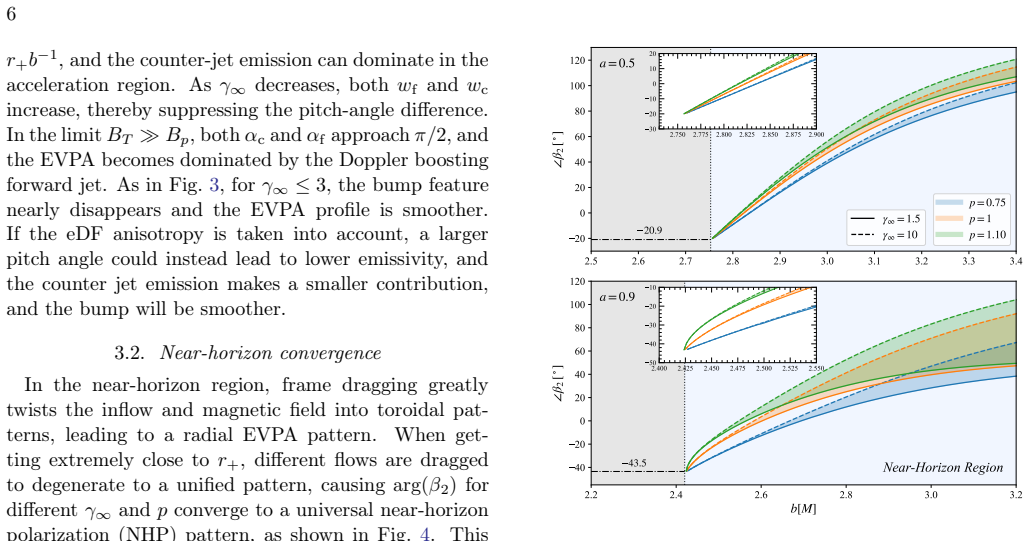

Figure 4. Figure 4: Near-horizon EVPA of the jet layer anchored to the equatorial horizon. Results for different collimation indices are shown in different colors. Within each colored re￾gion, the asymptotic Lorentz factor increases from 1.5 (solid curve) to 10 (dashed curve) from bottom to top. less of whether the emission is disk-dominated or jet￾dominated, since the accumulated polarization is gov￾erned primarily by photon… view at source ↗
Figure 5

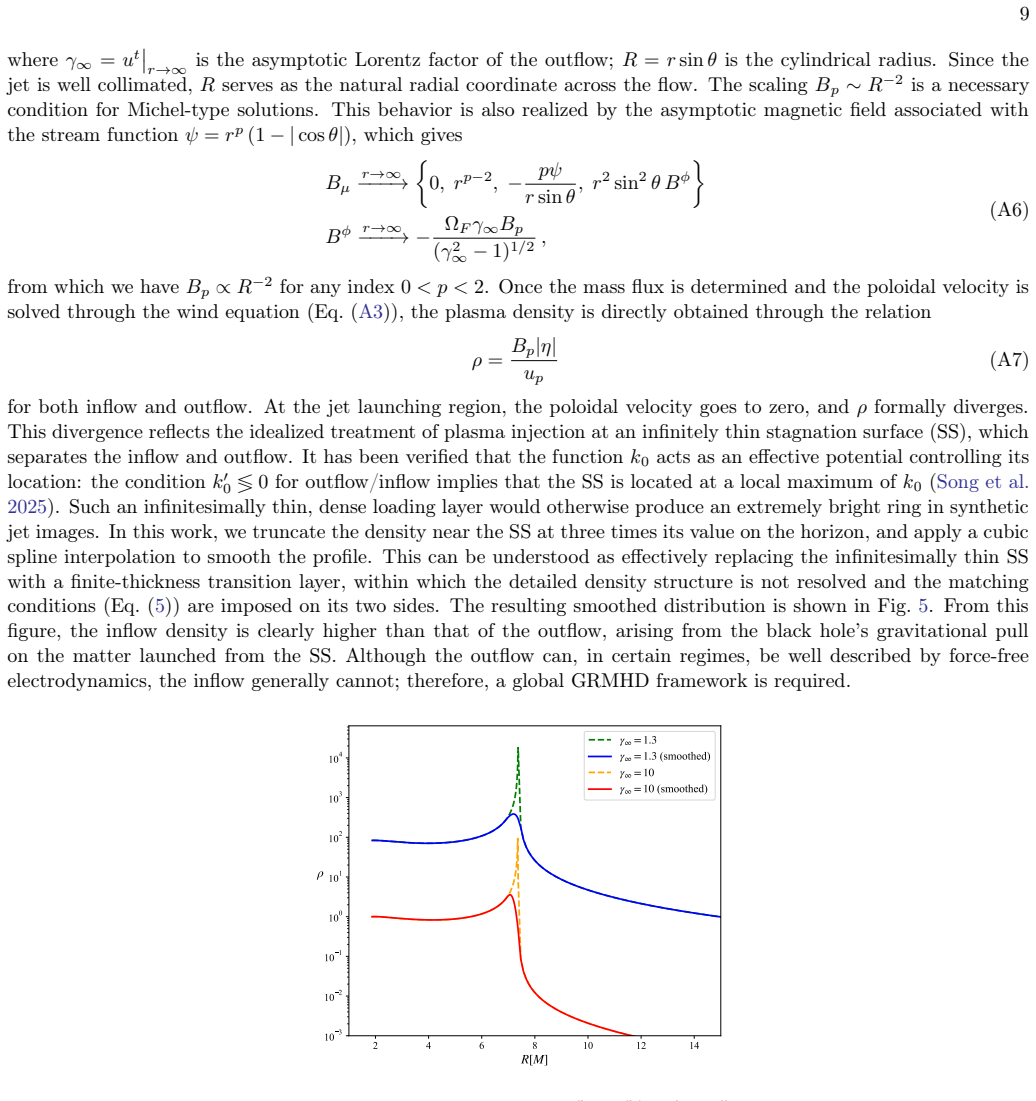

Figure 5. Figure 5: Plasma number density ρ along the jet layer defined by r p + = r p (1 − | cos θ|) under a = 0.5 and γ∞ = 1.3 or 10. Because we assume a geometrically thin stagnation surface, mass loading causes ρ to formally diverge there, as indicated by the dotted curve. To remove this divergence, we truncate the density at three times its value on the horizon and apply a cubic spline interpolation to smooth the profile… view at source ↗
Figure 6

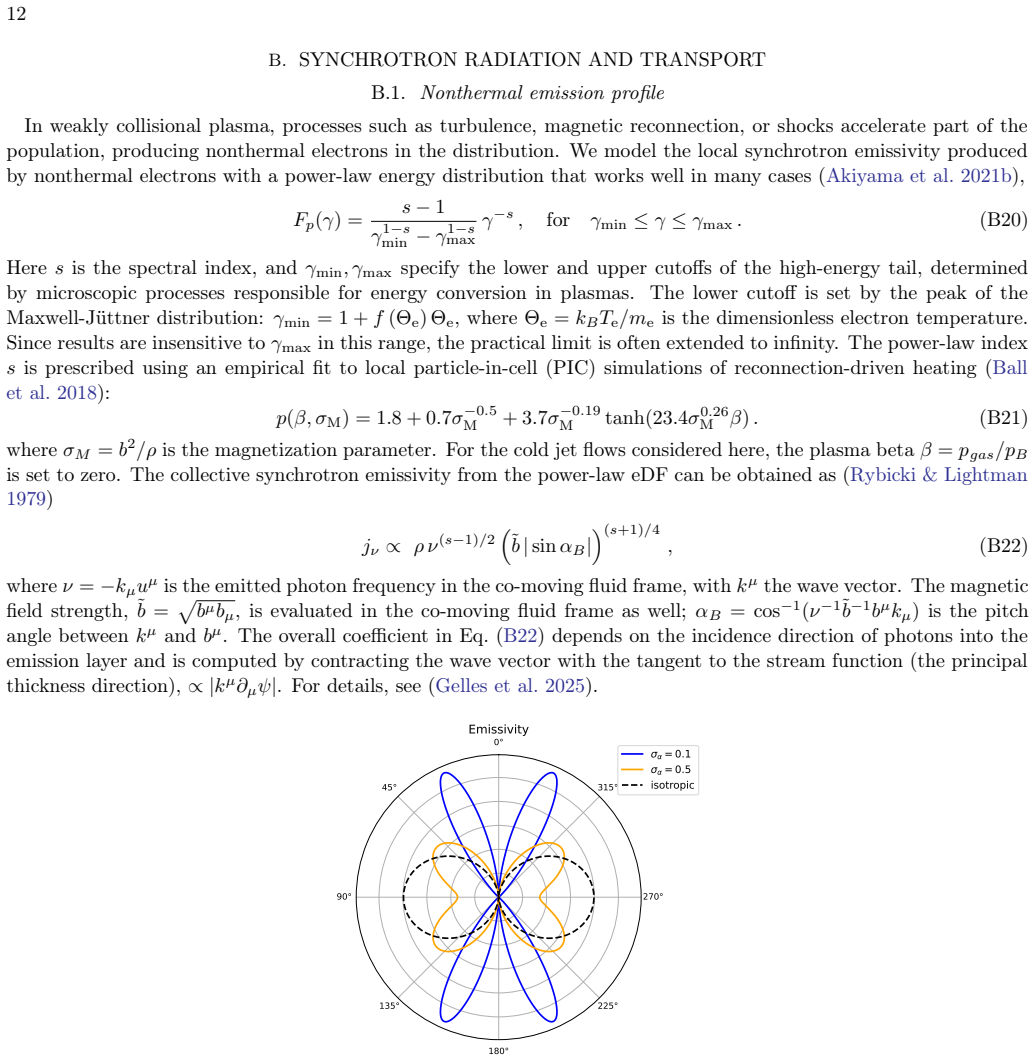

Figure 6. Figure 6: Schematic illustration of the pitch-angle dependence of the synchrotron emissivity for isotropic and anisotropic eDFs, shown in the comoving fluid frame. Embedded in dynamically strong magnetic fields, the electrons easily develops anisotropies. Although the eDF is generally gyrotropic, it can exhibit pronounced anisotropy between directions parallel and perpendicular to the field (Kulsrud 1983). A simple … view at source ↗
Figure 7

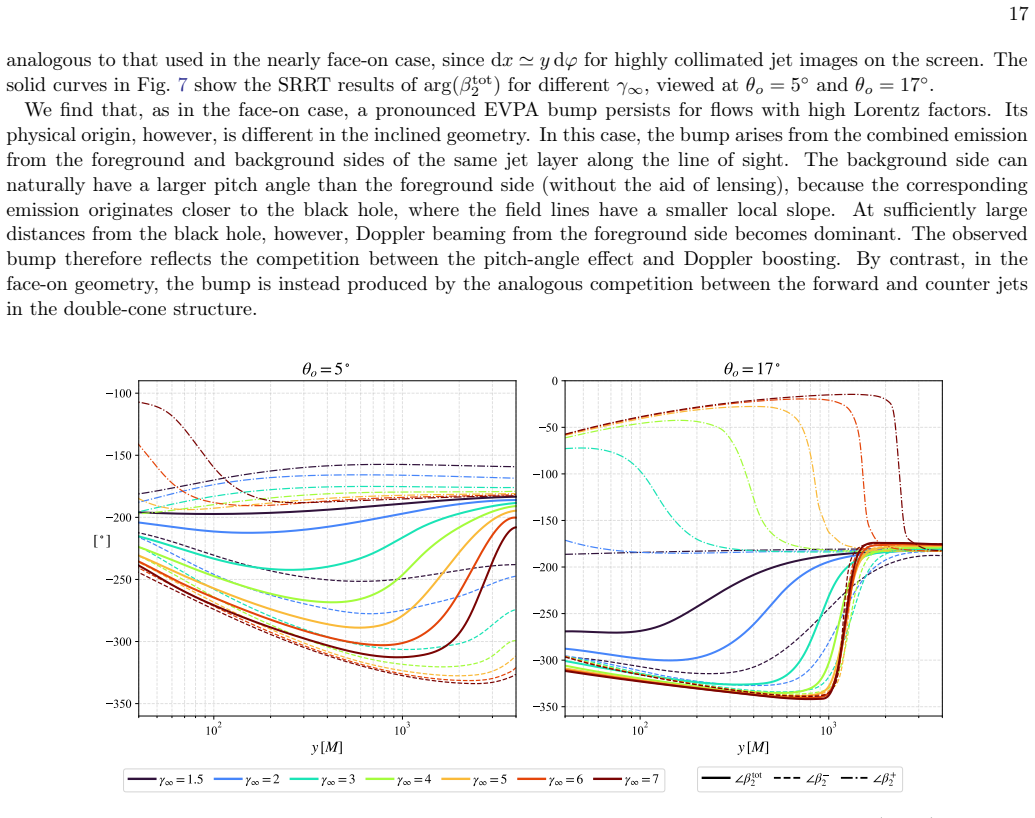

Figure 7. Figure 7: Mean polarization angles averaged over different segments along the x-axis in the forward jet (y > 0), viewed at θo = 5◦ and θo = 17◦ for different values of γ∞. The black hole spin is fixed at a = 0.5, and the jet collimation index is p = 1. The solid, dashed, and dash-dotted curves show the variations of arg(β tot 2 ), arg(β − 2 ), and arg(β + 2 ), respectively. As the plasma mass loading increases, this… view at source ↗

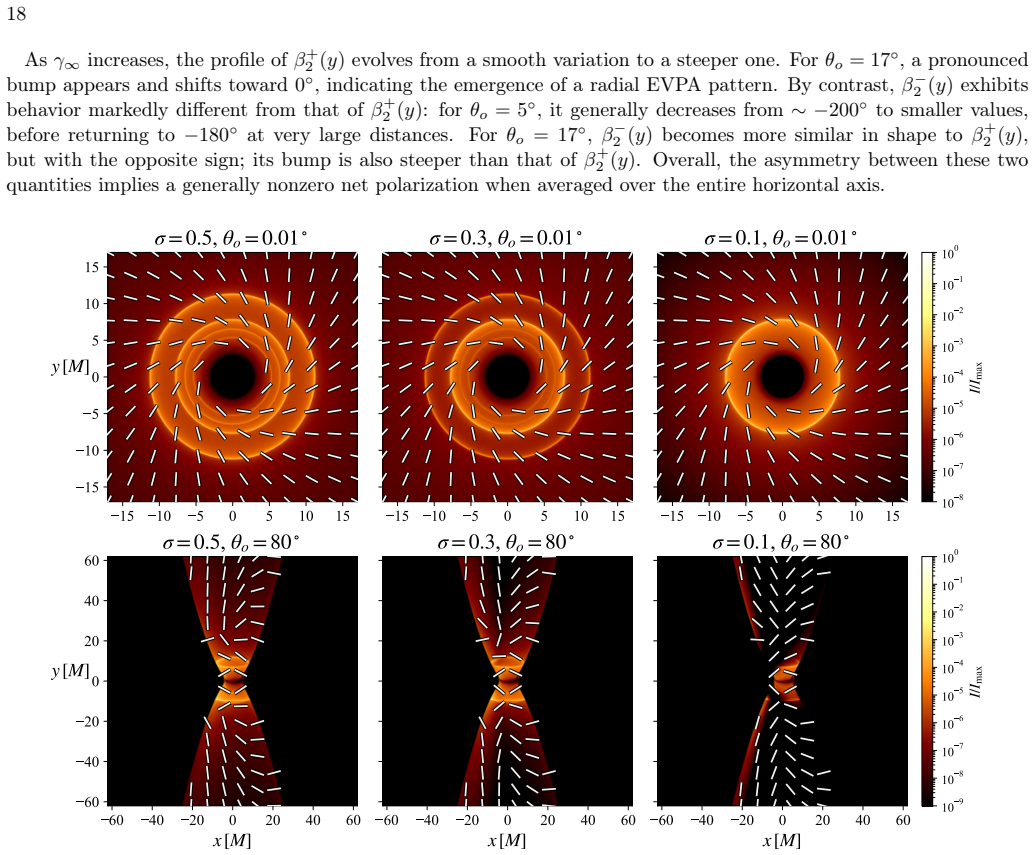

Figure 8
Figure 8. Figure 8: Intensity maps overlaid with EVPAs for anisotropic eDF emission, computed with a = 0.5, p = 0.75, and γ∞ = 1.5. The left, middle, and right panels correspond to bi-beam-like eDFs with σ = 0.5, 0.3, and 0.1, respectively. The top and bottom rows show the results for a face-on observer (θo = 0.01◦ ) and a nearly edge-on observer (θo = 80◦ ), respectively. D.2. Anisotropic eDF effects In the main text, we ass… view at source ↗
read the original abstract

We develop a semi-analytic framework for stationary, axisymmetric GRMHD jets that efficiently generates resolved polarized images from the near-horizon region out to $\sim 10^5\,r_g$ across a broad parameter space, enabling rapid exploration of how gravity and magnetohydrodynamic flows imprint scale-dependent signatures on jet morphology and polarization. We identify a new scale-dependent separation in polarimetric diagnostics. Outside the photon ring, plasma loading strongly modifies the polarization-angle profile of the integrated jet-layer emission through inertia-driven winding of the magnetic field. At large image-plane radii, the polarization angle follows a power-law in radius, with an index determined by the jet collimation profile. Near the horizon, in contrast, jets converge to a universal polarization pattern controlled solely by black hole spin. This convergence is hierarchical: differences in velocity and magnetic-field structure are erased first, whereas collimation-dependent differences persist to smaller radii, thereby allowing these effects to be disentangled. These results establish a largely achromatic polarimetric diagnostic that connects GRMHD jet dynamics to resolved image structure, with direct implications for high-resolution polarimetry and for constraining black hole spin and jet formation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper develops a semi-analytic framework for stationary, axisymmetric GRMHD jets that generates resolved polarized images from the near-horizon region to ~10^5 r_g. It reports a scale-dependent separation in polarimetric diagnostics: outside the photon ring, plasma loading modifies the polarization-angle profile through inertia-driven magnetic winding; at large image-plane radii the angle follows a power-law set by the collimation profile; near the horizon the pattern converges to one controlled solely by black hole spin, with hierarchical erasure of velocity and magnetic-field differences before collimation effects disappear.

Significance. If the central results hold, the framework supplies an efficient, largely achromatic polarimetric diagnostic linking GRMHD jet structure to resolved image morphology, with direct relevance to spin measurements and jet-launch physics from high-resolution observations.

major comments (2)
  1. [Abstract] Abstract: the claim that near-horizon jets converge to a universal, spin-only polarization pattern rests on the semi-analytic stationary axisymmetric model reproducing the essential polarized radiative transfer; no explicit cross-checks against time-dependent 3D GRMHD simulations are described, which is load-bearing for the universality and hierarchy assertions.
  2. [Abstract] The weakest assumption identified in the modeling framework (enforced axisymmetry and analytic velocity/magnetic profiles) directly affects whether the reported hierarchical erasure of differences is physical or an artifact; this requires quantitative validation before the disentangling of spin versus collimation effects can be considered robust.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their constructive comments on our manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that near-horizon jets converge to a universal, spin-only polarization pattern rests on the semi-analytic stationary axisymmetric model reproducing the essential polarized radiative transfer; no explicit cross-checks against time-dependent 3D GRMHD simulations are described, which is load-bearing for the universality and hierarchy assertions.

    Authors: Our framework is intentionally semi-analytic to enable broad parameter exploration that would be computationally prohibitive in full 3D time-dependent GRMHD. The polarized images are generated using standard general-relativistic radiative transfer, and the reported convergence arises from the dominance of spacetime geometry near the horizon. While we do not perform direct comparisons in this work, similar near-horizon polarization patterns have been reported in the literature on GRMHD simulations. We will revise the manuscript to include a dedicated discussion of model assumptions and their relation to simulation results. revision: partial

  2. Referee: [Abstract] The weakest assumption identified in the modeling framework (enforced axisymmetry and analytic velocity/magnetic profiles) directly affects whether the reported hierarchical erasure of differences is physical or an artifact; this requires quantitative validation before the disentangling of spin versus collimation effects can be considered robust.

    Authors: We agree that axisymmetry and the choice of analytic profiles are key assumptions. The hierarchical behavior is derived analytically from the structure of the equations in our model and holds across the explored parameter space. To strengthen the presentation, we will add quantitative tests showing how the erasure depends on the profile choices. Full validation against 3D simulations is an important next step but lies outside the scope of the current semi-analytic study. revision: partial

standing simulated objections not resolved
  • Direct quantitative cross-checks with time-dependent 3D GRMHD simulations

Circularity Check

0 steps flagged

No circularity: semi-analytic GRMHD polarization patterns are direct model outputs

full rationale

The paper constructs a semi-analytic stationary axisymmetric GRMHD framework that computes polarized images from the horizon to 10^5 r_g. The reported near-horizon convergence to a spin-only universal polarization pattern with hierarchical erasure of velocity/magnetic differences is an emergent output of running this framework across parameter space, not a quantity fitted to data or presupposed by definition. No self-citations, ansatzes smuggled via prior work, or renaming of known results appear in the derivation chain. The central claims remain independent of the inputs once the model equations are specified, satisfying the self-contained criterion.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

Inferred from abstract only; the framework relies on stationarity and axisymmetry assumptions plus the validity of the semi-analytic approximations. No explicit free parameters or invented entities are named.

free parameters (1)
  • collimation profile and plasma loading parameters
    Broad parameter space exploration implies variation of jet collimation and loading factors to produce the reported scale-dependent behaviors.
axioms (2)
  • domain assumption Jets are stationary and axisymmetric
    Framework is explicitly developed for stationary, axisymmetric GRMHD jets.
  • domain assumption Semi-analytic approximations suffice to capture polarization signatures from horizon to large radii
    The efficient image-generation claim rests on this modeling choice.
