Discrete Geometric Modeling and Extended State Estimation of Continuum Robots

Maximilian Herrmann , Leander Pfeiffer , Paul Kotyczka This is my paper

Pith reviewed 2026-06-26 13:43 UTC · model grok-4.3

classification 📡 eess.SY cs.ROcs.SY
keywords continuum robotsdiscrete modelingLie group variational integratorsgeometrically exact beamsstrain-based formulationextended Kalman filterdisturbance observerstate estimation
0
0 comments X

The pith

A discrete strain-based beam model derived via Lie group variational integrators enables accurate and efficient state estimation and disturbance observation for continuum robots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a fully discrete dynamical model for continuum robots using geometrically exact beams formulated in minimal strains and integrated with Lie group variational methods. This approach preserves key geometric properties to achieve both numerical efficiency and modeling accuracy. An extended Kalman filter is then used as a disturbance observer to estimate not only the robot states but also model uncertainties and external disturbances. Experiments on a physical system confirm the model's performance. Sympathetic readers would care because continuum robots require precise real-time control in applications like surgery or inspection, where traditional models may struggle with efficiency or geometric fidelity.

Core claim

The central discovery is a fully discrete modeling framework for continuum robots based on geometrically exact beams in a minimal, strain-based formulation, derived using Lie group variational integrators that preserve important geometric properties for high accuracy and numerical efficiency, paired with an extended Kalman filter disturbance observer that estimates system states along with uncertainties and external disturbances, as validated through experiments on a real system.

What carries the argument

Lie group variational integrators applied to a minimal strain-based formulation of geometrically exact beams, which preserve geometric properties to support accuracy and efficiency in modeling and estimation.

If this is right

  • The discrete model achieves high accuracy in representing the robot's dynamics.
  • Numerical efficiency is gained through the geometric preservation.
  • The extended Kalman filter observer reliably estimates states, uncertainties, and disturbances.
  • Validation on real hardware confirms the approach's practical applicability.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could enable more robust real-time control systems for continuum robots in dynamic environments.
  • Similar discrete geometric approaches might apply to other flexible robotic systems beyond beams.
  • Further work could explore integration with learning-based methods for adaptive disturbance estimation.

Load-bearing premise

The Lie group variational integrator formulation on the strain-based beam model will preserve geometric properties sufficiently to deliver high accuracy and numerical efficiency on real continuum robot hardware without additional tuning.

What would settle it

A direct comparison experiment on the real continuum robot system demonstrating that the proposed discrete model has significantly lower accuracy or requires more computation time than conventional continuous models, or that the observer does not accurately estimate the disturbances.

Figures

Figures reproduced from arXiv: 2606.21205 by Leander Pfeiffer, Maximilian Herrmann, Paul Kotyczka.

Figure 1
Figure 1. Figure 1: Left: The tendon-driven continuum robot Peter (pro￾grammable elastic tendon-excited robot) with four torque￾controlled drives, a spring-steel backbone, spacer discs, and IMUs. Right: Tendon actuation kinematics. These can accurately describe arbitrarily large static and dynamic deformations caused by external forces, includ￾ing gravity and contact forces. While very general, they also result in increased c… view at source ↗
Figure 2

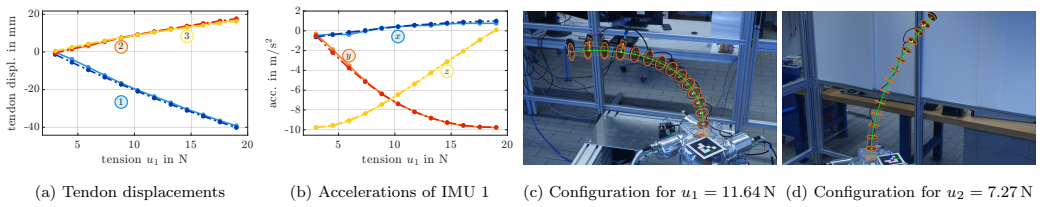

Figure 2. Figure 2: Results of the static validation: (a) and (b) show the tendon length and acceleration measurements of simulations [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

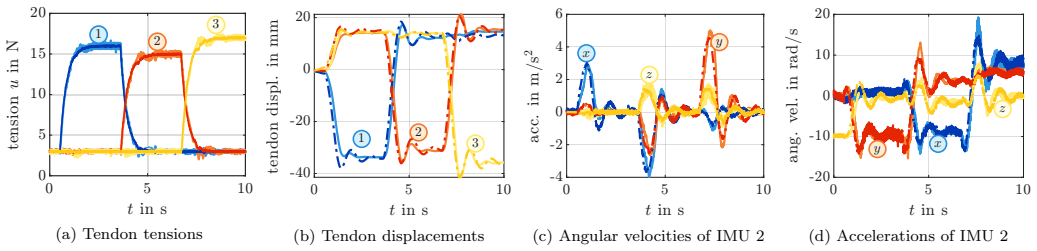

Figure 3. Figure 3: Results of the dynamic validation, where the system outputs during a dynamic motion are compared to simulated [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Observed tip position with reference inputs. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Observed disturbances with reference inputs. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

In this paper, we present a fully discrete approach for the accurate and numerically efficient dynamical modeling and state estimation of continuum robots. The model is based on geometrically exact beams in a minimal, strain-based formulation and derived in the framework of Lie group variational integrators, allowing to preserve important geometric properties that we exploit to achieve high accuracy and numerical efficiency. We then propose a disturbance observer based on an extended Kalman filter formulation that reliably estimates system states as well as model uncertainties and external disturbances. Experiments on a real system validate the accuracy and efficiency of the proposed model and observer.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript presents a fully discrete dynamical modeling approach for continuum robots based on geometrically exact beams formulated in a minimal strain-based representation and derived using Lie group variational integrators, which is claimed to preserve geometric properties and thereby achieve high accuracy and numerical efficiency. It further introduces an extended Kalman filter-based disturbance observer to estimate system states together with model uncertainties and external disturbances. Experimental results on a real hardware system are asserted to validate both the modeling accuracy/efficiency and the observer performance.

Significance. If the claimed geometric preservation from the Lie group variational integrator on the strain-based beam model translates into the reported accuracy and efficiency on physical hardware without post-hoc adjustments, the work would represent a meaningful contribution to continuum-robot dynamics and estimation. The explicit hardware validation strengthens the practical relevance; the combination of structure-preserving discretization with an EKF disturbance observer offers a coherent framework that could improve robustness in applications such as medical or soft robotics.

minor comments (3)
  1. [Abstract and experimental section] The abstract states that experiments validate both accuracy/efficiency and observer performance, yet the main text should include a dedicated section (e.g., §6 or §7) with quantitative error metrics, baseline comparisons, and timing benchmarks to make the validation self-contained.
  2. [Modeling and observer sections] Notation for the strain-based variables and the Lie-group elements should be introduced with explicit definitions and consistent usage across the derivation and the EKF equations to avoid ambiguity for readers unfamiliar with the prior literature.
  3. [Figures] Figure captions for any simulation or experimental plots should state the exact parameter values, sampling rates, and disturbance magnitudes used, rather than referring only to “the proposed method.”

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No specific major comments were provided in the report, so we have no points requiring response or revision at this time.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The provided abstract and context describe a modeling approach based on geometrically exact beams in a strain-based formulation, derived via Lie group variational integrators, followed by an EKF disturbance observer, with hardware experiments for validation. No equations, self-citations, or derivation steps are quoted that reduce any claimed prediction or geometric preservation property to a fitted input or prior self-citation by construction. The central claims rest on the external framework of variational integrators and empirical validation rather than internal definitional equivalence, making the derivation self-contained against the given material.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract only; full derivation, assumptions, and any fitted parameters are not visible.

axioms (1)
  • domain assumption Geometrically exact beams admit a minimal strain-based formulation that is suitable for Lie group variational integration.
    Invoked as the foundation of the discrete model in the abstract.

pith-pipeline@v0.9.1-grok · 5621 in / 1231 out tokens · 17354 ms · 2026-06-26T13:43:36.329062+00:00 · methodology
