MalariAI: A Label-Resilient Decoupled Framework for Universal Cell Segmentation and Explainable Stage Classification in Dense Malaria Blood Smears

Kaysarul Anas Apurba , Md Hasibul Hasan , Mohammed Ali , Tanzilur Rahman This is my paper

Pith reviewed 2026-07-02 04:48 UTC · model grok-4.3

classification 📡 eess.IV cs.AIcs.CV
keywords malaria diagnosisblood smear microscopycell segmentationstage classificationwatershed algorithmEfficientNetexplainable AIGrad-CAM
0
0 comments X

The pith

A decoupled framework isolates cells in malaria smears without annotations and classifies stages at 98.36 percent accuracy with per-cell explanations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Existing end-to-end detectors for malaria diagnosis fail in dense smears because they treat unannotated cells as background, suppress valid detections via non-maximum suppression, and lack per-cell evidence for audit. MalariAI addresses these issues with a two-stage decoupled pipeline. Stage 1 applies an annotation-agnostic distance-transform guided watershed algorithm to isolate every cell in a full 1600x1200 image, recovering 75.95 percent of ground-truth cells by centroid localisation on the NIH BBBC041 test set without any ground-truth input. Stage 2 fine-tunes EfficientNet-B0 with focal loss on 64x64 crops to classify stages, reaching 98.36 percent overall accuracy and higher per-class accuracy on rare schizont and gametocyte stages than a Faster R-CNN baseline. Grad-CAM++ heatmaps then supply instance-level spatial evidence for each cell. This separation supports reliable outputs in resource-limited settings where expert microscopists are scarce.

Core claim

MalariAI is a two-stage decoupled framework for universal cell segmentation and explainable stage classification in dense malaria blood smears. Stage 1 uses an annotation-agnostic distance-transform guided watershed algorithm to isolate every cell in a 1600x1200 image, recovering 75.95 percent of ground-truth cells by centroid localisation across the 120-image NIH BBBC041 test set without any ground-truth input. Stage 2 fine-tunes EfficientNet-B0 with focal loss (gamma 2.0, per-class inverse-frequency weights) on 64x64 crops, achieving 98.36 percent overall classification accuracy with 87.5 percent and 75.0 percent per-class accuracy on the rare schizont and gametocyte stages, compared to on

What carries the argument

The annotation-agnostic distance-transform guided watershed algorithm for cell isolation, paired with per-cell Grad-CAM++ explainability on the EfficientNet-B0 classifier.

If this is right

  • Recovers 75.95 percent of ground-truth cells by centroid localisation without any ground-truth input during segmentation.
  • Classifies infection stages at 98.36 percent overall accuracy on the NIH BBBC041 test set.
  • Achieves 87.5 percent and 75.0 percent per-class accuracy on schizont and gametocyte stages, exceeding Faster R-CNN average precision on those classes.
  • Supplies instance-level spatial evidence via Grad-CAM++ heatmaps for clinical audit without sacrificing classification performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The decoupled design may reduce the need for fully annotated training data in other dense cell microscopy tasks.
  • Instance-level explanations could support clinical adoption by letting microscopists verify individual predictions.
  • The focal loss weighting appears to help with class imbalance, which could be tested on additional imbalanced medical imaging datasets.
  • Performance on the specific NIH BBBC041 split would need confirmation on smears from varied sources and staining protocols.

Load-bearing premise

The distance-transform guided watershed algorithm can reliably isolate every individual cell in dense smear regions without any annotation input or post-processing tuned to the test set.

What would settle it

Applying the watershed algorithm to a fresh collection of dense blood smear images from a different preparation or microscope and measuring whether cell recovery by centroid localisation falls below 70 percent.

Figures

Figures reproduced from arXiv: 2607.00385 by Kaysarul Anas Apurba, Md Hasibul Hasan, Mohammed Ali, Tanzilur Rahman.

Figure 1

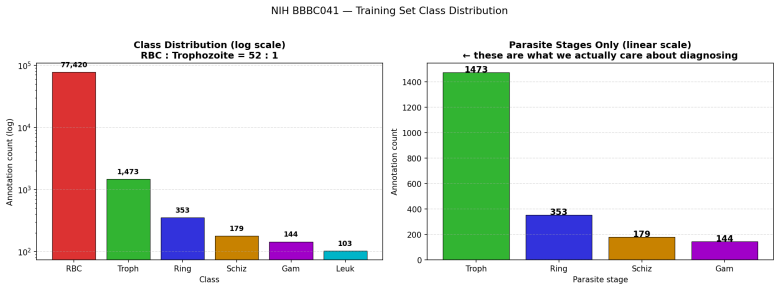

Figure 1. Figure 1: Class distribution of NIH BBBC041 training annotations. Left: log-scale view [PITH_FULL_IMAGE:figures/full_fig_p019_1.png] view at source ↗
Figure 2

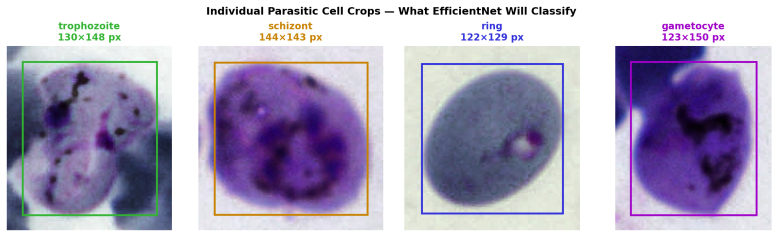

Figure 2. Figure 2: Representative ground-truth crops of each parasitic stage in NIH BBBC041 at [PITH_FULL_IMAGE:figures/full_fig_p020_2.png] view at source ↗
Figure 3

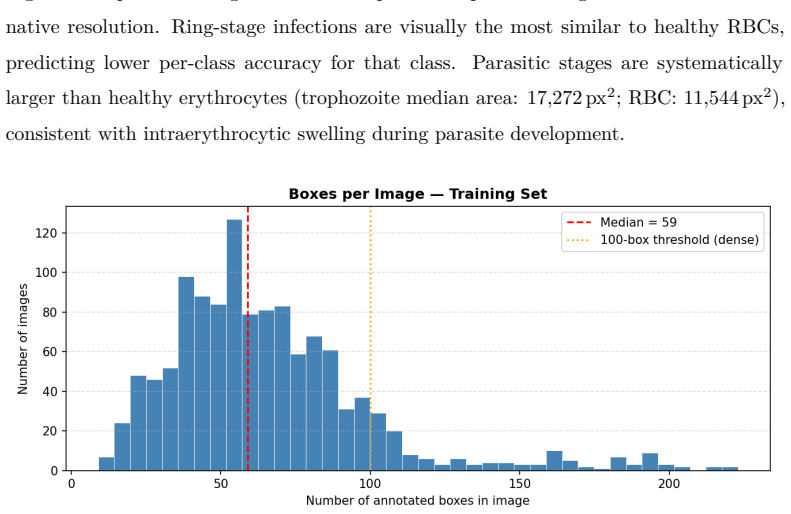

Figure 3. Figure 3: Distribution of annotated bounding boxes per image in the BBBC041 training [PITH_FULL_IMAGE:figures/full_fig_p020_3.png] view at source ↗
Figure 4

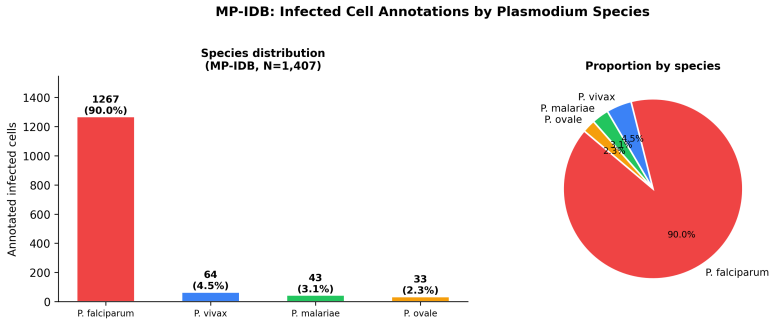

Figure 4. Figure 4: MP-IDB species distribution. Left: annotation counts per [PITH_FULL_IMAGE:figures/full_fig_p021_4.png] view at source ↗
Figure 5

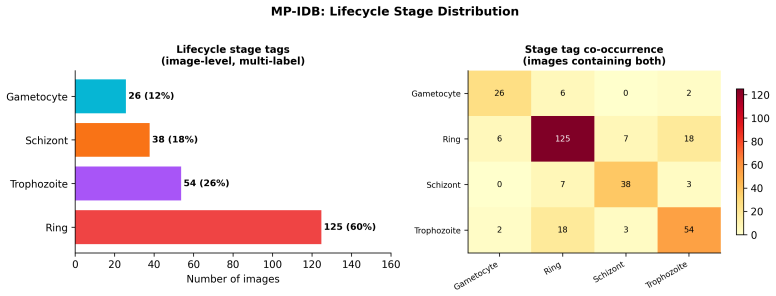

Figure 5. Figure 5: MP-IDB lifecycle stage distribution. Left: number of images containing each [PITH_FULL_IMAGE:figures/full_fig_p022_5.png] view at source ↗
Figure 6

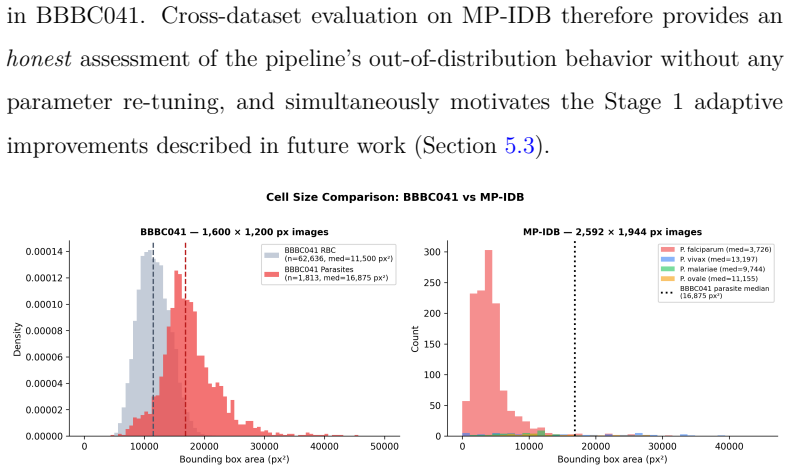

Figure 6. Figure 6: Bounding-box area distributions for BBBC041 (left) and MP-IDB (right). Left: [PITH_FULL_IMAGE:figures/full_fig_p023_6.png] view at source ↗
Figure 7

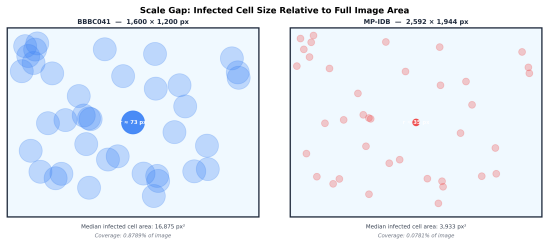

Figure 7. Figure 7: Geometric illustration of the scale gap between BBBC041 (left) and MP-IDB [PITH_FULL_IMAGE:figures/full_fig_p024_7.png] view at source ↗
Figure 8

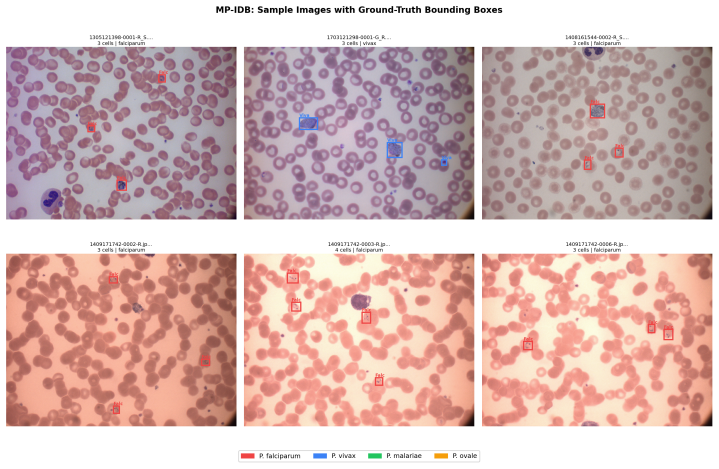

Figure 8. Figure 8: Representative MP-IDB images with ground-truth bounding boxes overlaid. Red [PITH_FULL_IMAGE:figures/full_fig_p025_8.png] view at source ↗
Figure 9

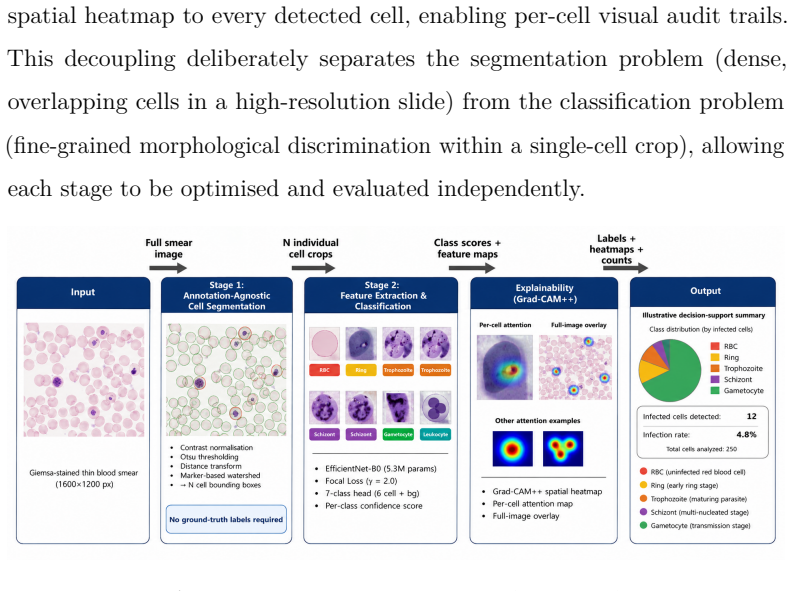

Figure 9. Figure 9: MalariAI two-stage decoupled architecture. Stage 1 performs universal cell segmentation via distance-transform guided watershed on the raw 1600×1200 blood smear image with no annotation input. Stage 2 classifies each 64×64 crop with EfficientNet-B0 and Focal Loss, followed by Grad-CAM++ for per-cell spatial explainability. 3.2.2. Stage 1 – Universal Cell Segmentation Stage 1 applies a five-step computer vi… view at source ↗
Figure 10

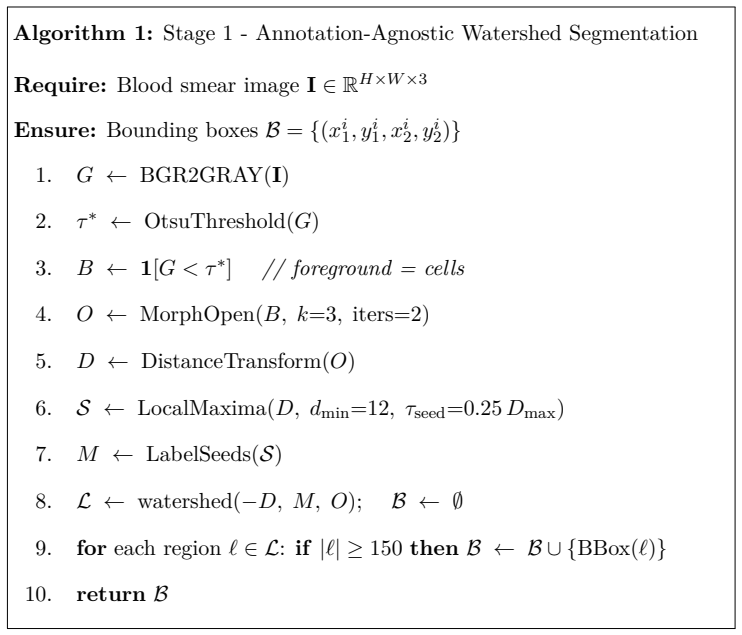

Figure 10. Figure 10: Stage 1 annotation-agnostic watershed segmentation (Algorithm 1). Parameters: [PITH_FULL_IMAGE:figures/full_fig_p029_10.png] view at source ↗
Figure 11

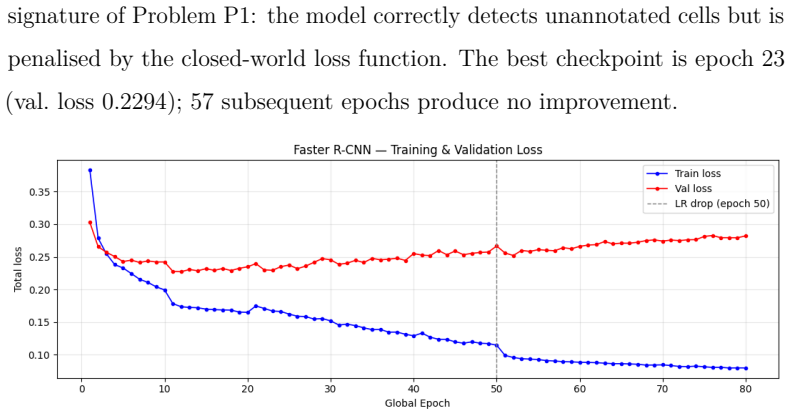

Figure 11. Figure 11: Faster R-CNN (Baseline A) training and validation loss over 80 epochs. Val [PITH_FULL_IMAGE:figures/full_fig_p035_11.png] view at source ↗
Figure 12

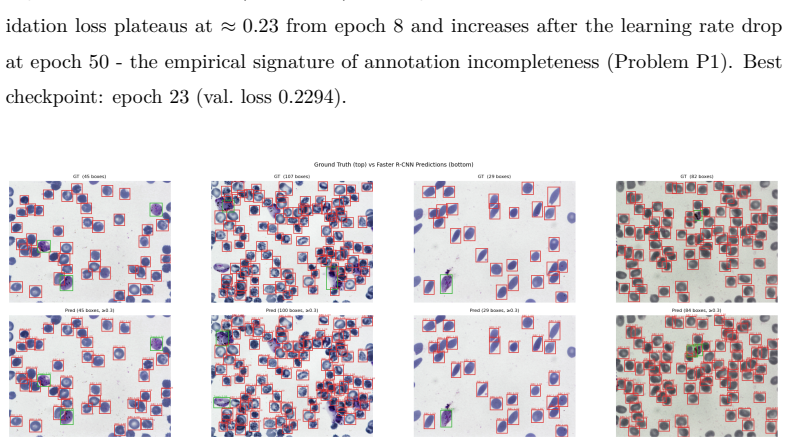

Figure 12. Figure 12: Ground truth (top) versus Faster R-CNN Baseline A predictions (bottom) on [PITH_FULL_IMAGE:figures/full_fig_p035_12.png] view at source ↗
Figure 13

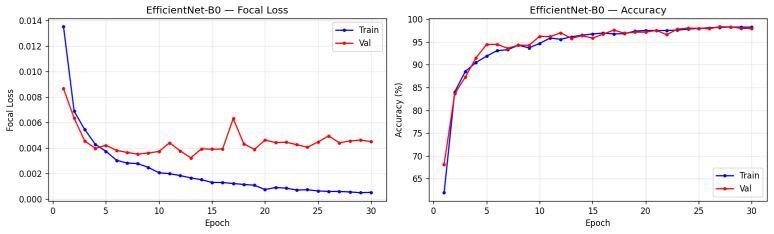

Figure 13. Figure 13: Pipeline B Stage 2 (EfficientNet-B0) training and validation loss and accuracy [PITH_FULL_IMAGE:figures/full_fig_p043_13.png] view at source ↗
Figure 14

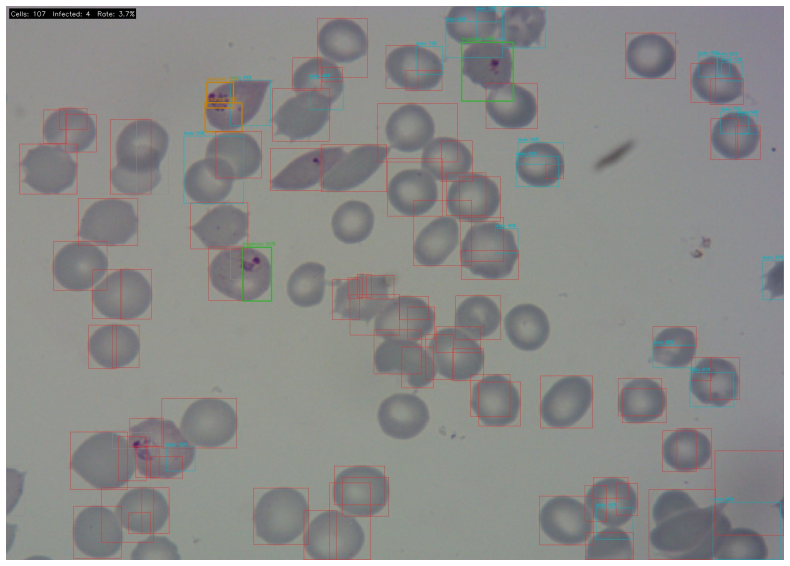

Figure 14. Figure 14: Stage 1 watershed output on a representative test image (64985a1e, 42 valid [PITH_FULL_IMAGE:figures/full_fig_p053_14.png] view at source ↗
Figure 15

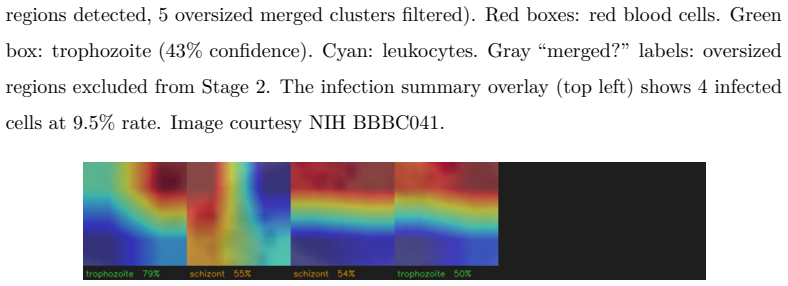

Figure 15. Figure 15: Grad-CAM++ crop gallery for the representative test image. Each panel shows a detected parasitic cell at 160×160 pixels with the heatmap overlaid (jet colormap, α = 0.5). Red-yellow regions indicate pixels that most strongly contributed to the model’s classification decision. Labels show class name and softmax confidence. Image courtesy NIH BBBC041. 52 [PITH_FULL_IMAGE:figures/full_fig_p053_15.png] view at source ↗
Figure 16

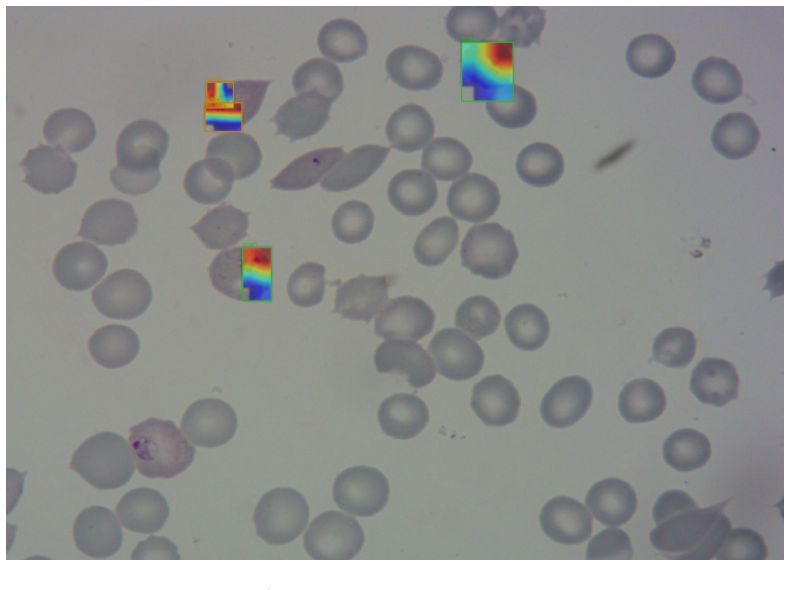

Figure 16. Figure 16: Full-image Grad-CAM++ overlay. The heatmap is spliced back onto the original 1600×1200 smear only at parasite-detected bounding box locations using a soft spatial mask (Gaussian-blurred boundary). The rest of the image is shown unchanged. Parasite bounding boxes are drawn in class color. Image courtesy NIH BBBC041. 53 [PITH_FULL_IMAGE:figures/full_fig_p054_16.png] view at source ↗
read the original abstract

Automated malaria diagnosis from blood smear microscopy is a critical challenge in global health AI; in resource-limited settings, the scarcity of expert microscopists remains the primary bottleneck to timely and accurate diagnosis. Three compounding failure modes prevent reliable clinical deployment of existing deep learning systems. First, end-to-end detectors treat unannotated cells as background during training, producing recall figures that are strongly influenced by annotation completeness rather than reflecting true cell recovery. Second, Non-Maximum Suppression tends to suppress valid detections in dense smear regions where infection counts matter most. Third, existing whole-slide detection pipelines lack per-cell spatial evidence for clinical audit, despite image-level explainability methods such as Grad-CAM having been applied to malaria image classification tasks. We present MalariAI, a two-stage decoupled framework that addresses all three failure modes in a unified pipeline. Stage 1 applies an annotation-agnostic distance-transform guided watershed algorithm to isolate every cell in a full 1600x1200 blood smear image, recovering 75.95% of ground-truth cells by centroid localisation across the 120-image NIH BBBC041 test set without any ground-truth input. Stage 2 fine-tunes EfficientNet-B0 with Focal Loss (gamma = 2.0, per-class inverse-frequency weights) on 64x64 crops, achieving 98.36% overall classification accuracy with 87.5% and 75.0% per-class accuracy on the rare schizont and gametocyte stages, compared to only 24.57% and 25.95% AP for a Faster R-CNN baseline on the same classes. Grad-CAM++ heatmaps generated per detected cell provide instance-level spatial evidence for clinical audit, enabling microscopists to verify model predictions at the individual parasite level without sacrificing classification performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces MalariAI, a decoupled two-stage framework for malaria parasite detection and classification in blood smears. Stage 1 employs an annotation-agnostic distance-transform guided watershed algorithm to segment individual cells from full 1600x1200 images, reporting 75.95% centroid recovery on the NIH BBBC041 test set without using ground-truth annotations. Stage 2 fine-tunes an EfficientNet-B0 model using focal loss on 64x64 cell crops for five-stage classification, achieving 98.36% overall accuracy and superior performance on rare classes compared to Faster R-CNN, with Grad-CAM++ providing per-cell explainability.

Significance. If the central claims regarding parameter-independent cell isolation and split-independent classification hold, this work would be significant for global health AI by mitigating annotation bias, improving detection in dense regions, and providing instance-level explainability for clinical validation in malaria diagnosis.

major comments (2)
  1. [Abstract] The watershed-based cell isolation claim (75.95% recovery without ground-truth input) is load-bearing for the 'label-resilient' and 'annotation-agnostic' framing, but the abstract supplies no details on the specific fixed parameters of the distance-transform and watershed steps (e.g., Gaussian sigma, local maxima thresholds), contrary to the requirement that they be dataset-independent and untuned on the test set.
  2. [Abstract] The classification results (98.36% accuracy, 75.0% on gametocytes) are evaluated on the same 120-image test set as the segmentation stage; the manuscript does not state whether the training crops for EfficientNet-B0 fine-tuning are drawn from a completely disjoint set of images, which is necessary to establish that the reported metrics reflect generalization rather than leakage.
minor comments (1)
  1. [Abstract] The abstract reports headline metrics without error bars or statistical tests; this presentation issue should be addressed with confidence intervals in the results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on improving the transparency of our claims. We address the two major comments point-by-point below.

read point-by-point responses

  1. Referee: [Abstract] The watershed-based cell isolation claim (75.95% recovery without ground-truth input) is load-bearing for the 'label-resilient' and 'annotation-agnostic' framing, but the abstract supplies no details on the specific fixed parameters of the distance-transform and watershed steps (e.g., Gaussian sigma, local maxima thresholds), contrary to the requirement that they be dataset-independent and untuned on the test set.

    Authors: We agree the abstract should be self-contained on this point. The full manuscript describes the fixed parameters in the Methods section; these were selected a priori based on typical cell morphology and held constant without any tuning on the NIH BBBC041 test set (or any evaluation data). We will revise the abstract to explicitly list the parameters and restate that they are dataset-independent. revision: yes

  2. Referee: [Abstract] The classification results (98.36% accuracy, 75.0% on gametocytes) are evaluated on the same 120-image test set as the segmentation stage; the manuscript does not state whether the training crops for EfficientNet-B0 fine-tuning are drawn from a completely disjoint set of images, which is necessary to establish that the reported metrics reflect generalization rather than leakage.

    Authors: The training crops are drawn exclusively from images disjoint from the 120-image test set. We will add an explicit statement clarifying the image-level split in the revised manuscript (and abstract where space permits) to confirm the absence of leakage. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical measurements on named public dataset

full rationale

The paper reports direct empirical results from applying a fixed distance-transform watershed pipeline (Stage 1) and fine-tuning EfficientNet-B0 with Focal Loss (Stage 2) to the NIH BBBC041 test set. No equations, derivations, or self-citations are presented that reduce any claimed output to the inputs by construction. The 75.95% recovery and 98.36% accuracy figures are framed as measurements on an external benchmark without parameter fitting to the evaluation split or renaming of known results. The derivation chain is therefore self-contained.

Axiom & Free-Parameter Ledger

1 free parameters · 0 axioms · 0 invented entities

No mathematical derivations, new physical constants, or postulated entities appear in the abstract; the work rests on standard image-processing algorithms and a pre-trained CNN whose training details are not supplied.

free parameters (1)
  • gamma = 2.0
    Focal-loss focusing parameter set to 2.0; value is stated but its selection process is not described.

pith-pipeline@v0.9.1-grok · 5886 in / 1350 out tokens · 37570 ms · 2026-07-02T04:48:35.735838+00:00 · methodology
