A Generative Model for Closed-Loop Microsimulation of Signalized Intersections

Yash Ranjan , Rahul Sengupta , Anand Rangarajan , Sanjay Ranka This is my paper

Pith reviewed 2026-06-26 08:23 UTC · model grok-4.3

classification 💻 cs.RO cs.AI
keywords generative modelclosed-loop microsimulationsignalized intersectionstransformer attentionvehicle trajectory predictiontraffic simulationSUMO
0
0 comments X

The pith

Enactor generates vehicle trajectories at signalized intersections that match a SUMO simulator's speed and travel-time distributions with over ten times lower KL divergence than a transformer baseline while cutting red-light violations by m

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Enactor, a generative model that treats each vehicle as an actor whose next motion is drawn from a learned distribution. It encodes actors and lanes in polar coordinates around the intersection center and feeds them to a transformer that separates spatial and temporal attention. Training proceeds through a closed-loop curriculum that forces the model to use its own prior outputs as input. In full simulation-in-the-loop tests lasting 4000 seconds with continuously refreshed actors, the model recovers the original data generator's distributions far more closely than a recent transformer baseline and produces far fewer safety violations. The same architecture also outperforms a constant-velocity predictor on naturalistic trajectories recorded at a real intersection.

Core claim

Enactor is an actor-centric generative model that encodes dynamic vehicles and lane polylines in polar coordinates referenced to the intersection center, uses a transformer with separate spatial and temporal attention blocks to output a distribution over each actor's next-step motion (s, α), and is trained with a closed-loop curriculum so that it learns to condition on its own predictions; when run in full closed-loop simulation-in-the-loop against a refreshing actor set it recovers the SUMO generator's speed and travel-time distributions with KL divergence more than an order of magnitude lower than a recent transformer baseline on travel time and roughly 5× lower on speed at one site, while

What carries the argument

Actor-centric transformer that predicts per-vehicle (s, α) distributions from polar-encoded actors and lanes, trained with closed-loop curriculum on its own rollouts.

If this is right

  • Enactor recovers the SUMO data generator's speed and travel-time distributions with KL divergence over an order of magnitude lower than a recent transformer baseline on travel time.
  • Enactor reduces red-light violations by more than an order of magnitude relative to the same baseline.
  • An ablation shows the leader rear-bumper feature produces the largest improvement on intersection-aware safety metrics.
  • The same architecture outperforms a constant-velocity baseline at every horizon on naturalistic vehicle trajectories from a fish-eye camera.
  • Pedestrians are treated only as context that can influence vehicle decisions but are not themselves predicted.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The polar encoding and dual-attention design may allow the same model to be fine-tuned on limited real-world data without retraining from scratch.
  • Because the model already handles a continuously refreshed actor set, it could be coupled directly to live sensor feeds for on-line traffic forecasting.
  • The closed-loop curriculum's emphasis on long-horizon stability suggests the architecture could be adapted to multi-agent settings beyond intersections, such as highway merging.
  • The ablation result on the leader rear-bumper feature indicates that explicit inclusion of immediate leader state is a high-leverage inductive bias for safety-critical motion models.

Load-bearing premise

A model trained via closed-loop curriculum on SUMO-generated data will remain stable and produce realistic long-horizon behavior when run in full simulation-in-the-loop with a refreshing actor set and when transferred to real field data.

What would settle it

Running the trained Enactor for 10 000+ seconds in closed loop on a new intersection geometry and measuring whether the KL divergence on travel-time distributions stays below the reported baseline level or begins to rise sharply.

Figures

Figures reproduced from arXiv: 2606.23588 by Anand Rangarajan, Rahul Sengupta, Sanjay Ranka, Yash Ranjan.

Figure 2
Figure 2. Figure 2: SUMO is configured with calibrated arrival rates per [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 1

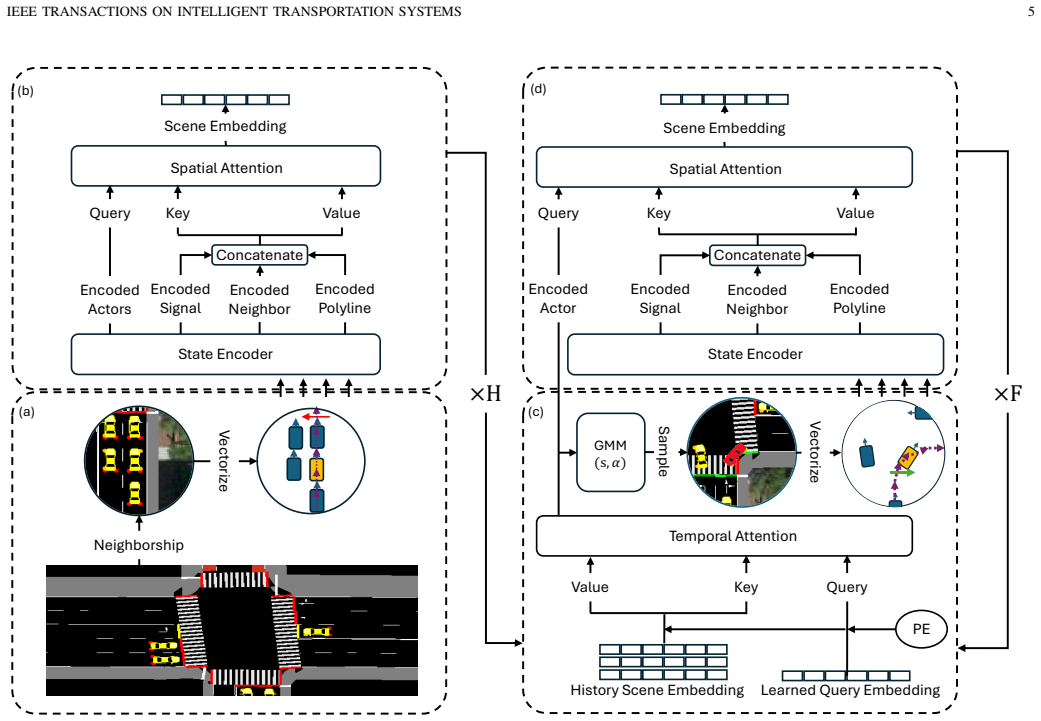

Figure 1. Figure 1: Transformer-based architecture for learning multi-actor interactions and generating trajectories. (a) SUMO initializes the traffic scene from a set of [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

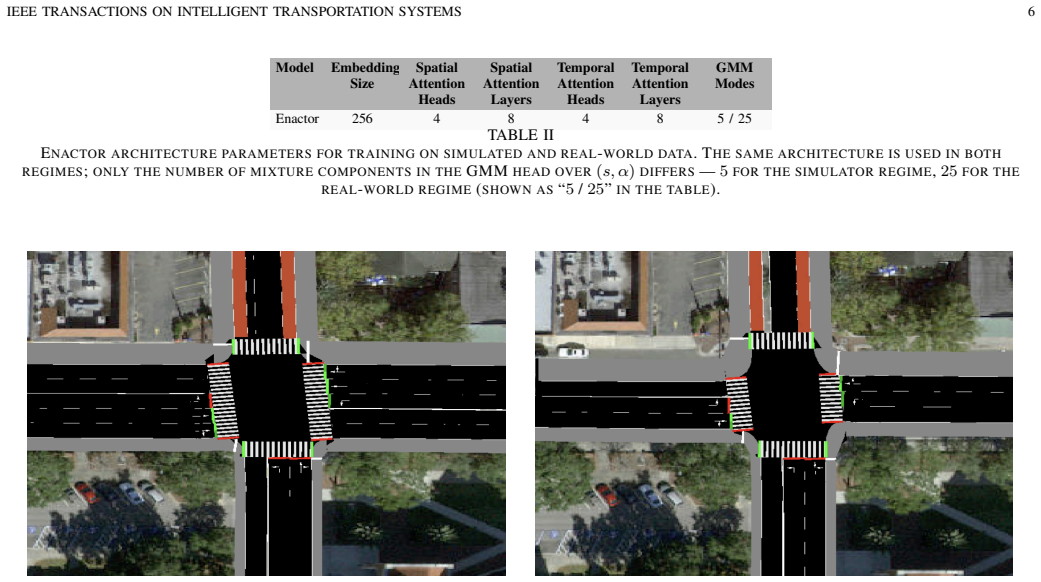

Figure 2. Figure 2: Digital representations of the two simulated intersections. left: SUMO representation of the intersection at West University. right: The same intersection [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

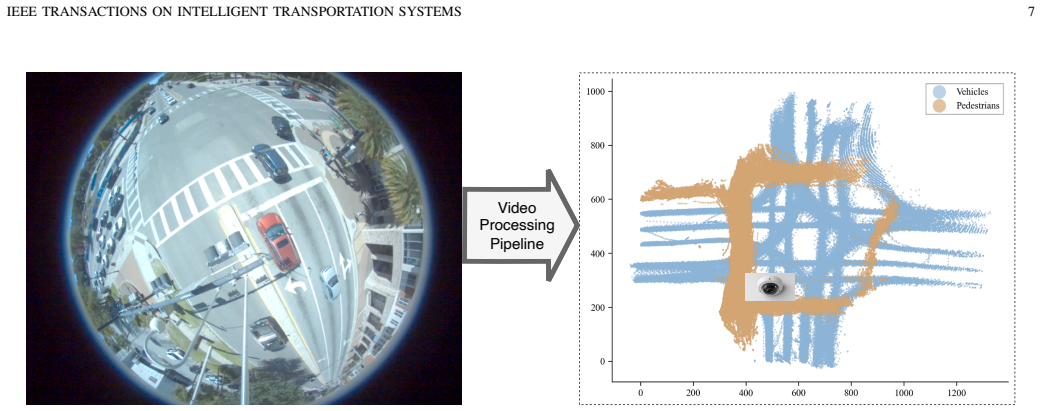

Figure 3. Figure 3: Traffic video is collected through fish-eye camera at a frame rate of 10 frames per second, and processed though a data processing pipeline that [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

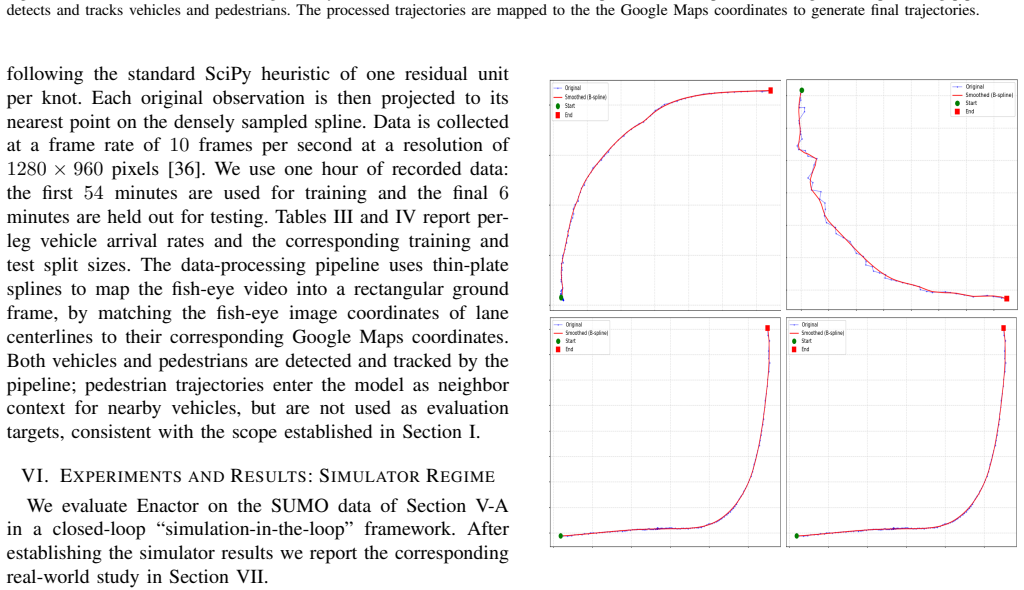

Figure 4. Figure 4: Lateral drift from detection error is corrected by fitting a smoothing [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

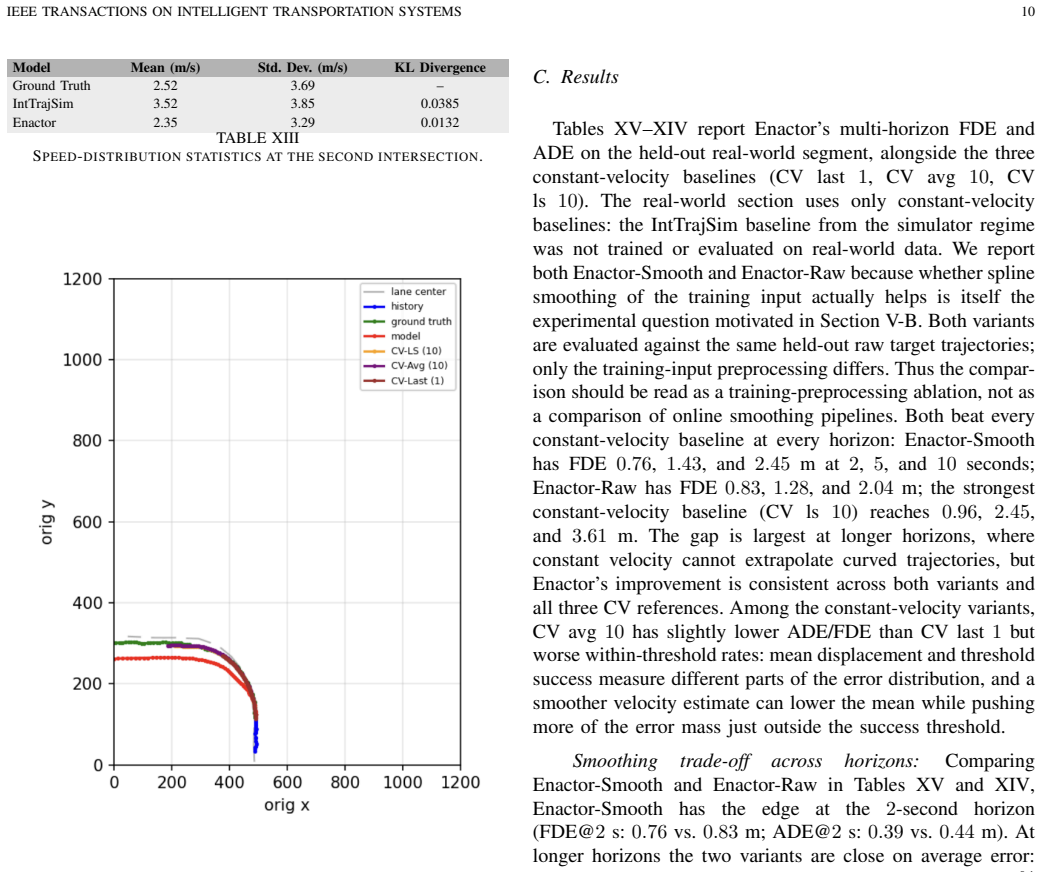

Figure 5. Figure 5: Trajectory comparison between enactor and constant velocity baseline. [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

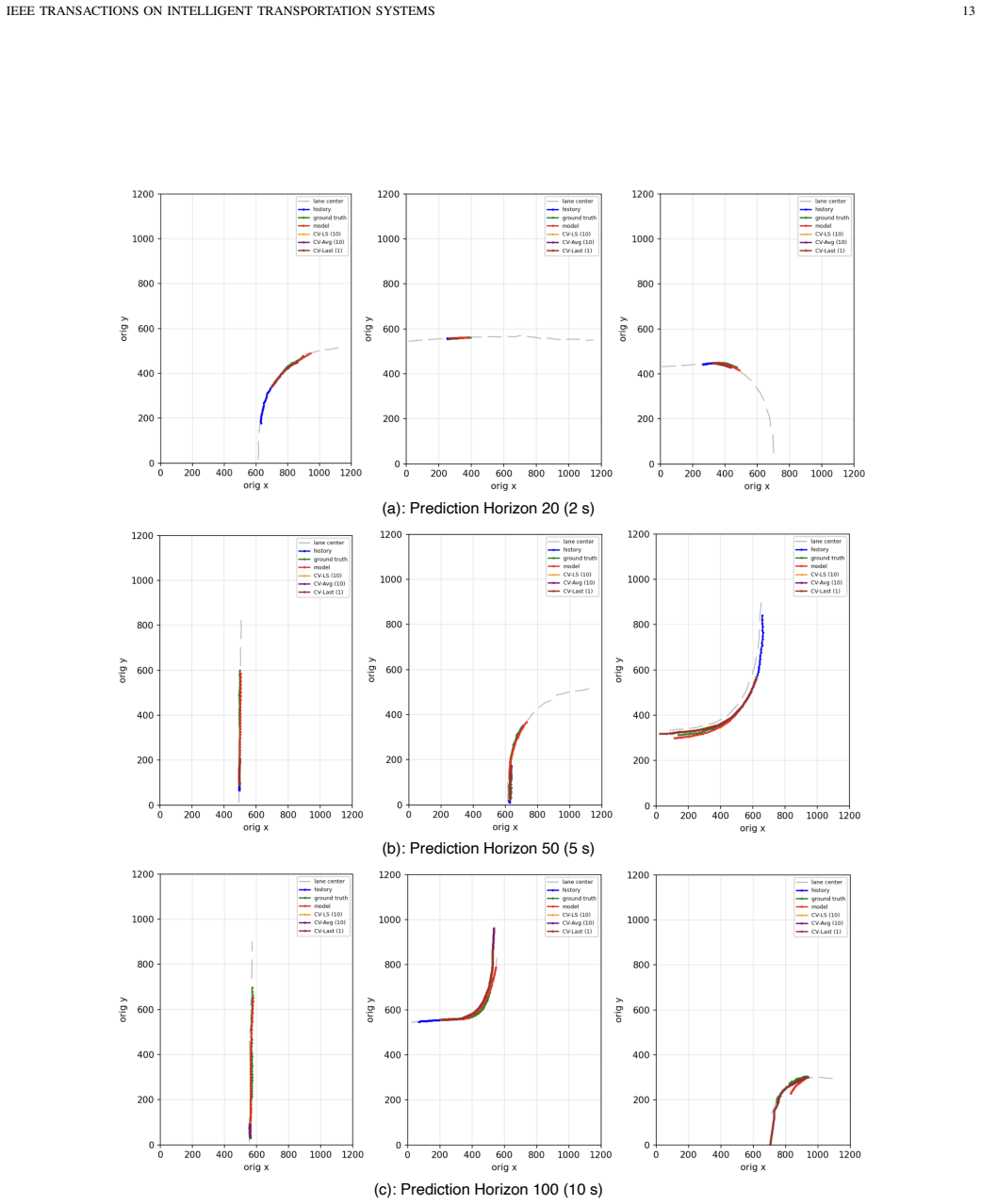

Figure 6. Figure 6: Trajectory comparison between enactor and constant velocity baselines with different prediction horizons. [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
read the original abstract

Traffic microsimulators rely on hand-crafted behavior models that reproduce aggregate flow but miss the heterogeneous interactions between vehicles at signalized intersections. Learned trajectory predictors capture richer interactions but are short-horizon and tend to be unstable when run in closed loop. We present Enactor, an actor-centric generative model for closed-loop intersection microsimulation. The model focuses on vehicles; pedestrians are included as context that can influence vehicle decisions but not predicted. Dynamic actors and lane polylines are encoded in polar coordinates referenced to the intersection center. A transformer with separate spatial and temporal attention blocks predicts a distribution over each actor's next-step motion ($s$, $\alpha$). Training uses a closed-loop curriculum so the model is exposed to its own predictions. We evaluate Enactor in two regimes. In a 4000-second simulation-in-the-loop test at two intersection geometries, Enactor controls every dynamic vehicle against a continuously refreshing actor set rather than the fixed cohort that learned trajectory predictors are usually evaluated against. It recovers the SUMO data generator's speed and travel-time distributions with KL divergence over an order of magnitude lower than a recent transformer baseline on travel time, and substantially lower on speed (roughly $5\times$ lower at Site 1), and reduces red-light violations relative to the same baseline by more than an order of magnitude. An ablation isolates the leader rear-bumper feature as the change with the largest effect on intersection-aware safety metrics. We also evaluate on real-world field data and apply the same architecture to naturalistic vehicle trajectories from a fish-eye camera at a signalized intersection and evaluate it on multi-horizon predictive tasks. Enactor outperforms a constant-velocity baseline at every horizon evaluated.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper introduces Enactor, an actor-centric generative model for closed-loop microsimulation of signalized intersections. Vehicles are encoded in polar coordinates relative to the intersection center; a transformer with separate spatial and temporal attention blocks outputs a distribution over each actor's next-step motion (s, α). Training employs a closed-loop curriculum. In 4000-second simulation-in-the-loop experiments at two sites, Enactor controls every dynamic vehicle against a continuously refreshing actor set and recovers the SUMO generator's speed and travel-time distributions with KL divergence more than an order of magnitude lower than a recent transformer baseline on travel time (roughly 5× lower on speed at Site 1) while reducing red-light violations by more than an order of magnitude. An ablation identifies the leader rear-bumper feature as most impactful on safety metrics. On real-world fish-eye camera trajectories the same architecture outperforms a constant-velocity baseline on multi-horizon open-loop prediction.

Significance. If the reported gains in distributional fidelity and violation reduction hold under the closed-loop regime with refreshing actors, the work supplies a concrete, reproducible route to stable long-horizon learned microsimulation that improves upon both hand-crafted SUMO models and short-horizon trajectory predictors. The explicit separation of closed-loop SUMO evaluation from open-loop real-world evaluation, together with the leader-rear-bumper ablation, strengthens the central claim that curriculum training plus actor-centric polar encoding enables realistic intersection behavior.

minor comments (3)
  1. [Abstract, §4] Abstract and §4: the factor-of-5× speed KL improvement at Site 1 and the order-of-magnitude travel-time and violation claims should be accompanied by the exact KL values, sample sizes, and any statistical significance tests in the main results tables so that readers can assess effect magnitude directly.
  2. [§3.2] §3.2: the precise definition of the polar encoding (origin at intersection center, reference frame for α) and the handling of lane-polyline context should be stated with an equation or pseudocode; current prose leaves the coordinate transformation ambiguous for re-implementation.
  3. [Introduction, Conclusion] The manuscript states that real-world evaluation is restricted to open-loop multi-horizon prediction; this distinction from the closed-loop SUMO regime should be reiterated in the introduction and conclusion to prevent readers from conflating the two settings.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the detailed and accurate summary of our work, the positive assessment of its significance, and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The manuscript describes an empirical generative model (Enactor) trained via closed-loop curriculum on SUMO data and evaluated in 4000-second simulation-in-the-loop runs that recover the generator's speed/travel-time distributions with lower KL than a transformer baseline, plus open-loop multi-horizon prediction on independent real-world camera trajectories. The closed-loop curriculum is a standard technique for exposing the model to its own outputs and does not force the reported distribution matches or violation reductions by construction; the baseline comparison and separate real-world test supply independent content. No self-definitional equations, fitted inputs renamed as predictions, load-bearing self-citations, or imported uniqueness theorems appear in the provided text.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on standard neural-network assumptions about attention mechanisms and data representation choices; no explicit free parameters beyond training are described in the abstract.

axioms (2)
  • domain assumption Transformer attention blocks can effectively capture spatial and temporal dependencies in multi-actor trajectory data
    Invoked in the model architecture description
  • domain assumption Polar coordinate encoding centered at the intersection is adequate to represent lane polylines and actor states
    Used for input representation
