ARTOO-DARTU: Studying AR-HRC With AR Obstruction Mitigation During a Warehouse Task

Christian Fronk , Hanting Ye , Zhehan Qu , Maria Gorlatova This is my paper

Pith reviewed 2026-06-25 21:49 UTC · model grok-4.3

classification 💻 cs.HC cs.RO
keywords augmented realityhuman-robot collaborationobstruction mitigationwarehouse taskssituated analyticsAR-HRCuser study
0
0 comments X

The pith

AR situated analytics improve warehouse HRC efficiency by 46% only when paired with obstruction mitigation to preserve real-world visibility.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents ARTOO-DARTU as an AR system for human-robot collaboration in warehouses that delivers real-time robot feedback while using an obstruction detection and mitigation pipeline to avoid blocking views of important real objects. In a user study with 34 participants using a gamified task called Pocket MonstARs, the full system produced a 46% efficiency gain overall and 61% faster performance on visibility-critical subtasks. Without the mitigation, the analytics showed no benefit, indicating that the ability to keep real-world elements visible is what enables the gains in dynamic settings with moving robots. This matters because HRC tasks require both information from the robot and clear sight for safe and effective work.

Core claim

The central claim is that the ARTOO-DARTU system, equipped with its obstruction detection and mitigation pipeline, allows AR situated analytics to significantly enhance efficiency and user experience in AR-HRC warehouse scenarios by preventing obstructions to real-world visibility, as shown by the 46% increase in overall task efficiency and 61% faster subtasks when the pipeline is active compared to when it is not.

What carries the argument

The obstruction detection and mitigation (ODM) pipeline, which identifies and reduces AR content that would otherwise obstruct real-world elements during mobile robot movements.

If this is right

  • When the ODM is active, AR situated analytics increase overall HRC task efficiency by 46%.
  • Participants are 61% faster on subtasks that require visibility of the real world when using the ODM.
  • The system enables real-time robot situated analytics and control without posing safety risks from visual obstructions.
  • AR content can be dynamically positioned relative to robot movements while maintaining usability.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar mitigation techniques could extend to other mobile robot environments where AR overlays risk hiding physical hazards.
  • Real warehouse deployments might show different gains if the gamified elements are replaced with actual inventory items.
  • The results suggest that future AR-HRC designs should prioritize visibility preservation as a core requirement rather than an add-on.

Load-bearing premise

The gamified Pocket MonstARs task with virtual monsters and labeled boxes accurately reflects the real-world identification and visibility requirements of warehouse inventory picking with mobile robots.

What would settle it

A study measuring task completion times and error rates in an actual warehouse setting with physical boxes and moving robots, comparing conditions with and without the obstruction mitigation.

Figures

Figures reproduced from arXiv: 2606.25202 by Christian Fronk, Hanting Ye, Maria Gorlatova, Zhehan Qu.

Figure 1

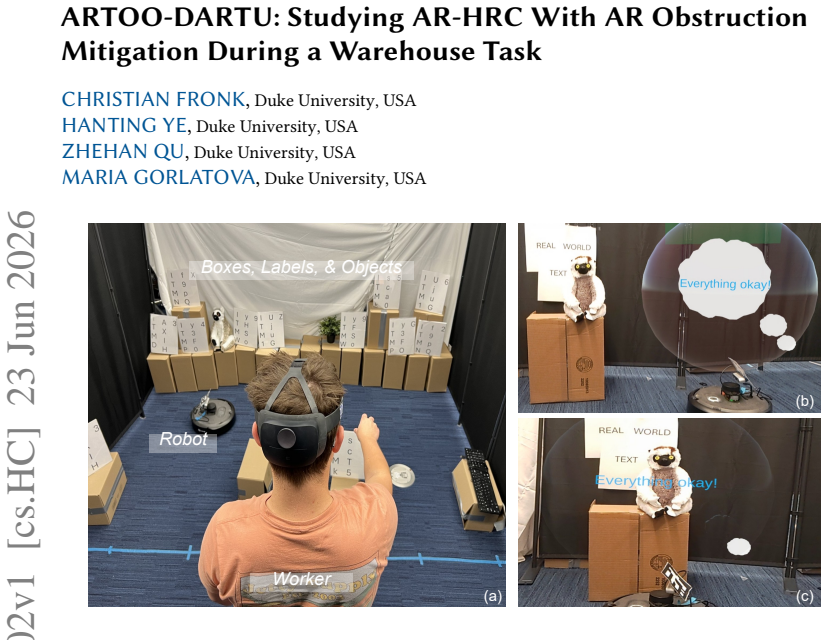

Figure 1. Figure 1: (a) The area allocated for our developed Pocket MonstARs task, where users collaborate with a robot [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

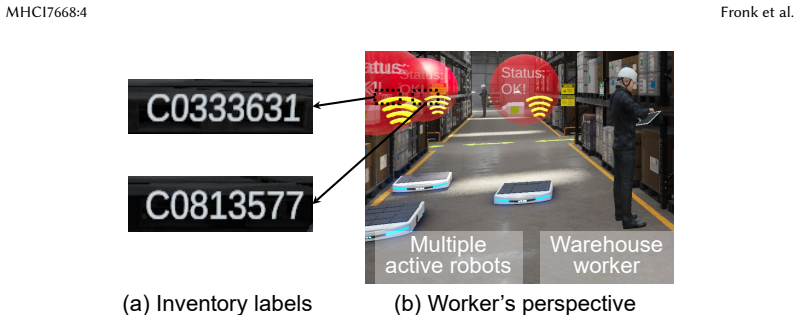

Figure 2. Figure 2: The simulated warehouse environment. (a) Zoomed-in views of inventory labels. (b) Worker’s perspec [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

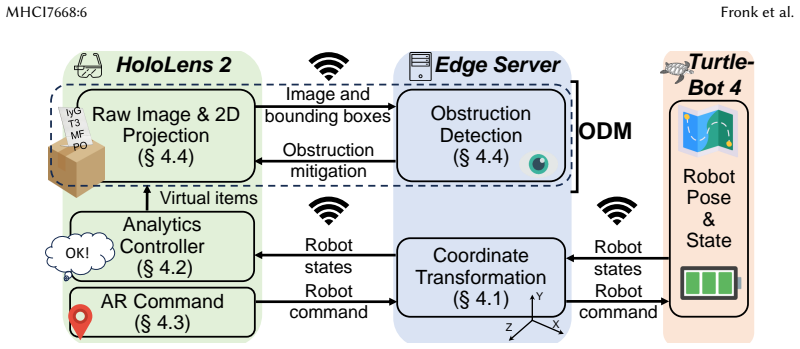

Figure 3. Figure 3: ARTOO-DARTU system diagram. 2. Convenient AR control of a robotic collaborator requiring minimal interface additions. 3. Mitigation of AR obstructions of the real-world in a dynamic environment with mobile elements, without mitigation breaking spatial alignment of situated analytics. We do not position ARTOO-DARTU as a system for responding to warehouse accidents after they occur. Rather, our intended appl… view at source ↗
Figure 4

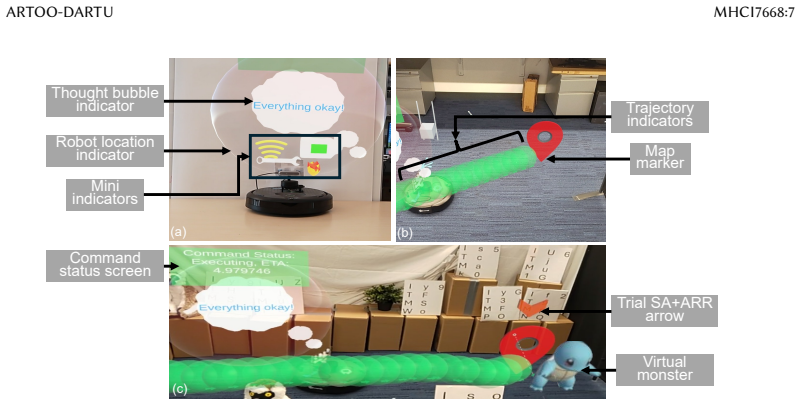

Figure 4. Figure 4: The setup and AR view of ARTOO-DARTU. (a) Situated analytics indicators for the robot. (b) Use [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

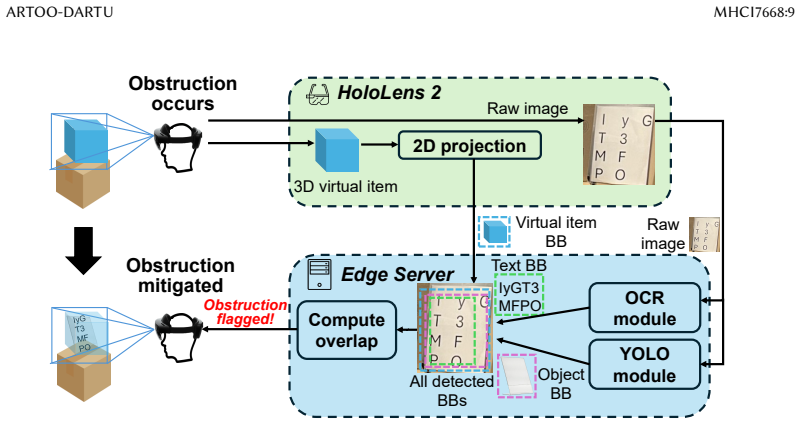

Figure 5. Figure 5: The flow of the ODM for a case in which an AR item obstructs a real-world labeled inventory box. [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

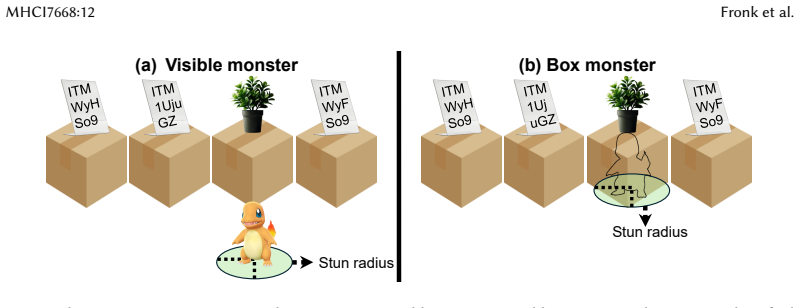

Figure 6. Figure 6: The two monster types in Pocket MonstARs: visible monsters and box-associated monsters identified using real-world cues. complete the game, users must catch 15 monsters by moving the TurtleBot to each monster location and pressing a virtual stun button to make the TurtleBot stun the monster. A monster is considered stunned, and subsequently caught, if the TurtleBot’s Euclidean separation distance to the mo… view at source ↗
Figure 7

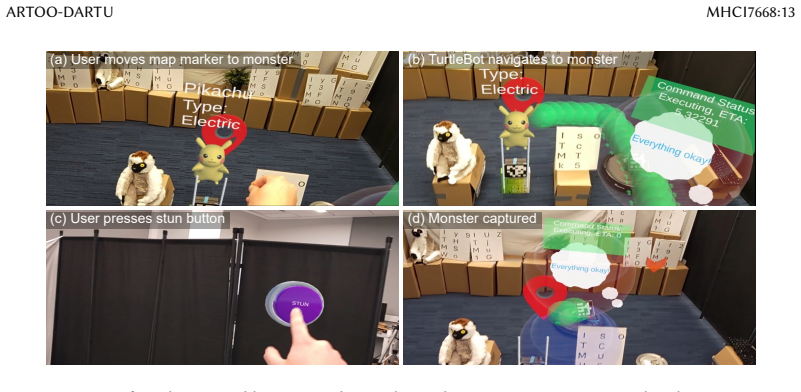

Figure 7. Figure 7: Process of catching a visible monster during the Pocket MonstARs SA+ARR trial with ODM inactive. (a) A visible monster appears, and the user follows the instruction text by placing the map marker at the monster’s location. (b) The TurtleBot navigates to the map marker while trajectory indicators appear and the command status screen updates. (c) Once the TurtleBot reaches the destination, the user presses t… view at source ↗
Figure 8

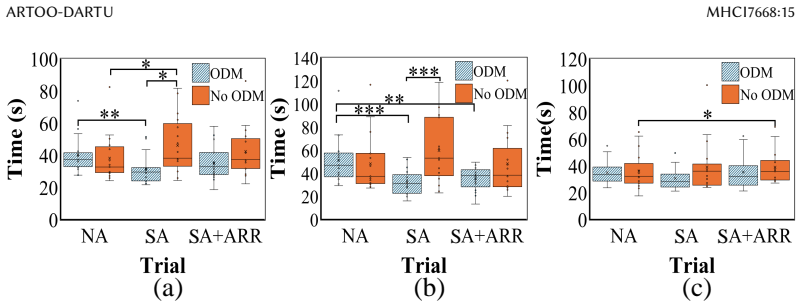

Figure 8. Figure 8: Task performance data for all users of each group across all trials. (a): Average overall catch times. (b): [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
read the original abstract

Human-robot collaboration (HRC) often requires robot intentions and internal states to be conveyed to users for task efficiency and safety. Recently, augmented reality (AR) situated analytics provide such real-time robot feedback in HRC contexts. However, AR situated analytics can obstruct important real-world elements, posing safety and usability risks, especially when content is dynamically positioned relative to movements of mobile robots in a warehouse HRC scenario. In this paper, we introduce the Augmented Reality Technique Of Obstruction Deterrence while Aiding Robotic Teaming for Users (ARTOO-DARTU), an AR system tailored specifically for warehouse HRC that enables real-time robot situated analytics and control while preserving visibility of the real world through an obstruction detection and mitigation pipeline (ODM) that is uniquely suited for AR-HRC. To evaluate ARTOO-DARTU, we developed Pocket MonstARs, a controlled gamified abstraction of HRC warehouse inventory picking in which virtual monsters serve as proxies for pick targets, while labeled and object-marked boxes preserve the real-world identification demands of the picking task. In a 34-participant user study, we found that our designed AR situated analytics yielded a 46% increase in efficiency on the overall HRC task, but only when the ODM was active. Participants with the ODM active were also 61% faster on subtasks requiring visibility of the real world. Our findings demonstrate that, when paired with our developed ODM to prevent real-world obstructions, the situated analytics in ARTOO-DARTU can significantly enhance efficiency and user experience in AR-HRC warehouse scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces ARTOO-DARTU, an AR system for warehouse human-robot collaboration (HRC) featuring a tailored obstruction detection and mitigation (ODM) pipeline that enables real-time situated robot analytics while preserving visibility of the real world. Evaluation uses the Pocket MonstARs gamified task (virtual monsters as pick targets, labeled boxes for identification) in a 34-participant study, reporting a 46% efficiency increase on the overall HRC task and 61% faster performance on visibility-requiring subtasks, but only when ODM is active.

Significance. If the results hold, the work demonstrates the practical importance of obstruction mitigation for safe and efficient AR-HRC in dynamic settings with mobile robots. The specialized ODM pipeline is a clear engineering contribution, and the controlled gamified evaluation enables direct condition comparisons. The quantitative claims, if supported by appropriate statistics and design details, provide evidence that pairing situated analytics with ODM can improve user performance.

major comments (1)
  1. [§4] §4 (User Study and Task Design): The 46% overall efficiency gain and 61% subtask speedup are reported only with ODM active, but these rest on the assumption that the Pocket MonstARs task (virtual monsters as proxies for pick targets plus labeled boxes) reproduces the visibility and identification demands of real warehouse inventory picking. Real scenarios involve variable physical occlusions, lighting changes, and unpredictable robot trajectories that the controlled abstraction may not replicate; if the ODM benefit is an artifact of this simplification, the conditional claim does not transfer. This is load-bearing for the central applicability argument.
minor comments (2)
  1. [Abstract] Abstract: The quantitative percentages are stated without reference to the accompanying statistical tests, sample sizes per condition, or error measures; while the body likely contains these, the abstract should at minimum indicate that results are statistically supported.
  2. [Figures] Figure captions (e.g., system overview figures): Ensure all pipeline stages in the ODM description are explicitly labeled so readers can trace the obstruction detection logic without cross-referencing the text.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive feedback on the applicability of our controlled evaluation. We address the single major comment below.

read point-by-point responses

  1. Referee: [§4] §4 (User Study and Task Design): The 46% overall efficiency gain and 61% subtask speedup are reported only with ODM active, but these rest on the assumption that the Pocket MonstARs task (virtual monsters as proxies for pick targets plus labeled boxes) reproduces the visibility and identification demands of real warehouse inventory picking. Real scenarios involve variable physical occlusions, lighting changes, and unpredictable robot trajectories that the controlled abstraction may not replicate; if the ODM benefit is an artifact of this simplification, the conditional claim does not transfer. This is load-bearing for the central applicability argument.

    Authors: We appreciate the referee's concern about ecological validity. The Pocket MonstARs task was deliberately constructed as a controlled gamified abstraction to isolate the precise visibility and identification demands that ODM is designed to protect. Virtual monsters serve as proxies for pick targets while the labeled and object-marked physical boxes directly preserve the real-world identification requirements of inventory picking; this design choice allows us to measure ODM's effect on subtasks that require unobstructed real-world visibility. Such abstractions are standard in HCI for rigorously comparing interface conditions before field deployment. We do not claim that the 46% and 61% gains will transfer unchanged to every real warehouse; our claims are scoped to the controlled setting in which ODM demonstrably mitigates the obstruction problem introduced by situated AR analytics. We will add a dedicated paragraph in the Discussion section that (a) explicitly states the rationale for the task elements and (b) acknowledges the additional real-world variables (lighting, unpredictable trajectories) not present in the study, thereby clarifying the boundary of the applicability argument without altering any results or claims. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical user study with no derivations or fitted parameters

full rationale

The paper describes an AR system (ARTOO-DARTU) and reports results from a 34-participant controlled user study on a gamified task (Pocket MonstARs). No equations, derivations, parameters, or predictive models are present in the provided text or abstract. The efficiency claims (46% overall, 61% on visibility subtasks) are direct empirical measurements, not outputs of any fitted or self-referential construction. The ODM pipeline is a described implementation, not a mathematical reduction. Self-citations, if any, are not load-bearing for any derivation. This matches the default case of a self-contained empirical study with no opportunity for the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is an empirical system design and user study. It introduces no mathematical free parameters, axioms, or postulated physical entities. The ODM pipeline is a software component rather than an invented entity with independent evidence requirements.
