3D Spatial Pattern Matching

Nicole R. Schneider , Avik Das , Lukas Arzoumanidis , Abhijeet Ghodgaonkar , Hanan Samet , Youness Dehbi This is my paper

Pith reviewed 2026-06-26 03:07 UTC · model grok-4.3

classification 💻 cs.DB cs.AIcs.IR
keywords spatial pattern matching3D spatial datasubgraph matchingdistance relationsurban datasetsHamburg buildingssynthetic datasets
0
0 comments X

The pith

Spatial pattern matching extends to 3D by generalizing the definition and applying subgraph matching on distance relations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to address the restriction of spatial pattern matching to flat planes by moving the problem into three dimensions where entities have height as well as position. A sympathetic reader would care because many practical searches, from finding similar urban regions to matching landmarks, involve objects whose vertical placement affects whether a pattern holds. The authors supply a generalized problem definition, an algorithm that finds matches via distance relations in 3D, and two datasets—one synthetic and one built from real Hamburg buildings—to let others test and improve the approach. If the extension works, pattern queries can now respect full spatial volume instead of discarding the third coordinate. The work positions the algorithm and data as a baseline rather than a final solution.

Core claim

We extend spatial pattern matching to 3 dimensions and provide a generalized definition of the problem. We describe a subgraph matching algorithm capable of resolving 3D spatial patterns over distance relations and release two 3D spatial pattern matching datasets, one synthetic and one containing real 3D building data from the city of Hamburg, Germany. We test our subgraph matching algorithm on both datasets and present results as a baseline for future methods to build upon.

What carries the argument

A subgraph matching algorithm that resolves 3D spatial patterns over distance relations between entities.

If this is right

  • Queries for similar regions or housing can now incorporate vertical separation between entities.
  • Landmark and road-network searches gain the ability to distinguish patterns that differ only in height.
  • The released synthetic and Hamburg datasets become reference collections for measuring future 3D methods.
  • The subgraph algorithm supplies an initial performance reference against which later improvements can be compared.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same distance-based subgraph technique might transfer to other volumetric domains such as molecular structures or drone-captured city models.
  • Additional geometric constraints beyond distance, for example orientation or line-of-sight, could be layered on the existing machinery without changing its core structure.
  • Large-scale city models will likely require efficiency improvements once the number of entities exceeds the size of the Hamburg test set.

Load-bearing premise

That the main shortcoming of two-dimensional framing is simply the missing height coordinate and that extending subgraph matching directly to three-dimensional distances will suffice without further 3D constraints.

What would settle it

Execute the algorithm on the Hamburg building dataset and compare its returned patterns against manual inspection of the same 3D coordinates; systematic mismatches between algorithm output and human judgment on height-aware patterns would refute the claim.

Figures

Figures reproduced from arXiv: 2606.26465 by Abhijeet Ghodgaonkar, Avik Das, Hanan Samet, Lukas Arzoumanidis, Nicole R. Schneider, Youness Dehbi.

Figure 1

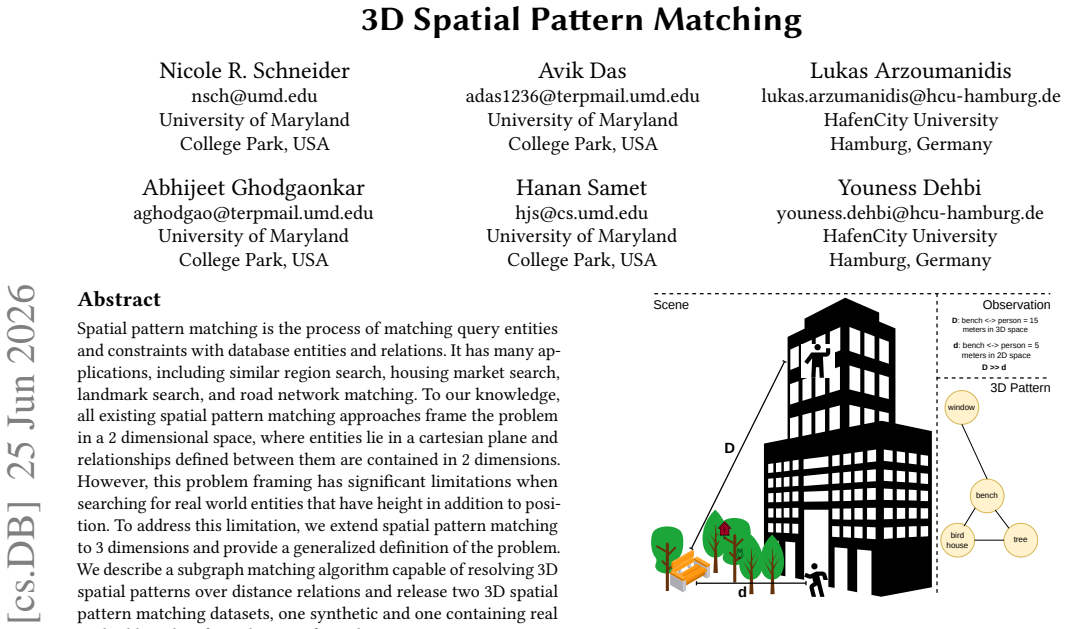

Figure 1. Figure 1: A person looking out window or from ground level [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
read the original abstract

Spatial pattern matching is the process of matching query entities and constraints with database entities and relations. It has many applications, including similar region search, housing market search, landmark search, and road network matching. To our knowledge, all existing spatial pattern matching approaches frame the problem in a 2 dimensional space, where entities lie in a cartesian plane and relationships defined between them are contained in 2 dimensions. However, this problem framing has significant limitations when searching for real world entities that have height in addition to position. To address this limitation, we extend spatial pattern matching to 3 dimensions and provide a generalized definition of the problem. We describe a subgraph matching algorithm capable of resolving 3D spatial patterns over distance relations and release two 3D spatial pattern matching datasets, one synthetic and one containing real 3D building data from the city of Hamburg, Germany. We test our subgraph matching algorithm on both datasets and present results as a baseline for future methods to build upon.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper extends spatial pattern matching from 2D to 3D by providing a generalized problem definition, describing a subgraph matching algorithm over distance relations for 3D patterns, releasing a synthetic dataset and a real-world dataset of 3D buildings from Hamburg, Germany, and presenting baseline experimental results on both.

Significance. If the algorithm correctly handles 3D geometric realizations and scales to realistic entity counts, the work would supply a useful baseline and open datasets for 3D spatial querying in database systems, with potential applications in GIS and urban analytics. The dataset releases constitute a concrete contribution independent of the algorithmic claims.

major comments (2)
  1. [Abstract] Abstract: the claim that the subgraph matching algorithm 'resolves 3D spatial patterns over distance relations' does not indicate any mechanism for pruning or enforcing uniqueness among the multiple non-isometric realizations possible in 3D (e.g., chiral pairs or non-coplanar tetrahedra) that are absent from 2D distance graphs; without such handling the 3D extension is incomplete.
  2. [Experiments] Experiments / Hamburg dataset: no complexity bound, pruning strategy, or runtime scaling results are supplied for the real 3D building data, leaving open whether the method remains tractable once entity counts exceed toy sizes; this directly affects the claim that the algorithm provides a usable baseline.
minor comments (1)
  1. [Abstract] The abstract states that results are presented 'as a baseline' but does not report any quantitative metrics (precision, recall, runtime); adding these numbers would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We respond to each major comment below, indicating planned revisions where appropriate.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the subgraph matching algorithm 'resolves 3D spatial patterns over distance relations' does not indicate any mechanism for pruning or enforcing uniqueness among the multiple non-isometric realizations possible in 3D (e.g., chiral pairs or non-coplanar tetrahedra) that are absent from 2D distance graphs; without such handling the 3D extension is incomplete.

    Authors: We agree the abstract phrasing is imprecise. The algorithm performs subgraph matching on a distance graph and returns all embeddings satisfying the distance constraints; it does not include pruning or uniqueness enforcement for non-isometric 3D realizations such as chiral pairs. This follows directly from defining the problem solely via distance relations. We will revise the abstract to state the algorithm's scope explicitly and note that multiple realizations may exist in 3D. revision: yes

  2. Referee: [Experiments] Experiments / Hamburg dataset: no complexity bound, pruning strategy, or runtime scaling results are supplied for the real 3D building data, leaving open whether the method remains tractable once entity counts exceed toy sizes; this directly affects the claim that the algorithm provides a usable baseline.

    Authors: The experiments report baseline runtimes on the released Hamburg data but omit explicit complexity bounds, pruning details beyond standard subgraph matching, and scaling curves. The approach uses backtracking over distance constraints and is exponential in pattern size in the worst case. We will add a complexity discussion and scaling experiments on the synthetic dataset with increasing entity counts to better substantiate tractability for the baseline claim. revision: yes

Circularity Check

0 steps flagged

No circularity; purely definitional and algorithmic contribution

full rationale

The paper extends an existing problem definition to 3D, describes a subgraph-matching algorithm over distance relations, and releases two datasets. No equations, fitted parameters, predictions, or self-citations appear in the provided text. The central claims rest on new definitions and an algorithm description rather than any reduction to prior inputs or self-referential steps. This is the expected non-finding for a paper whose contribution is definitional and empirical rather than a derived result.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only view yields no identifiable free parameters, axioms, or invented entities; the contribution rests on the unverified claim that 2D limitations are significant and that subgraph matching extends directly.
