A formation scenario of black hole-envelope systems --viscous hydrodynamics simulation in general relativity--

Alan Tsz Lok Lam , Masaru Shibata , Kenta Hotokezaka , Carlo Musolino This is my paper

Pith reviewed 2026-06-30 14:52 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.GA
keywords black hole accretionsuper-Eddington flowsviscous hydrodynamicsgeneral relativityblack hole envelopesBondi accretionoutflow formationconvective envelope
0
0 comments X

The pith

Black hole mass sets whether super-Eddington flows produce viscous outflows or convective envelopes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper performs general relativistic viscous hydrodynamics simulations of super-Eddington accretion onto black holes between 10^5 and 10^7 solar masses, starting from a quasi-spherical Bondi-type inflow with fixed supply rate set by sound speed. It establishes that black hole mass controls the flow outcome: below roughly 10^6 solar masses a photon-trapped inner region appears and polar viscous outflows overcome inflow ram pressure to create an inflow-outflow structure, whereas above 3 times 10^6 solar masses no outflow forms and a convective envelope develops instead. In both regimes the black hole accretes at about 10 percent of the Eddington rate for plausible viscous coefficients. A reader would care because the mass-dependent transition supplies a concrete formation pathway for black hole-envelope systems and predicts that lower-mass envelopes continue to grow if the supply rate stays high.

Core claim

For black holes with M ≲ 10^6 M_⊙ a photon-trapped region forms in the inner region and a significant viscous outflow driven near the polar region overcomes the ram pressure of the mass inflow, leading to an inflow-outflow structure; for M ≳ 3×10^6 M_⊙ the outflow is not launched and a convective envelope around the black hole gradually develops; irrespective of black-hole mass the mass accretion rate onto the black hole is of order 10 percent of the Eddington accretion rate for reasonable viscous coefficients.

What carries the argument

Viscous hydrodynamics simulation in general relativity applied to quasi-spherical Bondi-type initial flows, tracking photon trapping, viscous heating, and the competition between outflow and ram pressure.

If this is right

  • For black holes below 10^6 solar masses the envelope mass grows until total viscous heating exceeds the system Eddington luminosity, provided the high supply rate lasts at least 10^8 years scaled by mass.
  • The black hole accretion rate stays roughly 10 percent Eddington across the full mass range studied for reasonable viscous coefficients.
  • The transition between outflow-dominated and envelope-dominated regimes occurs between 10^6 and 3 times 10^6 solar masses.
  • Envelope growth outpaces black hole growth for the lower-mass cases, altering the final system mass ratio.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If real distant flows carry more angular momentum than the assumed Bondi setup, the mass threshold for the outflow-to-envelope transition could shift.
  • The reported 10 percent Eddington accretion could be compared directly with X-ray or radio observations of candidate black hole-envelope systems at different masses.
  • Long-term evolution beyond the simulated timescales might reveal whether the envelope eventually becomes optically thick enough to alter the observed luminosity.

Load-bearing premise

The distant gas supply is modeled as a fixed-rate quasi-spherical Bondi inflow in which radial motion dominates angular momentum and the gas temperature stays below 10,000 K.

What would settle it

Observations of black hole systems near 10^6 solar masses that show neither polar outflows nor convective envelopes, or that exhibit accretion rates far from 10 percent Eddington, would contradict the reported mass-dependent transition.

Figures

Figures reproduced from arXiv: 2605.24087 by Alan Tsz Lok Lam, Carlo Musolino, Kenta Hotokezaka, Masaru Shibata.

Figure 1

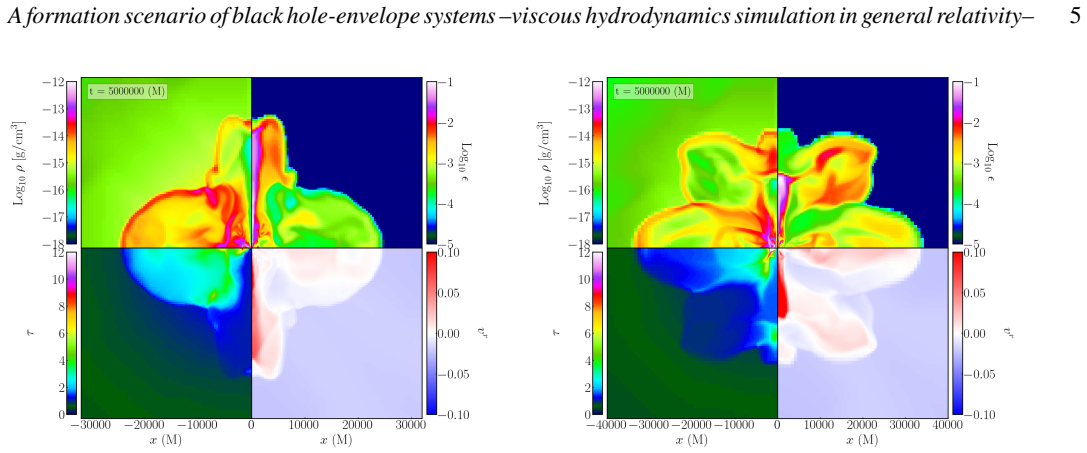

Figure 1. Figure 1: Snapshot of the rest-mass density (top left), specific inter￾nal energy in units of 𝑐 2 (top right), opacity (bottom left), and ra￾dial velocity 𝑣 𝑟 := 𝛾 𝑟𝑖𝑢𝑖/𝑤 in units of 𝑐 (bottom right) for model M6.30.05 at 𝑡 = 5 × 106 𝑡g. Note that the length unit is 𝑟g ≈ 1.48 × 1011 cm for 𝑀 = 106𝑀⊙. Animations for this model are available at https://www2.yukawa.kyoto-u.ac.jp/~masaru.shibata/M6.30. 1.05_lv3_N64.mp4 … view at source ↗
Figure 3

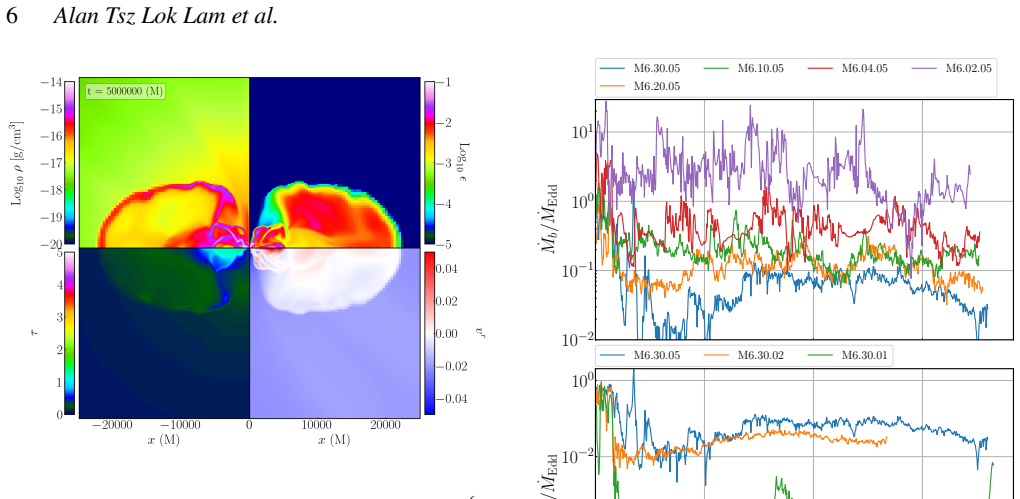

Figure 3. Figure 3: The same as [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

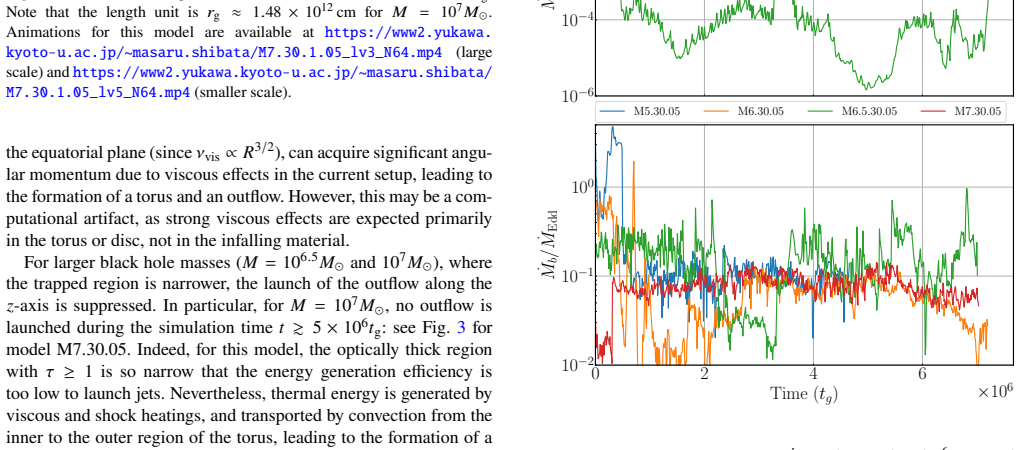

Figure 4. Figure 4: The rest-mass accretion rate 𝑀¤ b for (𝑀, 𝛼vis) = (106𝑀⊙, 0.05) (top), for (𝑀, 𝑗0 ) = (106𝑀⊙, 30𝑀) (middle), and ( 𝑗0, 𝛼vis) = (30𝑀, 0.05) (bottom) in units of 𝑀¤ Edd. ciently low, the outflow will eventually stall due to inefficient heating. It is important to note that the outflow is collimated, resulting in neg￾ligible mass loss. For this low-mass model, where 𝑀¤ b < 𝑀¤ Edd ≪ 𝑀¤ with 𝑀¤ b denoting the r… view at source ↗
Figure 5

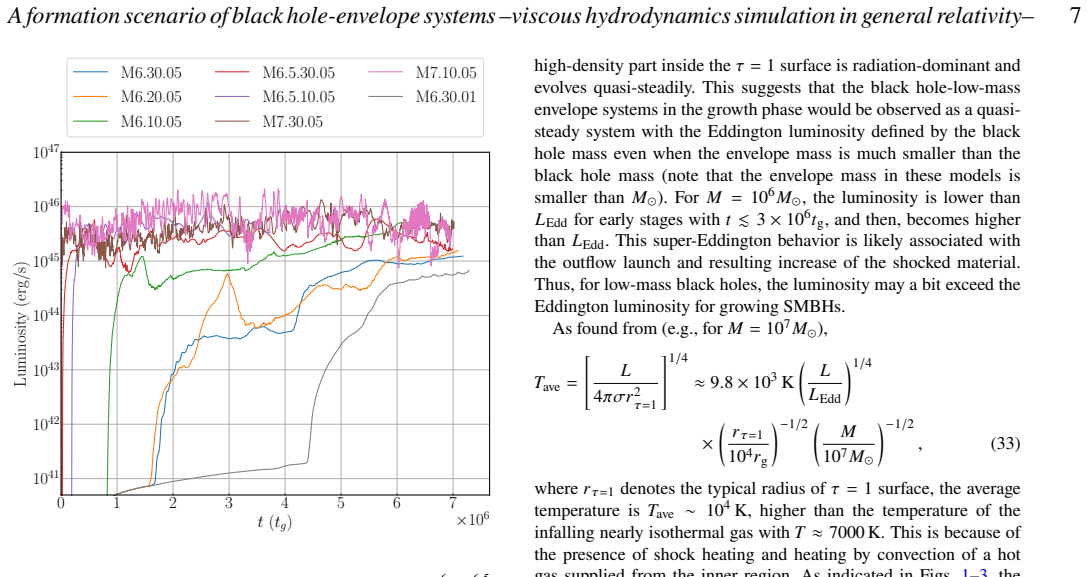

Figure 5. Figure 5: The luminosity curve for selected models with 𝑀 = 106 , 106.5 , and 107𝑀⊙. Especially for 𝑗0 = 2𝑀, a substantial fraction of the matter directly falls into the black hole. The middle panel of [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

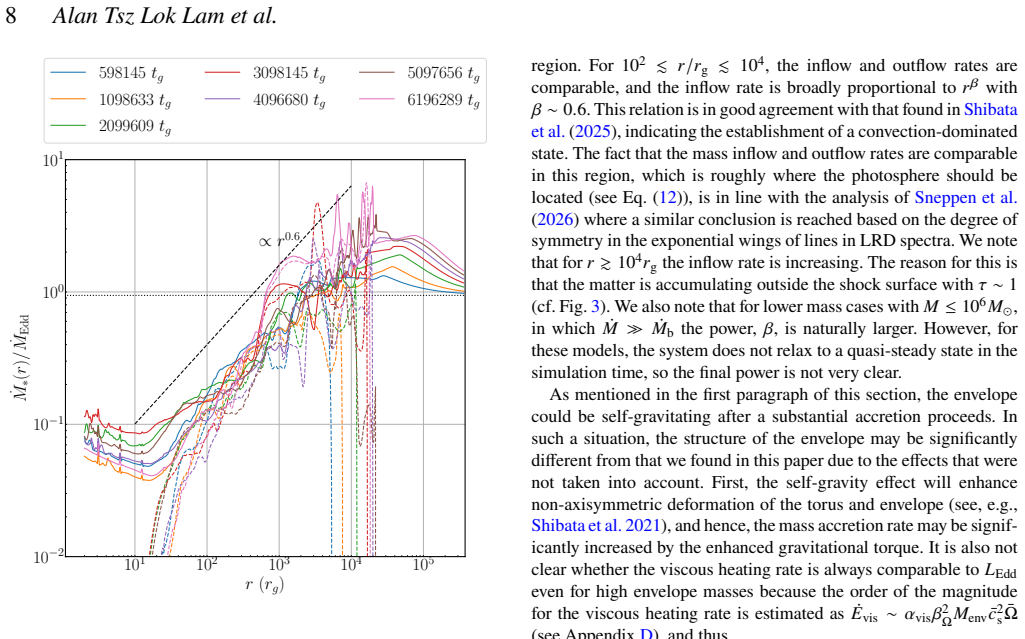

Figure 6. Figure 6: Inflow and outflow mass accretion rates (solid and dashed curves, respectively) in units of 𝑀¤ Edd as functions of the radius at selected time slices for model M7.30.05. Although a jet can penetrate the envelope in the early phase of the evolution for which 𝑀BH > 𝑀env, this may be prohibited in the presence of dense matter and resulting self-gravity in the later evolution stage. This point should be studie… view at source ↗
read the original abstract

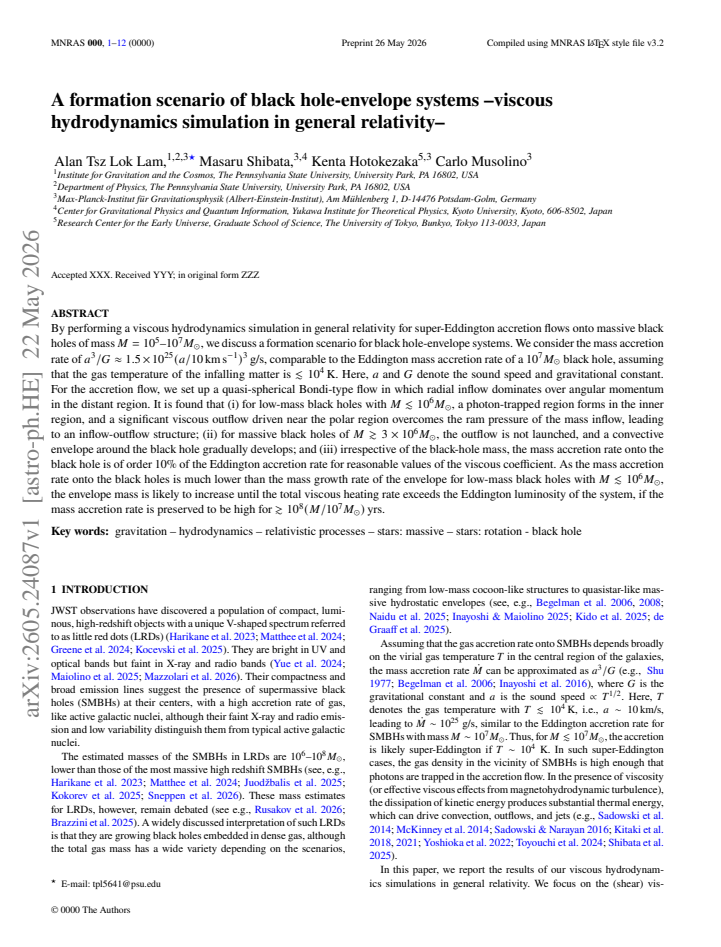

By performing a viscous hydrodynamics simulation in general relativity for super-Eddington accretion flows onto massive black holes of mass $M=10^5$--$10^7M_\odot$, we discuss a formation scenario for black hole-envelope systems. We consider the mass accretion rate of $a^3/G \approx 1.5 \times 10^{25} (a/10\,\mathrm{km\,s^{-1}})^3$\,g/s, comparable to the Eddington mass accretion rate of a $10^7M_\odot$ black hole, assuming that the gas temperature of the infalling matter is $\lesssim 10^4$\,K. Here, $a$ and $G$ denote the sound speed and gravitational constant. For the accretion flow, we set up a quasi-spherical Bondi-type flow in which radial inflow dominates over angular momentum in the distant region. It is found that (i) for low-mass black holes with $M \lesssim 10^6M_\odot$, a photon-trapped region forms in the inner region, and a significant viscous outflow driven near the polar region overcomes the ram pressure of the mass inflow, leading to an inflow-outflow structure; (ii) for massive black holes of $M \gtrsim 3 \times 10^6M_\odot$, the outflow is not launched, and a convective envelope around the black hole gradually develops; and (iii) irrespective of the black-hole mass, the mass accretion rate onto the black hole is of order 10\% of the Eddington accretion rate for reasonable values of the viscous coefficient. As the mass accretion rate onto the black holes is much lower than the mass growth rate of the envelope for low-mass black holes with $M\lesssim 10^6M_\odot$, the envelope mass is likely to increase until the total viscous heating rate exceeds the Eddington luminosity of the system, if the mass accretion rate is preserved to be high for $\gtrsim 10^8 (M/10^7M_\odot)$\,yrs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports results from viscous hydrodynamics simulations in general relativity of super-Eddington accretion onto black holes with masses 10^5–10^7 M_⊙. Adopting a quasi-spherical Bondi-type initial condition with radial inflow dominating angular momentum at large radii, fixed supply rate a³/G ≈ 1.5×10²⁵ (a/10 km s⁻¹)³ g s⁻¹, and T ≲ 10⁴ K, it finds that (i) for M ≲ 10⁶ M_⊙ a photon-trapped inner region develops with significant polar viscous outflow overcoming ram pressure to produce an inflow-outflow structure; (ii) for M ≳ 3×10⁶ M_⊙ no outflow is launched and a convective envelope forms; and (iii) the black-hole accretion rate is ~10% of Eddington in both regimes for reasonable viscous coefficients. The paper discusses implications for envelope growth when the supply persists.

Significance. If the results hold under the stated assumptions and numerical setup, the work supplies a concrete mass-dependent hydrodynamical pathway for forming black hole-envelope systems, with the ~10% Eddington accretion fraction emerging as a robust outcome across the explored mass range. This could inform models of super-Eddington phases in AGN or other accreting systems.

major comments (2)
  1. [Abstract / Initial conditions] Abstract / Initial conditions: The reported mass-dependent transition between polar outflow (low M) and convective envelope (high M) is obtained exclusively under the quasi-spherical Bondi-type outer boundary condition in which radial inflow dominates angular momentum. The manuscript does not test or discuss the effect of even modest specific angular momentum at large radii, which would lead to circularization and a qualitatively different disk geometry; because the threshold itself arises from the competition between ram pressure, viscous heating, and photon trapping in this radial setup, the transition's survival is not demonstrated.
  2. [Numerical methods] Numerical methods: The available text provides no information on the GR hydrodynamics code, grid resolution, convergence tests, or the numerical treatment of photon trapping and the viscous term. These details are required to evaluate the robustness of the photon-trapped region, the outflow launch, and the claimed 10% accretion fraction.
minor comments (1)
  1. The viscous coefficient is characterized only as 'reasonable' without reporting the range of values explored or quantifying its influence on the reported accretion fraction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We respond to each major point below.

read point-by-point responses

  1. Referee: [Abstract / Initial conditions] Abstract / Initial conditions: The reported mass-dependent transition between polar outflow (low M) and convective envelope (high M) is obtained exclusively under the quasi-spherical Bondi-type outer boundary condition in which radial inflow dominates angular momentum. The manuscript does not test or discuss the effect of even modest specific angular momentum at large radii, which would lead to circularization and a qualitatively different disk geometry; because the threshold itself arises from the competition between ram pressure, viscous heating, and photon trapping in this radial setup, the transition's survival is not demonstrated.

    Authors: We agree that the reported transition is obtained under the specific quasi-spherical Bondi-type initial condition with radial inflow dominating angular momentum at large radii. This setup is chosen to isolate the competition between ram pressure, viscous heating, and photon trapping for the low-angular-momentum supply scenario under consideration. We acknowledge that even modest specific angular momentum could induce circularization and produce a different geometry, so the survival of the mass threshold under those conditions is not demonstrated. In the revised manuscript we will add an explicit limitations paragraph in the discussion section stating that the results apply to this class of initial conditions and recommending future simulations that include non-negligible angular momentum. revision: partial

  2. Referee: [Numerical methods] Numerical methods: The available text provides no information on the GR hydrodynamics code, grid resolution, convergence tests, or the numerical treatment of photon trapping and the viscous term. These details are required to evaluate the robustness of the photon-trapped region, the outflow launch, and the claimed 10% accretion fraction.

    Authors: We apologize for the omission. The revised manuscript will include a new subsection in the methods section that specifies the general-relativistic hydrodynamics code, the grid resolution and domain, the convergence tests that were performed, and the numerical implementation of photon trapping together with the viscous stress tensor. These additions will allow readers to assess the robustness of the reported structures and accretion fraction. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results from direct numerical integration

full rationale

The paper reports outcomes of viscous GR hydrodynamics simulations performed with explicitly stated initial conditions (quasi-spherical Bondi-type flow, fixed supply rate a³/G, T ≲ 10⁴ K) and a free viscous coefficient described only as 'reasonable.' No quantity is obtained by fitting a parameter to a data subset and then relabeling a related output as a prediction; no equation reduces algebraically to its own input by construction; and no load-bearing premise rests on a self-citation chain. The mass-dependent transition and ~10% Eddington accretion rate emerge from the time-dependent integration rather than from any renaming or self-referential definition.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claims rest on the assumption of a purely radial Bondi-type inflow at large radii, a fixed functional form for the mass supply rate, an unspecified but 'reasonable' viscous coefficient, and the standard equations of viscous general-relativistic hydrodynamics; no new particles or forces are introduced.

free parameters (2)
  • viscous coefficient
    Described only as 'reasonable values'; its precise numerical value is not given and directly controls the outflow strength and the 10% accretion fraction.
  • mass accretion rate normalization
    Fixed at a^3/G ≈ 1.5×10^25 (a/10 km s^{-1})^3 g/s to match the Eddington rate of a 10^7 M_⊙ black hole; this sets the overall scale of the flow.
axioms (2)
  • domain assumption Quasi-spherical Bondi-type flow in which radial inflow dominates over angular momentum at large radii
    Explicitly stated as the initial setup for the accretion flow.
  • domain assumption Gas temperature of infalling matter ≲ 10^4 K
    Used to justify the chosen mass accretion rate scaling.
