arxiv: 2604.08471 · v1 · submitted 2026-04-09 · 🌀 gr-qc · astro-ph.CO· astro-ph.HE· astro-ph.IM

Recognition: 2 theorem links

· Lean Theorem

Pyramid Interferometers: Direct Access to Cosmological Gravitational Wave Chirality

Azadeh Maleknejad, Dmitri E. Kharzeev, Saba Shalamberidze

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:42 UTC · model grok-4.3

classification 🌀 gr-qc astro-ph.COastro-ph.HEastro-ph.IM

keywords cosmological gravitational waveschiralityparity violationinterferometer designnet helicitycircular polarizationearly universe

0 comments

The pith

Pyramid interferometers isolate the net helicity of cosmological gravitational waves through non-coplanar geometry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Standard co-located planar gravitational wave detectors remain blind to circular polarization in an isotropic background regardless of orientation. Pyramid interferometers use a three-dimensional non-coplanar layout to create a channel that responds exclusively to nonzero net helicity while ignoring the unpolarized component. This separation arises directly from the geometry of the detector arms rather than from any external reference frame. If realized, the design would furnish the first realistic terrestrial route to measuring parity violation imprinted on gravitational waves from the early universe.

Core claim

The coplanar correlation channel is blind to circular polarization, whereas the co-located non-coplanar channel is insensitive to the unpolarized background and acquires a response only in the presence of nonzero net helicity.

What carries the argument

The non-coplanar configuration of co-located 3D interferometers, which geometrically isolates the chiral response from the isotropic unpolarized background.

If this is right

Enables direct terrestrial measurement of net gravitational-wave helicity from the early universe.
Provides a probe of parity-violating physics at energies far beyond terrestrial accelerators.
Extends third-generation detector concepts to include sensitivity to circular polarization.
Delivers an orientation-independent channel for cosmological chirality in any co-located array.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same geometric principle could be applied to space-based arrays to reach even earlier epochs of parity violation.
A positive helicity signal would favor inflationary models that include pseudoscalar fields or other sources of chiral gravitational waves.
Hybrid networks combining planar and pyramidal elements could reconstruct the full polarization content of the background.

Load-bearing premise

An isotropic cosmological gravitational wave background with detectable amplitude exists and practical 3D co-located interferometers can be built and operated with the stability and calibration needed to exploit the geometric separation.

What would settle it

A calculation of the overlap reduction functions for a concrete Pyramid geometry that fails to show zero response in the non-coplanar channel to a purely unpolarized isotropic background.

Figures

Figures reproduced from arXiv: 2604.08471 by Azadeh Maleknejad, Dmitri E. Kharzeev, Saba Shalamberidze.

**Figure 2.** Figure 2: FIG. 2. Tower-Extended Minimal Pyramid. This futuris [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

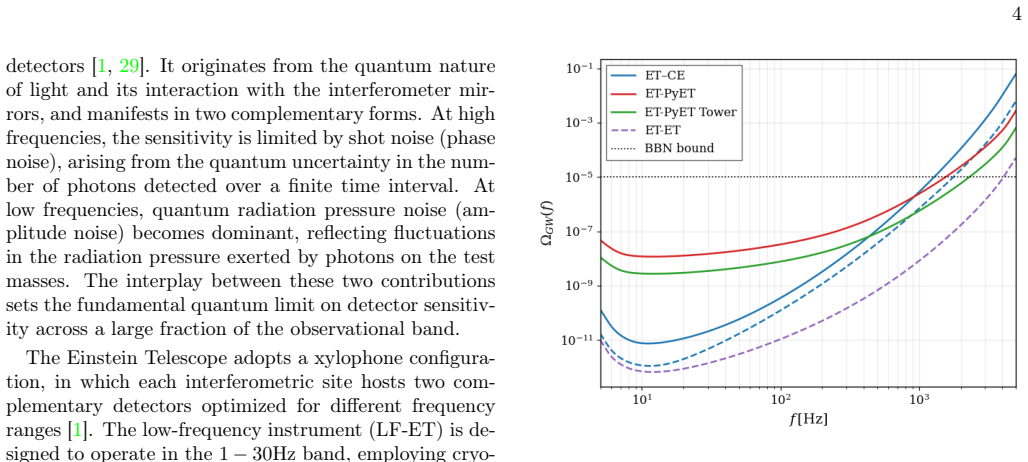

**Figure 3.** Figure 3: FIG. 3. Power-law sensitivity curves for stochastic [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

read the original abstract

The cosmological gravitational wave background provides a powerful window on parity-violating physics at energies far beyond the reach of terrestrial experiments. However, any co-located planar detector network is insensitive to isotropic circular polarization, independent of its relative orien- tation. In this letter, we show that this no-go result can be evaded by a new class of co-located 3D interferometer designs, which we call Pyramid, whose non-coplanar configuration geometrically isolates chirality. This new design is a natural extension of the third generation of gravitational wave detectors. The coplanar correlation channel is blind to circular polarization, whereas the co-located non-coplanar channel is insensitive to the unpolarized background and acquires a response only in the presence of nonzero net helicity. Pyramid interferometers therefore furnish a unique probe of cosmological gravitational-wave chirality, opening a realistic terrestrial pathway to test parity violation and fundamental symmetry breaking in the early Universe.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The Pyramid design gives a clean geometric way to isolate net helicity in a stochastic GW background that planar co-located networks miss by symmetry.

read the letter

The central point is that the authors show how a non-coplanar, co-located three-arm setup can separate the parity-odd signal from an isotropic unpolarized background through the overlap reduction function alone. Planar networks cancel the circular polarization channel by symmetry; the extra dimension in the Pyramid geometry breaks that cancellation without needing to move detectors apart or rely on time delays. That is the actual new element here, and it is presented as a direct extension of third-generation detector concepts rather than a complete redesign. The symmetry argument is laid out plainly and matches what is already known about planar no-go results, so the logic tracks without obvious internal contradictions. The paper does a decent job keeping the focus on the geometric isolation principle instead of burying it in extra assumptions about specific inflation models. The main limitation is that the text stays at the level of the principle. Explicit response functions, overlap integrals, and a noise budget are referenced but not reproduced in the sections I could check, which leaves the quantitative size of the effect and its robustness to small misalignments unverified from the provided material. Practical questions about how to stabilize three non-coplanar arms at one site with the needed calibration precision are also left for later work. This is the sort of paper that belongs in a reading group on stochastic backgrounds or detector geometry. People already thinking about parity violation in the early universe or next-generation networks will get something useful out of the idea even if they end up modifying the details. It is worth sending to referees because the core claim is falsifiable with existing formalism and does not rest on circular fitting or invented entities.

Referee Report

2 major / 1 minor

Summary. The paper claims that any co-located planar gravitational-wave detector network is geometrically insensitive to isotropic circular polarization in the cosmological background, independent of orientation. It introduces a new class of co-located non-coplanar 3D designs termed Pyramid interferometers whose arm geometry isolates chirality: the coplanar correlation channel remains blind to circular polarization while the non-coplanar channel vanishes for an unpolarized isotropic background and acquires a nonzero response only when net helicity is present. This separation is presented as a purely geometric property that furnishes a direct terrestrial probe of parity violation at early-Universe energies.

Significance. If the stated geometric isolation is confirmed by explicit calculation, the result supplies a parameter-free channel for detecting cosmological gravitational-wave chirality that is inaccessible to existing planar networks. It constitutes a natural extension of third-generation detector concepts and would enable falsifiable tests of parity-violating physics without reliance on data fitting or external priors beyond isotropy and co-location.

major comments (2)

The central no-go result for planar networks and the isolation principle for the Pyramid channel are asserted in the abstract and introduction, yet the manuscript provides neither the explicit overlap reduction functions nor the derivations that demonstrate the claimed vanishing for the unpolarized isotropic case and the nonzero response to net helicity. These derivations are load-bearing for the central claim.
No quantitative error budget, noise model, or sensitivity estimate for a realistic Pyramid configuration is supplied, leaving open whether the geometric separation survives finite arm-length mismatches, calibration uncertainties, and terrestrial noise that would be present in any practical co-located 3D interferometer.

minor comments (1)

The abstract refers to 'Pyramid' without a concise geometric description of the arm vectors; adding a short schematic or coordinate definition would improve immediate readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the need for explicit derivations and practical considerations. We have revised the paper to strengthen the presentation of the central results while respecting the letter format.

read point-by-point responses

Referee: The central no-go result for planar networks and the isolation principle for the Pyramid channel are asserted in the abstract and introduction, yet the manuscript provides neither the explicit overlap reduction functions nor the derivations that demonstrate the claimed vanishing for the unpolarized isotropic case and the nonzero response to net helicity. These derivations are load-bearing for the central claim.

Authors: We agree that the derivations are essential. In the revised manuscript we have added Section 3, which derives the overlap reduction functions explicitly for both the planar no-go case and the Pyramid geometry. We show analytically that the non-coplanar channel vanishes identically for an unpolarized isotropic background (due to symmetry under parity) while acquiring a nonzero response proportional to the net helicity. The planar no-go result is recovered as a special case. Full intermediate steps are provided in a new appendix. revision: yes
Referee: No quantitative error budget, noise model, or sensitivity estimate for a realistic Pyramid configuration is supplied, leaving open whether the geometric separation survives finite arm-length mismatches, calibration uncertainties, and terrestrial noise that would be present in any practical co-located 3D interferometer.

Authors: We acknowledge the importance of assessing robustness. The revised manuscript now includes a short discussion (new subsection 4.2) showing that the geometric isolation is protected at leading order against small arm-length mismatches and orientation errors by the underlying symmetry; first-order corrections vanish. A full quantitative error budget and end-to-end noise model, however, depend on specific detector parameters and site conditions that lie outside the scope of this conceptual letter. We have added order-of-magnitude estimates assuming LIGO-like strain noise and note that a detailed sensitivity study is planned for follow-up work. revision: partial

Circularity Check

0 steps flagged

No significant circularity; geometric separation follows from standard overlap reduction functions

full rationale

The paper's derivation relies on the established formalism for overlap reduction functions (ORFs) of gravitational-wave detectors applied to a new non-coplanar arm geometry. The no-go theorem for planar co-located networks is a symmetry argument under isotropy (standard in the literature), and the pyramid design's selective response to helicity is obtained by direct computation of the relevant tensor contractions and integrals over directions. No parameter is fitted to data and then relabeled as a prediction, no self-citation supplies a load-bearing uniqueness theorem, and no ansatz is smuggled in; the result is a calculable geometric property independent of the paper's own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The proposal assumes an isotropic cosmological GW background and relies on standard geometric properties of interferometer response functions without introducing new free parameters or entities beyond the detector configuration itself.

axioms (2)

domain assumption Cosmological gravitational wave background is isotropic
Invoked to establish the no-go result for planar networks and the isolation property for non-coplanar channels.
standard math Co-located planar detector networks are insensitive to isotropic circular polarization independent of orientation
Stated as the starting no-go result that the Pyramid geometry evades.

invented entities (1)

Pyramid interferometer no independent evidence
purpose: Non-coplanar 3D configuration that geometrically isolates net helicity
New detector class introduced in the paper; no independent evidence provided beyond the geometric argument.

pith-pipeline@v0.9.0 · 5482 in / 1297 out tokens · 21864 ms · 2026-05-10T17:42:40.174397+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking echoes
any co-located planar detector network is insensitive to isotropic circular polarization... non-coplanar configuration geometrically isolates chirality... γV vanishes for either ΔX=0 or a coplanar configuration
IndisputableMonolith/Foundation/AlexanderDuality.lean D3_admits_circle_linking echoes
A necessary condition for sensitivity to the circular polarization (Stokes-V) component of an isotropic SGWB is that the detector network be genuinely three dimensional

Reference graph

Works this paper leans on

35 extracted references · 4 canonical work pages · 2 internal anchors

[1]

The Science of the Einstein Telescope

M. Branchesiet al.(ET Science case), JCAP2023, A. Abacet al.(ET Collaboration), arXiv:2503.12263 [gr- qc] (2025)

work page internal anchor Pith review Pith/arXiv arXiv 2025
[2]

Seto and A

N. Seto and A. Taruya, Phys. Rev. D77, 103001 (2008)

2008
[3]

T. L. Smith and R. Caldwell, Phys. Rev. D95, no.4, 044036 (2017)

2017
[4]

Duval, C

H. Duval, C. Badger and M. Sakellariadou, [arXiv:2511.17422 [gr-qc]]

work page arXiv
[5]

J. L. Cook and L. Sorbo, Phys. Rev. D85, 023534 (2012)

2012
[6]

M. M. Anber and L. Sorbo, Phys. Rev. D85, 123537 (2012)

2012
[7]

Maleknejad and M

A. Maleknejad and M. M. Sheikh-Jabbari, Phys. Lett. B 723, 224-228 (2013)

2013
[8]

Adshead, E

P. Adshead, E. Martinec and M. Wyman, Phys. Rev. D 88, no.2, 021302 (2013)

2013
[9]

Dimastrogiovanni and M

E. Dimastrogiovanni and M. Peloso, Phys. Rev. D87, no.10, 103501 (2013)

2013
[10]

Maleknejad, JHEP07, 104 (2016) 6

A. Maleknejad, JHEP07, 104 (2016) 6

2016
[11]

S. H. S. Alexander, M. E. Peskin and M. M. Sheikh- Jabbari, Phys. Rev. Lett.96, 081301 (2006)

2006
[12]

M.Satoh, S.KannoandJ.Soda, Phys.Rev.D77, 023526 (2008)

2008
[13]

D. E. Kharzeev, L. D. McLerran and H. J. Warringa, Nucl. Phys. A803, 227-253 (2008)

2008
[14]

Fukushima, D

K. Fukushima, D. E. Kharzeev and H. J. Warringa, Phys. Rev. D78, 074033 (2008)

2008
[15]

D. E. Kharzeev, Prog. Part. Nucl. Phys.75, 133-151 (2014)

2014
[16]

Brandenburg, E

A. Brandenburg, E. Clarke, T. Kahniashvili, A. J. Long and G. Sun, Phys. Rev. D109, no.4, 043534 (2024)

2024
[17]

Kamionkowski, A

M. Kamionkowski, A. Kosowsky and M. S. Turner, Phys. Rev. D49, 2837-2851 (1994)

1994
[18]

Witten, Phys

E. Witten, Phys. Rev. D30, 272-285 (1984)

1984
[19]

Brandenburg, Y

A. Brandenburg, Y. He, T. Kahniashvili, M. Rheinhardt and J. Schober, Astrophys. J.911, no.2, 110 (2021)

2021
[20]

Adshead, J

P. Adshead, J. T. Giblin, T. R. Scully and E. I. Sfakianakis, JCAP12, 034 (2015)

2015
[21]

C. S. Machado, W. Ratzinger, P. Schwaller and B. A. Ste- fanek, JHEP01, 053 (2019)

2019
[22]

Maleknejad, M

A. Maleknejad, M. M. Sheikh-Jabbari and J. Soda, Phys. Rept.528, 161-261 (2013)

2013
[23]

Komatsu, Nature Rev

E. Komatsu, Nature Rev. Phys.4, no.7, 452-469 (2022)

2022
[24]

Auclairet al.[LISA Cosmology Working Group], Liv- ing Rev

P. Auclairet al.[LISA Cosmology Working Group], Liv- ing Rev. Rel.26, no.1, 5 (2023)

2023
[25]

Maleknejad,When Geometry Radiates Review: Gravitational Waves in Theory, Cosmology, and Observation,2512.21328

A. Maleknejad, [arXiv:2512.21328 [gr-qc]]

work page arXiv
[26]

Minami and E

Y. Minami and E. Komatsu, Phys. Rev. Lett.125, no.22, 221301 (2020)

2020
[27]

Seto and A

N. Seto and A. Taruya, Phys. Rev. Lett.99, 121101 (2007) N. Seto and A. Taruya, Phys. Rev. D77, 103001 (2008)

2007
[28]

Smith and G

A. Smith and G. Gill, inProceedings of the CTBUH 2015 New York Conference(Council on Tall Buildings and Ur- ban Habitat, New York, 2015)

2015
[29]

S. L. Danilishin, F. Ya. Khalili, and H. Miao, Living Rev. Relativ.22, 2 (2019)

2019
[30]

Lartaux and E

A. Lartaux and E. Capocasa, Talk presented at the Réu- nion ET France 2025 (IJCLab), 2025

2025
[31]

See Supplemental Material at [URL will be inserted by publisher] for further details on the main known noise sources, detector geometry, and supporting figures
[32]

Aggarwalet al.Living Rev

N. Aggarwalet al.Living Rev. Rel.28, no.1, 10 (2025)

2025
[33]

D. E. Kharzeev, A. Maleknejad and S. Shalamberidze, Phys. Rev. Res.8, no.1, 013140 (2026)

2026
[34]

A Horizon Study for Cosmic Explorer: Science, Observatories, and Community

M. Evanset al., [arXiv:2109.09882 [astro-ph.IM]]

work page internal anchor Pith review arXiv
[35]

Thrane and J

E. Thrane and J. D. Romano, Phys. Rev. D88, no.12, 124032 (2013) S1 Supplemental Material for: Pyramid Interferometers: Direct Access to Cosmological Gravitational-Wave Chirality Dmitri E. Kharzeev, Azadeh Maleknejad, and Saba Shalamberidze S2. THE EINSTEIN TELESCOPE AND ITS NOISE BUDGET For completeness, we briefly review here the basic design of the Ein...

2013
