Forward Dynamics of Variable Topology Mechanisms - The Case of Constraint Activation

Andreas Mueller

Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:13 UTC · model grok-4.3

classification 💻 cs.RO cs.NAmath.DGmath.DSmath.NAphysics.class-ph

keywords variable topology mechanismsforward dynamicsconstraint activationtopology switchingtransition conditionsVoronets equationsredundant coordinatesjoint locking

0 comments

The pith

A transition condition ensures physically consistent forward dynamics when mechanisms change topology through constraint activation such as joint locking.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Many mechanical systems alter their kinematic structure when constraints activate, for instance through joint locking, stiction, or contact. This changes the mobility and requires switching between different sets of motion equations at those instants. The paper derives a transition condition that keeps the dynamics physically meaningful during the switch. It gives two versions of the condition, one expressed with projected equations on redundant coordinates and the other using Voronets equations on minimal coordinates. Demonstrations on a planar 3R arm and a 6DOF industrial robot show how the condition handles the non-smooth events that arise in human-machine interaction and controlled locking.

Core claim

The core challenge for forward dynamics of variable-topology mechanisms is a physically meaningful transition condition at topology switching events. Such a condition is presented in two versions: one using projected motion equations in terms of redundant coordinates, and another using the Voronets equations in terms of minimal coordinates. Their computational properties are discussed, with results shown for joint locking of a planar 3R mechanism and a 6DOF industrial manipulator.

What carries the argument

The transition condition at topology switching events, which supplies the rule for consistent velocity or impulse handling when constraints activate and the set of active motion equations changes.

If this is right

Forward dynamics of systems with controlled locking or stiction can be integrated without artificial discontinuities at switches.
Both the redundant-coordinate and minimal-coordinate versions become available for numerical implementation, with their relative efficiency open to direct comparison.
The same condition applies to planar 3R mechanisms and full 6DOF industrial manipulators under joint-locking scenarios.
Dynamic prediction for human-machine interaction that involves part locking is placed on a consistent non-smooth foundation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The condition may be reusable for ideal contact and stiction cases beyond the locking examples shown.
It could support real-time model predictive control that deliberately activates or releases constraints.
Validation experiments could record high-speed joint velocities right at locking instants and compare them against the two coordinate formulations.

Load-bearing premise

The proposed transition condition correctly reflects the instantaneous physics at a topology change without introducing non-physical velocity jumps or force artifacts.

What would settle it

A measured velocity or force trace immediately after a joint-locking event on the physical 3R planar mechanism or 6DOF manipulator that deviates from the trace predicted by either formulation of the transition condition.

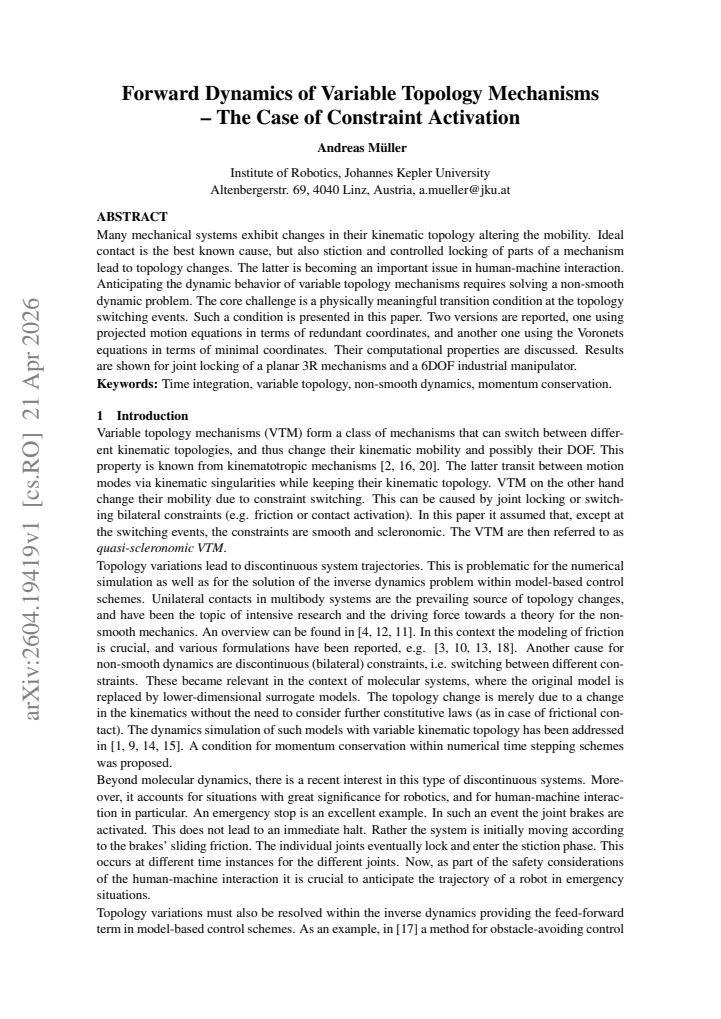

read the original abstract

Many mechanical systems exhibit changes in their kinematic topology altering the mobility. Ideal contact is the best known cause, but also stiction and controlled locking of parts of a mechanism lead to topology changes. The latter is becoming an important issue in human-machine interaction. Anticipating the dynamic behavior of variable topology mechanisms requires solving a non-smooth dynamic problem. The core challenge is a physically meaningful transition condition at the topology switching events. Such a condition is presented in this paper. Two versions are reported, one using projected motion equations in terms of redundant coordinates, and another one using the Voronets equations in terms of minimal coordinates. Their computational properties are discussed. Results are shown for joint locking of a planar 3R mechanisms and a 6DOF industrial manipulator.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper supplies explicit transition conditions for constraint activation in forward dynamics of variable-topology mechanisms, in both redundant and minimal coordinates, with numerical checks on two examples.

read the letter

The core offering is a pair of transition conditions that handle the instant a constraint activates and changes the mechanism's mobility. One version uses projected equations in redundant coordinates; the other uses Voronets equations in minimal coordinates. Mueller applies both to joint-locking cases and shows results on a planar 3R arm and a 6DOF manipulator while discussing their computational trade-offs. That focus on activation (rather than general impacts) and the concrete implementations are the useful parts for anyone simulating locking or stiction in robotics or human-machine systems. The examples are straightforward and illustrate the behavior at the switch, which helps readers see the practical effect. The formulations build on standard projected and reduced dynamics, so they fit into existing non-smooth solvers without requiring entirely new machinery. The soft spot is the physical justification. The transition condition is asserted to be meaningful, but the manuscript does not appear to include an explicit reduction to first principles, a conservation-law verification, or a check against limiting cases such as perfectly plastic engagement. The numerical results on the two mechanisms are consistent with the method but do not by themselves confirm that no spurious impulses or energy jumps are introduced. This leaves the central claim somewhat dependent on the specific examples rather than shown to hold more generally. Readers working on forward dynamics for mechanisms with changing topology will get the most from it; the two formulations and the implementation notes are directly usable. The work is targeted and technically grounded enough to merit referee time, even if revisions would likely be needed on the validation side. I would send it to peer review rather than desk-reject.

Referee Report

3 major / 2 minor

Summary. The paper claims to present a physically meaningful transition condition for the forward dynamics of variable-topology mechanisms at constraint-activation events (e.g., joint locking). Two formulations are given—one using projected motion equations in redundant coordinates and one using Voronets equations in minimal coordinates—along with discussion of their computational properties and numerical demonstrations on a planar 3R arm and a 6DOF industrial manipulator.

Significance. If the transition conditions can be shown to follow directly from variational or Newtonian mechanics while preserving physical invariants at the switch (no spurious impulses or unphysical energy jumps), the work would be significant for non-smooth simulation in robotics and human-machine interaction. The dual redundant/minimal-coordinate approach and explicit numerical examples on two mechanisms are strengths that would support broader adoption if the physical justification is tightened.

major comments (3)

[§3] §3 (Projected redundant-coordinate formulation, around the definition of the transition condition): the claim that the projection yields a physically meaningful instantaneous change in mobility is load-bearing, yet no explicit derivation from the underlying variational principle or check against conservation of momentum/energy is provided; the condition appears to be stated rather than derived from first principles.
[§4.1] §4.1 (3R planar mechanism results): the reported trajectories show topology switches but lack quantitative validation such as velocity-jump magnitudes, post-switch constraint violation norms, or comparison to an event-driven complementarity solver; without these, it is impossible to confirm the condition avoids artifacts.
[§5] §5 (Voronets minimal-coordinate version): the reduction at the topology change is asserted to preserve the correct post-activation state, but no limiting-case analysis (e.g., perfectly inelastic locking with zero relative velocity) or general proof independent of the specific examples is given, undermining the generality of the claim.

minor comments (2)

[Abstract] Abstract: the phrase 'results are shown' is vague; specifying the observed quantities (e.g., joint torques, energy balance) would improve clarity.
[§2] Notation: the distinction between redundant and minimal coordinates is introduced late; moving the definitions to §2 would aid readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments and the recommendation for major revision. We address each major comment point by point below, clarifying the derivations and indicating revisions that will be incorporated to strengthen the physical justification, quantitative validation, and generality of the transition conditions.

read point-by-point responses

Referee: §3 (Projected redundant-coordinate formulation, around the definition of the transition condition): the claim that the projection yields a physically meaningful instantaneous change in mobility is load-bearing, yet no explicit derivation from the underlying variational principle or check against conservation of momentum/energy is provided; the condition appears to be stated rather than derived from first principles.

Authors: We appreciate this observation. The transition condition in §3 is obtained by projecting the redundant-coordinate equations of motion onto the admissible velocity subspace consistent with the newly activated constraints, which follows from the principle of virtual work applied instantaneously at the topology switch. However, we acknowledge that the manuscript would benefit from an explicit step-by-step derivation starting from the variational principle (or equivalently from Newtonian mechanics with impulsive constraints) together with a direct verification that linear momentum is conserved in the absence of external impulses while kinetic energy may decrease for inelastic locking. We will revise §3 to include this derivation and the associated conservation analysis. revision: yes
Referee: §4.1 (3R planar mechanism results): the reported trajectories show topology switches but lack quantitative validation such as velocity-jump magnitudes, post-switch constraint violation norms, or comparison to an event-driven complementarity solver; without these, it is impossible to confirm the condition avoids artifacts.

Authors: We agree that the numerical results in §4.1 would be strengthened by quantitative metrics. In the revised manuscript we will add tables reporting the magnitudes of velocity jumps at each switching instant, the post-switch constraint violation norms (both position-level ||Φ(q)|| and velocity-level ||Φ̇(q)||), and a side-by-side comparison against an event-driven solver that enforces complementarity conditions for the same 3R mechanism. These additions will confirm that the proposed condition produces consistent post-switch states without introducing spurious impulses or constraint drift. revision: yes
Referee: §5 (Voronets minimal-coordinate version): the reduction at the topology change is asserted to preserve the correct post-activation state, but no limiting-case analysis (e.g., perfectly inelastic locking with zero relative velocity) or general proof independent of the specific examples is given, undermining the generality of the claim.

Authors: The Voronets equations in minimal coordinates are obtained by coordinate reduction from the projected redundant formulation; the transition condition is constructed to enforce zero relative velocity on the newly locked joint, which is the defining property of perfectly inelastic constraint activation. We will augment §5 with an explicit limiting-case analysis for the case of zero pre-activation relative velocity, showing that the post-switch state coincides with the reduced minimal-coordinate system. A fully general proof of equivalence for arbitrary mechanisms lies beyond the scope of the present work; we will therefore clarify the equivalence via the reduction and provide the limiting-case verification for the reported examples while noting the scope limitation. revision: partial

Circularity Check

0 steps flagged

No circularity: transition conditions derived from standard projected and Voronets equations

full rationale

The paper introduces a transition condition for topology changes due to constraint activation, presented in two forms (projected redundant coordinates and Voronets minimal coordinates). The abstract and context describe these as building directly on established motion equations without any indicated self-definition, parameter fitting to the target result, or load-bearing self-citation chains. No equations or steps in the provided material reduce the claimed condition to its own inputs by construction, and the numerical examples on the 3R arm and manipulator serve as validation rather than the source of the condition itself. The derivation chain remains self-contained against external mechanical principles.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract does not introduce or rely on any explicit free parameters, axioms, or invented entities; the contribution is framed as a derivation of transition conditions from existing coordinate formulations.

pith-pipeline@v0.9.0 · 5430 in / 1029 out tokens · 33983 ms · 2026-05-10T02:13:00.411348+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

20 extracted references

[1]

Chang, C.Q

C.-C. Chang, C.Q. Liu, R.L. Huston: Dynamics of Multibody Systems Subjected to Impulsive Constraints, Multibody System Dynamics, 8, pp. 161–184, 2002

2002
[2]

Galletti, P

C. Galletti, P. Fanghella: Single-Loop kinematotropic mechanisms, Mech. Mach. Theory, V ol. 36, 2001, pp 743-761382, 2000

2001
[3]

E.J Haug, S.C. Wu, S.M. Yang: Dynamics of mechanical systems with Coulomb friction, stic- tion, impact and constraint addition-deletion—I theory, Mechanism and Machine Theory, V ol. 21, No. 5, 1986, Pages 401-406

1986
[4]

Leine, U

R.I. Leine, U. Aeberhard, Ch. Glocker: Hamilton’s Principle as Variational Inequality for Me- chanical Systems with Impact. J. Nonlinear Science, V ol. 19, 2009, pp. 633-664

2009
[5]

Maggi: Da alcune nuove forma della equazioni della dinamica applicabile ai sistemi anolonomi

G.A. Maggi: Da alcune nuove forma della equazioni della dinamica applicabile ai sistemi anolonomi. Atti della Reale Acad. Naz. dei Lincei. Rend. Cl. fis. e math, Ser. 5 1901. V ol. 10, No. 2, pp. 287-291

1901
[6]

Müller: Motion Equations in Redundant Coordinates with Application to Inverse Dynamics of Constrained Mechanical Systems, Nonlinear Dynamics, V ol

A. Müller: Motion Equations in Redundant Coordinates with Application to Inverse Dynamics of Constrained Mechanical Systems, Nonlinear Dynamics, V ol. 67, No. 4, 2012, pp. 2527-2541

2012
[7]

A. Müller: MBS Motion Equation without explicit definition of Body-Fixed Reference Frames, 38 Mechanisms and Robotics Conference (MECH), ASME 2014 International Design Engi- neering Technical Conferences, August 17-20, 2014, Buffalo, NY

2014
[8]

Müller, T

A. Müller, T. Hufnagel: Model-Based Control of Redundantly Actuated Parallel Manipulators in Redundant Coordinates, Robotics and Autonomous Systems, V ol. 60, No.4, 2012, pp. 563- 571

2012
[9]

R. M. Mukherjee, K. Anderson: Efficient methodology for multibody simulations with discon- tinuous changes in system definition, Multibody System Dynamics, V ol. 18, 2007, pp. 145-168

2007
[10]

Pereira, P

M. Pereira, P. Nikravesh: Impact dynamics of multibody systems with frictional contact using joint coordinates and canonical equations of motion, Nonlinear Dynamics, V ol. 9, No. 1+2, 1996, pp. 53-71

1996
[11]

Pfeiffer: Applications of unilateral multibody dynamics

F.G. Pfeiffer: Applications of unilateral multibody dynamics. Philos. Trans. Roy. Soc. Lond., V ol. 359, 2001, pp. 2609-2628

2001
[12]

Pfeiffer, Ch

F. Pfeiffer, Ch. Glocker: Multibody Dynamics with Unilateral Contacts, John Wiley & Sons, New York, 1996

1996
[13]

Piedboeuf, Y

J. Piedboeuf, Y . Gonthier, J. McPhee, C. Lange: A regularized contact model with asymmetric damping and dwell-time dependent friction. Multibody Syst. Dyn. V ol. 11, 2004, pp. 209-233

2004
[14]

Poursina, et al.: Strategies for articulated multibody-based adaptive coarse grain simulation of RNA, Methods Enzymol., V ol

M. Poursina, et al.: Strategies for articulated multibody-based adaptive coarse grain simulation of RNA, Methods Enzymol., V ol. 487, 2011, pp. 73-98

2011
[15]

Poursina, K.S

M. Poursina, K.S. Anderson: Long-range force-field calculations in multiresolution simulation of molecular systems," Journal of Computational Physics, V ol. 231, No. 21, 2012, pp. 7237- 7254

2012
[16]

Röschel: Möbius mechanisms, Advances in Robot Kinematics (ARK) 2000, pp

O. Röschel: Möbius mechanisms, Advances in Robot Kinematics (ARK) 2000, pp. 375-382

2000
[17]

Simas, R

H. Simas, R. Guenther, D.F.M. da Cruz, D. Martins: A new method to solve robot inverse kinematics using Assur virtual chains, Robotica, V ol. 27, 2009, pp. 1017-1026

2009
[18]

Trinkle, D

J. Trinkle, D. Zeng, D. Sudarsky, G. Lo: On dynamic multi-rigid-body contact problems with Coulomb friction, Z. angew. Math. Mech. (ZAMM), V ol. 77, No. 4, 1997, pp. 267-279

1997
[19]

V oronets: Equations of motion for nonholonomic systems, Matem

P.V . V oronets: Equations of motion for nonholonomic systems, Matem. Sbornik, 22, No. 4, 1901

1901
[20]

Wohlhart: Kinematotropic Linkages, in: J

K. Wohlhart: Kinematotropic Linkages, in: J. Lenar ˇciˇc, V . Parent-Castelli (eds.): Recent Ad- vances in Robot Kinematics, Kluwer, 1996, pp. 359-368

1996
