AI Sandboxes: A Threat Model, Taxonomy, and Measurement Framework

Inderjeet Singh , Haitham Mahmoud , Andr\'es Murillo This is my paper

Pith reviewed 2026-06-26 23:39 UTC · model grok-4.3

classification 💻 cs.CR cs.AIcs.ROcs.SE
keywords AI sandboxesthreat modeltaxonomymeasurement frameworkcyber-physical systemsassurancesafety evaluationsecurity
0
0 comments X

The pith

AI sandboxes receive a formalized threat model, taxonomy, and measurement framework that clarify valid tests, containable risks, and evidence for assurance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an assurance-oriented account of AI sandboxes as controlled environments that combine isolation, simulation, instrumentation, supervision, and evidence capture for testing digital, embodied, and cyber-physical AI systems. It formalizes a sandbox boundary and a weakest-link rule for combining evidence across dimensions into a bounded deployment claim, while separating sandbox archetypes and defining a threat model that includes attacks on the assurance apparatus itself. A measurement framework is introduced that spans fidelity, controllability, observability, containment, reproducibility, and governance artifacts, and is applied to three real case studies. A sympathetic reader would care because the work shows what forms of safety, security, and regulatory evidence a sandbox can actually support.

Core claim

The paper formalizes the sandbox boundary and a weakest-link rule for composing per-dimension evidence into a bounded deployment claim; separates major sandbox archetypes; defines a cyber-physical threat model that includes attacks on the assurance apparatus itself; and introduces a measurement framework spanning fidelity, controllability, observability, containment, reproducibility, and governance artifacts, instantiated on three worked case studies.

What carries the argument

The sandbox boundary and weakest-link rule, which together compose evidence from multiple dimensions into a single bounded claim about what risks a sandbox can contain and what deployment assurances it can support.

If this is right

  • Sandboxes can be separated into distinct archetypes with different testing and containment properties.
  • The threat model requires considering attacks aimed at the sandbox's own assurance mechanisms.
  • Evidence collected in a sandbox supports safety and regulatory claims only within the limits set by the weakest-link composition.
  • The six measurement dimensions allow assessment of whether a sandbox can validly test specific risks.
  • Governance artifacts become a required dimension for any claim of regulatory assurance from sandbox results.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Regulators could adopt the taxonomy to define minimum requirements for sandbox evidence in AI certification processes.
  • Sandbox designers might prioritize improvements along the weakest dimensions identified by the measurement framework for their specific use cases.
  • The approach could be extended to compare assurance levels across sandboxes used by different organizations or for different AI domains.

Load-bearing premise

The paper assumes that the formalized sandbox boundary and weakest-link rule for composing per-dimension evidence into a bounded deployment claim can be applied without providing the explicit formalization or validation steps for this rule.

What would settle it

A case where the weakest-link rule is applied to evidence from one of the studied sandboxes and the resulting bounded claim is contradicted by observed failures or un-contained risks in actual deployment would falsify the framework.

Figures

Figures reproduced from arXiv: 2606.18532 by Andr\'es Murillo, Haitham Mahmoud, Inderjeet Singh.

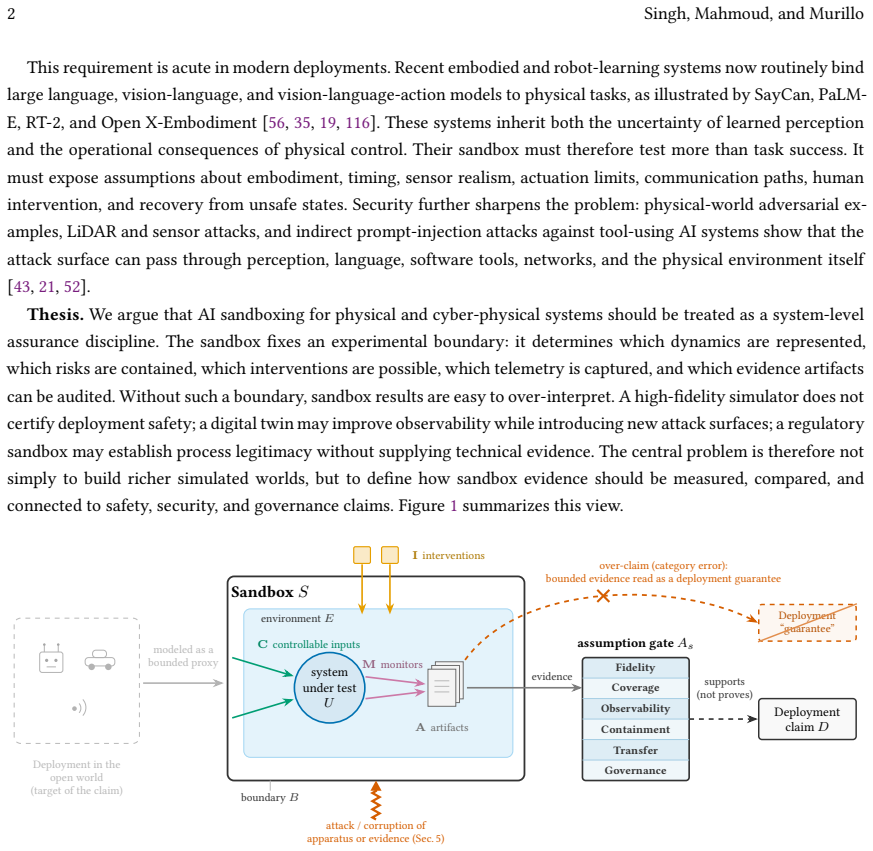

Figure 1
Figure 1. Figure 1: A sandbox is a bounded, instrumented experiment on a proxy of the deployed system; its evidence artifacts license a deploy [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

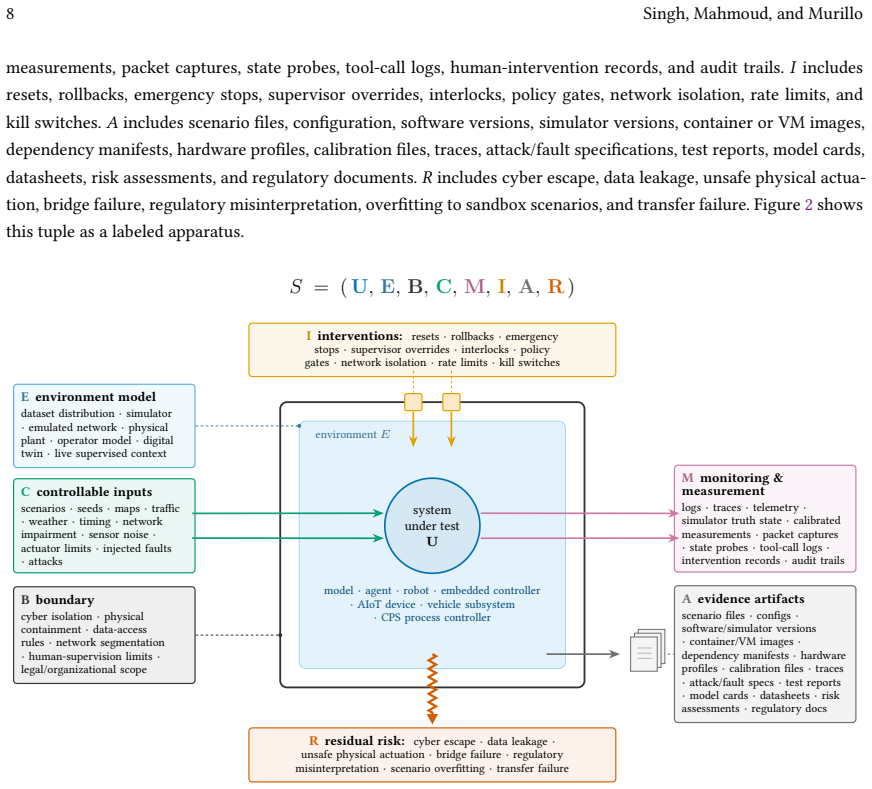

Figure 2
Figure 2. Figure 2: Anatomy of an AI sandbox as the tuple 𝑆 = (𝑈 , 𝐸, 𝐵,𝐶, 𝑀, 𝐼, 𝐴, 𝑅). Controllable inputs 𝐶 enter the boundary 𝐵 around the system under test 𝑈 in environment 𝐸; monitors 𝑀 produce artifacts 𝐴; interventions 𝐼 act on the boundary; residual risk 𝑅 is what crosses 𝐵 outward despite the controls (the inward counterpart, an attack on the apparatus, appears in [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

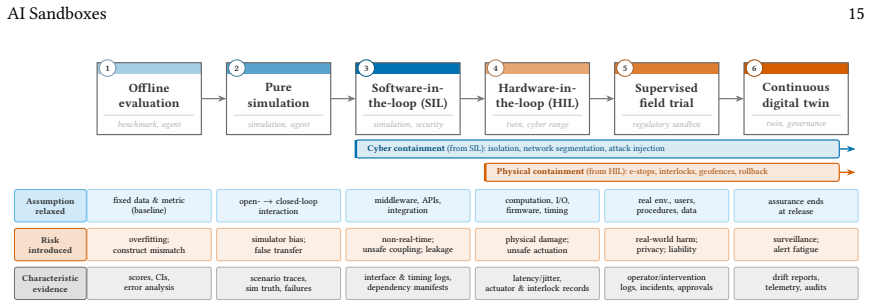

Figure 3
Figure 3. Figure 3: Staged evaluation pipeline for physical AI sandboxes. Each stage relaxes one assumption (lane 1), introduces a characteristic [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4

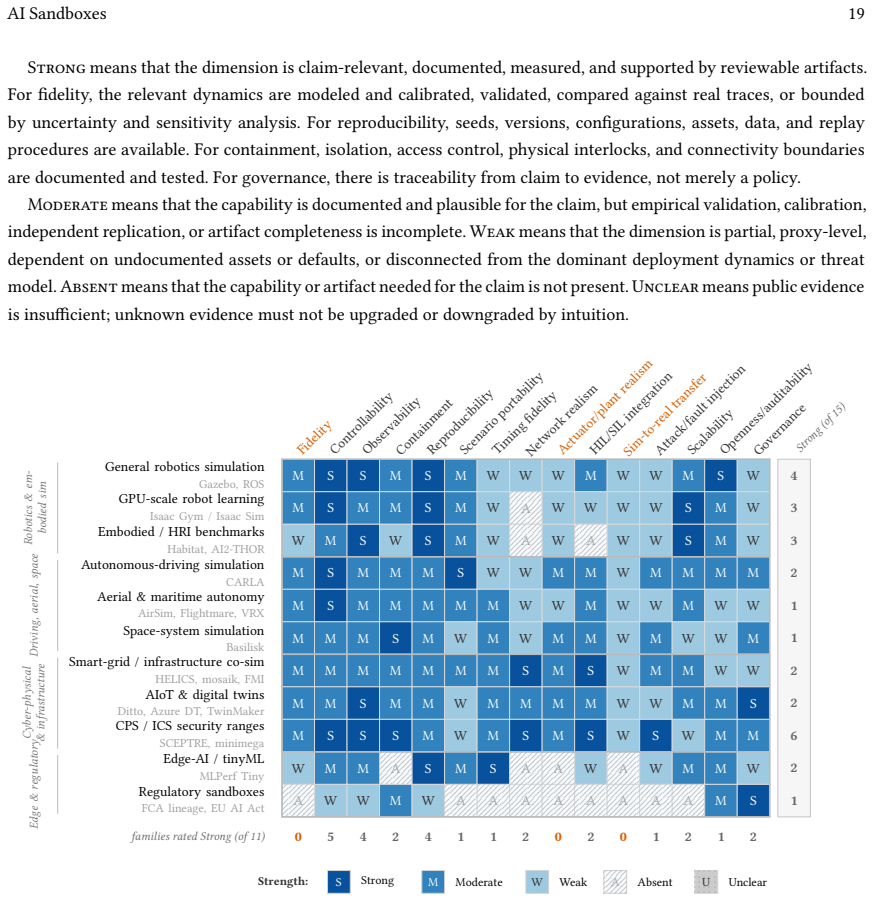

Figure 4. Figure 4: Claim-relative coding of sandbox families across measurement dimensions ( [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗

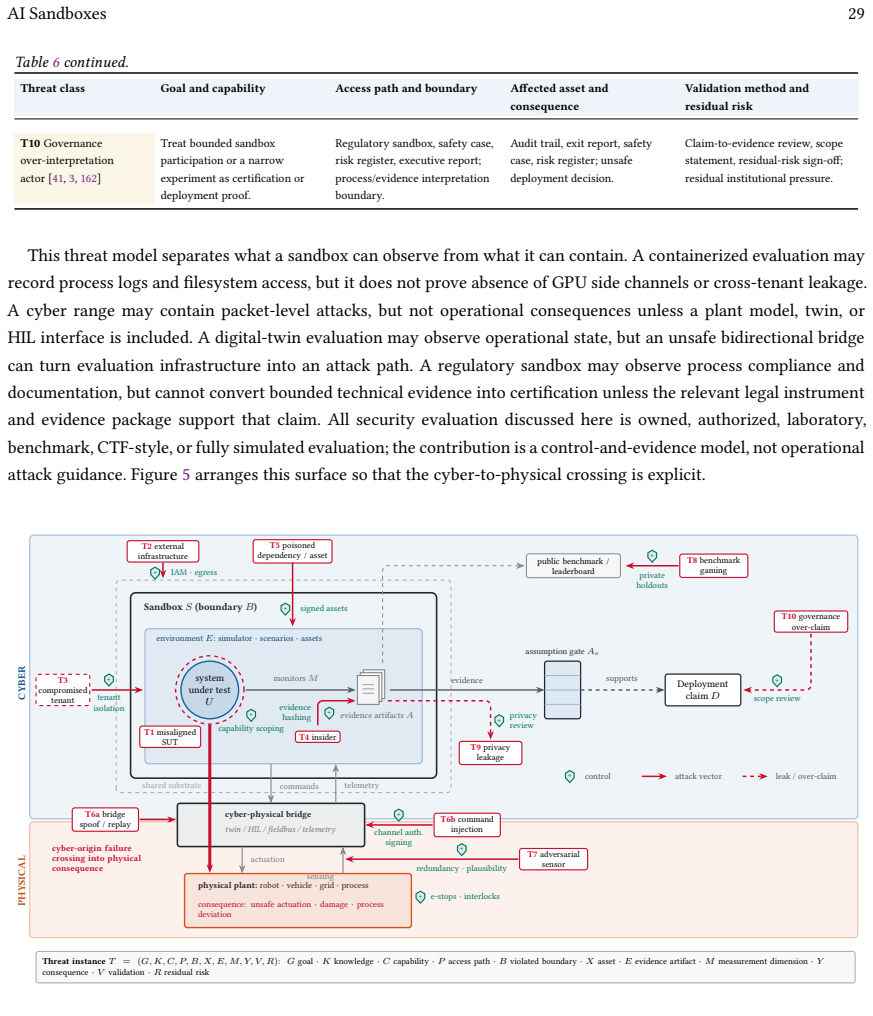

Figure 5
Figure 5. Figure 5: Threat surface of an AI sandbox, drawn on the apparatus of Figures [PITH_FULL_IMAGE:figures/full_fig_p029_5.png] view at source ↗

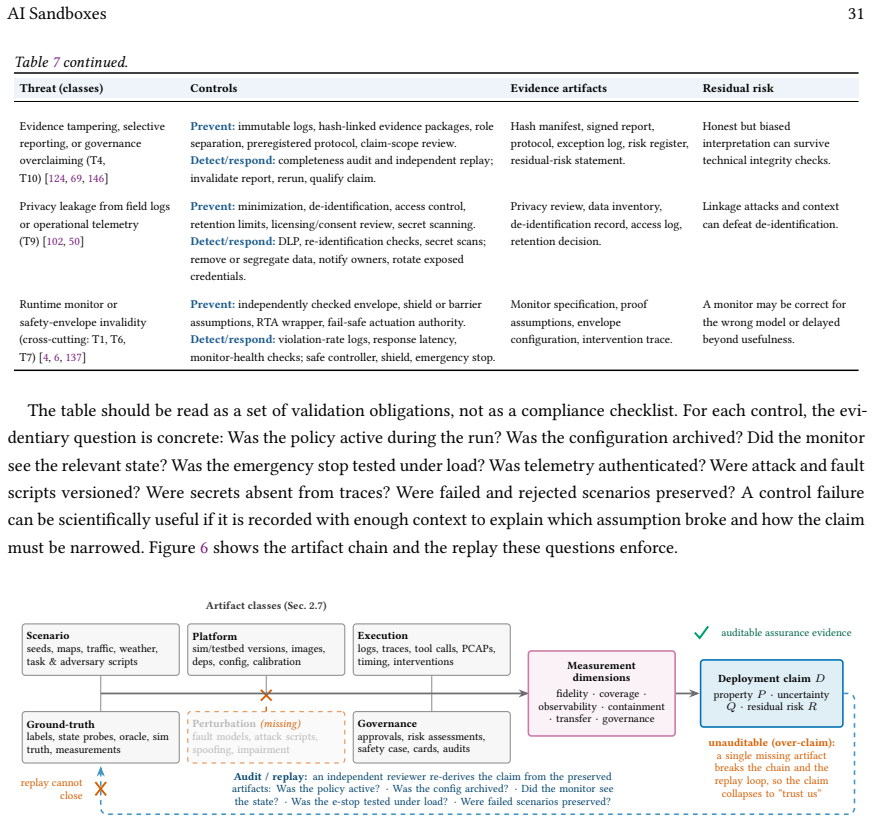

Figure 6
Figure 6. Figure 6: Sandbox capability becomes assurance evidence only when the artifact chain (scenario, platform, execution, ground-truth, [PITH_FULL_IMAGE:figures/full_fig_p031_6.png] view at source ↗

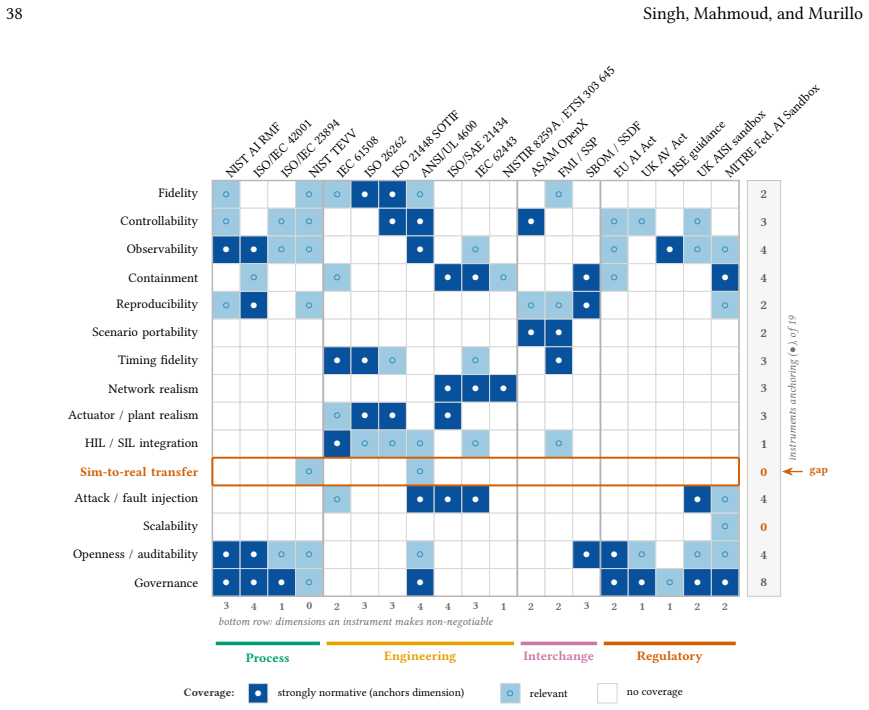

Figure 7
Figure 7. Figure 7: Coverage of sandbox measurement dimensions by standards and regulatory instruments, grouped by role. Dark cells mark [PITH_FULL_IMAGE:figures/full_fig_p038_7.png] view at source ↗

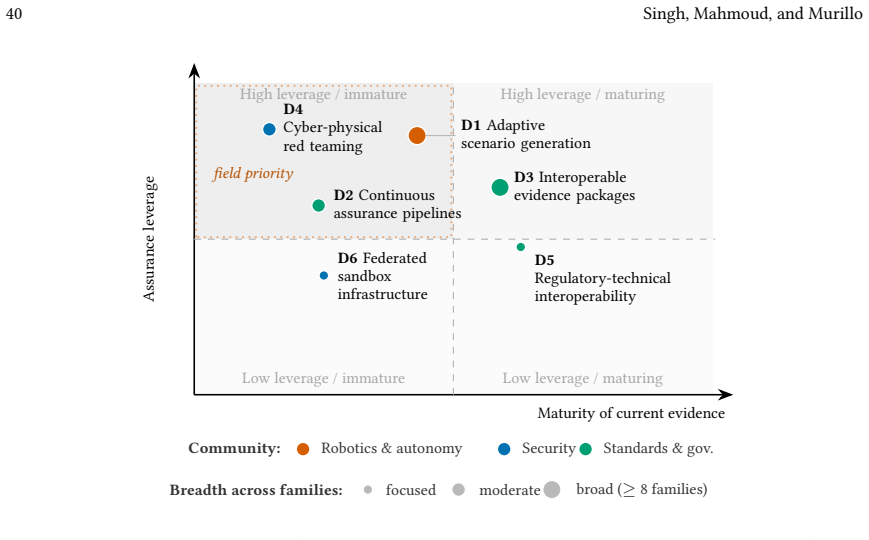

Figure 8
Figure 8. Figure 8: Research-and-engineering roadmap for next-generation AI sandboxes. Each direction is scored on the maturity of current [PITH_FULL_IMAGE:figures/full_fig_p040_8.png] view at source ↗
read the original abstract

AI systems are increasingly evaluated in bounded environments that combine isolation, simulation, instrumentation, supervision, and evidence capture. For physical AI, AIoT, and cyber-physical systems, this shift is not a matter of terminology: the system under test may sense, decide, actuate, communicate, and fail through physical processes, networked devices, and human operators. This article develops an assurance-oriented account of AI sandboxes as controlled environments for testing, evaluation, verification, and validation across digital AI, embodied autonomy, and cyber-physical deployments. We formalize the sandbox boundary and a weakest-link rule for composing per-dimension evidence into a bounded deployment claim; separate major sandbox archetypes; define a cyber-physical threat model that includes attacks on the assurance apparatus itself; and introduce a measurement framework spanning fidelity, controllability, observability, containment, reproducibility, and governance artifacts, instantiated on three worked case studies of real sandboxes. The resulting threat model, taxonomy, and measurement framework clarify what a sandbox can validly test, which risks it can contain, and what forms of evidence it can support for safety, security, and regulatory assurance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper develops an assurance-oriented account of AI sandboxes as controlled environments for testing, evaluation, verification, and validation of digital AI, embodied autonomy, and cyber-physical systems. It claims to formalize the sandbox boundary and a weakest-link rule for composing per-dimension evidence into a bounded deployment claim, separate major sandbox archetypes, define a cyber-physical threat model that includes attacks on the assurance apparatus, and introduce a measurement framework spanning fidelity, controllability, observability, containment, reproducibility, and governance artifacts, instantiated on three worked case studies.

Significance. If the announced formalization and weakest-link rule can be supplied with explicit statements and validation, the resulting threat model, taxonomy, and measurement framework would clarify what a sandbox can validly test and the forms of evidence it can support for safety, security, and regulatory assurance. The paper's inclusion of three case studies and a threat model that accounts for attacks on the assurance apparatus itself are concrete strengths that could ground the taxonomy in practice.

major comments (1)
  1. [Abstract] Abstract: The central claim requires that the formalized sandbox boundary and weakest-link rule can be applied to turn per-dimension evidence into a bounded deployment claim. The manuscript announces this formalization but supplies neither the explicit mathematical statement of the rule (e.g., an axiom or composition operator) nor any validation procedure showing how the rule is applied without circularity or hidden assumptions.
minor comments (2)
  1. [Abstract] Abstract: The description of the measurement framework lists six dimensions but does not indicate how they are combined or scored in the case studies, leaving the framework's operational use unclear.
  2. [Abstract] Abstract: The claim that the framework 'clarify what a sandbox can validly test' is presented as a result, but without the missing formalization it functions more as a definitional taxonomy than a derived assurance method.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for identifying the gap between the abstract's announcement of a formalization and the absence of explicit mathematical statements and validation procedures in the manuscript. We will revise accordingly to strengthen the central claim.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim requires that the formalized sandbox boundary and weakest-link rule can be applied to turn per-dimension evidence into a bounded deployment claim. The manuscript announces this formalization but supplies neither the explicit mathematical statement of the rule (e.g., an axiom or composition operator) nor any validation procedure showing how the rule is applied without circularity or hidden assumptions.

    Authors: We agree that the manuscript announces the formalization of the sandbox boundary and weakest-link rule in the abstract and introduction but does not supply an explicit mathematical statement (such as an axiom or composition operator) or a validation procedure demonstrating application to per-dimension evidence without circularity. This is a substantive omission that weakens the central claim. We will add a dedicated subsection (likely in Section 3 or 4) that provides: (1) a formal definition of the sandbox boundary as a tuple of the six measurement dimensions with explicit containment predicates; (2) the weakest-link rule stated as a composition operator over evidence tuples, with the rule that the overall deployment claim is bounded by the minimum strength across dimensions; and (3) a non-circular validation procedure that applies the operator to the three case studies by mapping each dimension's evidence to a bounded claim and showing the resulting composite bound. This addition will be cross-referenced back to the abstract. revision: yes

Circularity Check

0 steps flagged

No significant circularity; framework is definitional with independent content

full rationale

The paper develops a threat model, taxonomy, and measurement framework by formalizing a sandbox boundary and weakest-link rule for evidence composition, then instantiating on case studies. No quoted equations or steps reduce any claimed prediction or first-principles result to its own inputs by construction. No fitted parameters are renamed as predictions, no load-bearing self-citations justify uniqueness theorems, and no ansatz is smuggled via prior work. The central claims rest on the introduced formalization and measurement dimensions rather than self-referential reduction, making the derivation self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central contribution rests on newly introduced conceptual constructs whose validity is not independently evidenced outside the framework itself.

axioms (1)
  • domain assumption The weakest-link rule validly composes per-dimension evidence into a bounded deployment claim.
    Invoked when formalizing the sandbox boundary and evidence composition.
invented entities (2)
  • Sandbox boundary no independent evidence
    purpose: Defines the controlled testing environment and its limits.
    Newly formalized concept central to the taxonomy.
  • Weakest-link rule no independent evidence
    purpose: Composes evidence across sandbox dimensions.
    New rule proposed for assurance claims.
